SEATS

8G–5

Power Seat Assembly

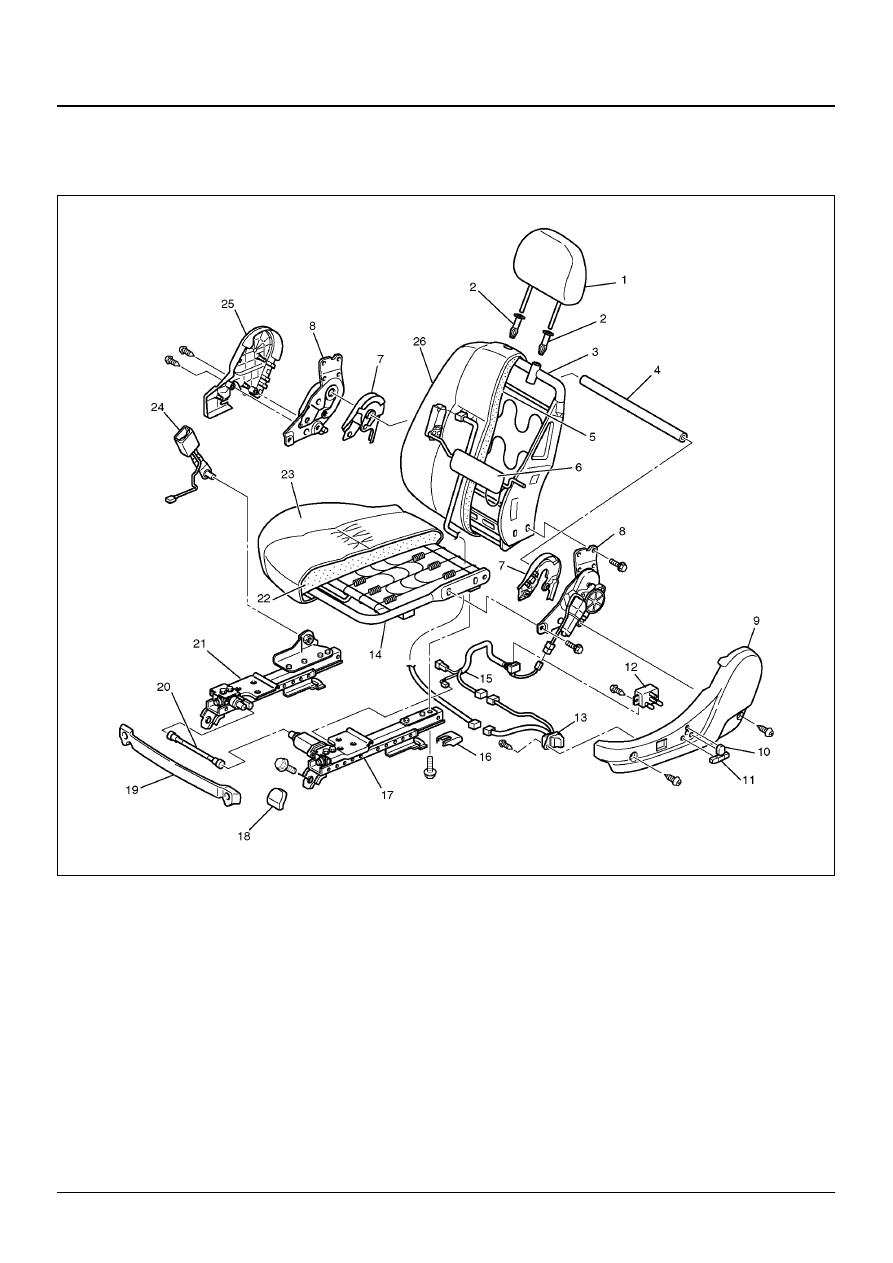

Power Seat Assembly and Associated Parts

750R200017

E nd O FCallo ut

Legend

(1) Headrest
(2) Guide Holder
(3) Seat Back Frame Assembly
(4) Connecting Pipe
(5) Seat Back Pad
(6) Power Lumbar Support Assembly (Driver's

side)

(7) Reclining Device Cover
(8) Reclining Device
(9) Outer Side Cover

(10) Reclining Switch Knob

(11) Slide Switch Knob

(12) Power Seat Switch
(13) Power Lumbar Switch (Driber's Side)

(14) Seat Cushion Frame Assembly
(15) Power Seat Harness
(16) Adjuster Bracket Rear Cover
(17) Outer Seat Adjuster Assembly
(18) Adjuster Bracket Front Cover
(19) Front Cover
(20) Sliding Motor Cable
(21) Inner Seat Adjuster Assembly
(22) Seat Cushion Pad
(23) Seat Cushion Assembly/Seat Cushion Trim

Cover

(24) Seat Belt Buckle Assembly
(25) Inner Side Cover
(26) Seat Back Assembly/Seat Back Trim Cover

8G–6

SEATS

Removal

1. Remove the adjuster bracket rear cover and the

fixing bolts on the rear side of the seat adjuster
assembly.

• Before removal, slide the power seat assembly

forward.

2. Remove the adjuster bracket front cover and the

fixing bolts on the front side of the seat adjuster
assembly.

• Before removal, slide the power seat assembly

backward.

3. Disconnect the battery ground cable.

4. Remove the power seat assembly.

• Disconnect the power seat harness connectors

and the seat belt warning connector of the driver
side.

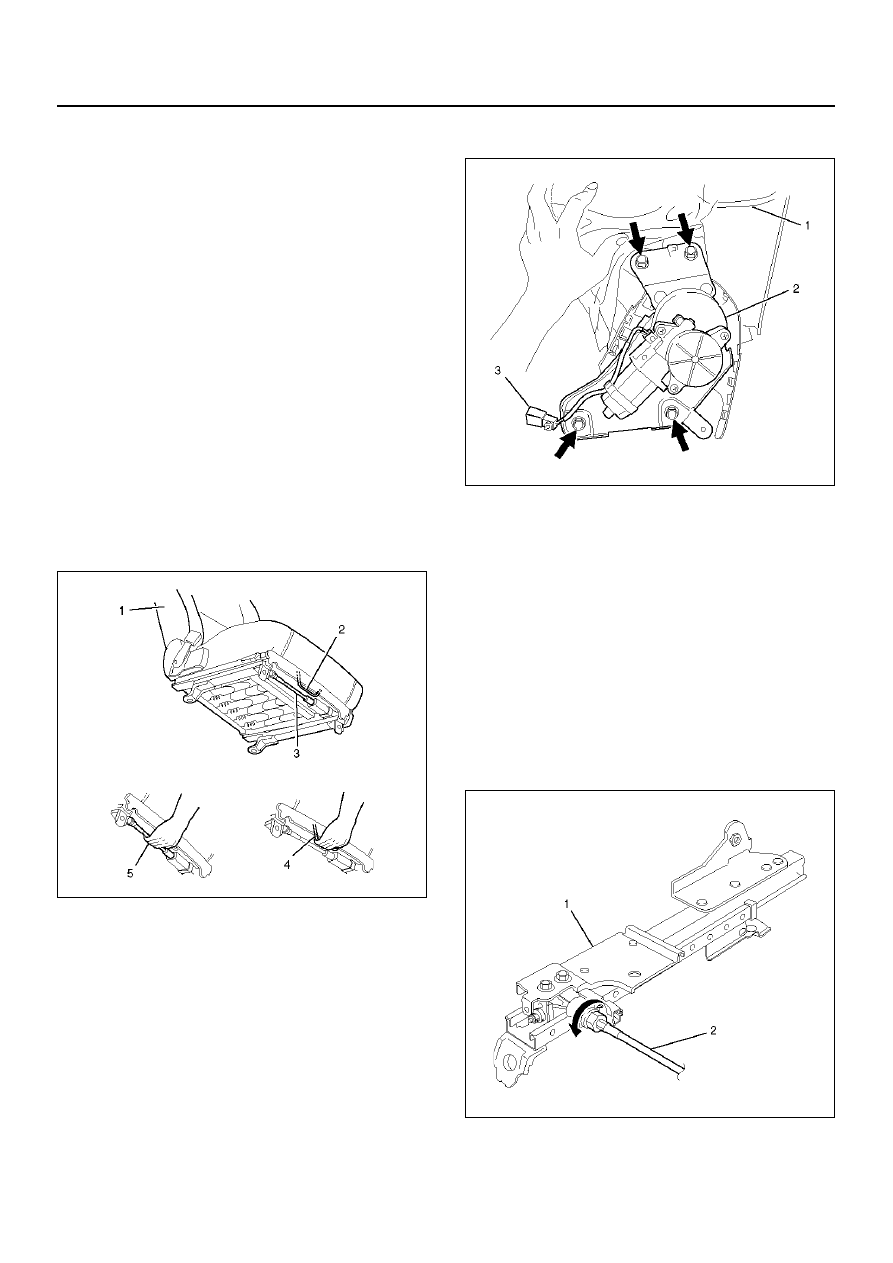

CAUTION:  When raising power seat assembly (1),
use the handle (2) not the cable (3).   A bent cable
causes noise to occur during power seat operation.

• Please grip the handle (4).

• Don't grip the cable (5).

760R100036

5. Pull the switch knobs out.

6. Remove the outer side cover.

• Remove the two fixing screws and disconnect the

power seat switch connector.

7. Remove the power seat switch.

• Remove the two fixing screws.

8. Remove the power lumbar switch.

• Remove the two fixing screws and conectors.

9. Remove the inner side cover.

10. Remove the headrest.

11. Remove the reclining device (2).

• Flip up the seat back trim cover (1) in order to

remove the reclining device fixing bolts.

• Disconnect the reclining motor harness connector

(3).

760R100037

12. Remove the reclining device covers.

13. Remove the trim cover and pad (Seat back side).

14. Remove the power lumbar support assembly.

15. Remove the guide holder.

• Pull the guide holder out by holding the bottom

end of it from the seat back assembly.

16. Remove the seat adjuster assembly.

• Remove the four fixing bolts and disconnect the

sliding motor connector.

17. Remove the sliding motor cable (2).

• Remove the nuts of each side.

CAUTION:  Be sure to maintain the same position
for both outer and inner seat adjust assembly (1).

760R100038

18. Remove the seat belt buckle assembly.

19. Remove the trim cover and pad (Seat cushion side)

20. Remove the power seat harness.

SEATS

8G–7

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Tighten the reclining device fixing bolts to the

specified torque.

Torque: 46 N·m (34 lb ft)

2. Tighten the seat adjuster fixing bolts to the specified

torque.

Torque: 21 N·m (15 lb ft) to seat cushion

Torque: 39 N·m (29 lb ft) to body

3. Tighten the seat belt buckle assembly fixing bolts to

the specified torque.

Torque: 29 N·m (22 lb ft)

NOTE:  The performance of the reclining device and the
seat adjuster of a power seat are guaranteed by the set
of the outer and inner. Because of this, make sure to
replace the reclining device and seat adjuster by the
set.

8G–8

SEATS

Rear Seat Assembly (LWB)

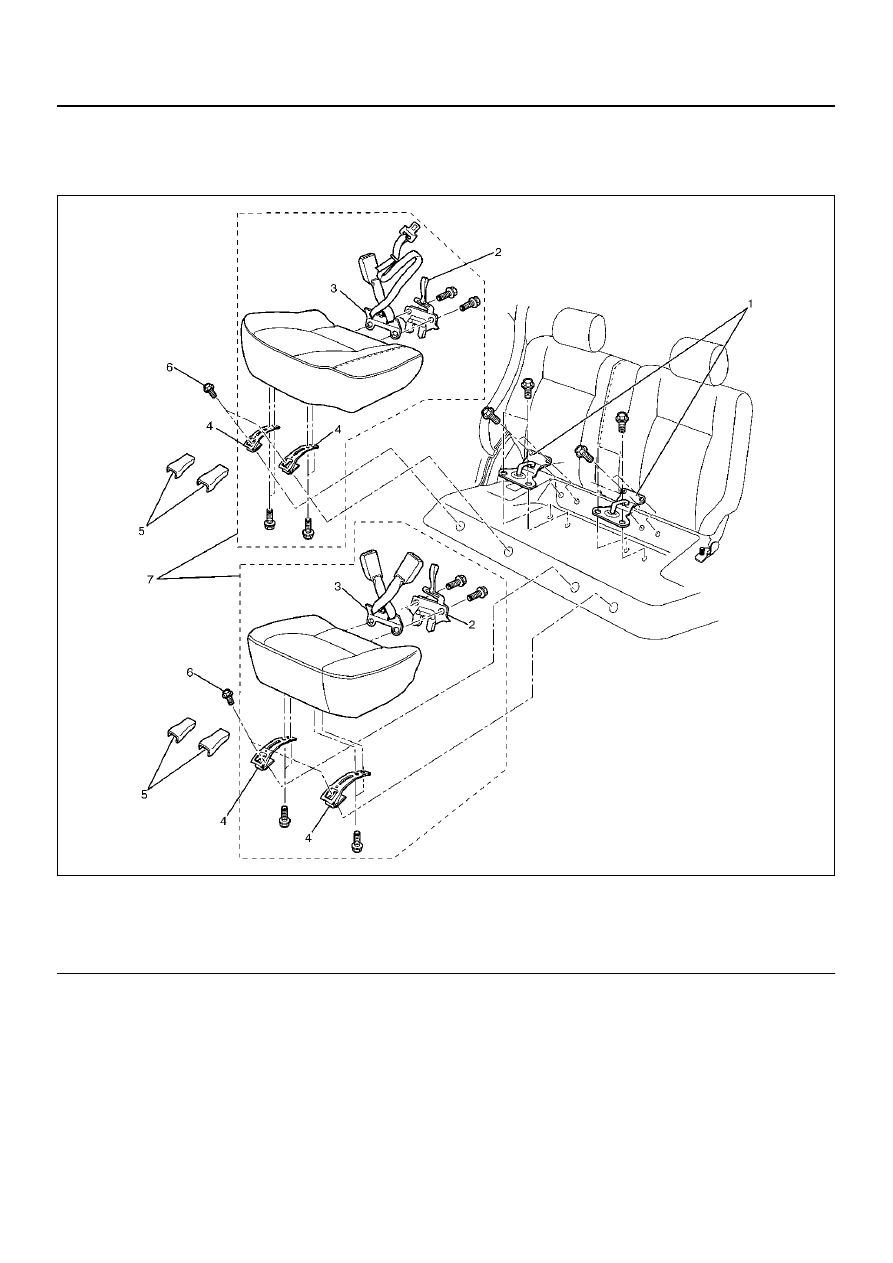

Rear Seat Cushion Assembly and Associated Parts

755RY00009

EndOFCallout

Legend

(1) Rear Seat Lock Striker
(2) Rear Seat Lock Assembly
(3) Rear Seat Belt Buckle Assembly

(4) Seat Cushion Hinge
(5) Hinge Cover
(6) Seat Cushion Fixing Bolt
(7) Rear Seat Cushion Assembly
