LIGHTING SYSTEM

8A–23

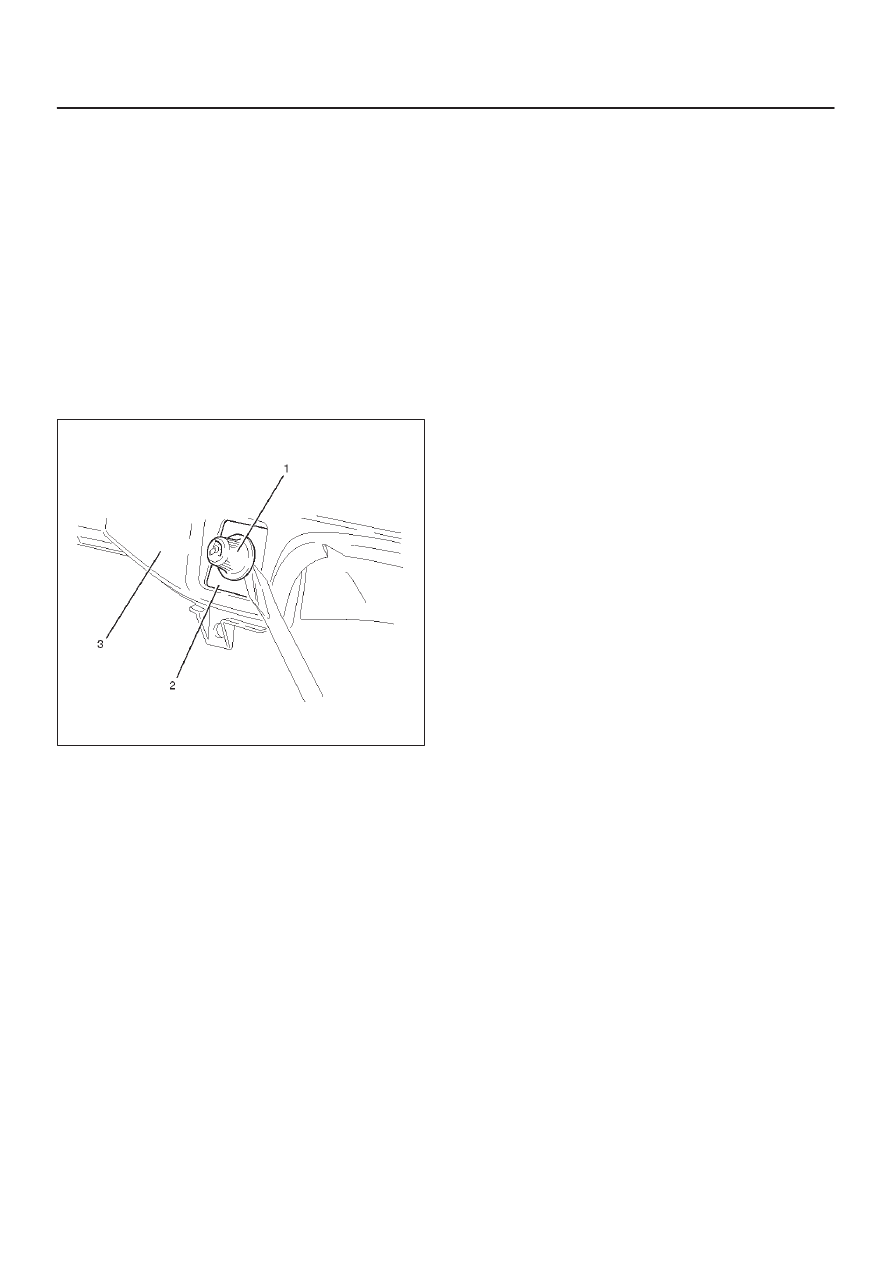

Illumination Controller

Removal

1. Disconnect the battery ground cable.
2. Remove the instrument panel driver lower cover

assembly (3).

D

Refer to Instrument Panel Assembly in Body
Structure section.

3. Remove the illumination controller (2).

D

Disconnect the controller connector.

D

Remove the controller knob (1).

D

Remove the nut.

D

Remove the controller from the back side of the
instrument panel driver lower cover assembly.

826RW005

Installation

To install, follow the removal steps in the reverse order.

8A–24

LIGHTING SYSTEM

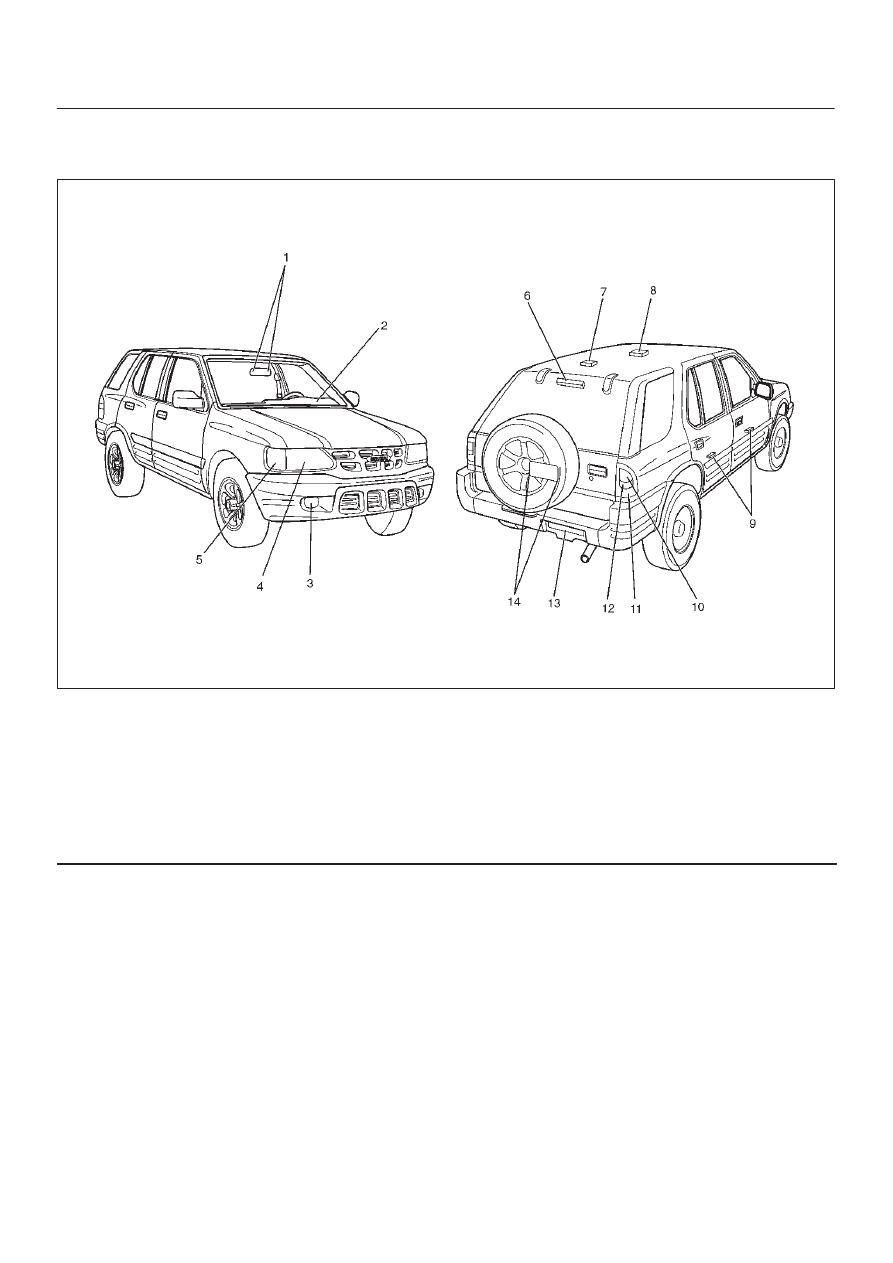

Light and Bulb Specifications (LWB)

Light and Bulb Specifications

801R100001

Legend

(1) Map Light
(2) Meter
(3) Fog Light
(4) Headlight
(5) Front Turn Signal Light/Front Side Marker

Light/Parking Light

(6) High Mounted Stoplight

(7) Luggage Room Light
(8) Dome Light
(9) Courtesy Light

(10) Rear Turn Signal Light

(11) Taillight/Stoplight

(12) Backup Light
(13) License Plate Light (Bumper Type)
(14) License Plate Light (Tailgate Type)

LIGHTING SYSTEM

8A–25

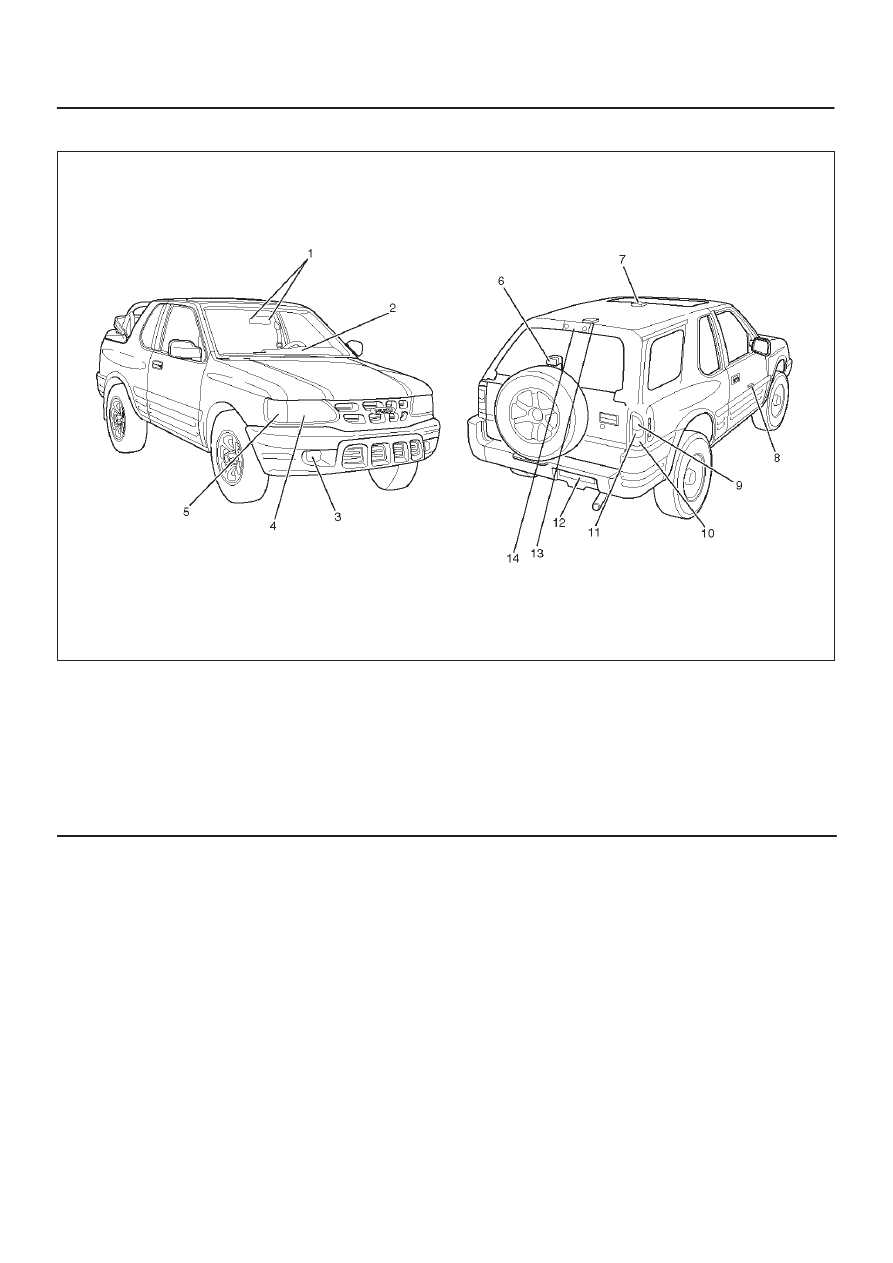

Light and Bulb Specifications (SWB)

801R100003

Legend

(1) Map Light
(2) Meter
(3) Fog Light
(4) Headlight
(5) Front Turn Signal Light/Front Side Marker

Light/Parking Light

(6) High Mounted Stoplight (Soft Top Model)

(7) Dome Light
(8) Courtesy Light
(9) Rear Turn Signal Light

(10) Taillight/Stoplight

(11) Backup Light

(12) License Plate Light
(13) Luggage Room Light (Resin Top Model)
(14) High Mounted Stoplight (Resin Top Model)

8A–26

LIGHTING SYSTEM

Light Name

Bulb No.

Rated Pow-

er

Number of

Bulbs

Lens Color

Remarks

Headlight

—

65w/45w

2

White

Halogen

Front Turn signal Light/
Front Side Marker Light/Parking Light

—

21w/5w

2

Amber

Fog Light

—

55w

2

White

Halogen

Rear Turn Signal Light

—

21w

2

Amber

Backup Light

—

21w

2

White

Taillight/Stoplight

—

21w/5w

2

Red

High Mount Stoplight (Soft Top Model)

—

5w (18W)

4 (1)

Red

License Plate Light (Tailgate type)

—

5w (5W)

1 (2)

White

Map Light

—

5w

2

White

Dome Light

—

7w

1

White

Luggage Room Light

—

5w

1

White

Courtesy Light

—

3.4w

4

White

Check Trans

—

1.4w

1

Red

Meter

A/T Oil Temp

—

3w

1

Red

Meter

Cruise Set

—

1.4w

1

Green

Meter

Power Drive

—

1.4w

1

Amber

Meter

Winter Drive

—

1.4w

1

Green

Meter

Turn Signal

—

1.4w

2

Green

Meter

Upshift

—

1.4w

1

Amber

Meter

High Beam

—

1.4w

1

Blue

Meter

ABS

—

1.4w

1

Amber

Meter

Indicator/Warning

Seat Belt

—

2w

1

Red

Meter

g

Light

Malfunction Indicator
(Check Engine)

—

1.4w

1

Amber

Meter

Low Fuel

—

1.4w

1

Amber

Meter

4WD

—

1.4w

1

Green

Meter

Oil Pressure

—

1.4w

1

Red

Meter

Brake System

—

1.4w

1

Red

Meter

Charge

—

1.4w

1

Red

Meter

A/T Shift Position

—

1.4w

7

P,N,D,3,2,L

:Green

R: Amber

Meter

Air Bag

—

2w

1

Red

Meter

Illumination Light

Meter

—

3.4w

4

Meter

Shift lever

—

1.4w

1

White

Shift lever
