5A–26

BRAKE CONTROL SYSTEM

D05R200002

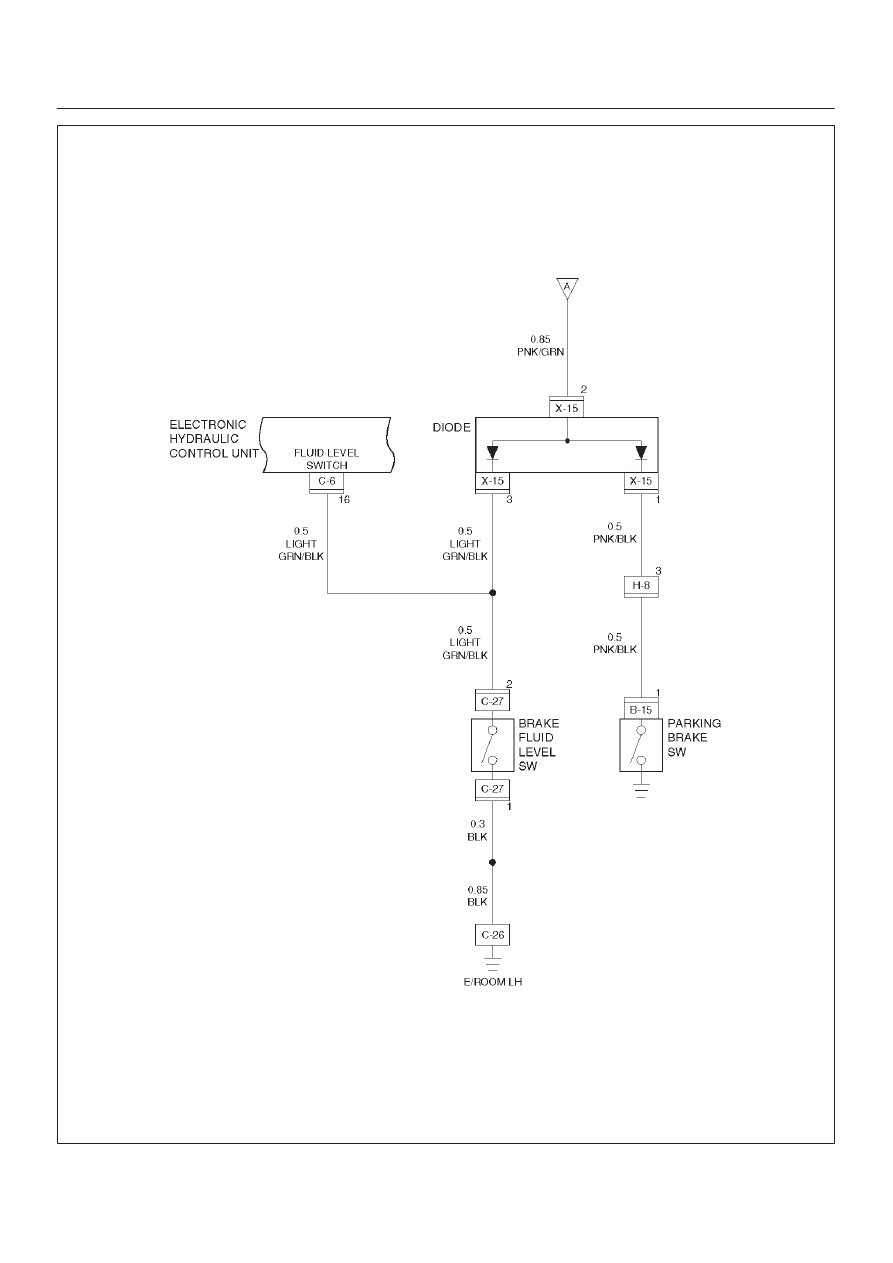

5A–27

BRAKE CONTROL SYSTEM

D05R200003

5A–28

BRAKE CONTROL SYSTEM

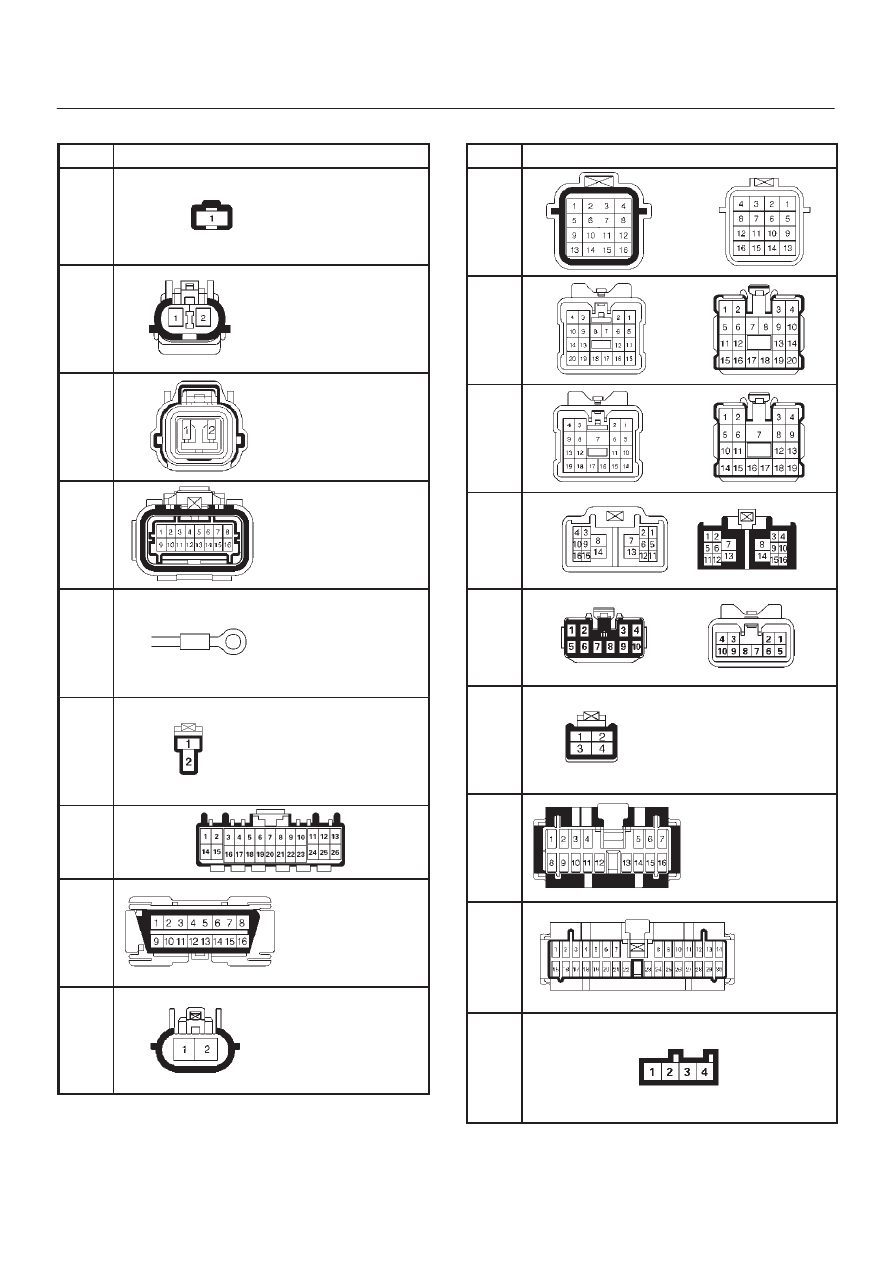

Connector List

No.

Connector face

B-15

C-1

C-28

C-5

C-6

C-10
C-16

E-23

C-27

C-37

C-39

F-4

No.

Connector face

H-5

H-8

H-14

H-16

H-20

I-18

I-23

I-24

X-15

5A–29

BRAKE CONTROL SYSTEM

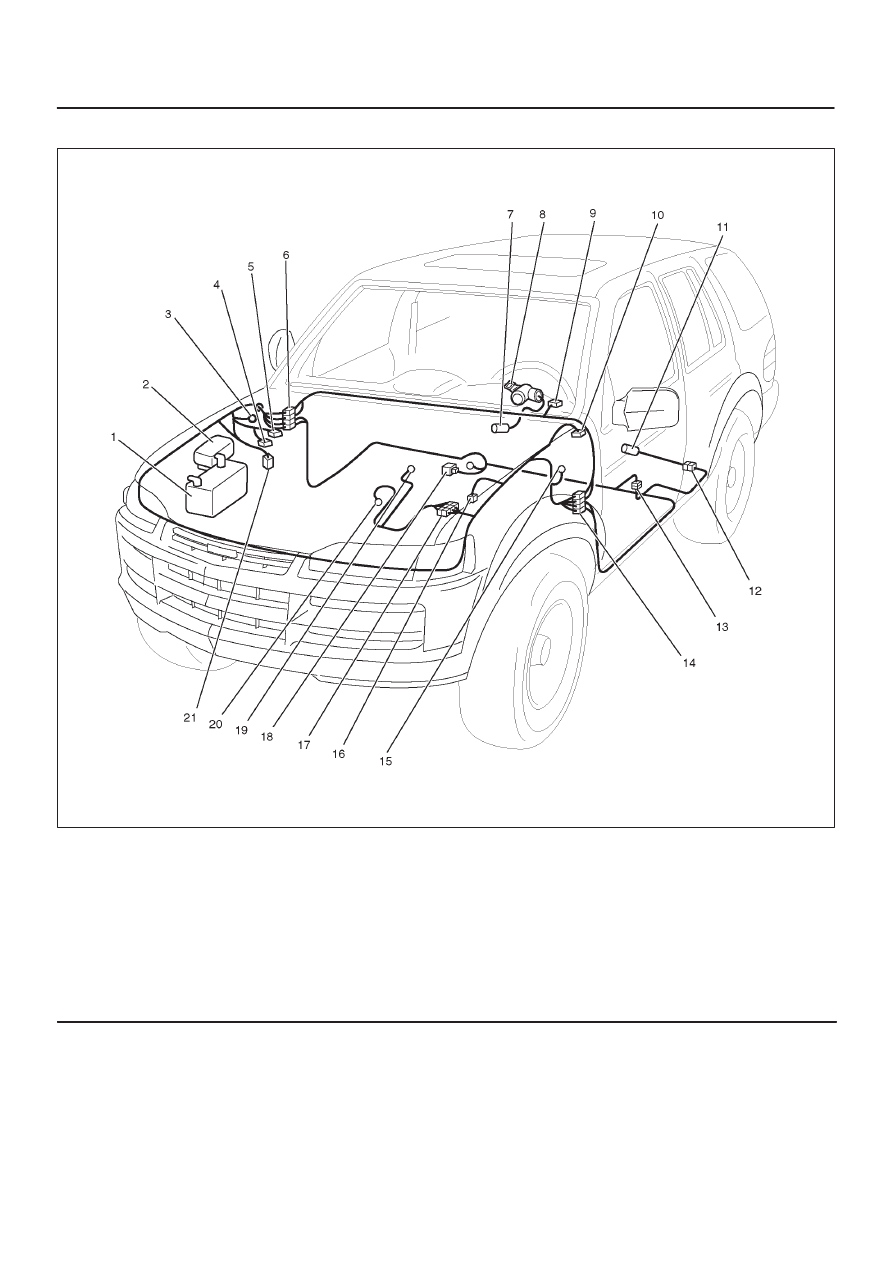

Part Location

810R200002

Legend

(1) Battery
(2) Fuse & Relay Box
(3) C–16
(4) C–5
(5) C–6
(6) H–8, 14
(7) I–18
(8) Starter Switch

(9) I–24

(10) C–39

(11) F–4

(15) C–10
(16) C–28
(17) H–5
(19) E–23
(21) C–1
