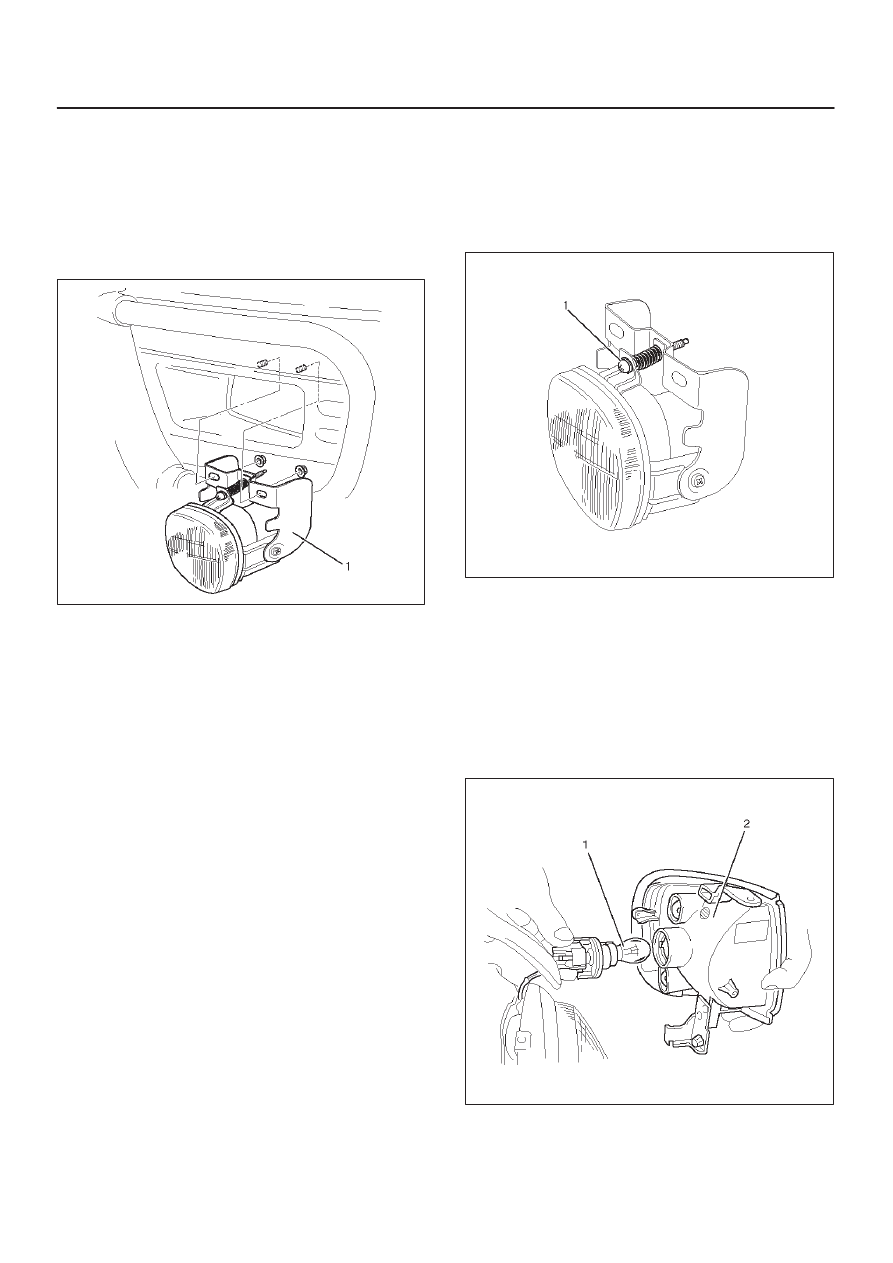

Fog Light Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove the fog light assembly (1).

D

Disconnect the connector.

D

Remove two nuts from the bracket.

825RY00065

Installation

To install, follow the removal steps in the reverse order.

CAUTION: After installing the fog light, be sure to
adjust the fog light aim.

Fog Light Adjustment

Vertical Adjustment

Turn the adjusting screw (1) with a screwdriver to adjust
the aim of the fog light vertically.

825RY00067

Side Marker Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the radiator grille.

D

Refer to Engine Hood and Fender in Body Structure
section.

3. Remove the front combination light (2).

D

Remove three screws.

4. Remove the bulb (1).

D

Remove the side marker light socket by turning it
counterclockwise.

D

Remove the bulb by turning it counterclockwise
while pushing it at the same time.

825RW067

Installation

To install, follow the removal steps in the reverse order.

8A–8

LIGHTING SYSTEM

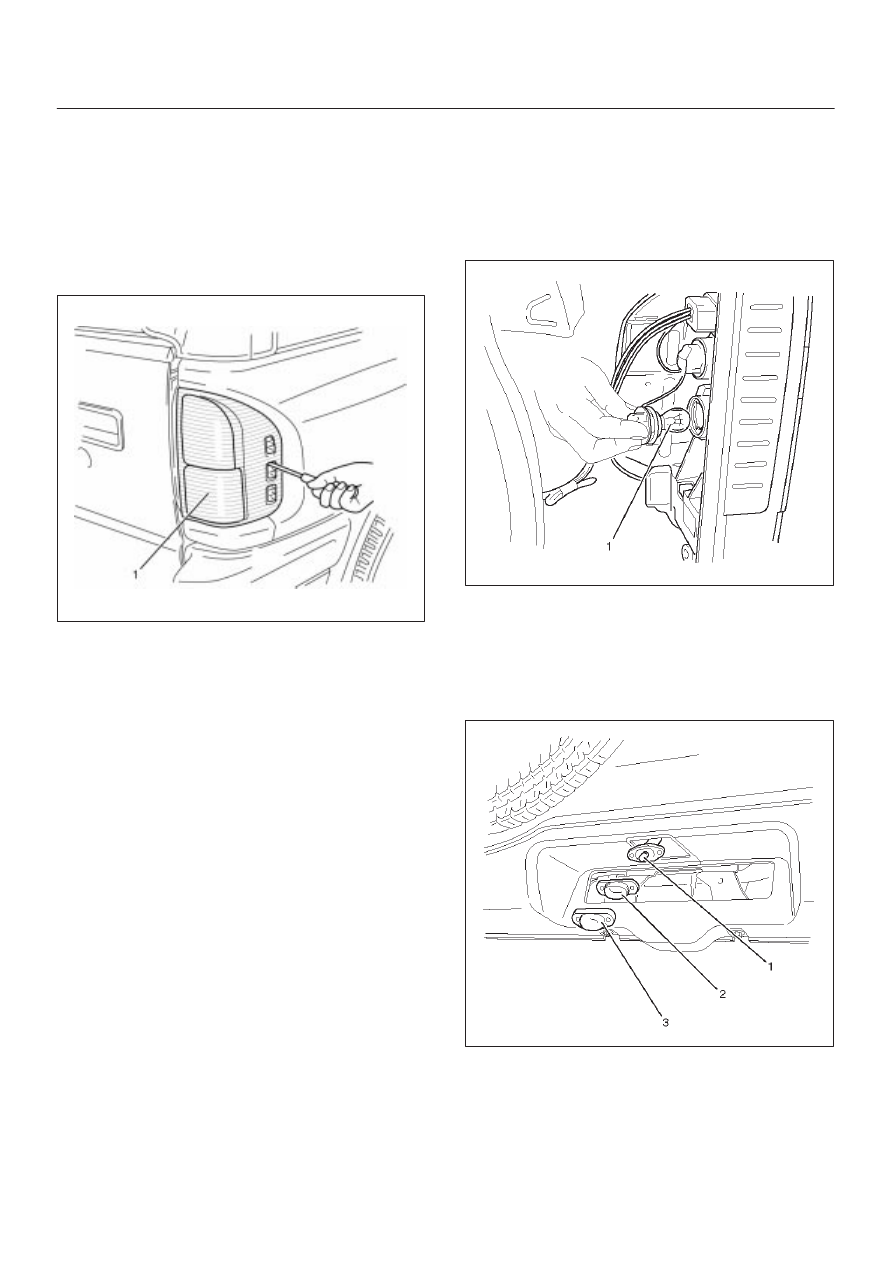

Taillight Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the rear combination light assembly (1).

D

Remove three screws.

D

Pull out the rear combination light assembly toward
you.

803RY00005

3. Remove the bulb (1).

D

Remove the taillight socket by turning it
counterclockwise.

D

Remove the bulb by turning it counterclockwise
while pushing it at the same time.

825RW069

Installation

To install, follow the removal steps in the reverse order.

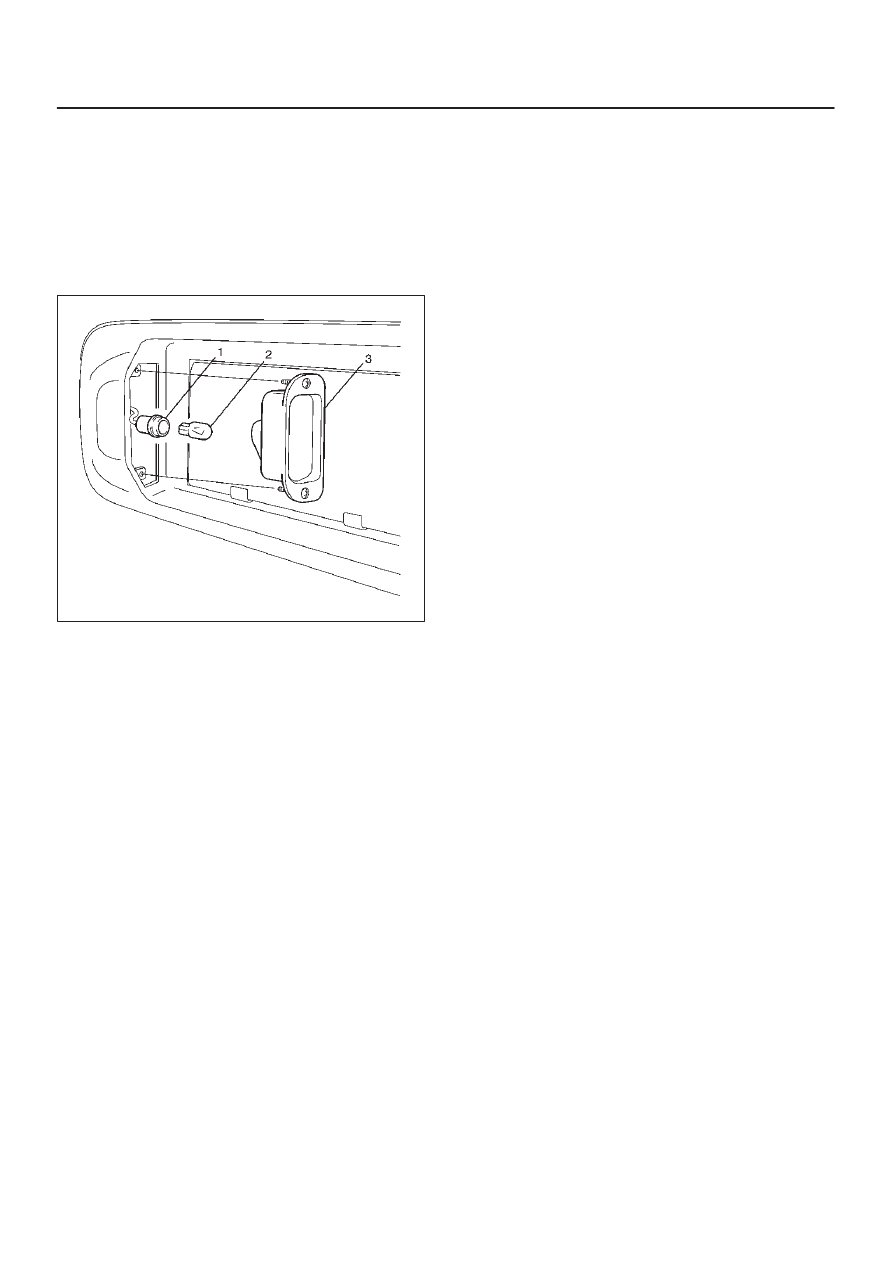

License Plate Light Bulb (Bumper Type)

Removal

1. Disconnect the battery ground cable.
2. Remove the lens cover (3).

D

Remove two screws.

3. Remove the lens (2).
4. Remove the bulb (1).

D

Pull out the bulb from the socket.

825RW070

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–9

License Plate Light Bulb (Tailgate Type)

Removal

1. Disconnect the battery ground cable.
2. Remove the lens cover (3).

D

Remove two screws.

3. Remove the bulb (2).

D

Pull out the bulb from the socket (1).

803RW014

Installation

To install, follow the removal steps in the reverse order.

Stoplight Bulb

Removal and Installation

Refer to Taillight Bulb in this section.

8A–10

LIGHTING SYSTEM

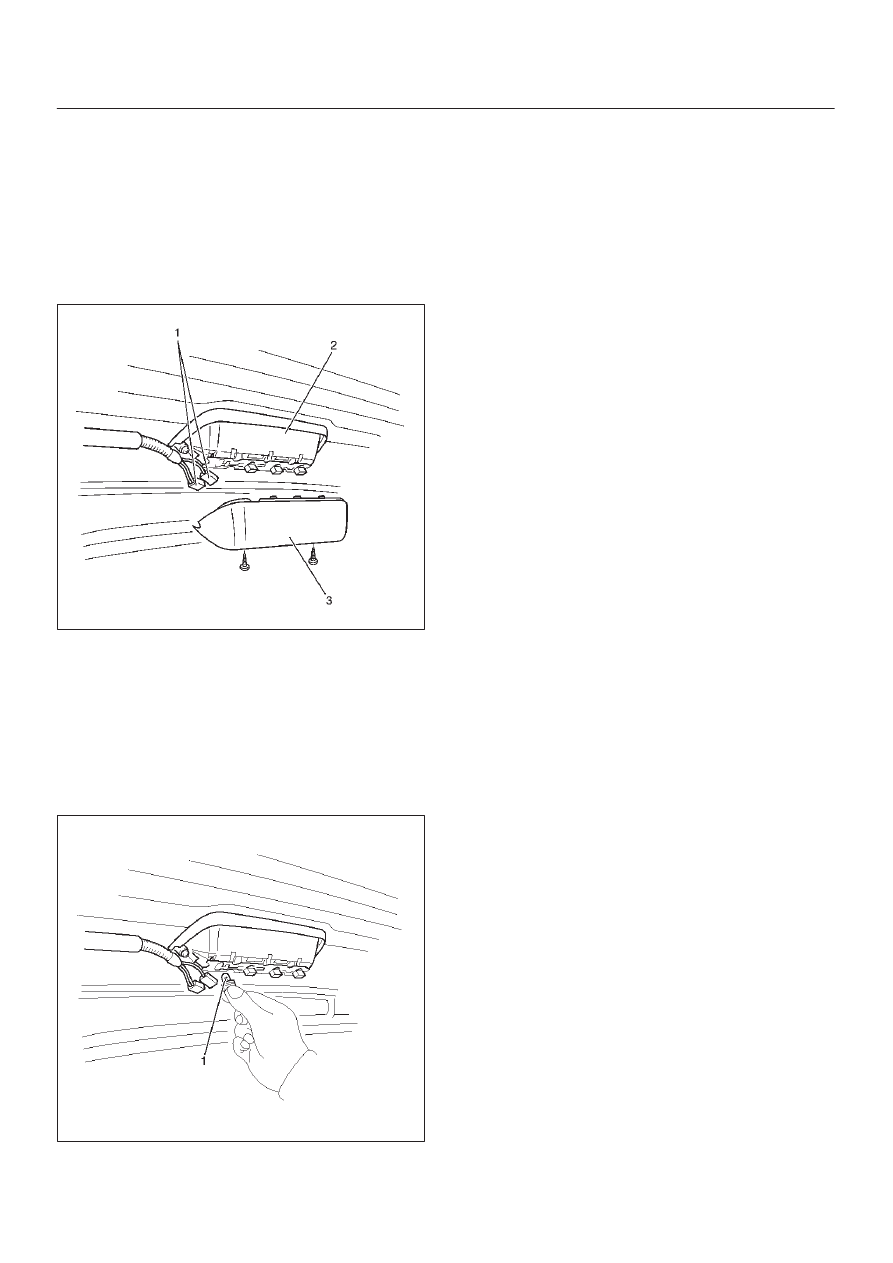

High Mounted Stoplight Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove the high mounted stoplight assembly (2).

D

Remove the cover (3).

D

Disconnect the connectors (1).

D

Remove two screws.

803RX001

Installation

To install, follow the removal steps in the reverse order.

High Mounted Stoplight Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the cover.
3. Remove the bulb (1).

D

Remove the socket by turning it counterclockwise.

825R100022

Installation

To install, follow the removal steps in the reverse order.
