TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–85

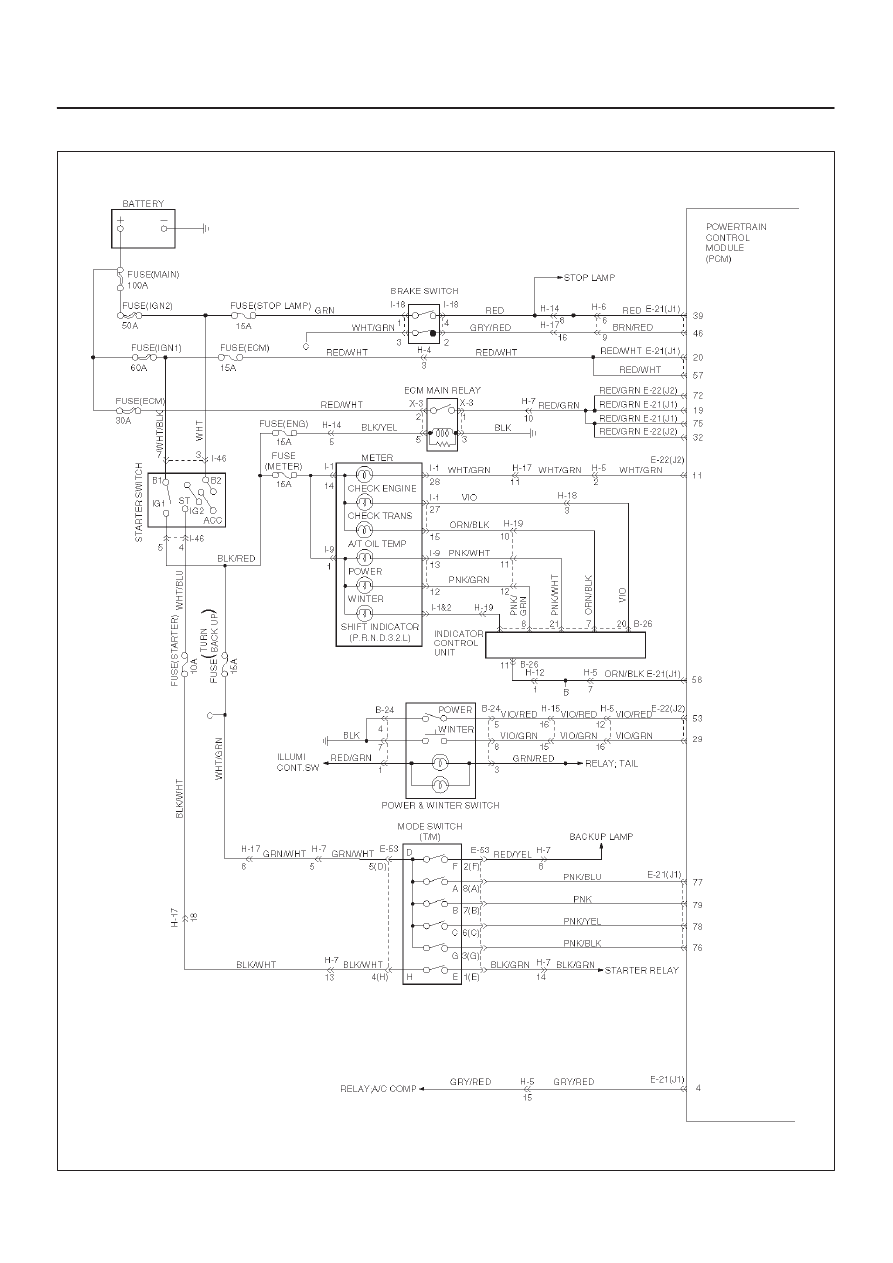

Circuit Diagram

D07R100024

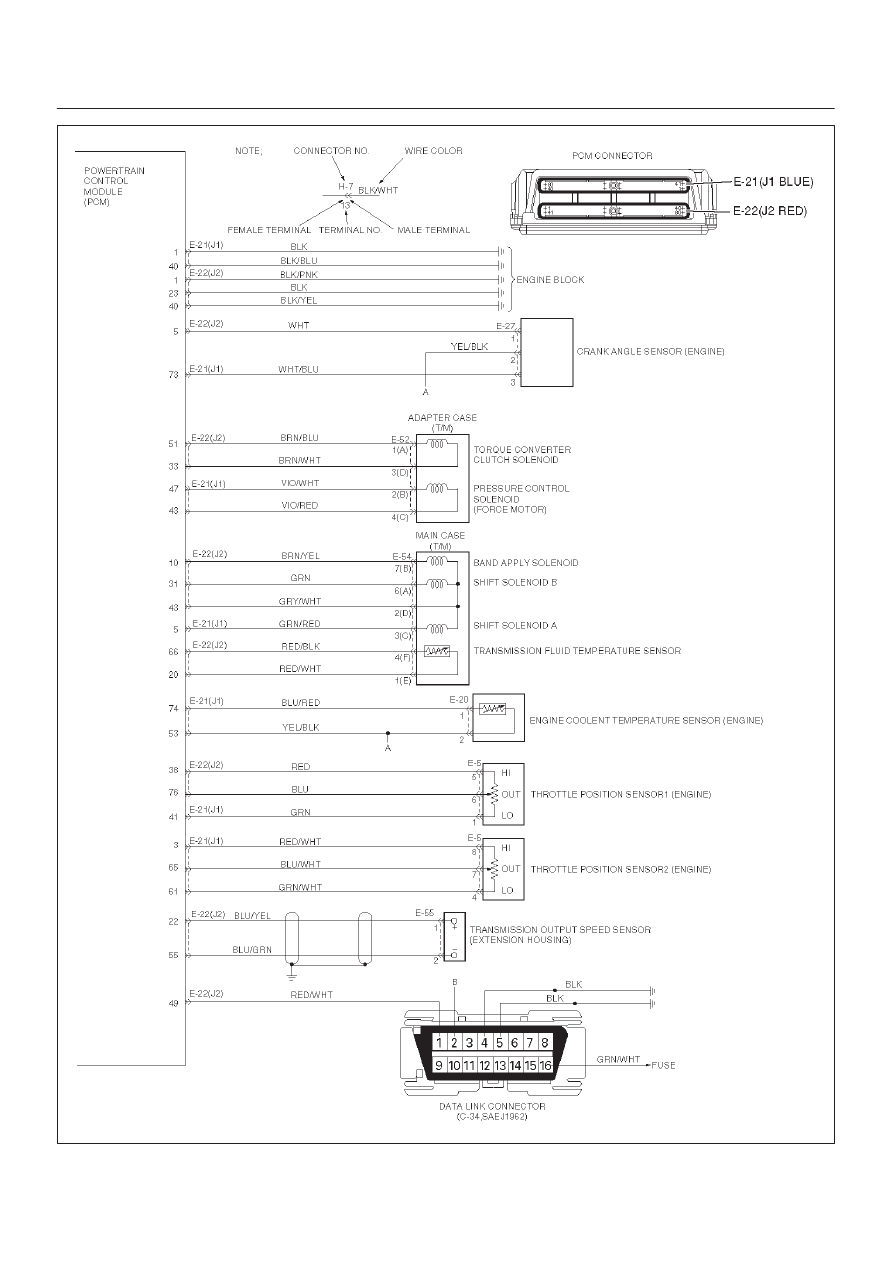

7A1–86 TRANSMISSION CONTROL SYSTEM (4L30–E)

D07R100025

TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–87

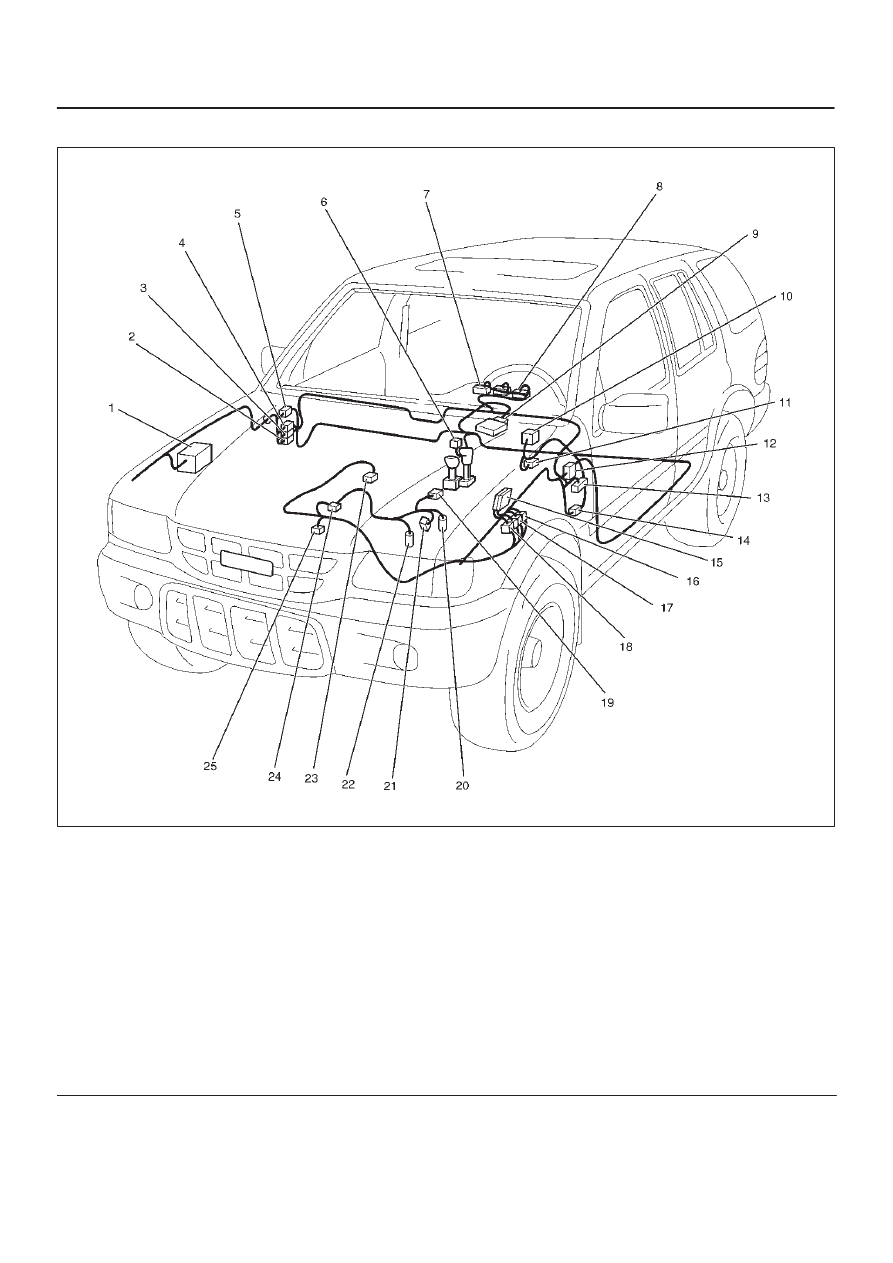

Parts Location

D07R100019

Legend

(1) Connector X-3
(2) Connector H-14
(3) Connector H-19
(4) Connector H-18
(5) Connector H-12
(6) Connector B-24
(7) Connector I-9
(8) Connector I-1
(9) Connector B-26

(10) Connector I-46

(11) Connector H-18

(12) Connector H-15

(13) Data Link Connector C-34
(14) Connector H-17
(15) PCM Connector E-21, E-22
(16) Connector H-6
(17) Connector H-5
(18) Connector H-7
(19) Connector E-55
(20) Connector E-54
(21) Connector E-53
(22) Connector E-52
(23) Connector E-27
(24) Connector E-5
(25) Connector E-20

7A1–88 TRANSMISSION CONTROL SYSTEM (4L30–E)

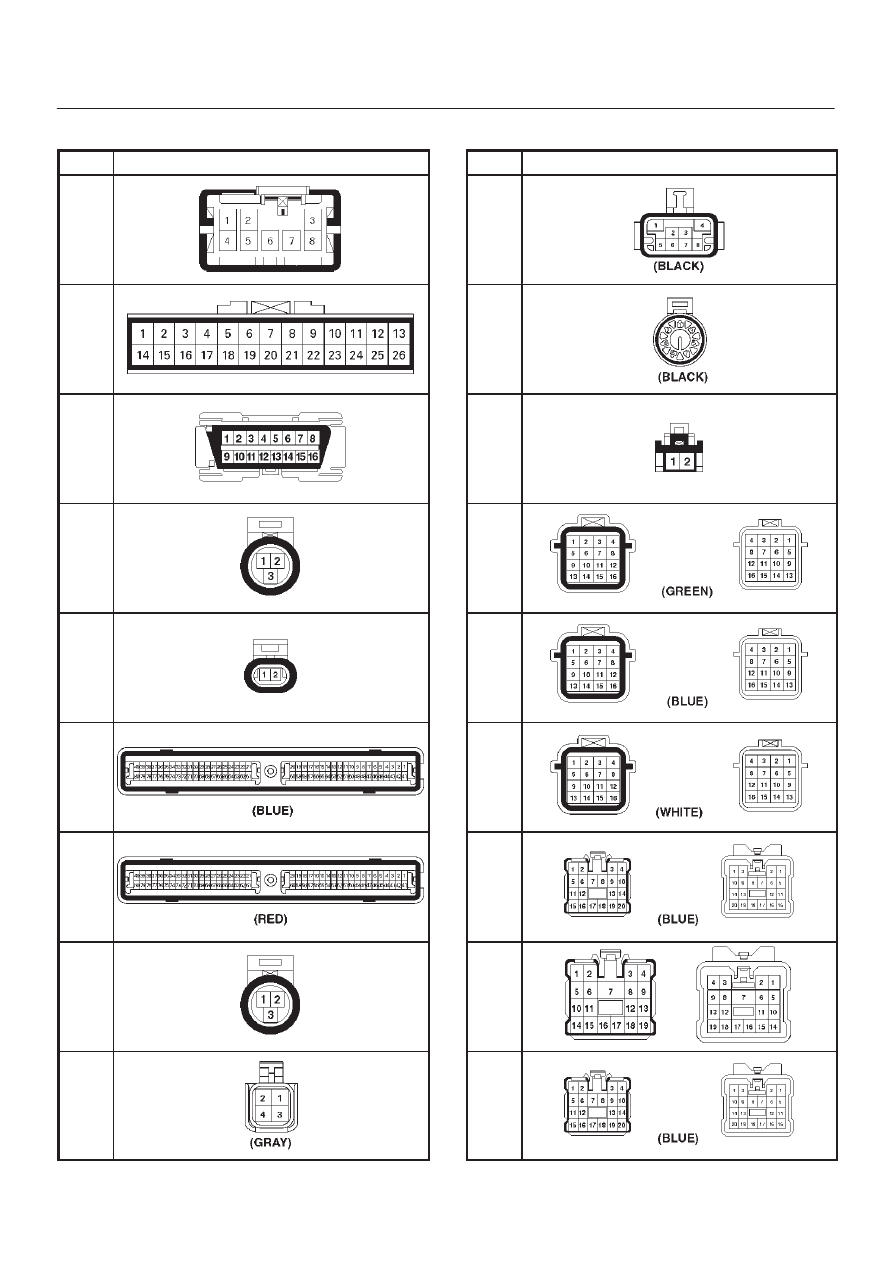

Harness Connector Faces

No.

Connector face

B-24

B-26

C-34

E-5

E-20

E-21

(J1)

E-22

(J2)

E-27

E-52

No.

Connector face

E-53

E-54

E-55

H-5

H-6

H-7

H-12

H-14

H-15
