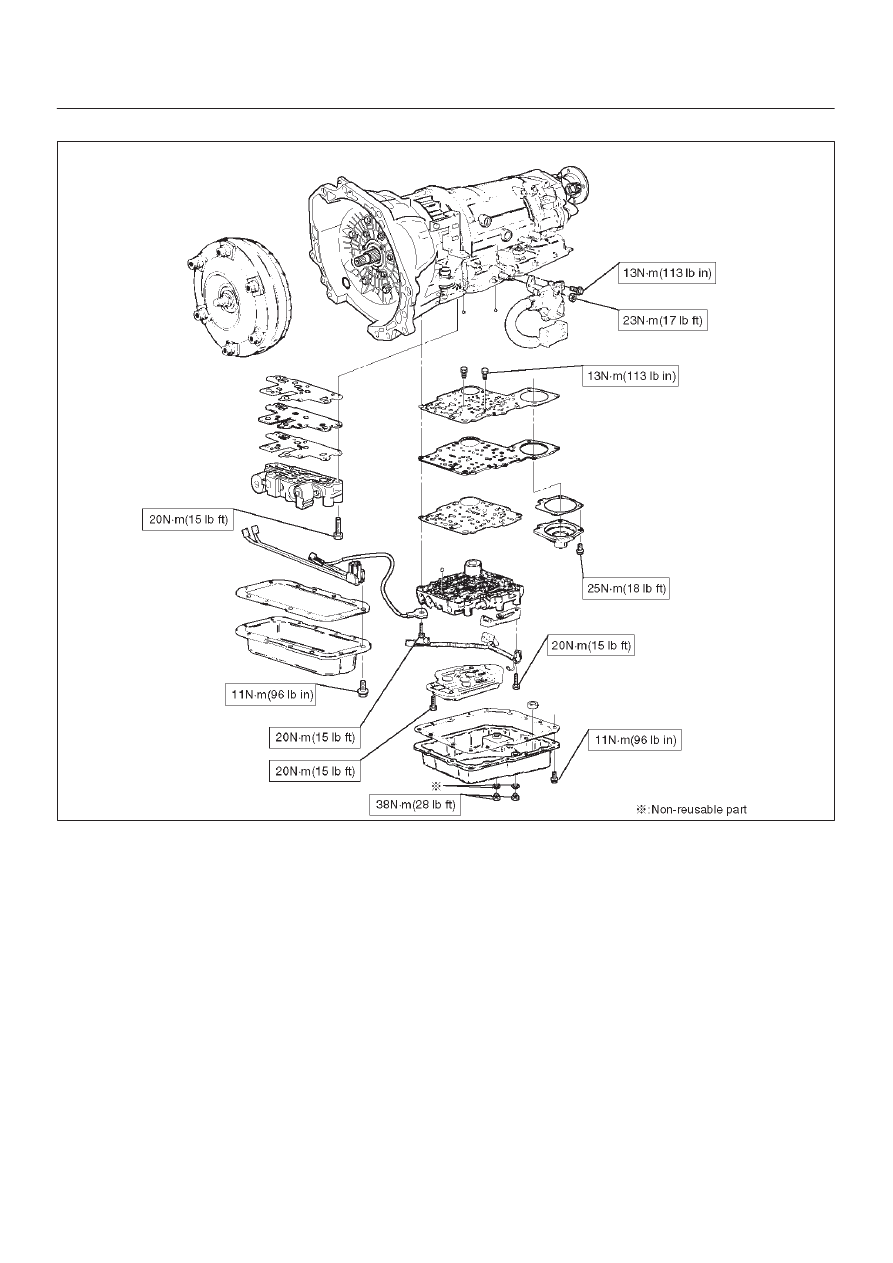

7A–104 AUTOMATIC TRANSMISSION (4L30–E)

(HEC)

E07R100002

7A–105

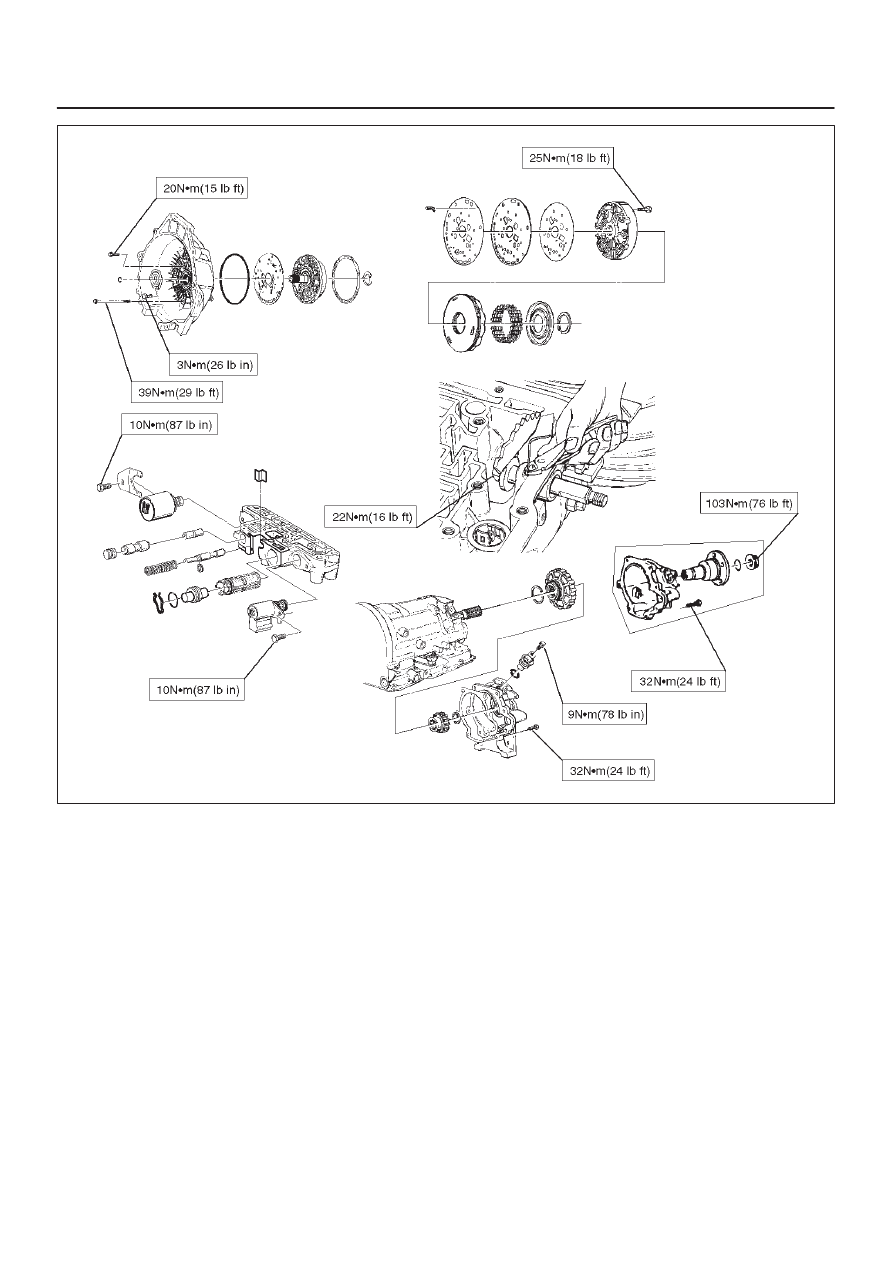

AUTOMATIC TRANSMISSION (4L30–E)

E07RW014

7A–106 AUTOMATIC TRANSMISSION (4L30–E)

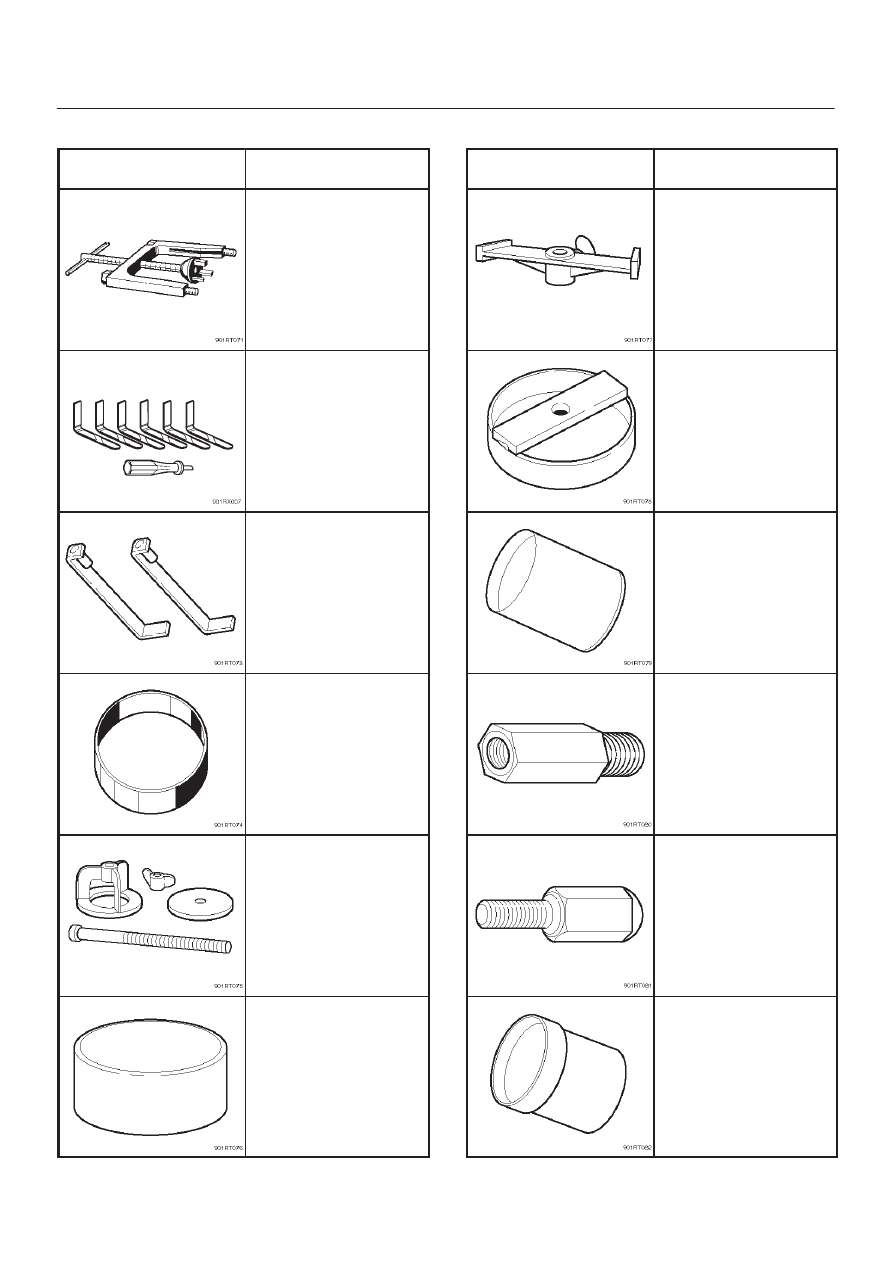

Special Tools

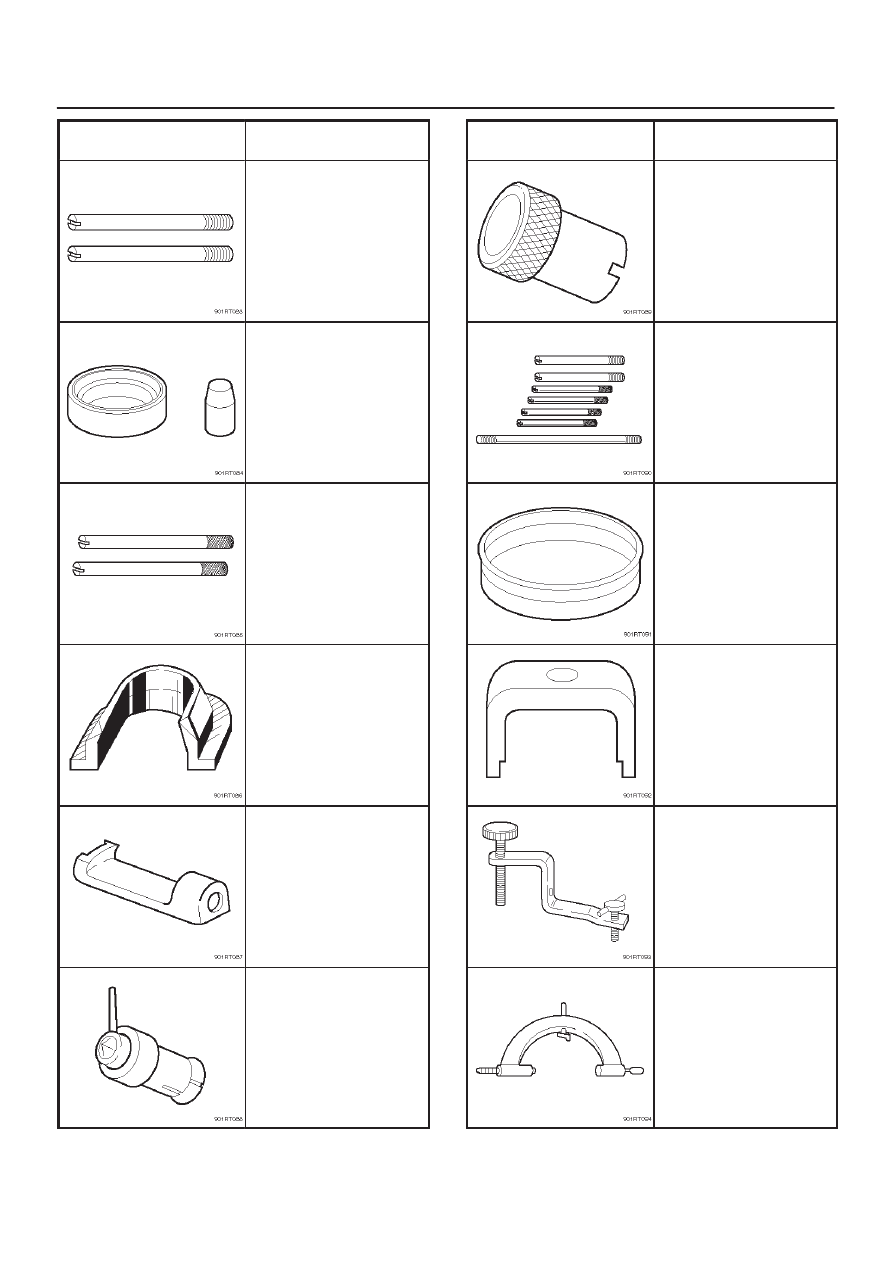

ILLUSTRATION

TOOL NO.

TOOL NAME

J–23075

Spring compressor

(For servo piston)

J–38450–A

Third clutch snap ring

compressor

J–23075–12

Third clutch spring

compressor adapter

(Use with J–23075)

J–23084

Third clutch piston

installer

J–23327

Third clutch spring

compressor

J–23080–A

Second clutch piston

installer

ILLUSTRATION

TOOL NO.

TOOL NAME

J–23085–A

Selective washer

gaging tool

J–23327–90

Fourth clutch spring

compressor

(Use with J–23327)

J–38553

3/4 accumulator

piston fitter

J–41096

Cover remover

(Use with J–38584)

J–38584

Slide hammer adapter

(Use with J–23907)

J–38554

Fourth clutch piston fitter

7A–107

AUTOMATIC TRANSMISSION (4L30–E)

ILLUSTRATION

TOOL NO.

TOOL NAME

J–38588

Guide pins; adapter

case to main case

J–38555

Overrun clutch piston

seal installer set

J–3387–2

Guide pins; gasket and

transfer plate to valve

body

J–25022

Turbine shaft puller

(Use with J–24773–1)

J–23129

Oil seal remover

(Use with J–23907

and J–38584)

J–38557

Oil pump centering tool

ILLUSTRATION

TOOL NO.

TOOL NAME

J–23082–01

Oil pump rotation tool

J–25025–B

Guide pins; valve body

to main case

J–38428

Servo piston fitter

J–23327–91

Overrun clutch spring

compressor

J–38559–A

3/4 accumulator piston

cover compressor

J–8763–02

Holding fixture
