4D2–34 TRANSFER CASE (TOD)

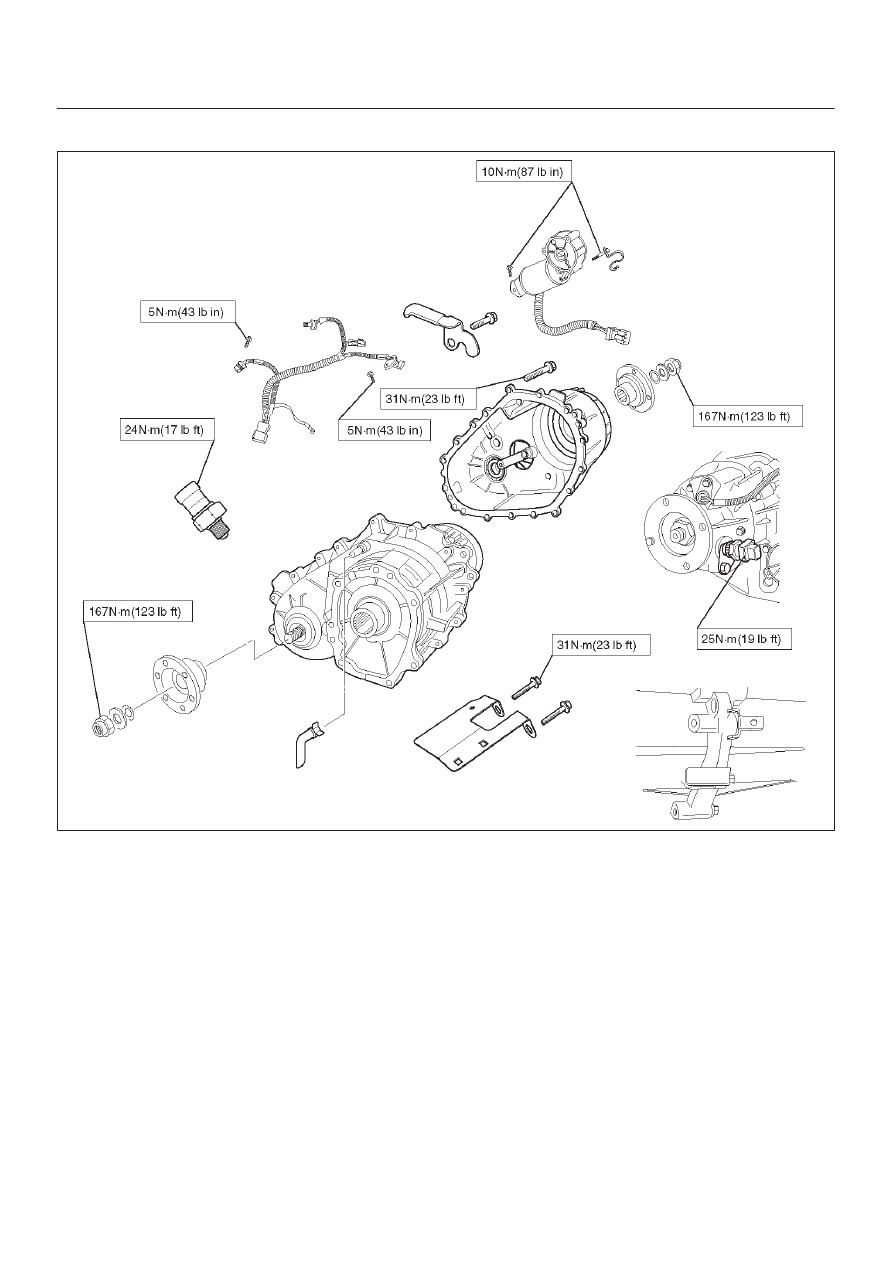

Torque Specifications (Cont’d)

E04R200002

4D2–35

TRANSFER CASE (TOD)

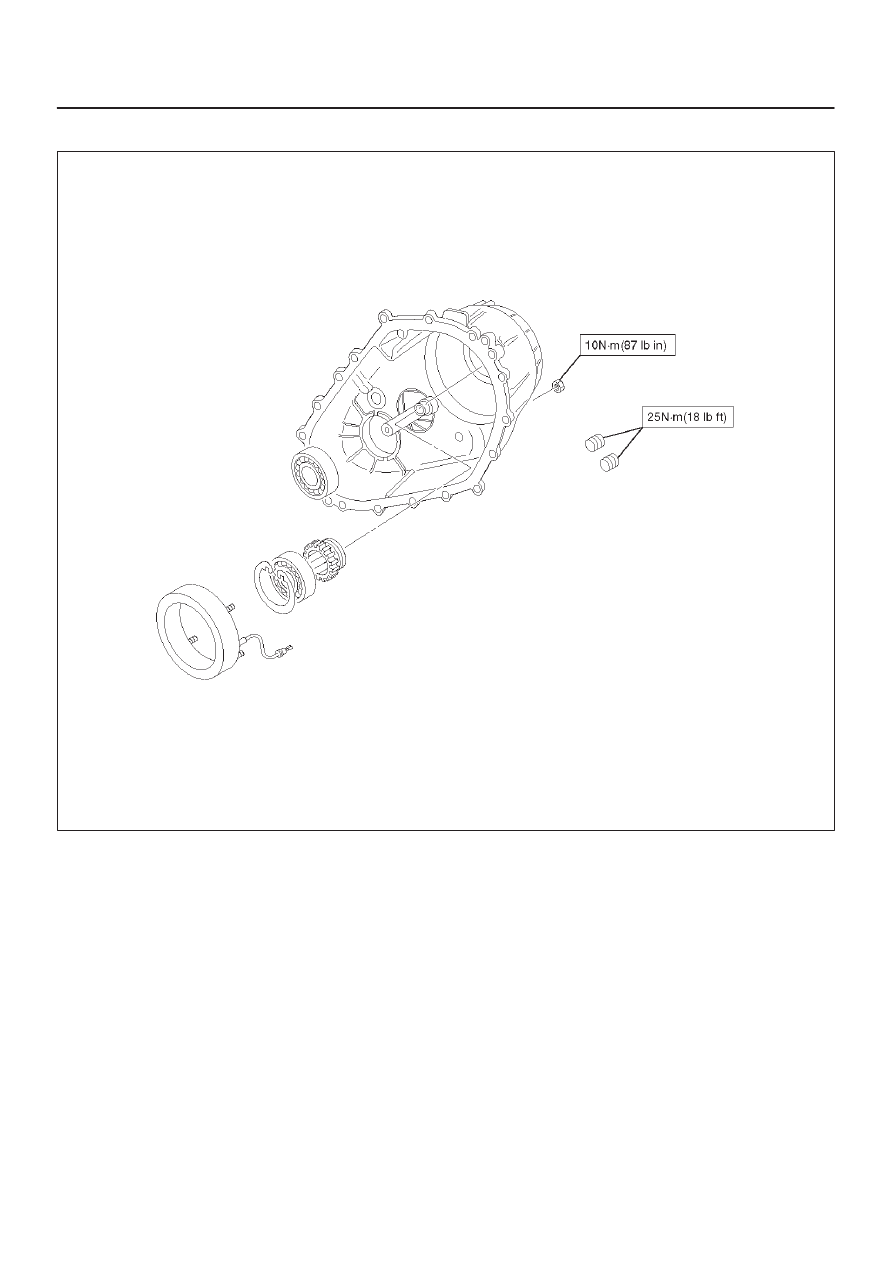

Torque Specifications (Cont’d)

E04R200003

4D2–36 TRANSFER CASE (TOD)

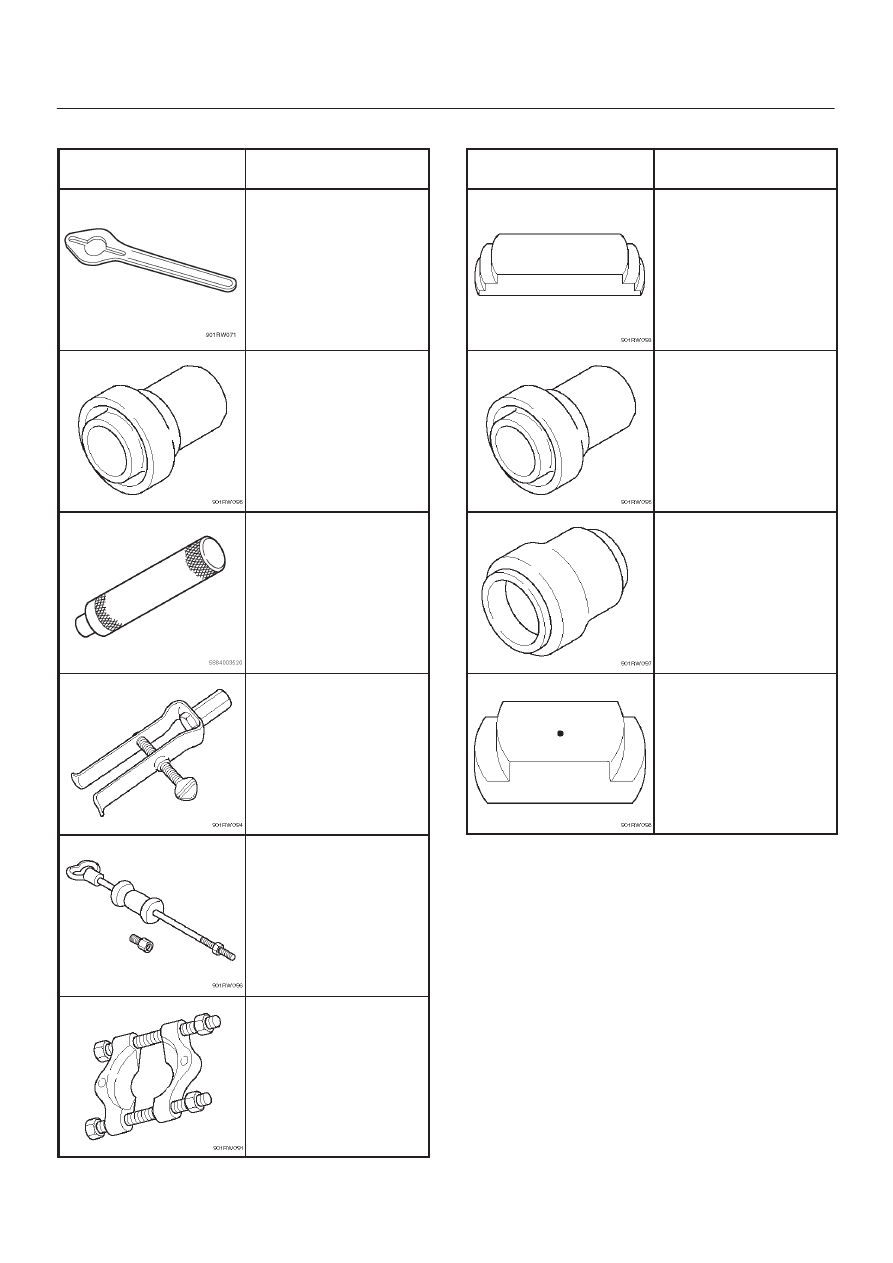

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J–8614–11

Flange Holder

J–42804

Rear Oil Seal Installer

J–33951

Shift Shaft Oil Seal

Installer

J–42805

Bearing Remover

J–2619–01

Slide Hammer

J–22912–01

Bearing Remover

ILLUSTRATION

TOOL NO.

TOOL NAME

J–42806

Ring Gear Remover

J–42807

Front Output Shaft Oil

Seal Installer

J–42808

Input Shaft Oil Seal

Installer

J–42809

Ring Gear Installer
