Isuzu Amigo / Axiom / Trooper / Rodeo / VehiCross. Service manual - part 1539

6G–13

ENGINE LUBRICATION (6VD1 3.2L)

Main Data and Specification

General Specification

Item

Specifications

Item

6VD1

Oil capacity

5.3 liters

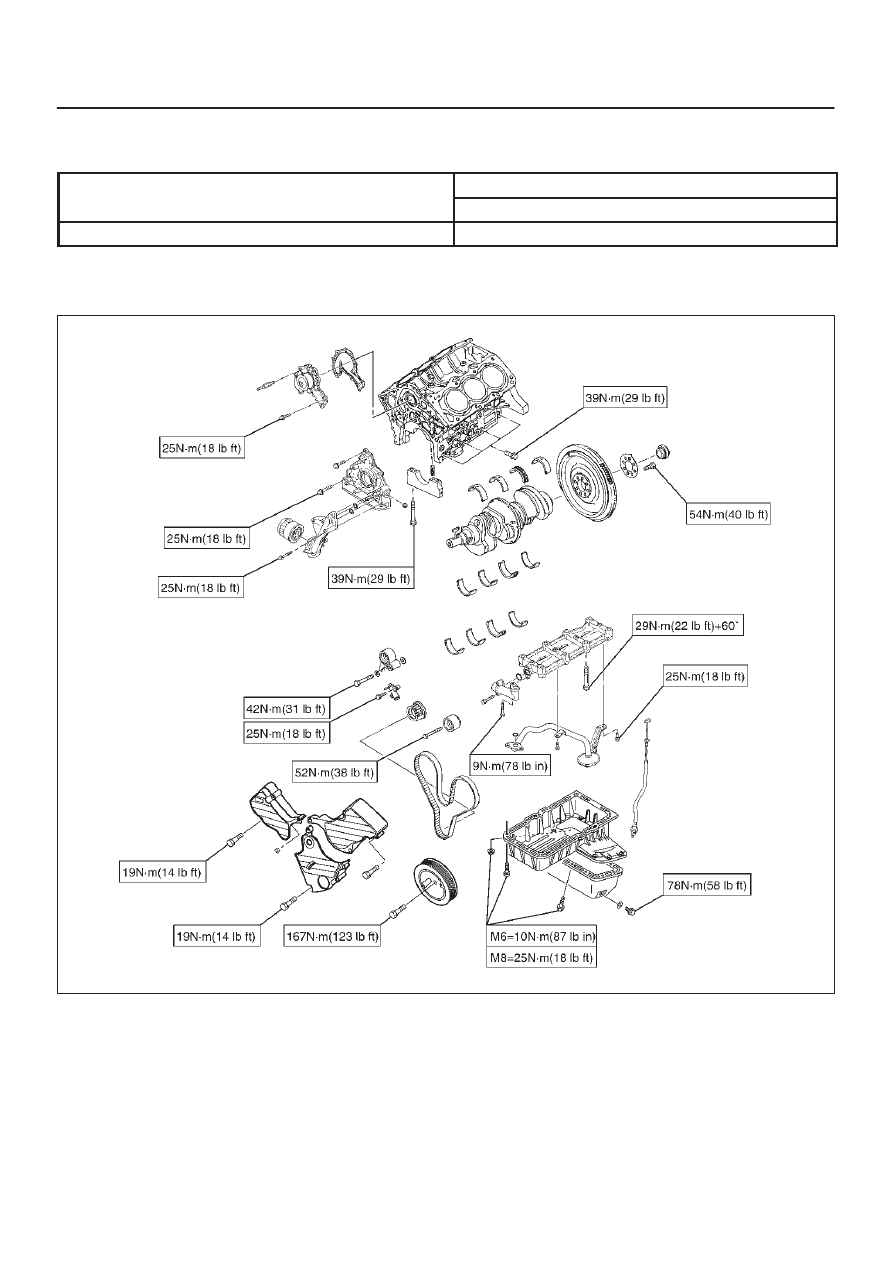

Torque Specifications

Crankcase, Oil pan, Timing belt tensioner, Timing pulley, timing belt cover, Oil pump, Oil gallery, Oil strainer

E06R100004

6H–1

ENGINE SPEED CONTROL SYSTEM

RODEO

ENGINE

ENGINE SPEED CONTROL SYSTEM

CONTENTS

Service Precaution

6H–1

. . . . . . . . . . . . . . . . . . . . . .

Accelerator Pedal

6H–2

. . . . . . . . . . . . . . . . . . . . . . .

Accelerator Pedal and Associated Parts

6H–2

. .

Removal

6H–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6H–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).  REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

SECTION

6H–2

ENGINE SPEED CONTROL SYSTEM

Accelerator Pedal

Accelerator Pedal and Associated
Parts

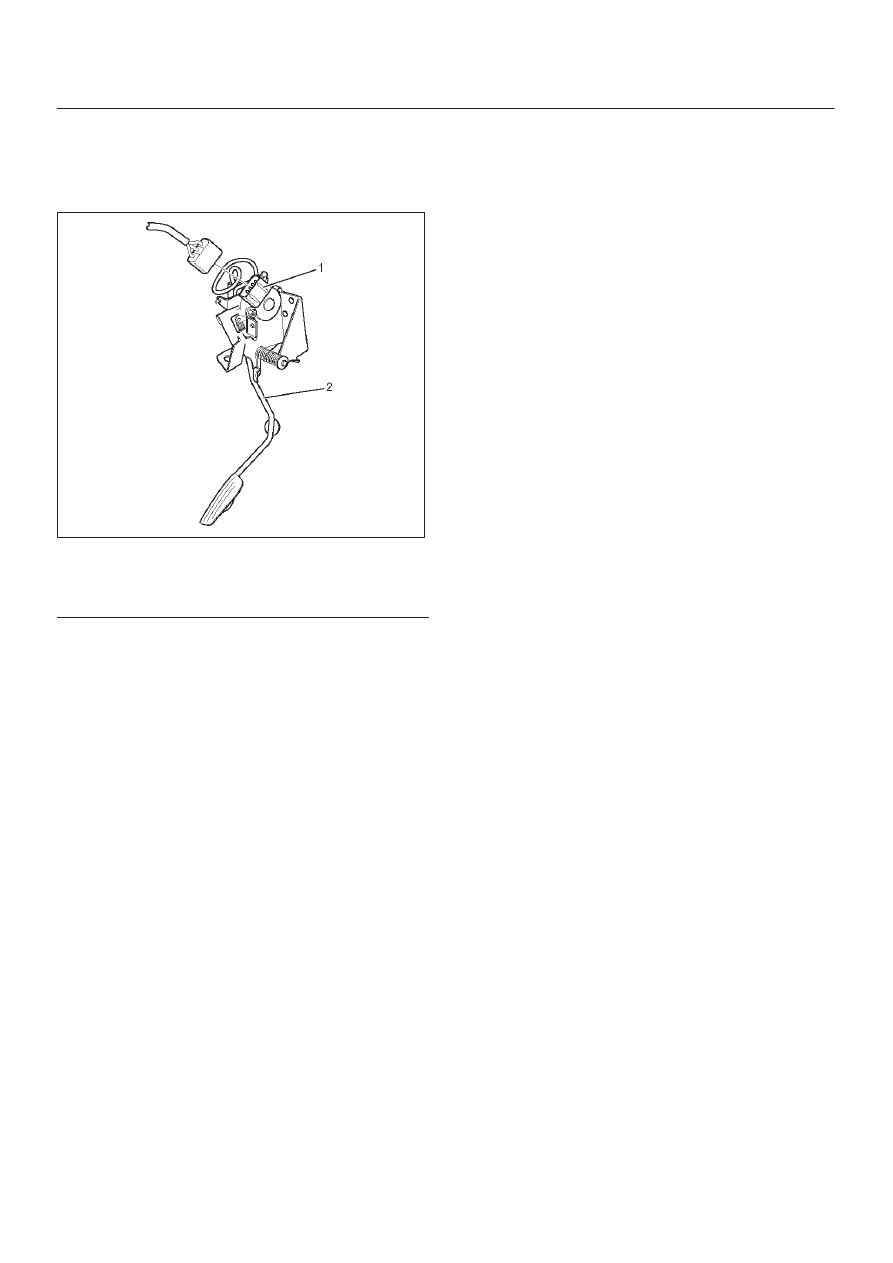

101RY00006

Legend

(1) Accelerator Position Sensor
(2) Accelerator Pedal Assembly

Removal

1. Disconnect battery ground cable.
2. Disconnect Accelerator position (AP) sensor (1)

connector from Accelerator pedal assembly.

3. Remove Accelerator pedal assembly (2).

Installation

1. Install Accelerator pedal assembly (2).
2. Connect AP sensor (1) harness connector.
3. Connect battery ground cable.
