6E1–24

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

PCM Pinout Table, 32–Pin White Connector – Row ”E”

TS23346

PIN

PIN Function

IGN ON

ENG RUN

Refer To

E1

Transmission Speed Sensor
Input (A/T)

—

—

—

E2

Fan Control

0.0V

B+

Chassis Electrical

E3

Force Moter (A/T) High

—

—

—

E4

Force Moter (A/T) Low

—

—

—

E5

Ignition Feed

B+

B+

General Description and
Operation

E6

Exhaust Gas Recirculation
(EGR) Valve Low

B+ Varies

B+ Varies

General Description and
Operation, EGR Control

E7

Shift Mode Switch (A/T)

—

—

—

E8

Throttle Position (TP) Sensor
Input and Temperature Retrn

0.25 V

(0% = 0.25 V)

0.25 V (at idle)

(100% = 4.75 V)

General Description and
Operation, Throttle Position
Sensor

E9

Engine Coolant Temperature
(ECT) Sensor Input

2.3 V

(O V = 151

°

C

{304

°

F})

2.1 V

(5 V = –40

°

C

{–40

°

F})

General Description and
Operation, Engine Coolant
Temperature (ECT) Sensor

E10

Not Used

—

—

—

E11

Not Used

—

—

—

E12

Rear Defogger Switch

B+

B+

Chassis Electrical

E13

Fuel Pump (FP) Relay
Control

0.0 V

B+

On–Vehicle Service, Fuel Pump
Relay

E14

Shift Solenoid High (A/T)

—

—

—

E15

A/C Request (Thermo Relay)

0.0 V

0.0 V

Electric Cooling Fans

E16

Ignition Feed

B+

B+

General Description and
Operation

6E1–25

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

PCM Pinout Table, 32–Pin White Connector – Row ”F”

TS23346

PIN

PIN Function

IGN ON

ENG RUN

Refer To

F1

Not Used

—

—

—

F2

Transmission Speed Sensor
High (A/T)

—

—

—

F3

Shift Mode Switch (A/T)

—

—

—

F4

Stop Lamp Switch (A/T)

—

—

—

F5

Power Switch (A/T)

—

—

—

F6

Ivineer Switch (A/T)

—

—

—

F7

T/M Oil Temperature Sensor
Input (A/T)

—

—

—

F8

Manifold Absolute Pressure
(MAP) Sensor Input

~4.7 V

(0 V = 10kPa)

~1.1 V

(5 V = 104kPa)

General Description and
Operation, Manifold Absolute
Pressure

F9

Shift Mode Switch (A/T)

—

—

—

F10

Not Used

—

—

—

F11

Kick Down Switch (A/T)

—

—

—

F12

Not Used

—

—

Class 2 Serial Data

F13

Injector ”C” Cylinder #4

B+

B+

General Description and
Operation, Fuel Injector

F14

Shift Solenoid (A/T)

—

—

—

F15

Shift Mode Switch (A/T)

—

—

—

F16

Ignition Feed

B+

B+

General Description and
Operation

6E1–26

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

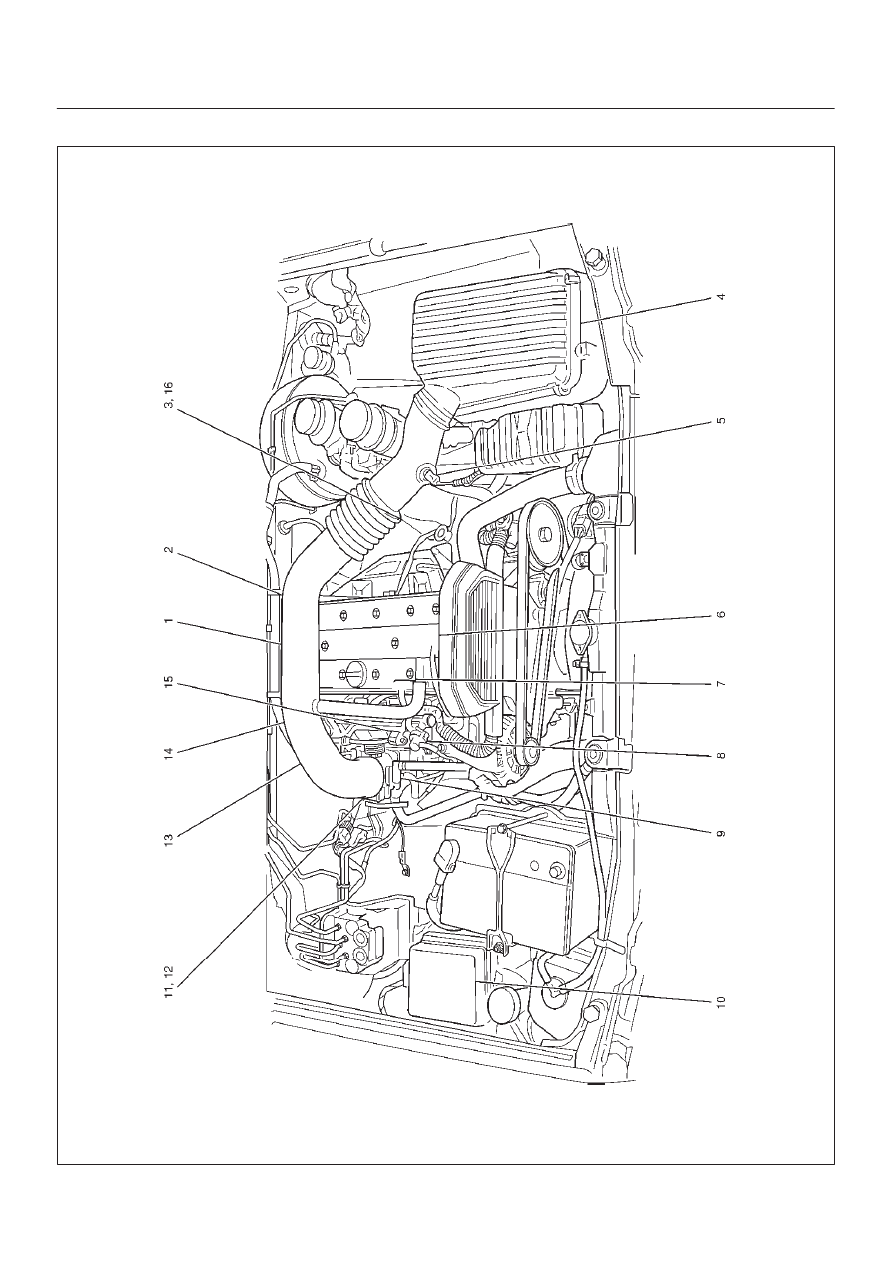

COMPONENT LOCATOR

060R100020

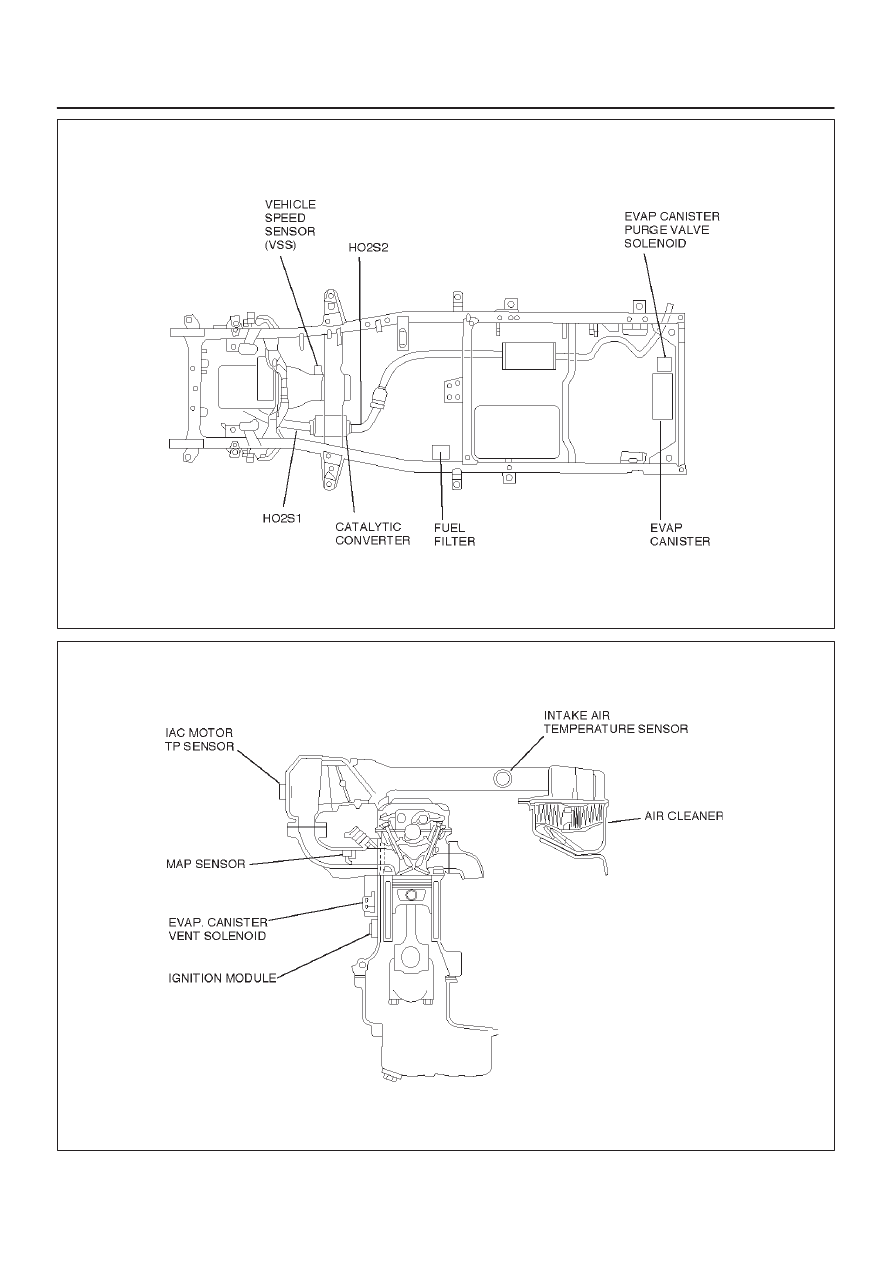

6E1–27

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

010RX001

028RX001
