3D–14

REAR SUSPENSION

Stabilizer Bar

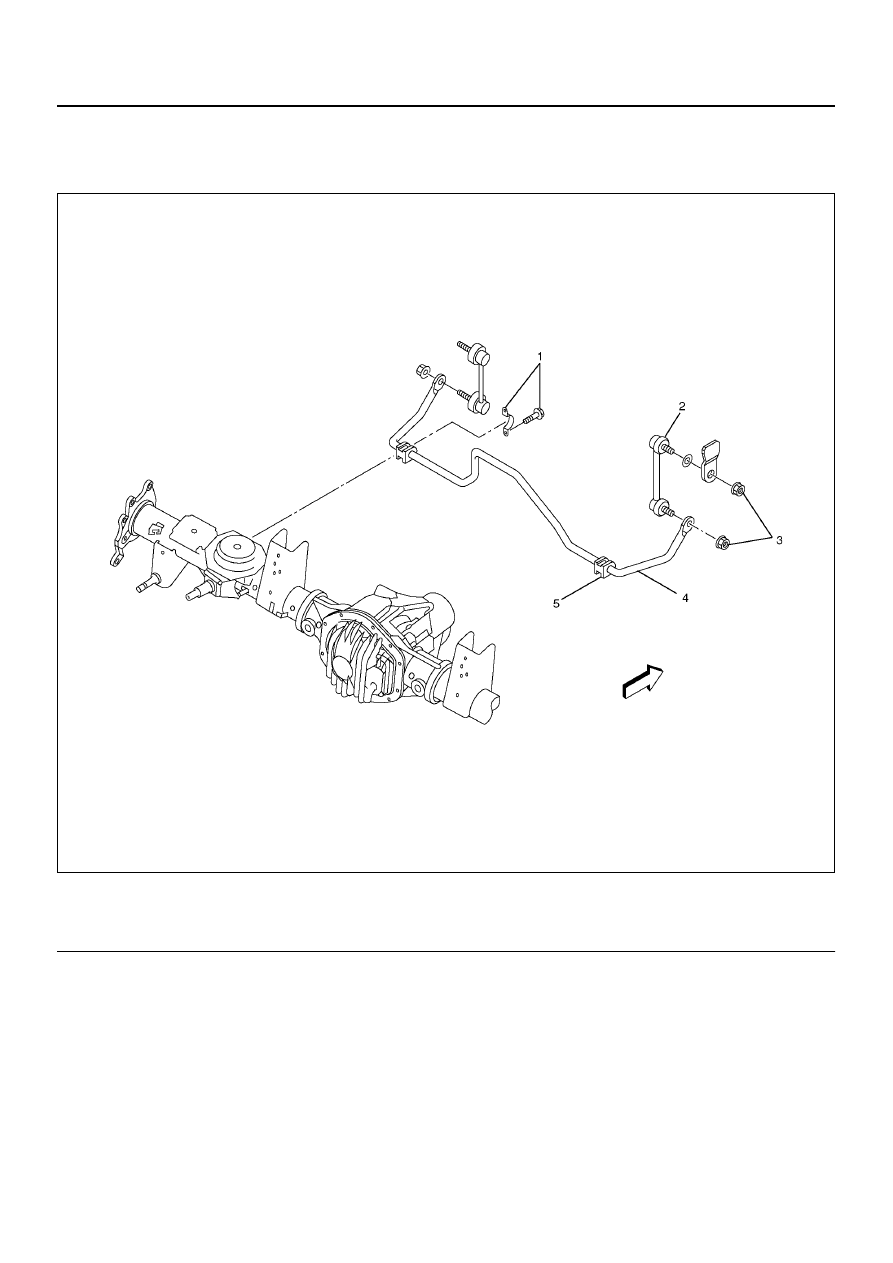

Stabilizer Bar and Associated Parts

460R200003

EndOFCallout

Removal

1. Raise the vehicle and support the frame with

suitable safety stands.

2. Remove wheel and tire assembly. Refer to Wheel in

this section.

3. Remove bolt and nut.

4. Remove link.

5. Remove bracket.

6. Remove rubber bushing.

Inspection and Repair

Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition are
found through inspection.
Check the following parts:

• Stabilizer bar

• Rubber bushing

• Link

Legend

(1) Bracket and Bolt
(2) Link

(3) Bolt and Nut
(4) Stabilizer Bar
(5) Rubber Bushing

REAR SUSPENSION

3D–15

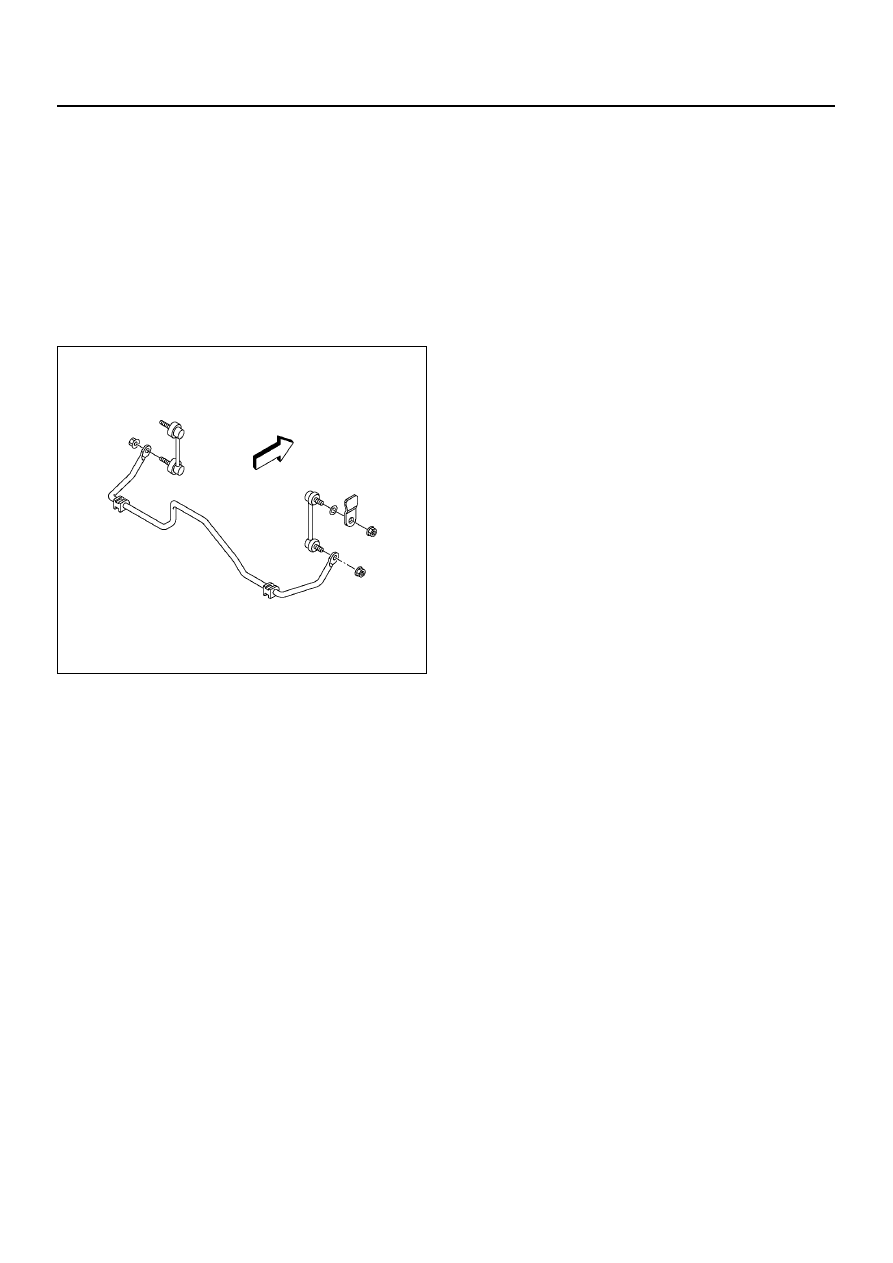

Installation

1. Install rubber bushing.

2. Install bracket to axle housing and tighten to the

specified torque.

Torque: 25 N·m (18 lb ft)

3. Install link.

4. Install bolt and nut, then tighten the nut to the

specified torque.

Torque: 31 N·m (23 lb ft)

460R200002

3D–16

REAR SUSPENSION

Main Data and Specifications

General Specifications

Rear suspension

Type

5–Link, coil spring type with stabilizer bar.

Coil spring

Free length

378.0mm (14.88in)

Spring diameter

12.9mm (0.51in)

Coil diameter
(inner)

105mm (4.13in)

Effective No. of
turns

6.03

Total No. of turns

7.53

Shock absorber

Type

Hydraulic, double acting, telescopic

Piston diameter

30mm (1.18in)

Stroke

Without ISC

shock

absorber

175.0 mm

(6.89 in)

With ISC

shock

absorber

159 mm
(6.26in)

Extended length

473.5 mm

(18.64in)

518 mm

(20.39 in)

Compressed
length

298.5 mm

(11.75 in)

359 mm

(14.13 in)

Stabilizer bar

Diameter

18mm (0.71in)

REAR SUSPENSION

3D–17

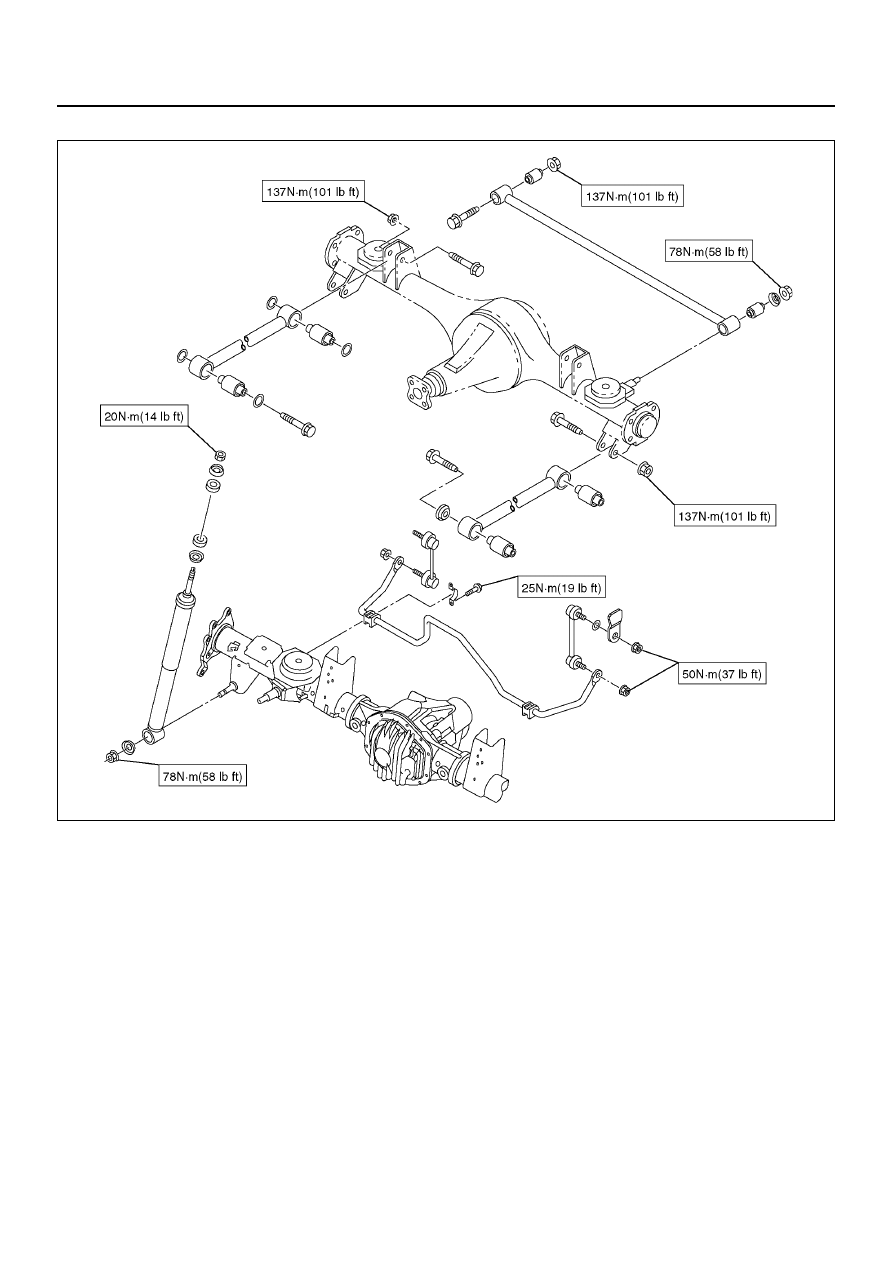

Torque Specifications

E03R200006
