Isuzu engine C22NE / 22LE / 20LE. Service manual - part 119

DRIVEABILITY AND EMISSIONS  6E1-305

SPECIAL SERVICE TOOLS

Legend

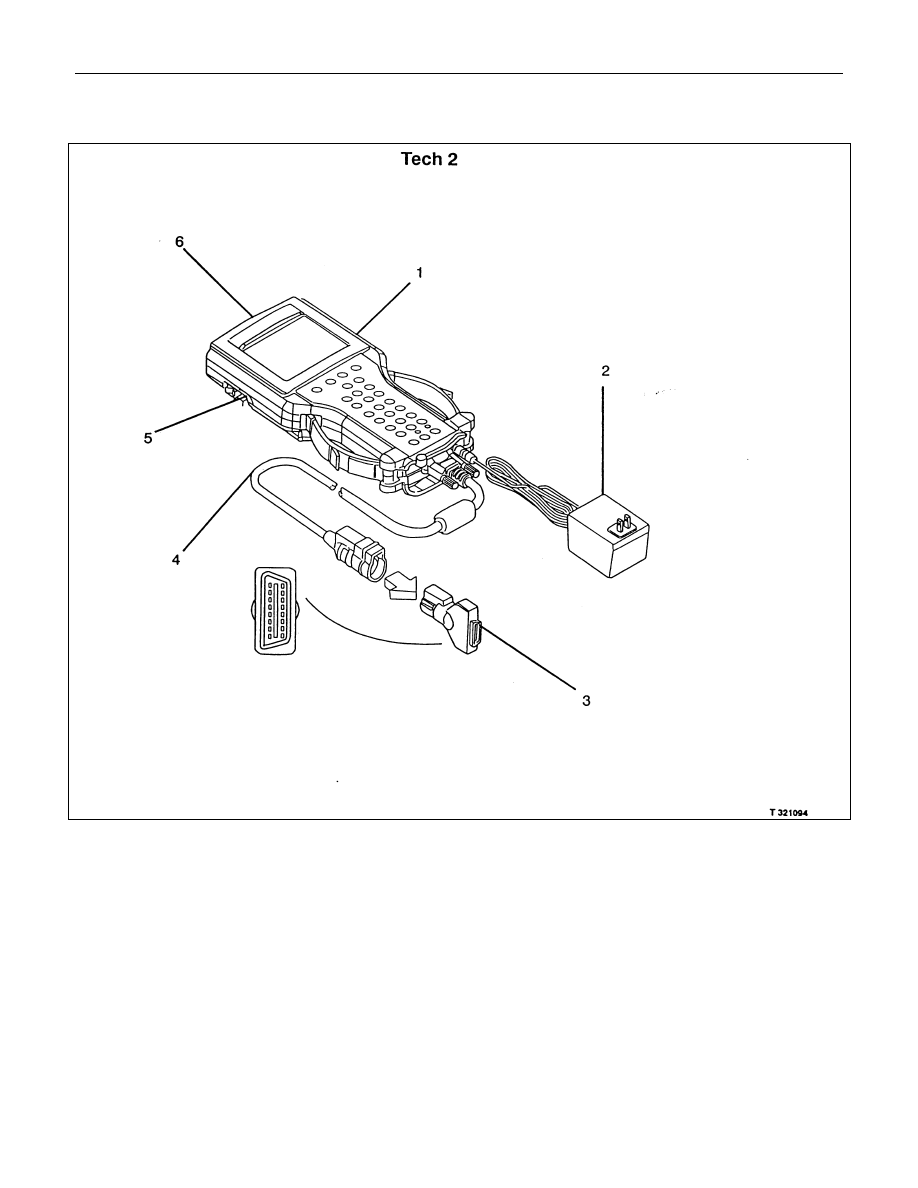

(1) Tech 2 Scan Tool
(2) Tech 2 AC/DC Power Adapter
(3) Tech 2 OBD DLC Interface Connector

(4) Tech 2 DLC Interface Cable
(5) Tech 2 RS232 Connector Port
(6) Tech 2 10 Meg Memory Card

6E1-306  DRIVEABILITY AND EMISSIONS

SPECIAL SERVICE TOOLS (Cont'd)

ITEM NO.

ILLUSTRATION

PART NO.

PART NAME

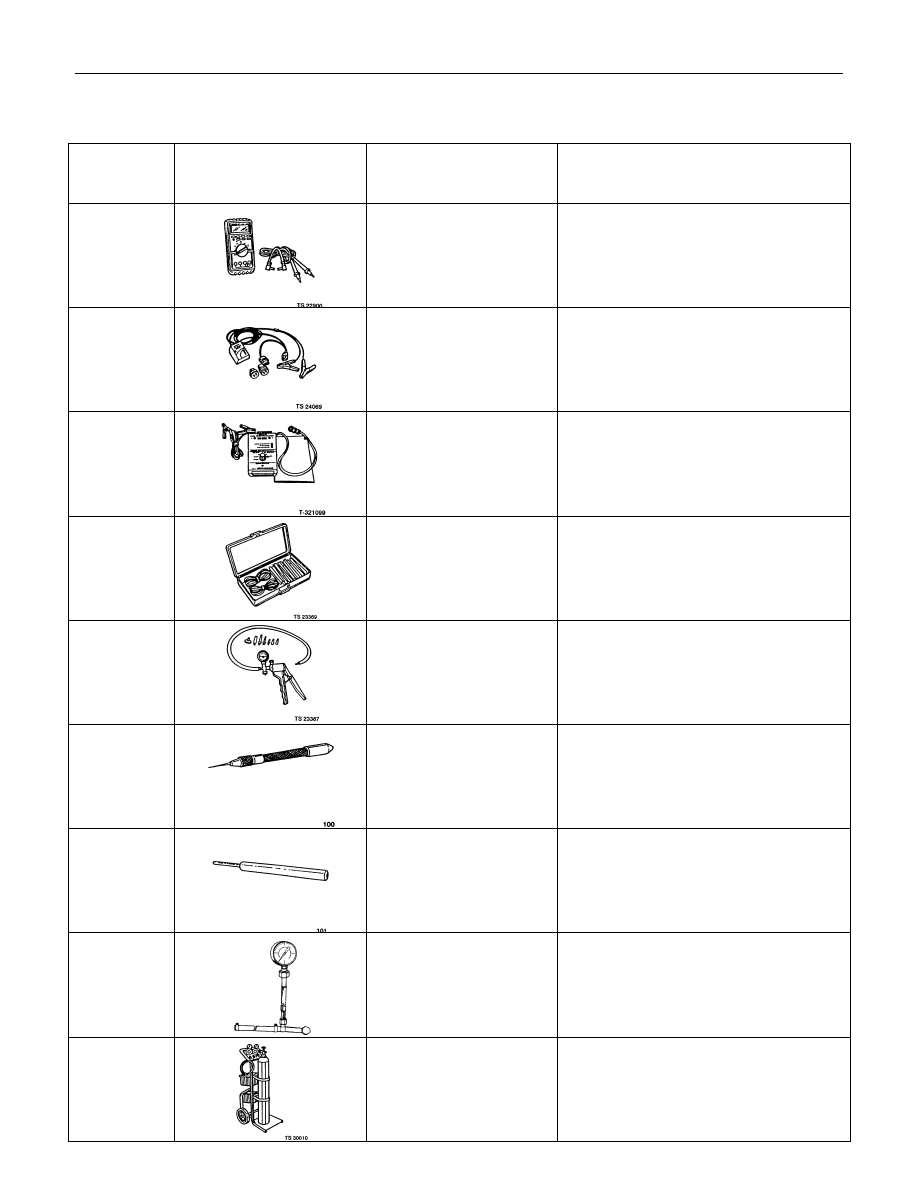

5-8840-2392-0

High Impedance

Multimeter

(Digital Voltmeter -DVM)

5-8840-2312-0

IAC Motor Analyzer

5-8840-2618-0

Fuel Injector Tester

5-8840-0385-0

Connector Test AdapterKit

5-8840-0279-0

Vacuum Pump

with Gauge

5-8840-0632-0

Terminal Remover

5-8840-0388-0

Weather Pack

Terminal Remover

5-8840-0378-0

Pressure Gauge

5-8840-2607-0

EVAP Pressure/Purge

Diagnostic Station

DRIVEABILITY AND EMISSIONS  6E1-307

SPECIAL SERVICE TOOLS (Cont'd)

ITEM NO.

ILLUSTRATION

PART NO.

PART NAME

5-8840-2608-0

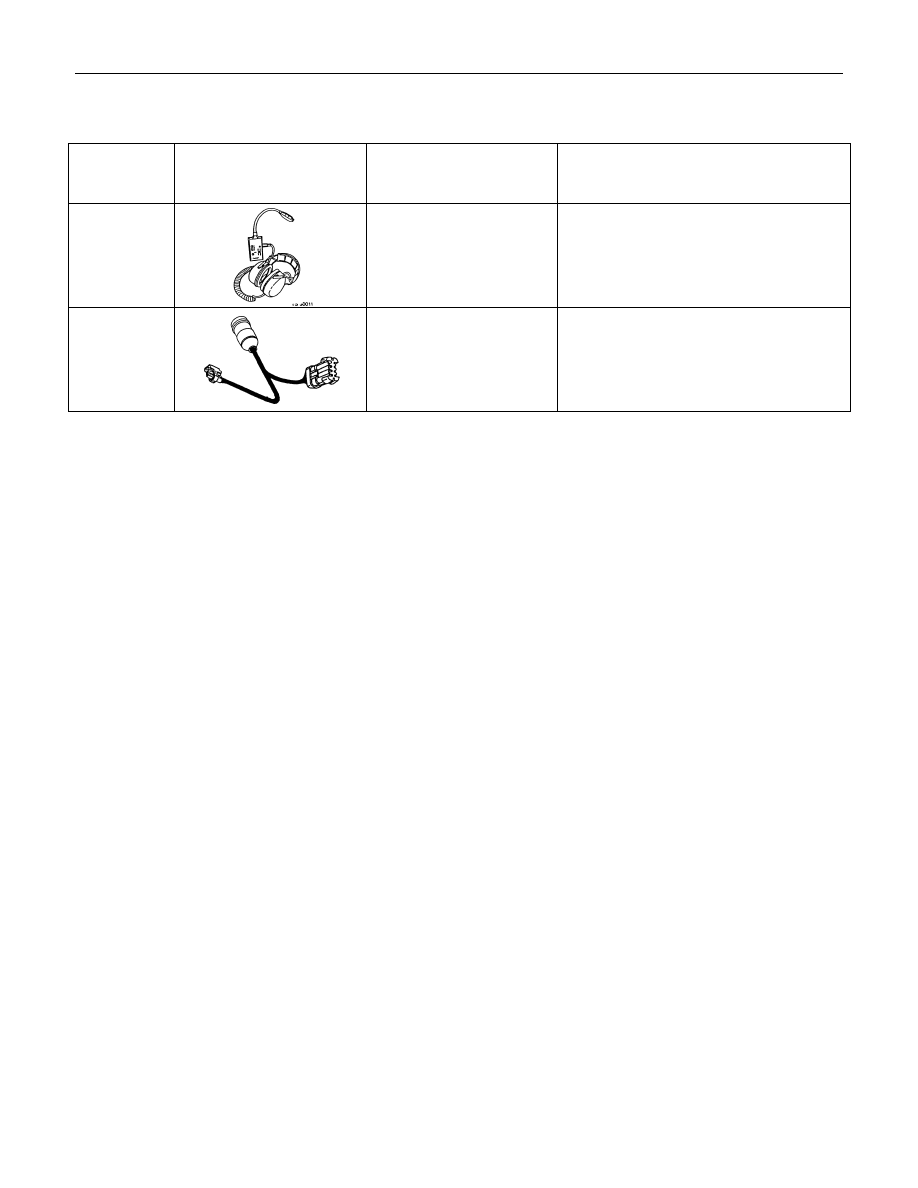

Ultrasonic Leak

Detector

5-8840-2589-0

Injector Adapter Cable

1

  5-8840-2608-0 EVAP Pressure/Purge Diagnostic Station is a multipurpose tool which is used to perform several

diagnostic procedures for enhanced emission testing. The station will accommodate a nitrogen gas filled cylinder

which is used to pressurize the vehicle EVAP system for a leakdown test and leak location test when a vehicle is

repaired for leakage in the enhanced evaporative emission control system. It also has two additional gauges

inches of mercury and inches of water) which are used to measure both source vacuum and EVAP canister

purge vacuum to verify correct operation and vapor flow within the canister purge circuit.

2

  5-8840-2608-0 Ultrasonic Leak Detector is a microprocessor-based device used to detect leaks in the enhanced

evaporative emission control system. the evaporative system is pressurized to 30 inches of water using the

5-8840-2608-0 EVAP Pressure/Purge Diagnostic System. Small leaks in the EVAP system will emit sound at a

high frequency undetectable by a human ear but detectable with the 5-8840-2608-0. The technician traces along

the evaporative system and can pinpoint leaks due to corroded lines, cracked hoses, or a damaged EVAP

component. The detector includes a high quality set of headphones to block out surrounding shop noise and the

LED sensitivity meter allows a visual reference for locating leaks in conjunction with the audio output heard

through the headphones. Powered by (1) nine volt battery.

ENGINE EXHAUST  6F-1

SECTION 6F

ENGINE EXHAUST

CONTENTS

PAGE

General Description........................................................................................................ 6F- 3

Service Precaution ......................................................................................................... 6F- 5

Exhaust Pipe ................................................................................................................... 6F- 6

Exhaust pipe and Associated parts.......................................................................... 6F- 6

Removal ...................................................................................................................... 6F- 6

Installation .................................................................................................................. 6F- 6

Inspection ................................................................................................................... 6F- 7

Front Exhaust Pipe ......................................................................................................... 6F- 8

Front Exhaust Pipe and Associated Parts ............................................................... 6F- 8

Removal ...................................................................................................................... 6F- 8

Installation .................................................................................................................. 6F- 9

Mid Pipe ........................................................................................................................... 6F-10

Mid Pipe and associated Parts ................................................................................. 6F-10

Removal ...................................................................................................................... 6F-10

Installation .................................................................................................................. 6F-11

Catalytic Converter (If applicable) ................................................................................. 6F-12

Catalytic Converter and Associated Parts ............................................................... 6F-12

Removal ...................................................................................................................... 6F-12

Installation .................................................................................................................. 6F-12

3 way Catalytic Converter System ............................................................................ 6F-13

Exhaust Silencer............................................................................................................. 6F-15

Exhaust Silencer and Associated Parts................................................................... 6F-15

Removal ...................................................................................................................... 6F-15

Installation .................................................................................................................. 6F-16

Rear Exhaust pipe .......................................................................................................... 6F-17

Rear Exhaust pipe and Associated Parts ................................................................ 6F-17

Removal ...................................................................................................................... 6F-17

Installation .................................................................................................................. 6F-18

INDEX
