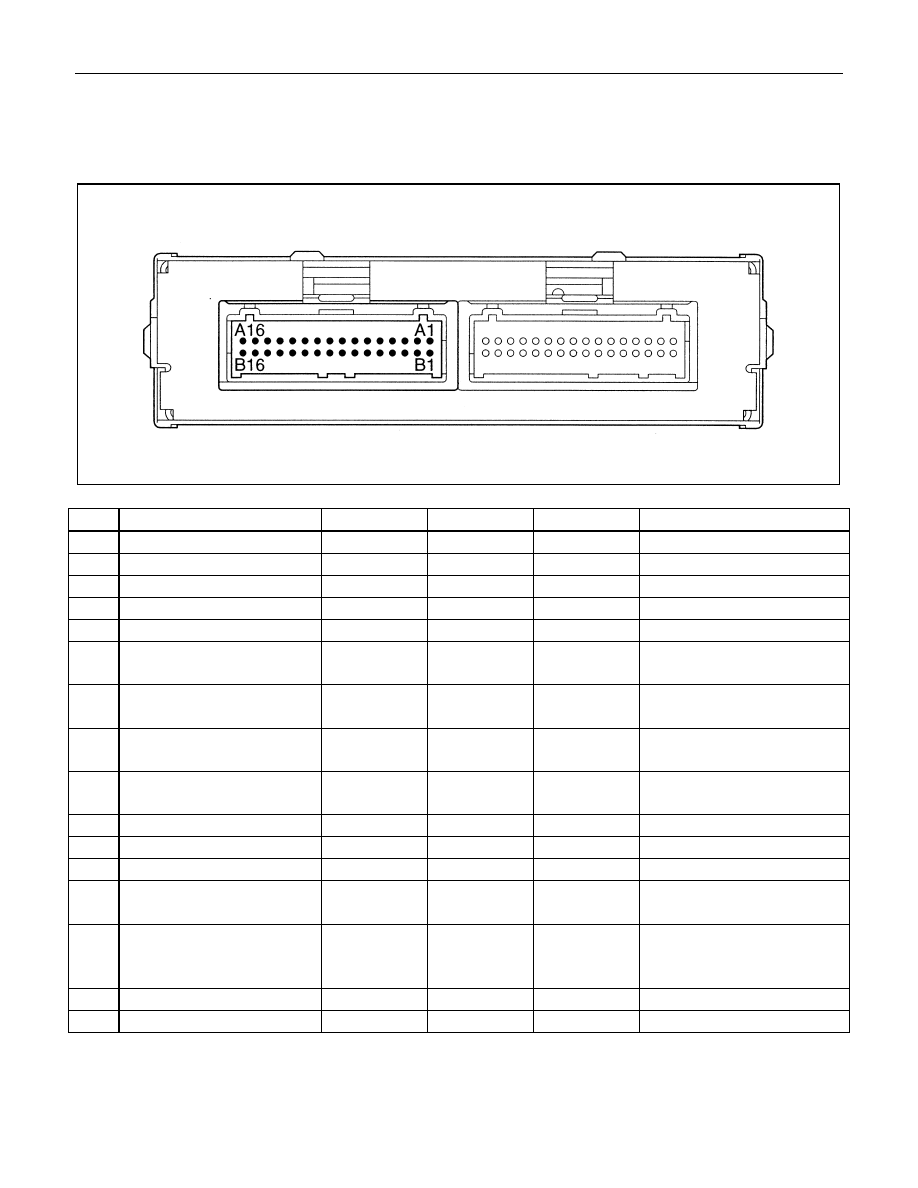

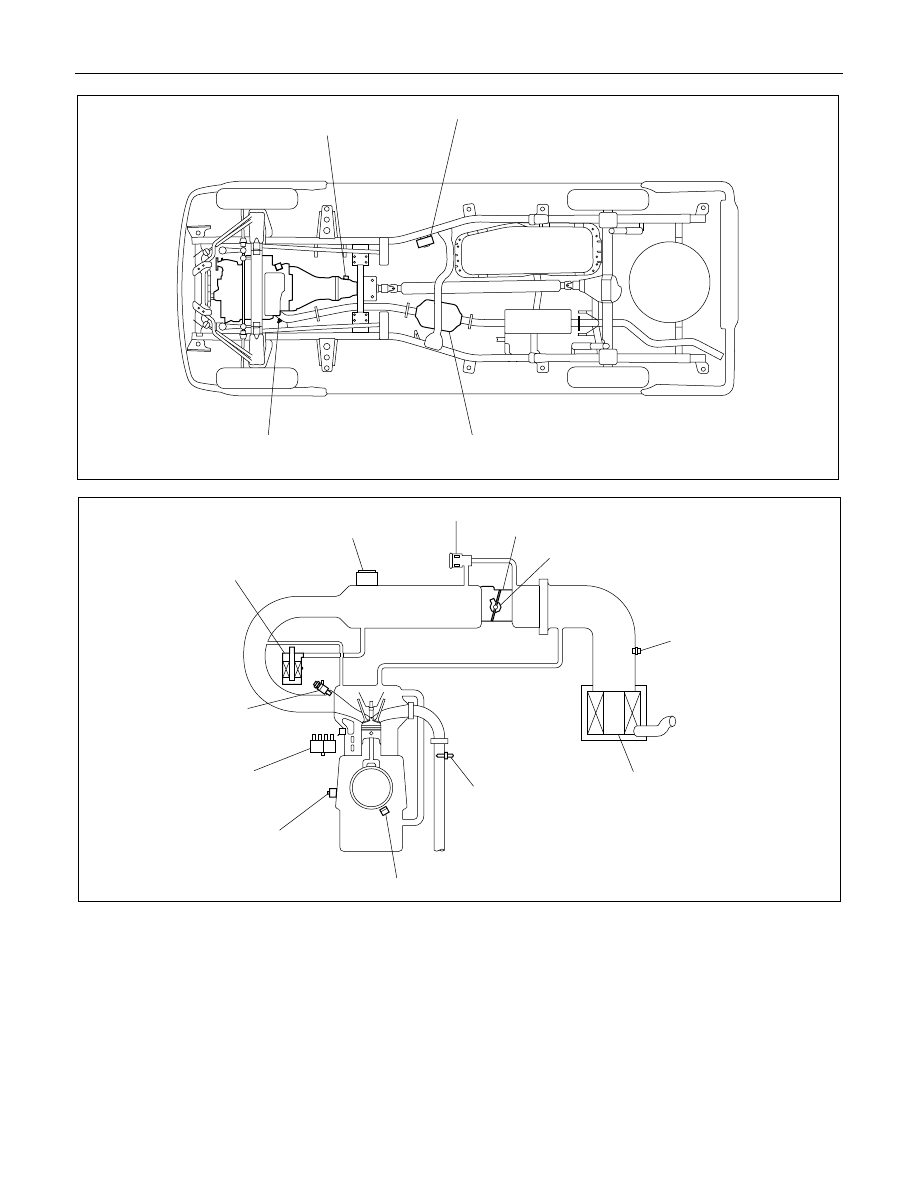

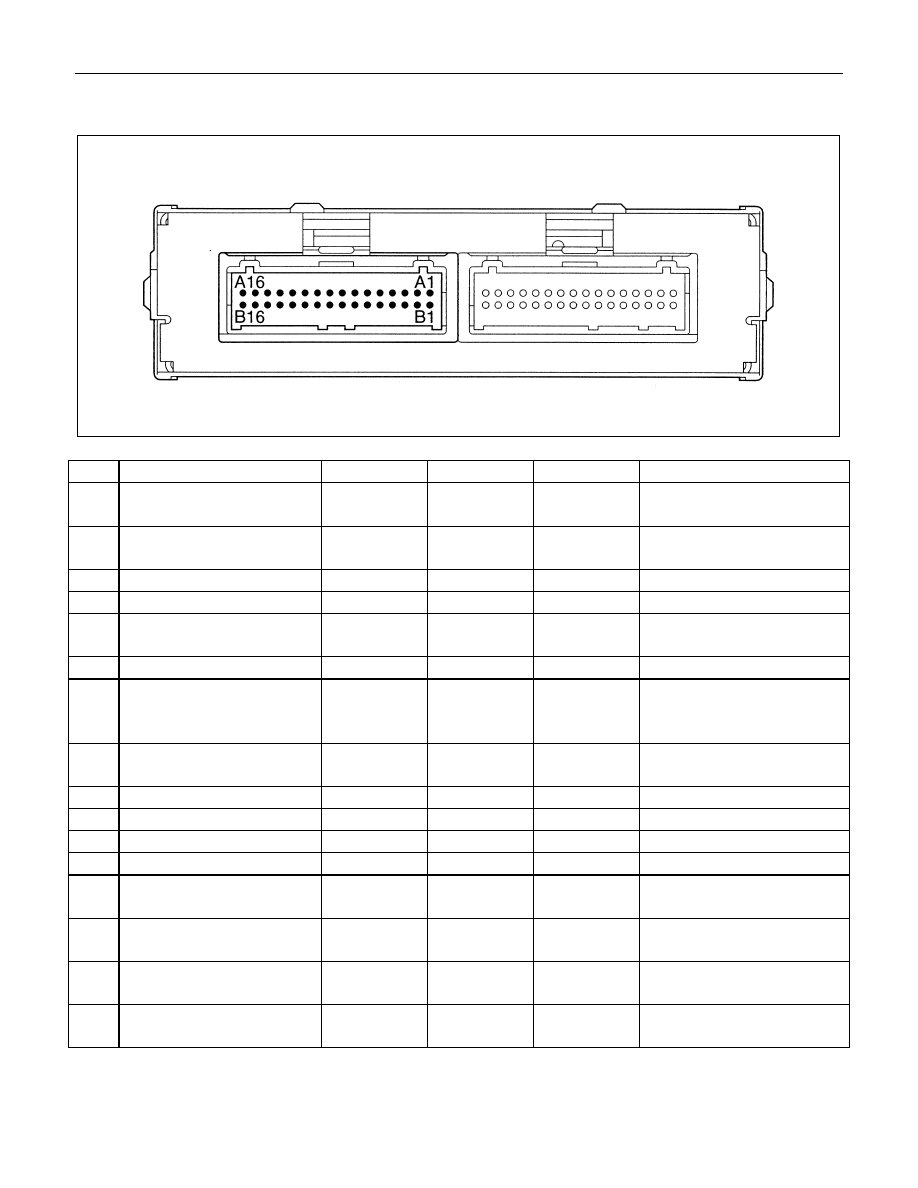

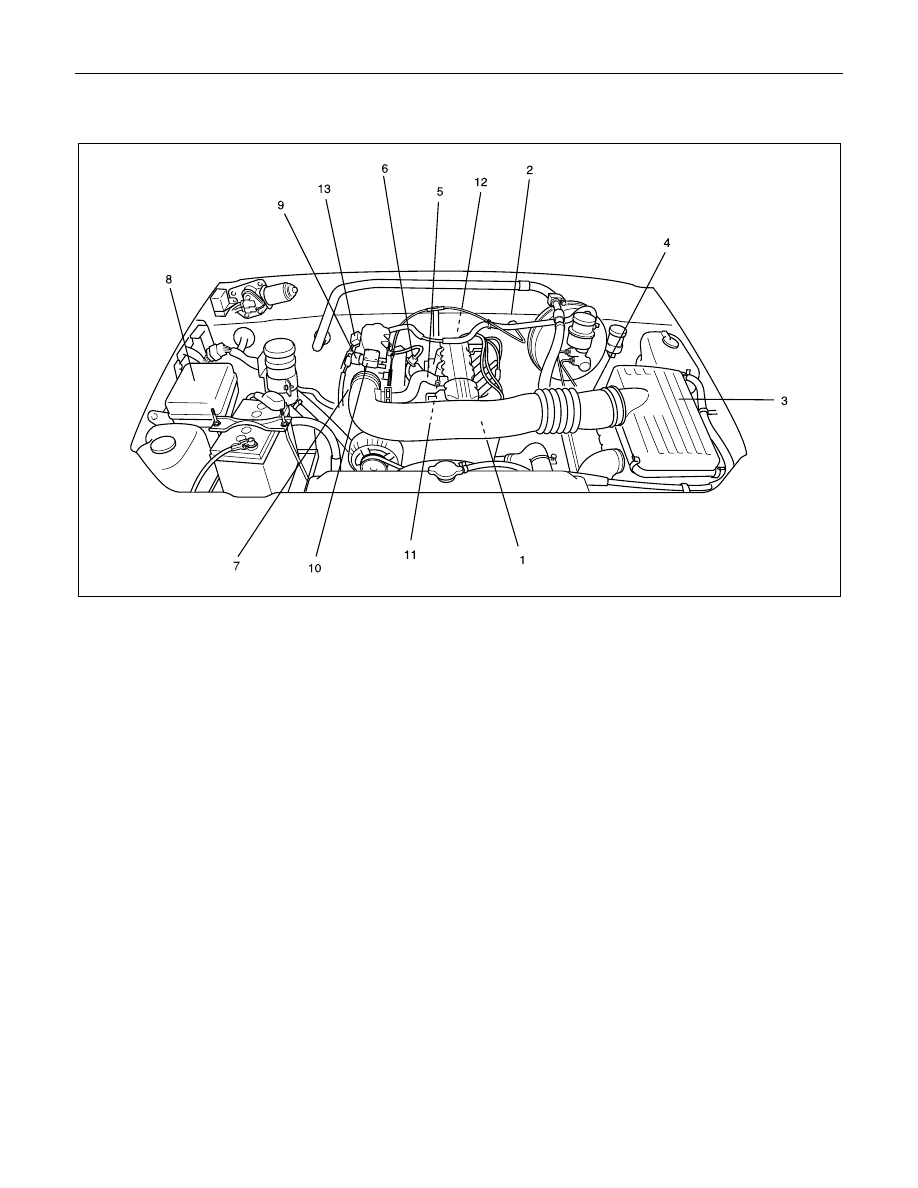

DRIVEABILITY AND EMISSIONS 6E1-37 ECM PINOUTS ECM Pinout Table, 32-Pin Red Connector-Row “J2” PIN PIN Function Wire Color IGN ON ENG RUN Refer To A1 Power Ground A B/R 0.0V 0V Appropriate Sensor A2 Sensor Ground B B/L 0.0V 0V Appropriate Sensor A3 5 Volt Reference Signal R 5.0V 5V Appropriate Sensor A4 Battery Feed R/W 12V 14V Chassis Electrical A5 Battery R/W 12V 14V Chassis Electrical A6 Injector #4 Cyl G 0V 14V General Description and Operation, Fuel Injector A7 Injector #1 Cyl G/W 0V 14V General Description and Operation, Fuel Injector A8 Injector #3 Cyl G/B 0V 14V General Description and Operation, Fuel Injector A9 Inject #2 Cyl G/R 0V 14V General Description and Operation, Fuel Injector A10 Not Used - - - - A11 Not Used - - - - A12 Not Used - - - - A13 Fuel Pump Relay G/W 12V 0V On-Vehicle Service Fuel Pump Relay A14 Charcoal Canister Purge Solenoid Valve (If applicable) R/L 12V 14V - A15 Not Used - - - - A16 A/C Clutch W/R 0V 0V - |
