INDUCTION  6J – 1

INDUCTION

CONTENTS

General Description . . . . . . . . . . . . . . . . . .

6J–2

Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . .

6J–3

Turbocharger . . . . . . . . . . . . . . . . . . . . . . .

6J–4

Intercooler . . . . . . . . . . . . . . . . . . . . . . . . .

6J–9

Intake Throttle Valve . . . . . . . . . . . . . . . . . .

6J–10

Intake Manifold . . . . . . . . . . . . . . . . . . . . . .

6J–11

Main Data and Specifications . . . . . . . . . . .

6J–12

SECTION

6J – 2 INDUCTION

There is a large intake silencer provided at the entrance
of the air cleaner. Air cleaner element is a viscous type
which features high filtration efficiency.
A resonator is used also in the air duct between the air
cleaner and turbocharger to reduce air intake noise.
The air taken in flows through the turbocharger to the
intercooler where the air is cooled and then taken in the
cylinder through the intake manifold.

7

1

2

3

4

8

5

6

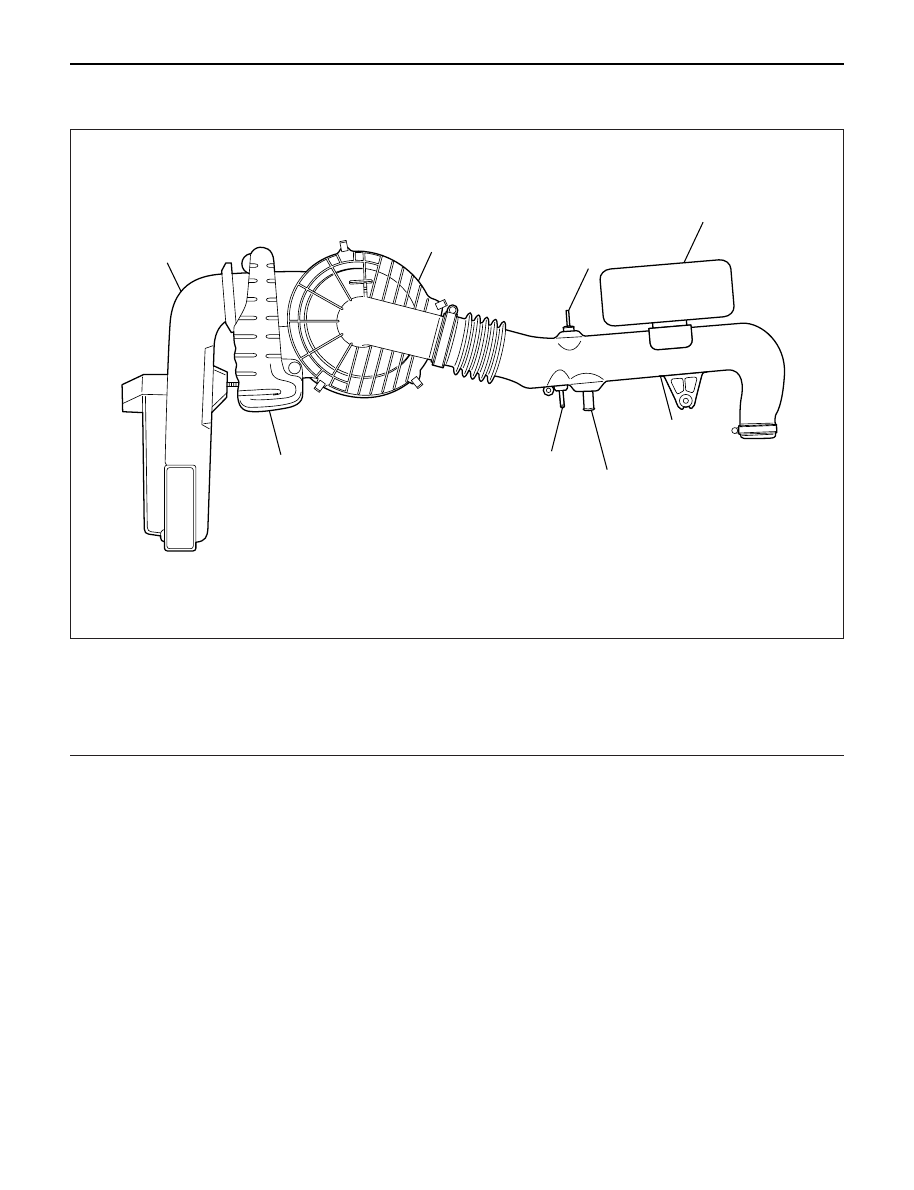

Legend

(1)

Air Cleaner

(2)

Connector for Fuel Tank Breather Hose

(3)

Resonator

(4)

Air Duct

(5)

Connector for PCV Hose

(6)

Connector for EGR VSV Hose

(7)

Air Duct

(8)

Air Duct

130R200003

GENERAL DESCRIPTION

INDUCTION  6J – 3

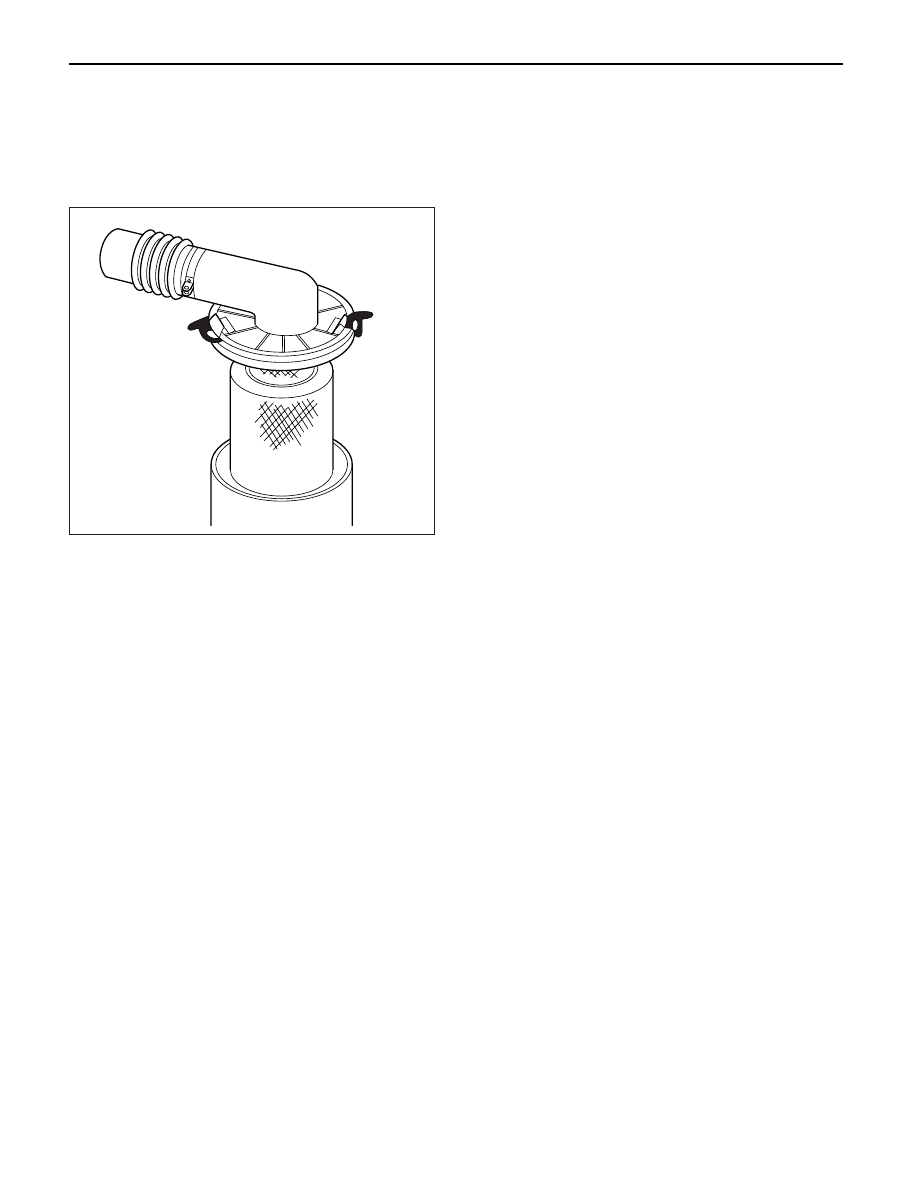

REMOVAL

1. Remove air cleaner cover with air duct.
2. Remove air cleaner element.

INSPECTION

Check air cleaner element for clogs, chokes and
breaks, and if any problem is found during inspection,
the element must be replaced.

INSTALLATION

1. Air cleaner element
2. Air cleaner cover with air duct.

1) Put air cleaner cover in original position and

tighten it with the clip.

130RW010

AIR CLEANER
