Isuzu Trooper (1998-2002 year). Service manual - part 390

6A–90

ENGINE MECHANICAL (6VE1 3.5L)

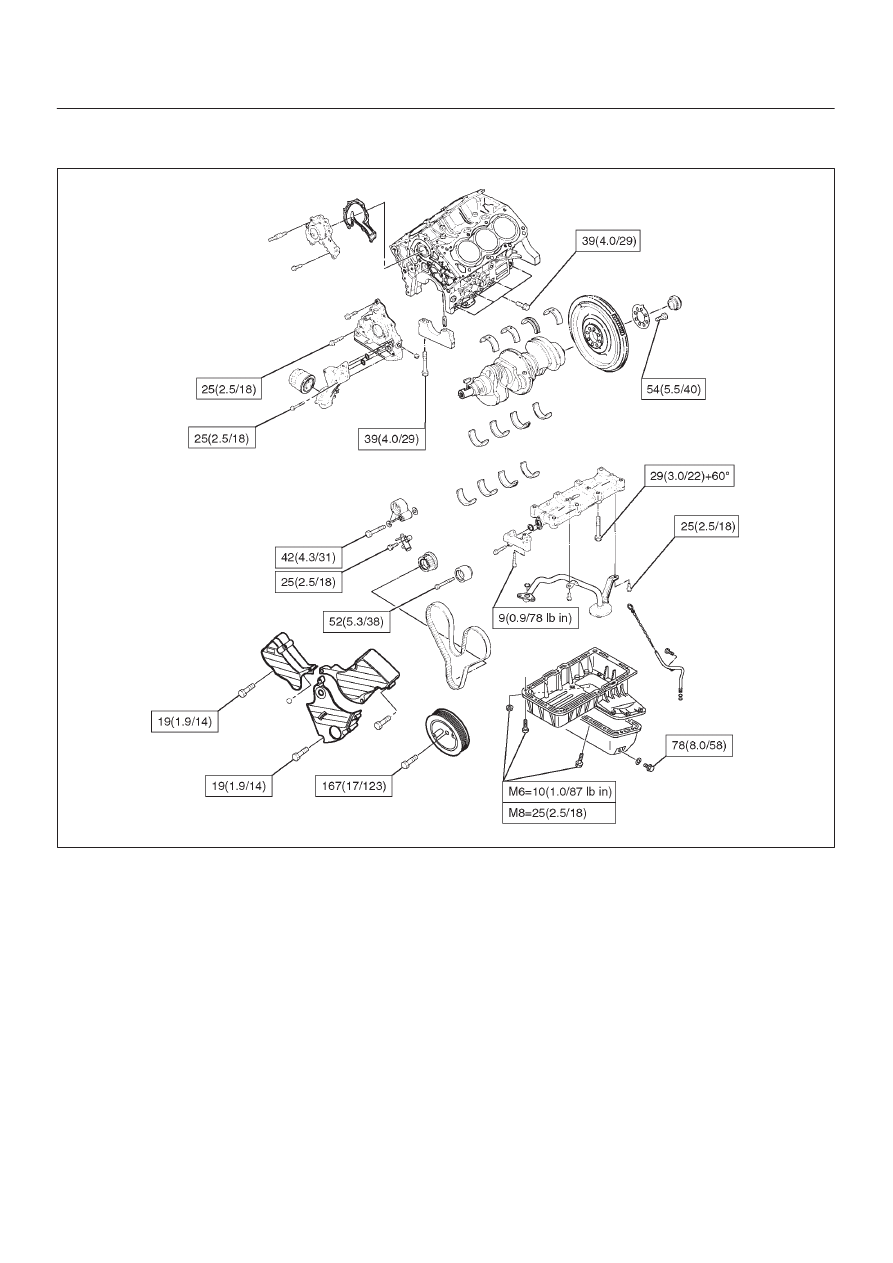

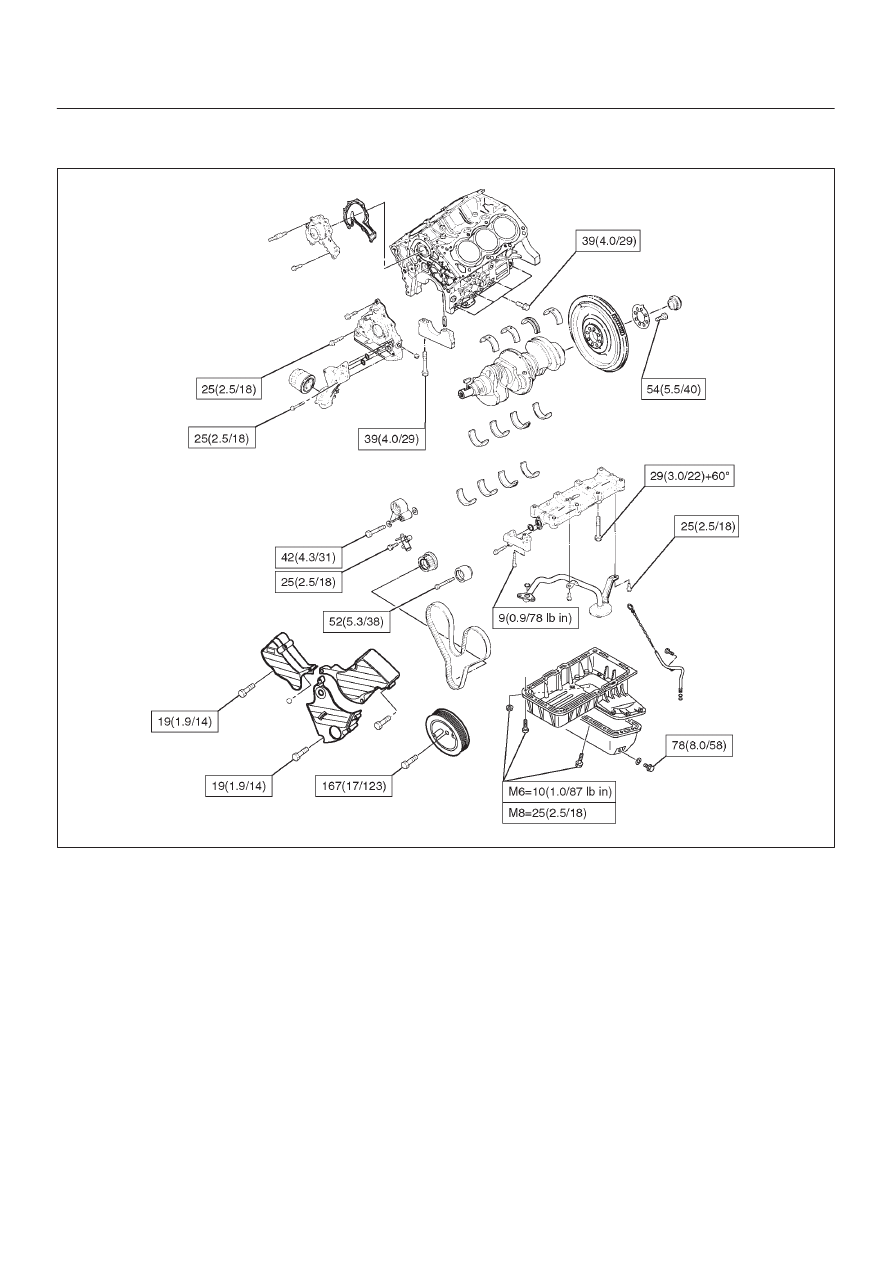

Crankshaft main bearing, Flywheel, Crankcase, Oil pan, Timing belt tensioner, Timing pulley, Timing belt
cover, Oil pump, Oil gallery, Oil strainer and water pump
                                                                                                                                                          N·m (kg·m/Ib ft)

E06R200017

6A–91

ENGINE MECHANICAL (6VE1 3.5L)

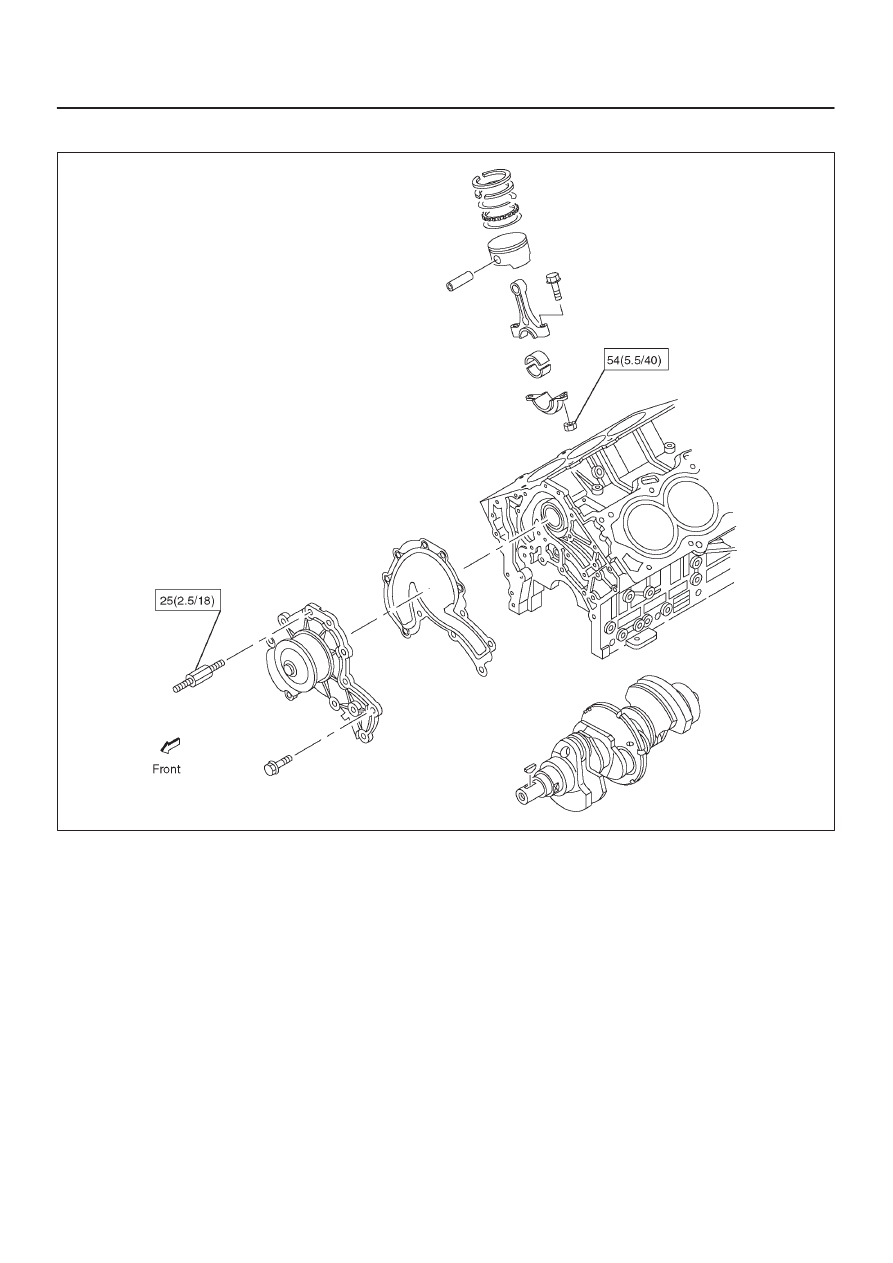

Connecting rod and Water pump
                                                                                                                                                          N·m (kg·m/lb ft)

E06RW042

6A–92

ENGINE MECHANICAL (6VE1 3.5L)

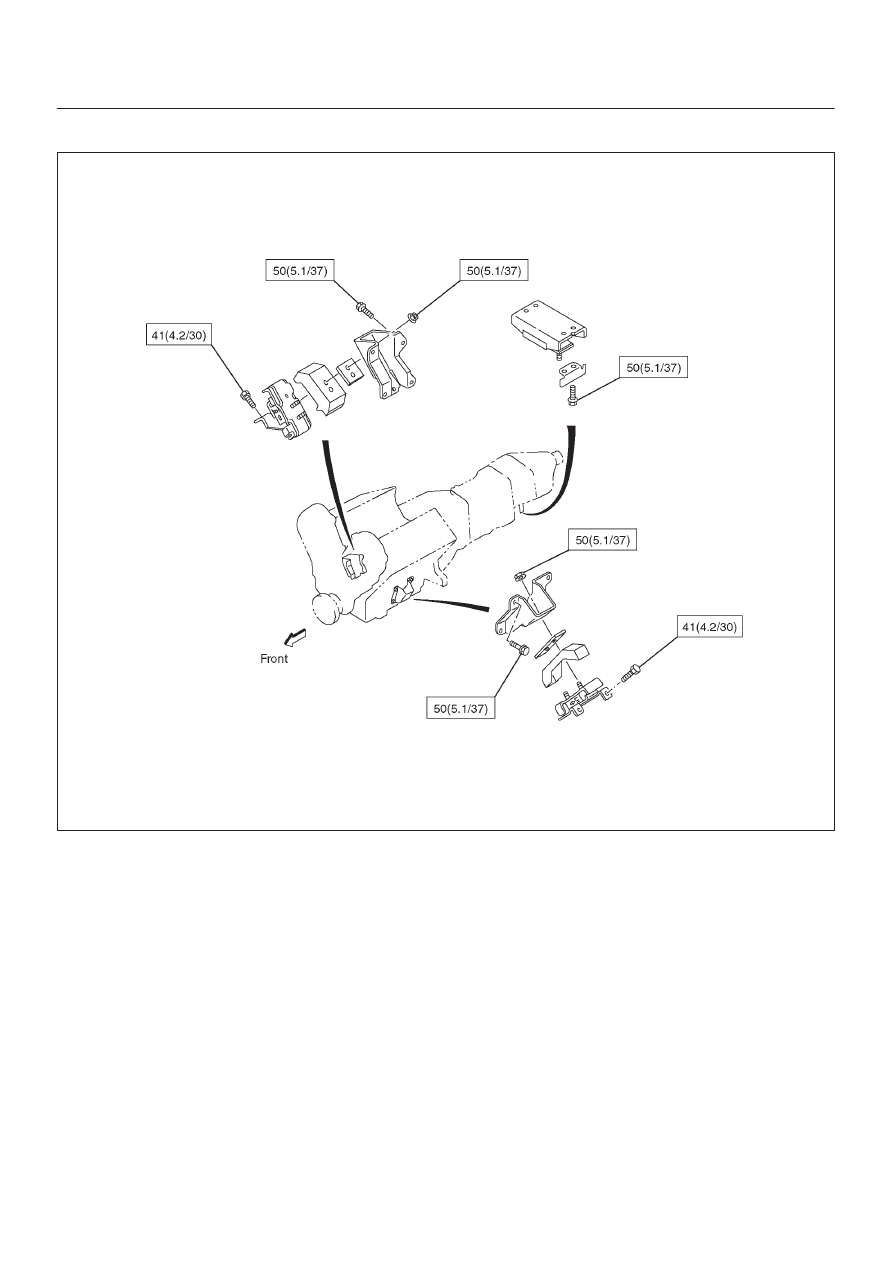

Engine mount
                                                                                                                                                          N·m (kg·m/lb ft)

E06R200012

6A–93

ENGINE MECHANICAL (6VE1 3.5L)

Special Tool

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–0011–0

(J–21687–02)

Remover; tie rod end

5–8840–2441–0

Set Number of Valve

Compressor

5–8840–2446–0

(J–8062)

Compressor; Valve

Spring (1)

5–8840–2547–0

(J–42898)

Adapter; Compressor

Valve Spring (2)

5–8840–0623–0

(J–37281)

Remover; Oil controller

5–8840–0624–0

(J–38537)

Installer; Oil controller

5–8840–2445–0

(J–42985)

Installer; Camshaft oil

seal

5–8840–2545–0

(J–39206)

Installer; Pilot bearing

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–0133–0

(J–8614–01)

Holder; Crankshaft

5–8840–2153–0

(J–37228)

Seal cutter

5–8840–2286–0

(J–39201)

Installer; Real oil seal

9–8511–4209–0

(J–24239–1)

Cylinder head bolt

wrench

5–8840–2442–0

(J–42899)

Replacer; Valve guide

(set) (1,2)

5–8840–2548–0

(J–42687)

Installer; Valve guide (1)

5–8840–2549–0

(J–37985–1)

Remover; Valve guide

(2)

5–8840–2444–0

(J–42689)

Adjusting Tool: Valve

clearance
