6A–94

ENGINE MECHANICAL

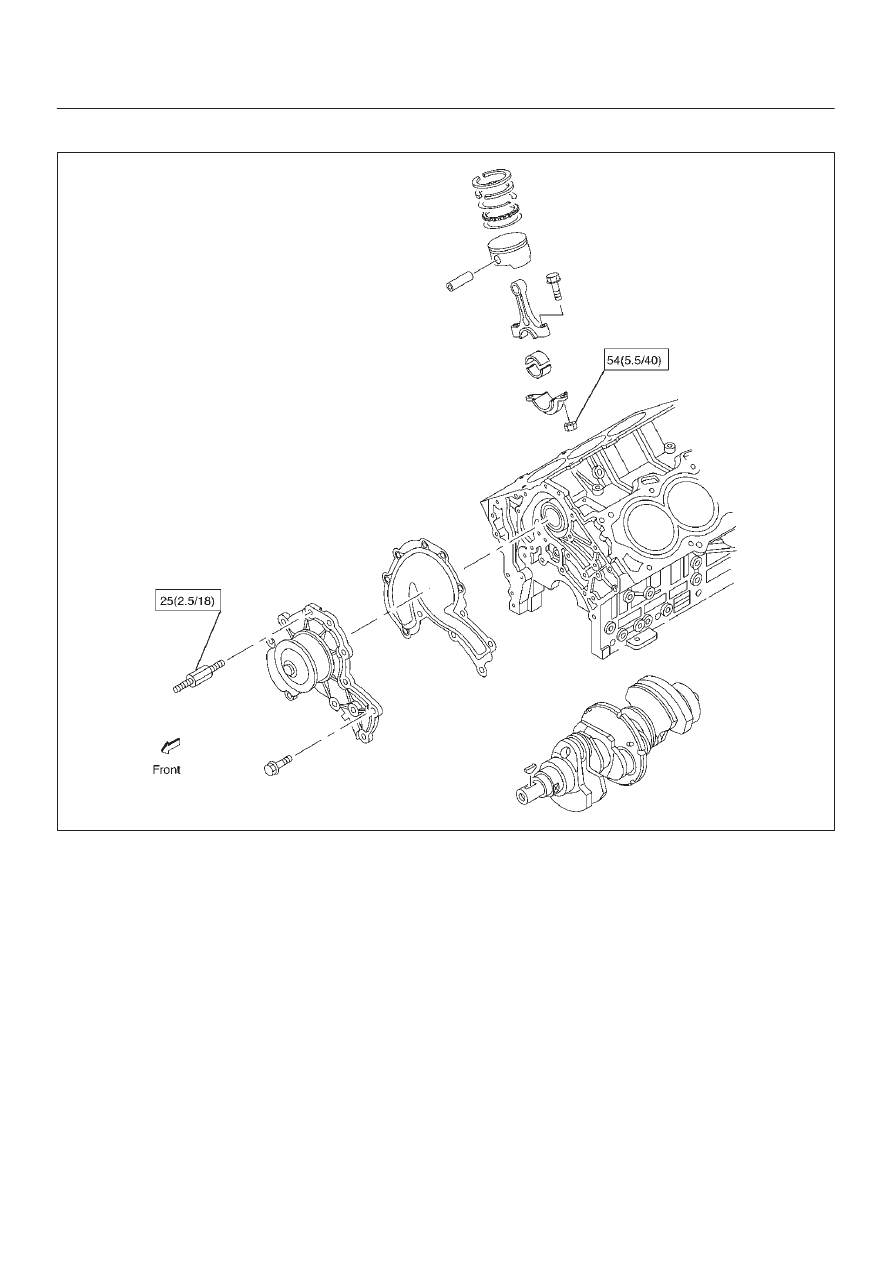

Connecting rod and Water pump
                                                                                                                                                         N·m (Kg·m/Ib ft)

E06RW042

6A–95

ENGINE MECHANICAL

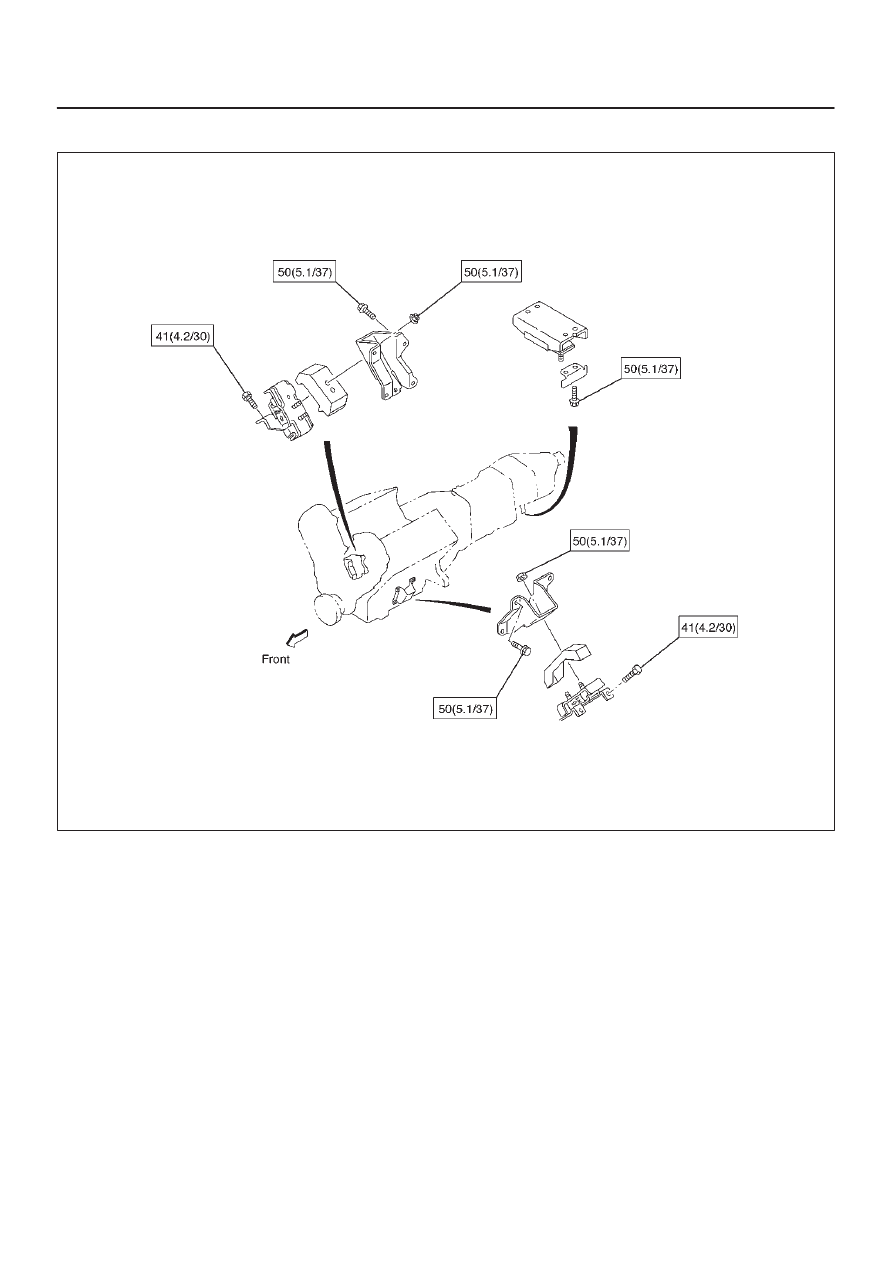

Engine mount
                                                                                                                                                         N·m (Kg·m/Ib ft)

E06RW040

6A–96

ENGINE MECHANICAL

Special Tool

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–0011–0

(J–21687–02)

Remover; tie rod end

5–8840–2441–0

Set Number of Valve

Compressor

5–8840–2446–0

(J–8062)

Compressor; Valve

Spring (1)

5–8840–2547–0

(J–42898)

Adapter; Compressor

Valve Spring (2)

5–8840–0623–0

(J–37281)

Remover; Oil controller

5–8840–0624–0

(J–38537)

Installer; Oil controller

5–8840–2445–0

(J–42985)

Installer; Camshaft oil

seal

5–8840–2545–0

(J–39206)

Installer; Pilot bearing

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–0133–0

(J–8614–01)

Holder; Crankshaft

5–8840–2153–0

(J–37228)

Seal cutter

5–8840–2286–0

(J–39201)

Installer; Real oil seal

9–8511–4209–0

(J–24239–1)

Cylinder head bolt

wrench

5–8840–2442–0

(J–42899)

Replacer; Valve guide

(set) (1,2)

5–8840–2548–0

(J–42687)

Installer; Valve guide (1)

5–8840–2549–0

(J–37985–1)

Remover; Valve guide

(2)

5–8840–2444–0

(J–42689)

Adjusting Tool: Valve

clearance

6A–97

ENGINE MECHANICAL

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2443–0

(J–42686)

Lever; Gear spring

5–8840–2447–0

(J–43041)

Holder; Universal
