8F–4

BODY STRUCTURE

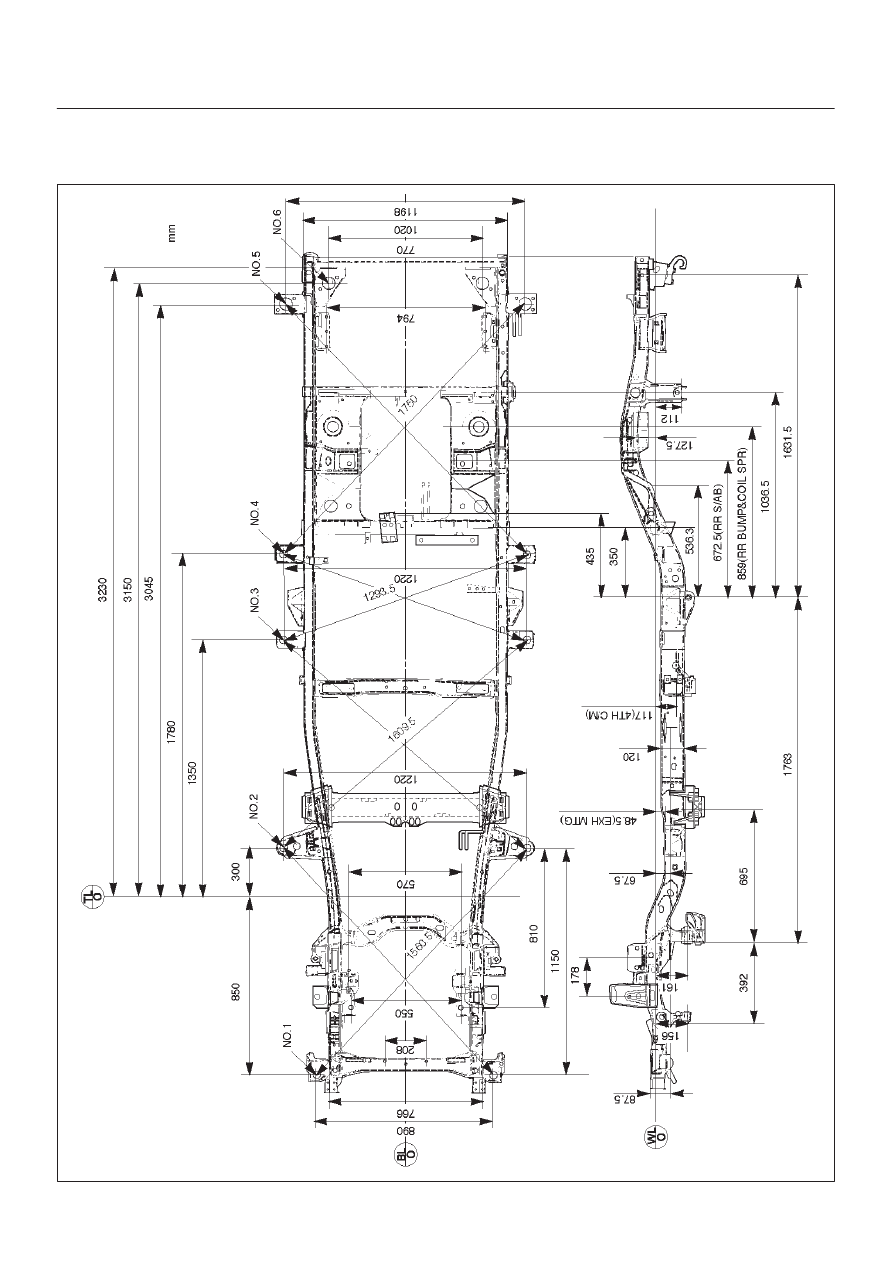

Frame Dimensions (L W B)

This illustration is based on the gasoline engine and A/T
model.

501RW013

8F–5

BODY STRUCTURE

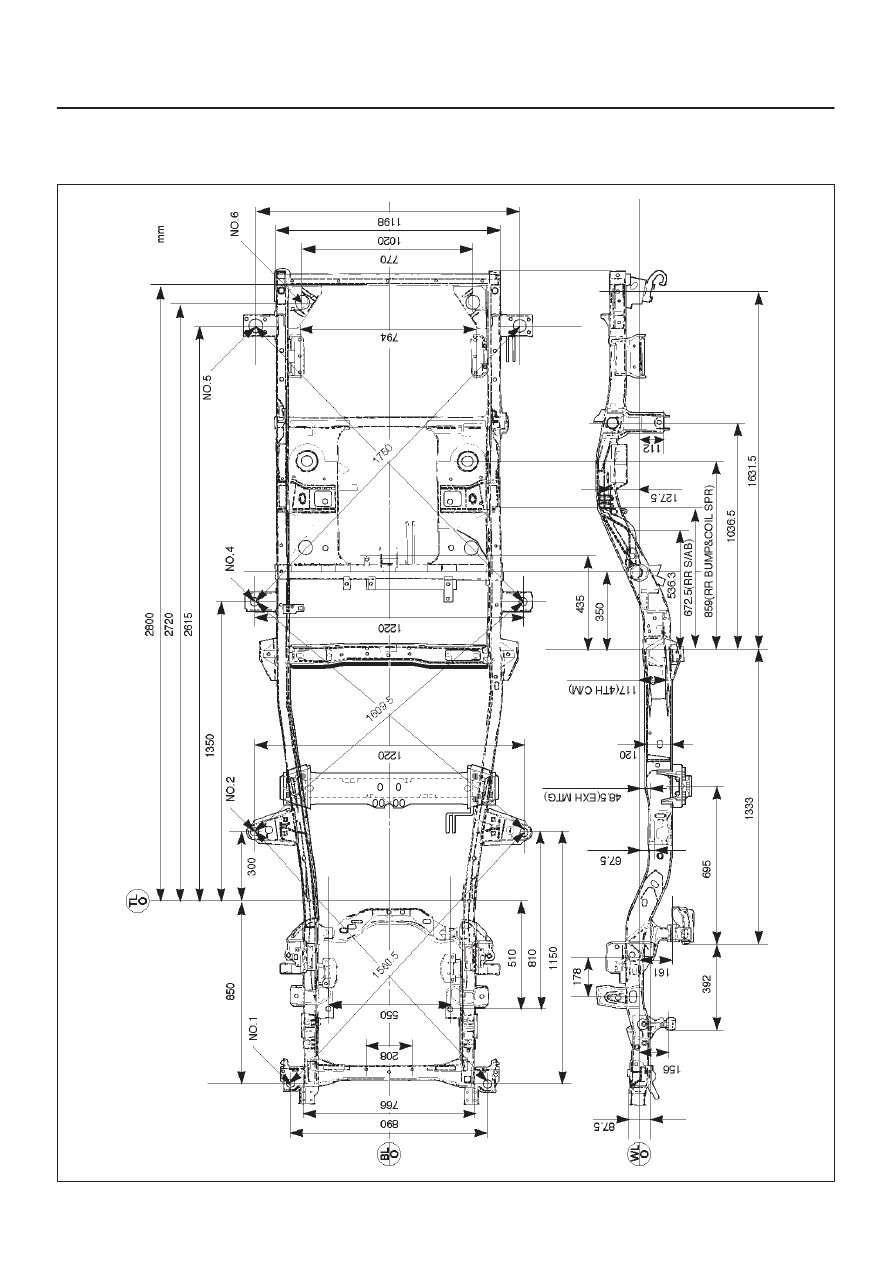

Frame Dimensions (S W B)

This illustration is based on the gasoline engine and A/T
model.

501RW014

8F–6

BODY STRUCTURE

General Description

This section describes how to remove and install front
and rear bumpers. Each bumper is installed with two
fixing bolts used on either side to fasten the backbar to the

frame, a slider is used to fasten the bumper fascia to the
fender panel. The bumpers can be removed by taking
them out forward or backward after removing the two
fixing bolts on either side.

Front Bumper

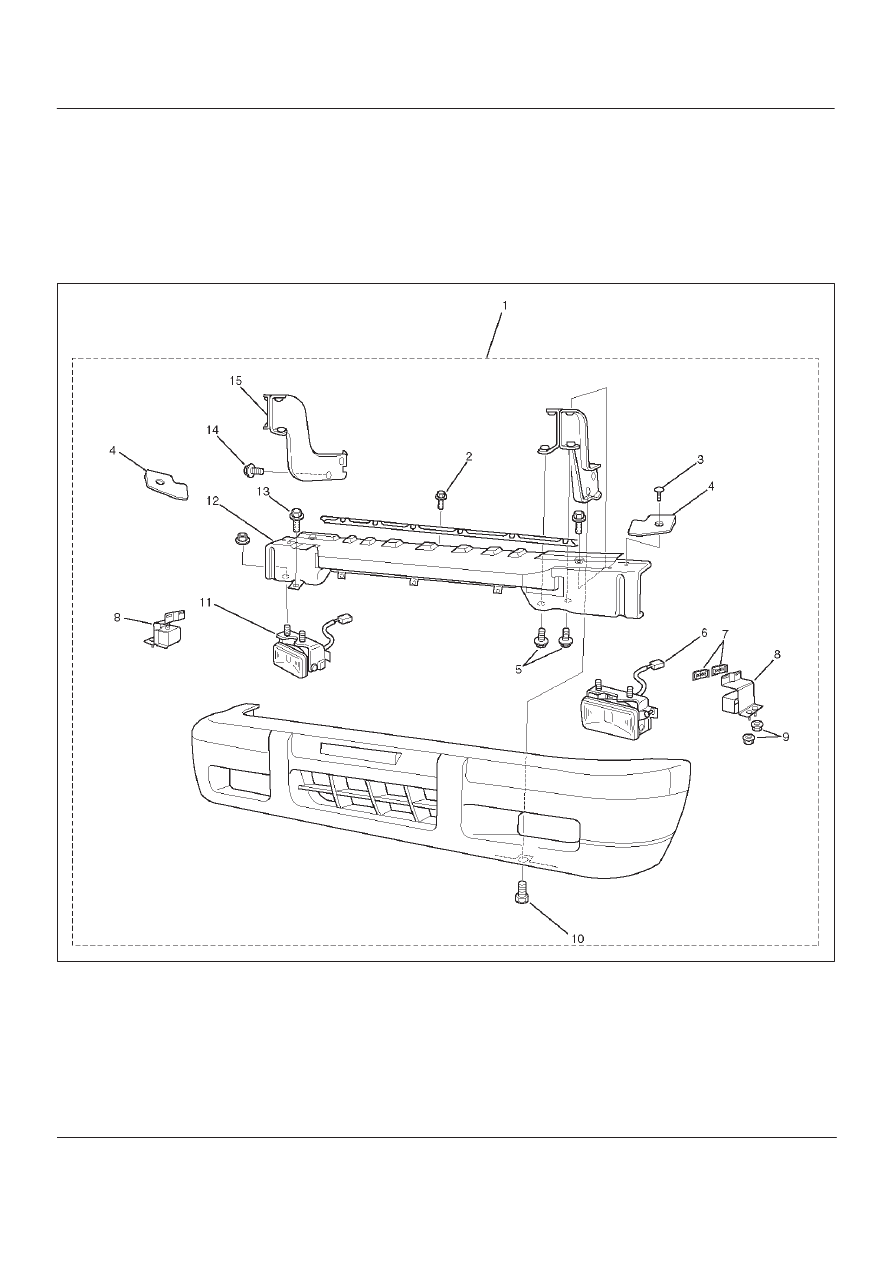

Parts Location

601RX001

Legend

(1) Front Bumper Assembly
(2) Front Bumper Retainer Bolt
(3) Support Fixing Clip
(4) Bumper Spacer Support
(5) Back Bar Fixing Bolt
(6) Front Fog Light Connector
(7) Front Bumper Slider Fixing Clip

(8) Front Bumper Slider
(9) Front Bumper Slider Fixing Nut

(10) Bumper Fascia Lower Bolt

(11) Front Fog Light Assembly

(12) Reinforce Assembly
(13) Reinforce Lower Bolt
(14) Front Bumper Fixing Bolt
(15) Back Bar

8F–7

BODY STRUCTURE

Removal

1. Disconnect battery ground cable.
2. Remove front fog light connector.
3. Remove front bumper assembly fixing bolt.

D

Remove the two bolts from both sides of the front
bumper.

601RW010

4. Remove front bumper assembly.
5. Remove bumper fascia lower bolts.
6. Remove front bumper retainer.
7. Remove reinforce lower bolts.

D

Loosen the five bolts and release claws.

8. Remove reinforce assembly.

9. Remove backbar fixing bolts.

D

Remove the four bolts at each backbar.

10. Remove front fog light assembly.

11. Remove the front bumper slider(1).

D

Remove the two clips(4) and the two nuts(3), and
release the claw from the washer(2).

601RW009

Installation

To install, follow the removal steps in reverse order noting
the following points:

1. Tighten the front bumper assembly fixing bolts to the

specified torque.

Torque: 132 N

•

m (13.5kg·m/98 lb ft)

Front Bumper Slider Bracket

Removal

1. Disconnect battery ground cable.
2. Remove the Front bumper.

D

Refer to Front Bumper in this section.

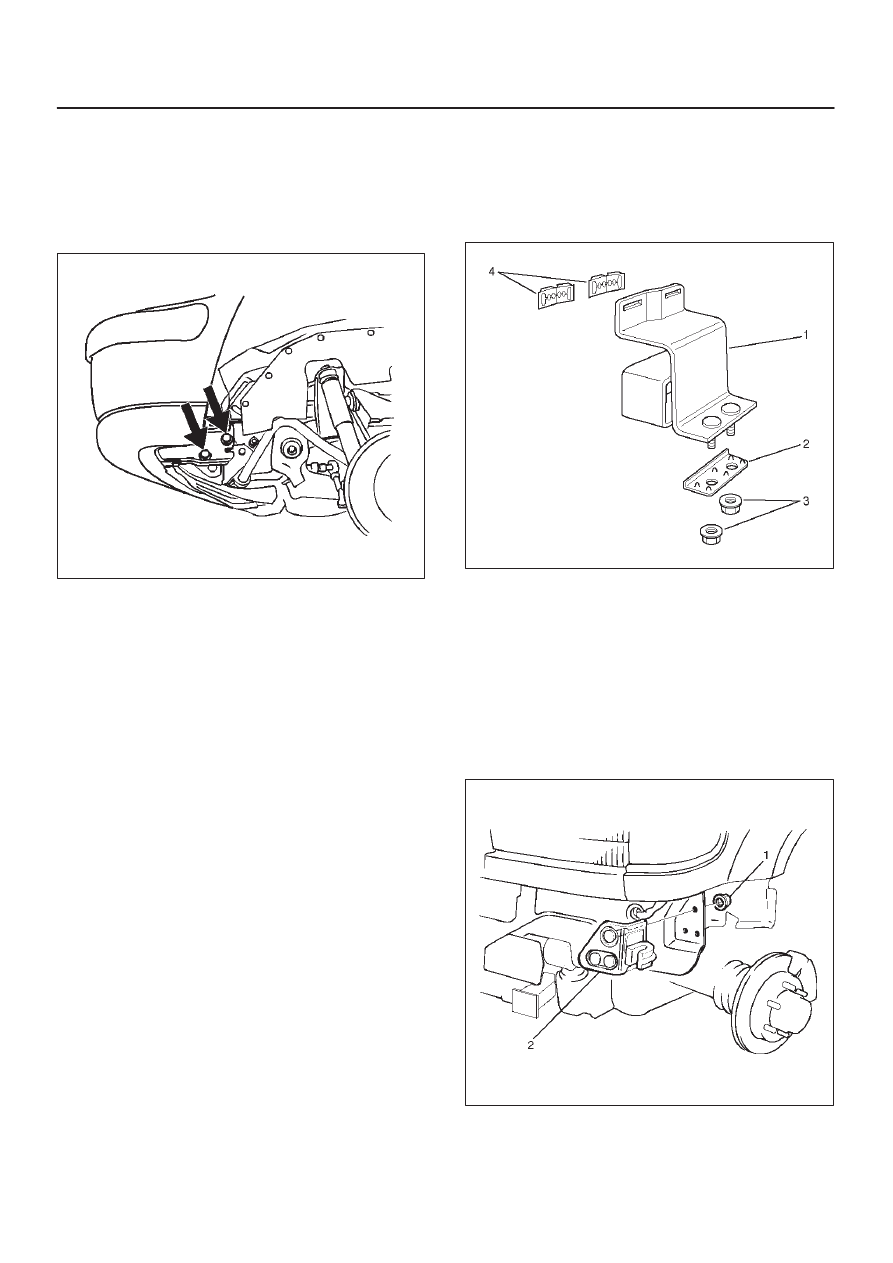

3. Remove the three nuts(1) and draw out the slider

bracket(2).

601RW003

Installation

To install, follow the removal steps in reverse order.
