DIFFERENTIAL (FRONT)

4A1–26

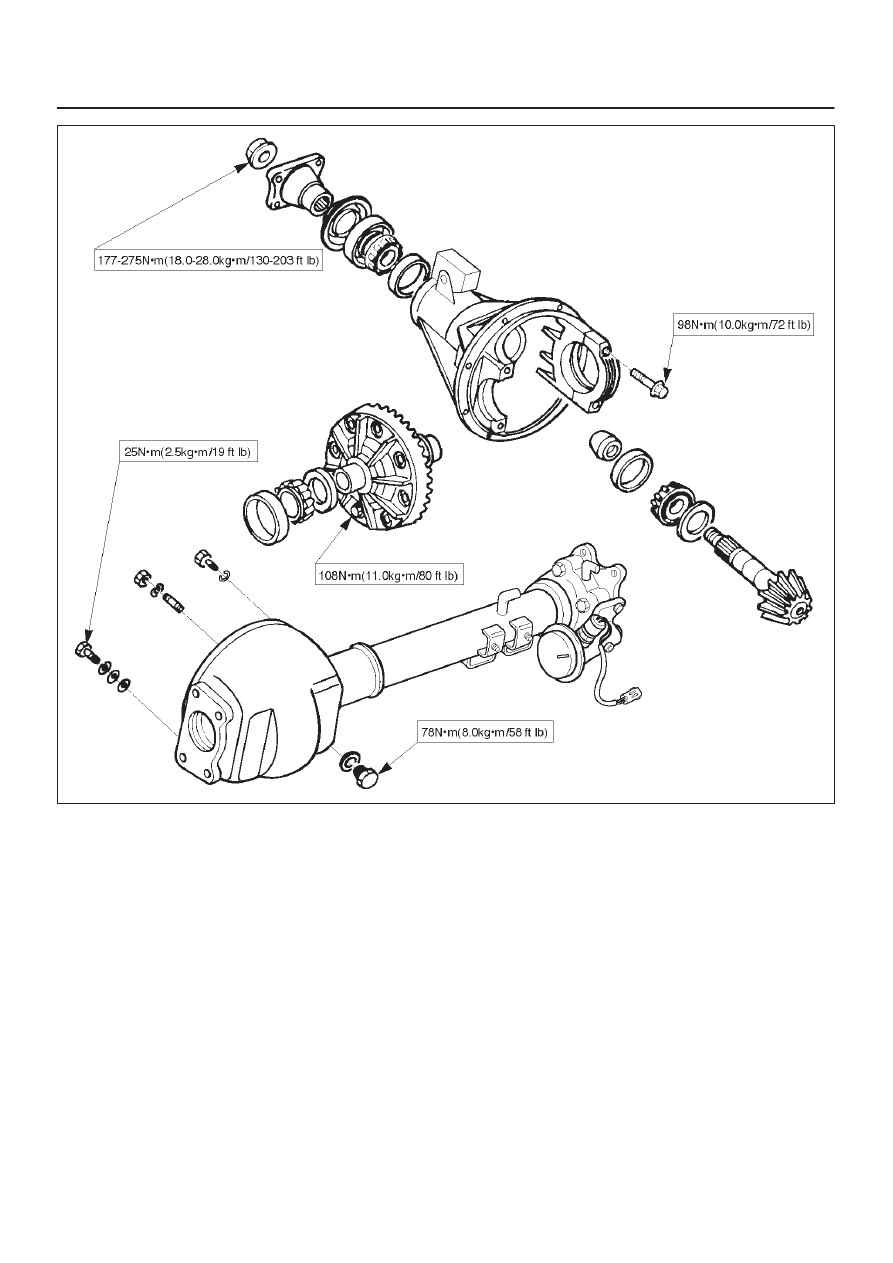

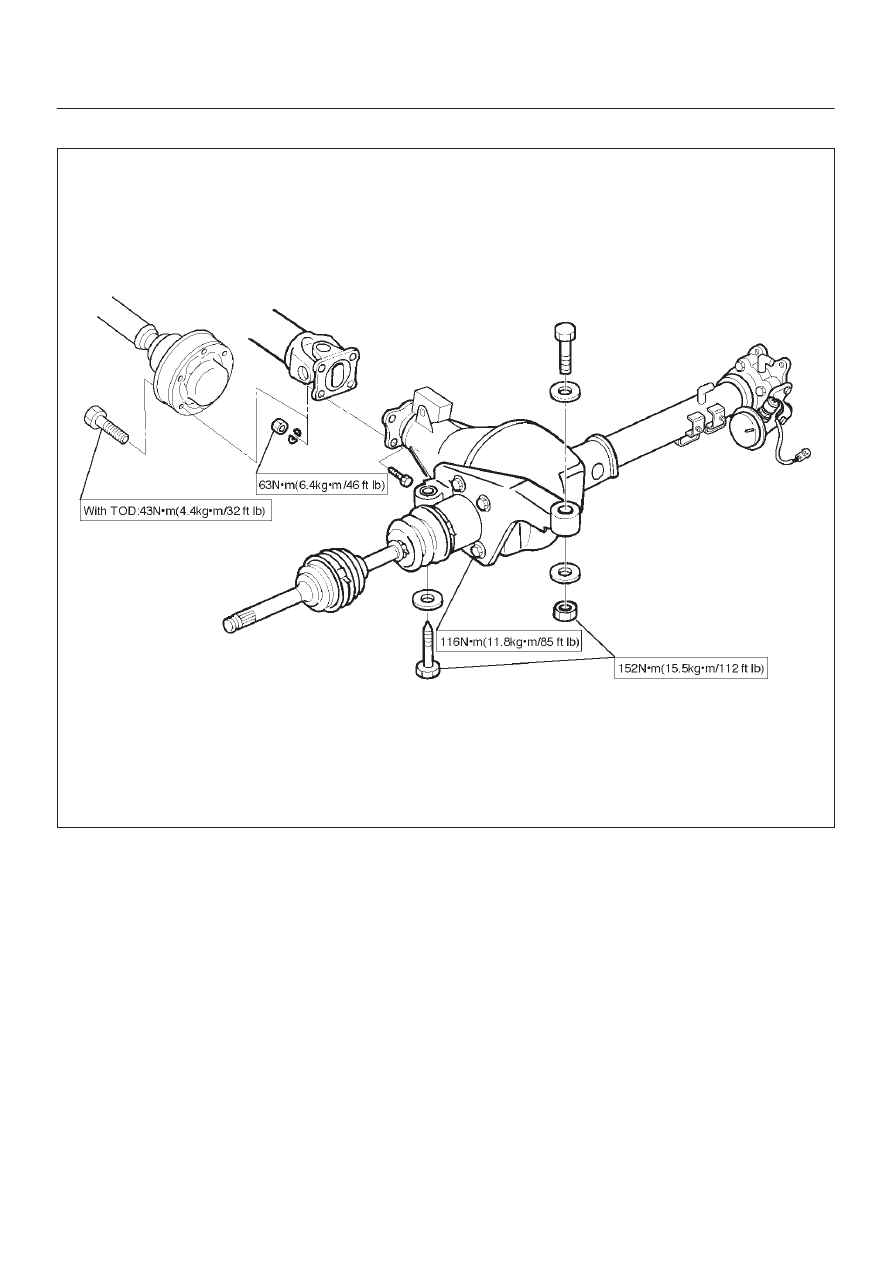

Torque Specifications

E04RW014

4A1–27

DIFFERENTIAL (FRONT)

E04RW015

DIFFERENTIAL (FRONT)

4A1–28

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2157–0

(J–37221)

Holder; Pinion flange

9–8522–1275–0

(J–24250)

Installer; Oil seal

5–8840–0275–0

(J–37264)

Differential holding

fixture

(Use with

5–8840–0003–0 base)

5–8840–0003–0

(J–3289–20)

Holding fixture base

5–8840–0013–0
5–8840–0014–0

(J–22888)

Puller; Side bearing

9–8521–1743–0

(J–8107–2)

Adapter; Side bearing

plug

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–0015–0

(J–22912–01)

Separator

9–8522–1141–0

(J–24256)

Installer; Outer bearing

outer race

5–8840–0007–0

(J–8092)

Driver handle

9–8522–1274–0

(J–24252)

Installer; Inner bearing

outer race

5–8840–2085–0

(J–21777–42)

Pilot

5–8840–2089–0

(J–23597–9)

Nut and bolt

4A1–29

DIFFERENTIAL (FRONT)

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2087–0

(J–23597–7)

Gauge plate

5–8840–0126–0

(J–8001)

Dial indicator

5–8840–2088–0

(J–23597–8)

Disc

5–8840–0128–0

(J–23597–1)

Arbor

9–8522–1165–0

(J–6133–01)

Installer; Pinion bearing

5–8840–2293–0

(J–39209)

Punch; End nut lock

ILLUSTRATION

TOOL NO.

TOOL NAME

9–8522–1164–0

(J–24244)

Installer; Side bearing

5–8840–2323–0

(J–39602)

Remover; Outer bearing
