SERVICE INFORMATION 00-55

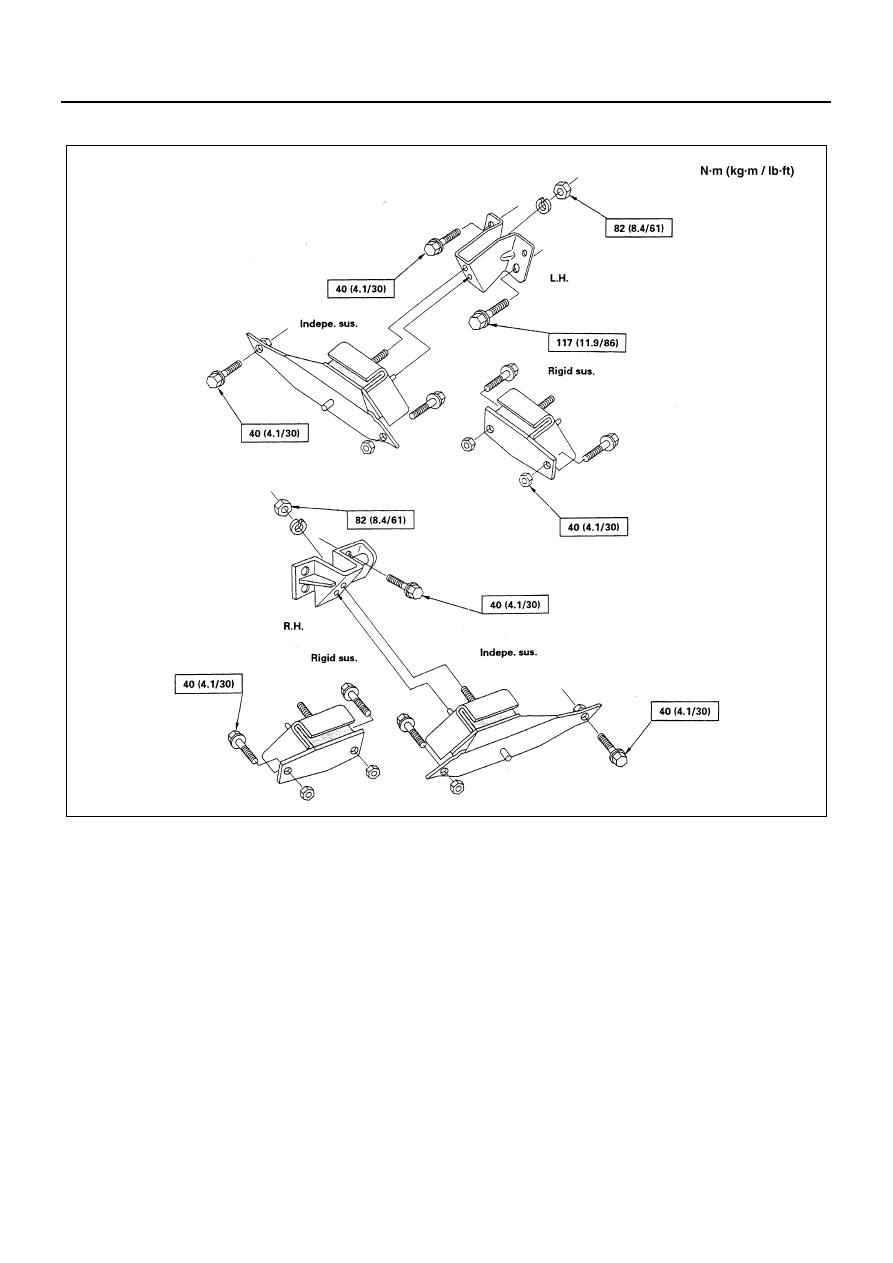

Engine Mounting Bracket

N6A3051E

00-56 SERVICE INFORMATION

SPECIAL TOOLS

Illustration

Tool Number /

Description / Remarks

5-8840-2035-0 / Crank

Timing Pulley (4JG2 Belt

Drive only)

5-8840-0200-0 / Oil Filter

Wrench (89.0 mm/3.5 in)

5-8840-0202-0 / Oil Filter

Wrench (106.0 mm/4.2

in)

5-8840-2209-0 / Oil Filter

Wrench (100.6 mm/4.0

in)

9-8523-1423-0 (J-29760)

/ Valve Spring Compres-

sor

5-8840-2033-0 / Oil Seal

Installer

5884020350

5884002000

5884002020

5884022090

9852314230

5884020330

5-8840-9018-0 / Piston

Ring Compressor

5-8840-2093-0 / Tacho

Meter

9-8523-1212-0 / Valve

Guide Replacer

5-8840-0086-0 / Cam-

shaft Timing Pulley

Remover (4JG2 Belt

Drive only)

5-8840-0199-0 / Rubber

Hardness Tester

5-8840-2675-0 / Com-

pression gauge

Illustration

Tool Number /

Description / Remarks

5884090180

5884020930

9852312120

5884000860

5884001990

5884026750

SERVICE INFORMATION 00-57

5-8531-7001-0 / Gauge

Adapter

5-8531-7002-0 / Gauge

Adapter

5-8840-0145-0 / Measur-

ing Device

x-xxxx-xxxx-x / Crank-

shaft Timing Pulley

Installer (4JG2 Belt Drive

only)

5-8840-0266-0 / Angle

Gauge

5-8840-9016-0 / Injec-

tion Nozzle Tester

5-8840-2034-0 / Nozzle

Holder Remover (4JB1

only)

Illustration

Tool Number /

Description / Remarks

5853170010

5853170020

5884001450

-1

5884002660

5884090160

5884020340

5-8840-2038-0 / Cam-

shaft Bearing Replacer

5-8840-2036-0 / Front Oil

Seal Installer (4JB1,

4JG2, Gear Drive only)

Base 5-86739-149-0 /

Lever 5-86739-150-0 /

Scissor gear setting tool

5-8840-0259-0 / Nozzle

Holder Wrench (4JG2

only)

5-8840-0253-0 / (J-

22700) Fuel Filter

Wrench

5-8840-2362-0 / Front Oil

Seal Remover (4JG2,

Belt Drive only)

5-8840-2361-0 / Front Oil

Seal Installer (4JG2, Belt

Drive only)

Illustration

Tool Number /

Description / Remarks

5884020380

5884020360

5867391490

5884002590

5884002530

5884023620

5884023610

00-58 SERVICE INFORMATION

5-8840-2360-0 / Rear Oil

Seal Remover

5-8840-2359-0 / Rear Oil

Seal Installer

5-8840-2040-0 / Cylin-

der Liner Installer (4JB1

only)

5-8840-2313-0 / Cylin-

der Liner Installer (4JG2

only)

5-8840-2039-0 / Cylin-

der Liner Remover (4JB1

only)

5-8840-2304-0 / Cylin-

der Liner Remover Ankle

(4JG2 only)

5-8840-2000-0 / Pilot

Bearing Remover

Illustration

Tool Number /

Description / Remarks

5884023600

5884023590

5884020400

5884023130

5884020390

5884023040

5884020000

5-8840-0019-0 / Sliding

Hammer

5-8522-0024-0 / Pilot

Bearing Installer

Illustration

Tool Number /

Description / Remarks

5884000190

5852200240
