6D2-18 STARTING SYSTEM

CHARGING SYSTEM 6D3-1

ENGINE 4H SERIES

SECTION 6D3

CHARGING SYSTEM

Contents

GENERAL DESCRIPTION .................................6D3-2

Component ......................................................6D3-2

DIAGNOSIS ........................................................6D3-4
ON-VEHICLE SERVICE .....................................6D3-5

Component ......................................................6D3-5
Removal ..........................................................6D3-5
Installation .......................................................6D3-5

UNIT REPAIR .....................................................6D3-8

Component ......................................................6D3-8
Disassembly ....................................................6D3-9
Inspection and Repair....................................6D3-10
Reassembly...................................................6D3-16
Inspection ......................................................6D3-19

6D3-2 CHARGING SYSTEM

GENERAL DESCRIPTION

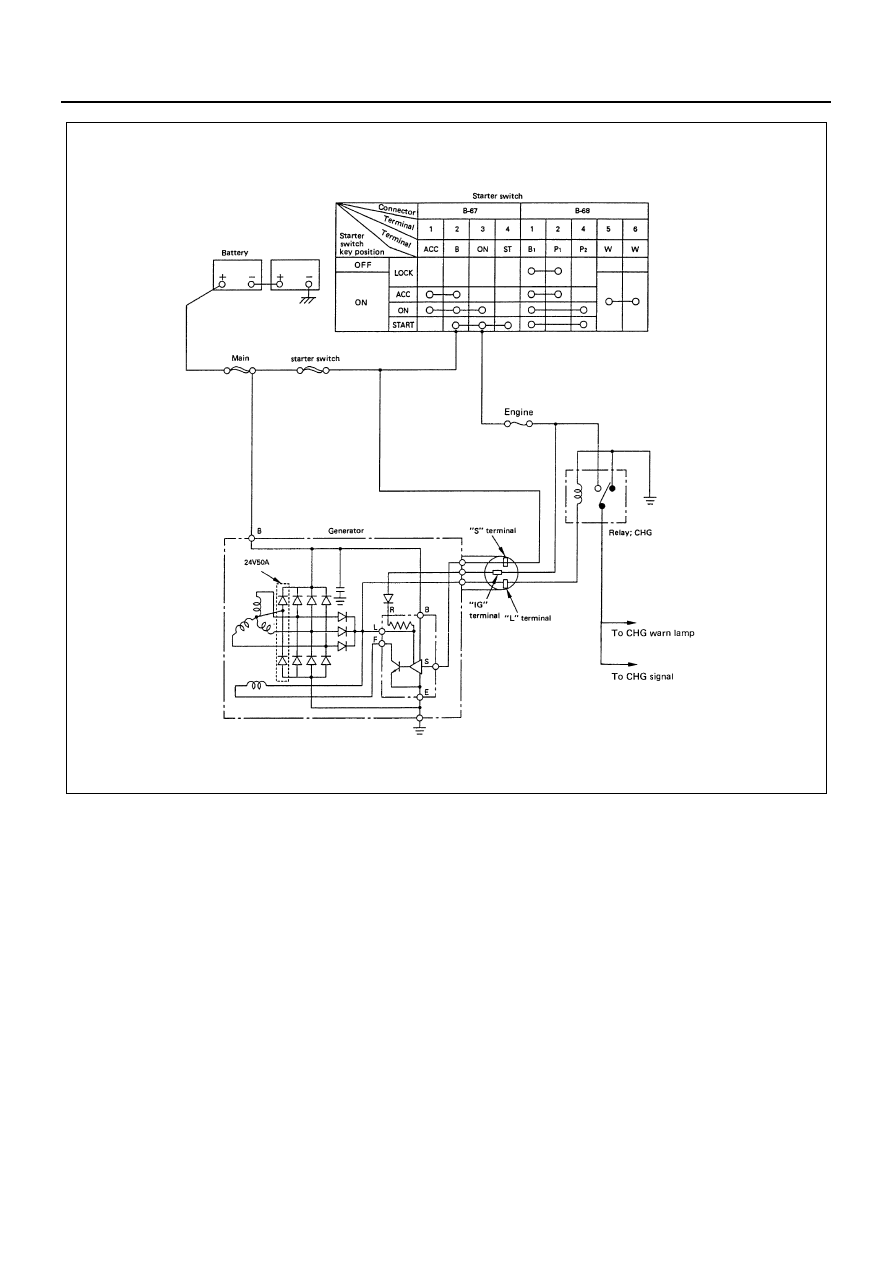

The charging system is the IC integral regulator charging system and its main components are connected as shown
in figure.
The regulator is a solid state type and it is mounted along with the brush holder assembly inside the generator in-
stalled on the rear end cover.
The generator does not require particular maintenance such as voltage adjustment. The rectifier connected to the
stator coil has nine diodes to transform A.C. voltage into D.C. voltage. This D.C. voltage is connected to the output
terminal of generator.

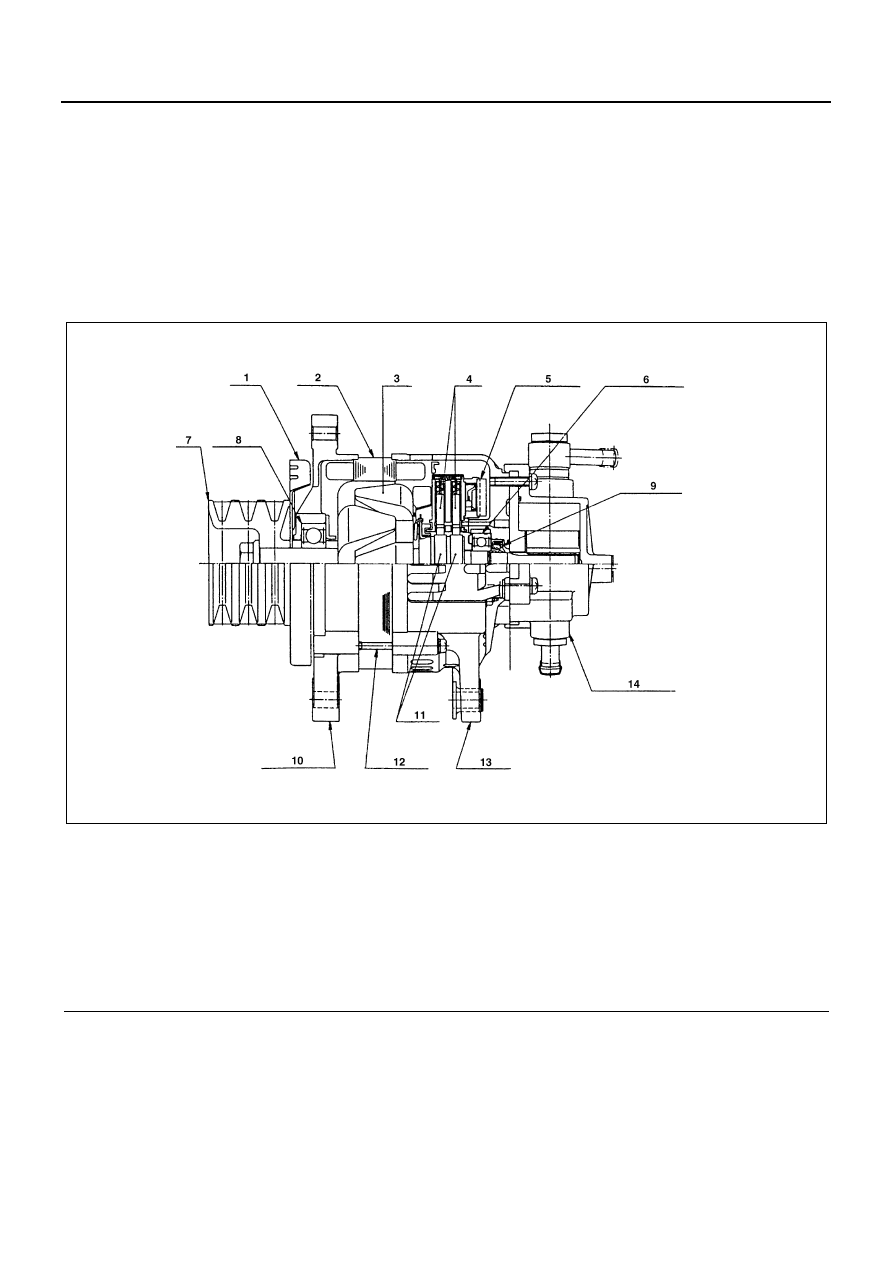

Component

Legend

1. Fan

8. Ball bearing

2. Stator

9. Oil seal

3. Rotor

10. Front cover

4. Brush

11. Slip ring

5. IC regulator

12. Through bolt

6. Ball bearing

13. Rear cover

7. Pulley

14. Vacuum pump

N6A1032E

CHARGING SYSTEM 6D3-3

N6A1033E
