Isuzu N-Series. Service manual - part 117

SERVICE INFORMATION 00-41

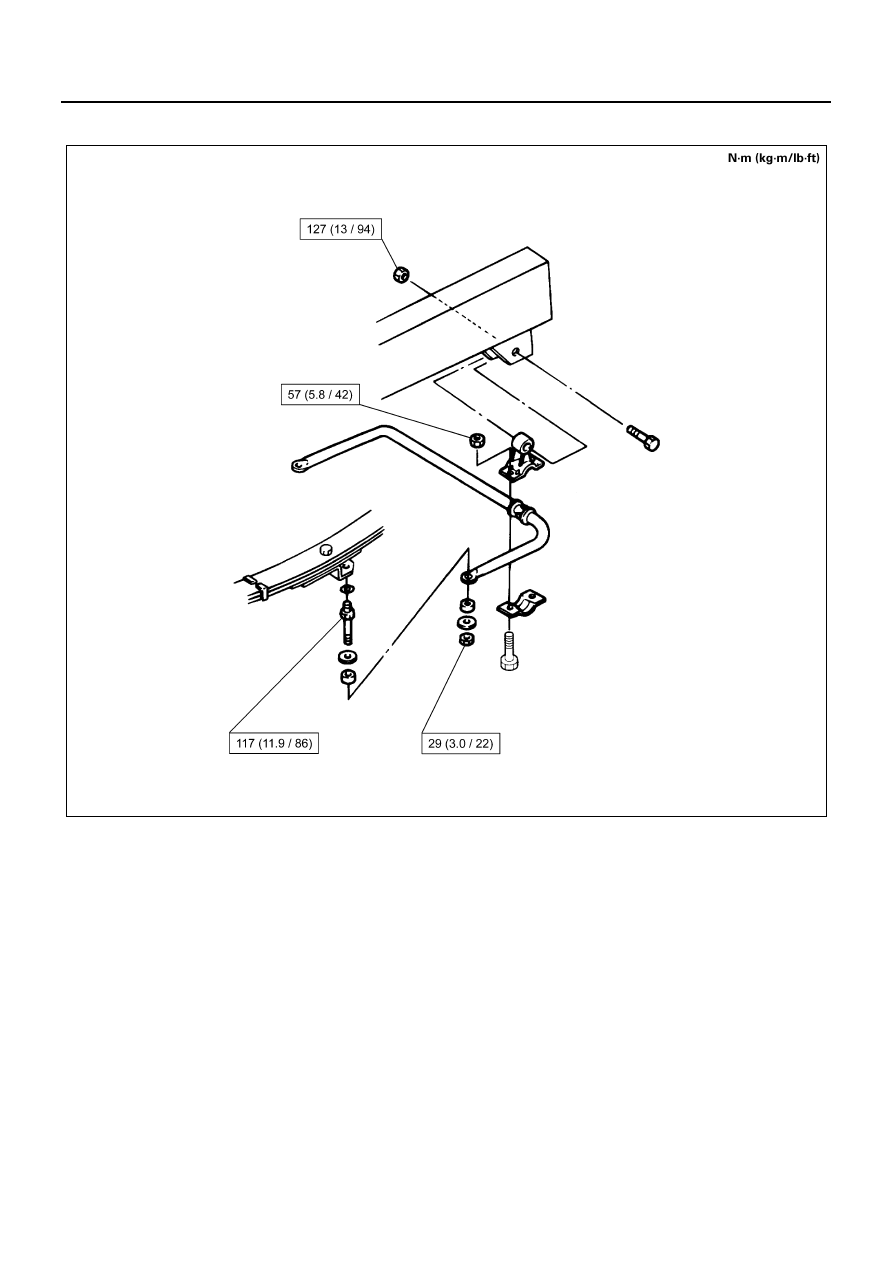

Rear Stabilizer

N3A0445E

00-42 SERVICE INFORMATION

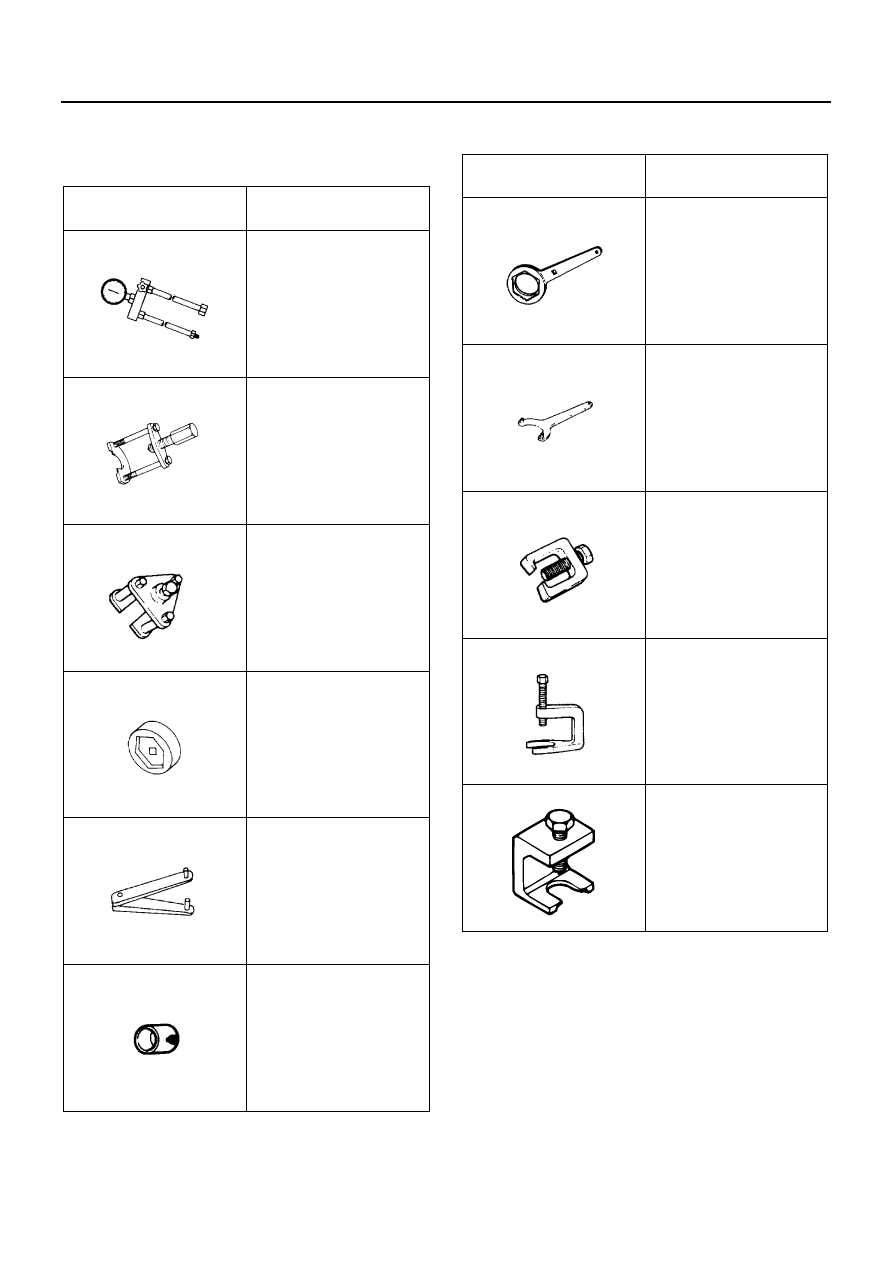

SPECIAL TOOLS

Steering System

Illustration

Tool Number /

Description / Remarks

5-8840-0162-0 / Power

steering fluid pressure

gauge

5-8840-2017-0 / Ball joint

remover

5-8840-2051-1 / Pitman

arm puller

5-8840-2059-0 / Lock nut
wrench / for Power steer-

ing (Left hand drive)

5-8840-2060-0 / End

cover wrench / for Power
steering (Left hand drive)

5-8840-2054-0 / Steer-

ing shaft driver

5884001620

5884020170

5884020511

5884020590

5884020600

5884020540

5-8840-2052-0 / Steer-

ing lock nut wrench / for

Manual steering (NHR,

NKR)

5-8840-2053-0 / Wrench

/ for Manual steering

(NHR, NKR)

5-8840-2018-0 / Tie rod

end remover / for 2WD

rigid suspension (assis-

tant side)

5-8840-2215-0 / Steer-

ing wheel puller

5-8840-2189-0 / Ball joint

remover

Illustration

Tool Number /

Description / Remarks

5884020520

5884020530

5884020180

5884022150

5884021890

SERVICE INFORMATION 00-43

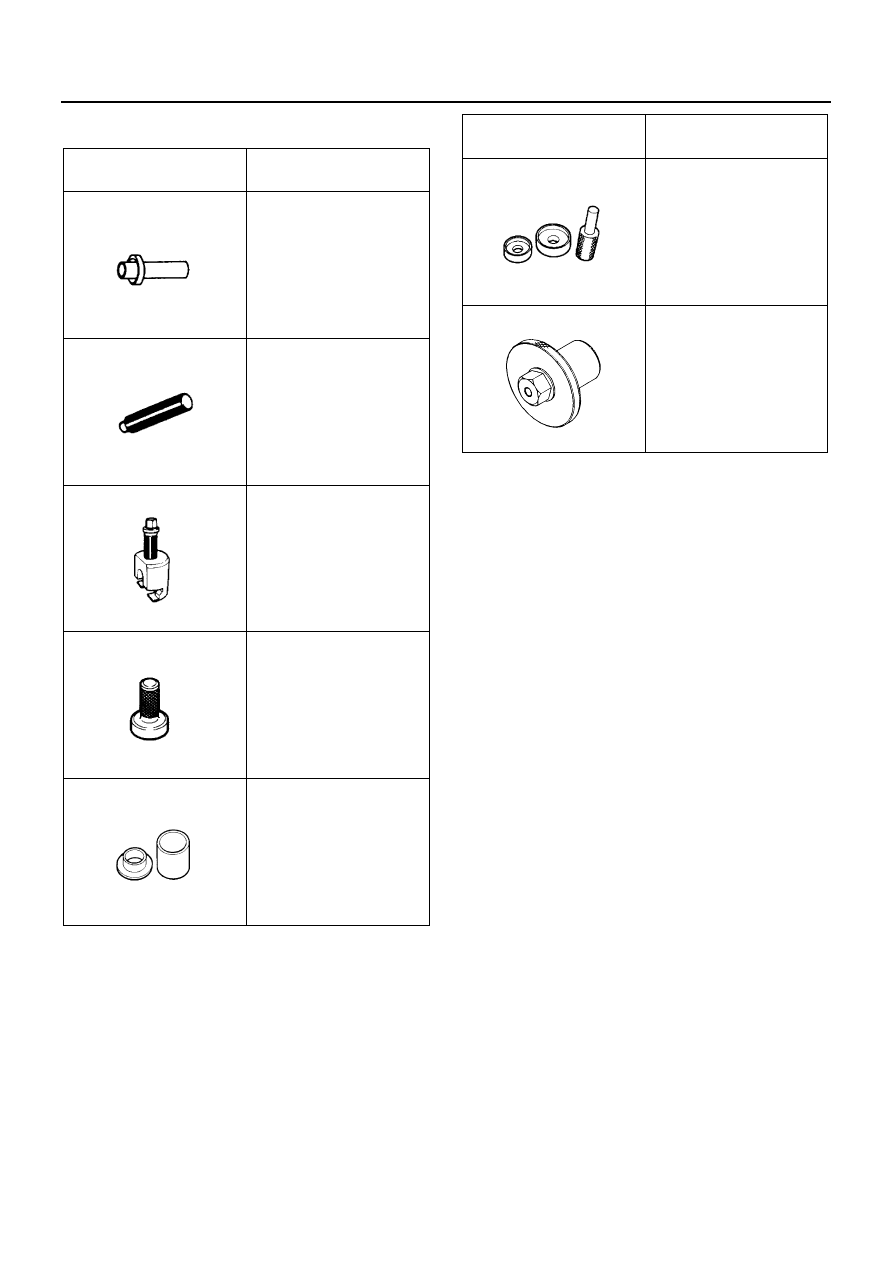

Suspension

Illustration

Tool Number /

Description / Remarks

5-8840-2048-1 / Leaf

spring bushing remover

and installer

5-8840-2049-1 / Leaf

spring bushing remover

and installer / for metal

bushing

5-8840-2366-0 / Lower

link ball joint remover /

for wishbone suspension

5-8840-2364-0 / Upper

link ball joint remover /

for wishbone suspension

5-8840-2365-0 / Upper

link ball joint installer / for

wishbone suspension

5884020480

5884020490

5884023660

5884023640

5884023650

5-8840-2367-0 / Lower

link bushing remover and

installer / for wishbone

suspension

5-8840-2188-0 / Wheel

alignment gauge adapter

Illustration

Tool Number /

Description / Remarks

5884023670

5884021880

FRONT END ALIGNMENT 3A-1

STEERING, SUSPENSION, WHEELS

AND TIRES

SECTION 3A

FRONT END ALIGNMENT

Contents

GENERAL DESCRIPTION ................................... 3A-2

Camber Angle.................................................... 3A-2
Caster Angle...................................................... 3A-2
Toe-In ................................................................ 3A-2

ON-VEHICLE SERVICE ....................................... 3A-3

Toe-in ................................................................ 3A-3
Turning Radius .................................................. 3A-5
Camber Angle.................................................... 3A-6
Caster Angle and King Pin Inclination ............... 3A-7
Trim Height (Wishbone Suspension Only) ...... 3A-10
