SERVICE INFORMATION  00 – 59

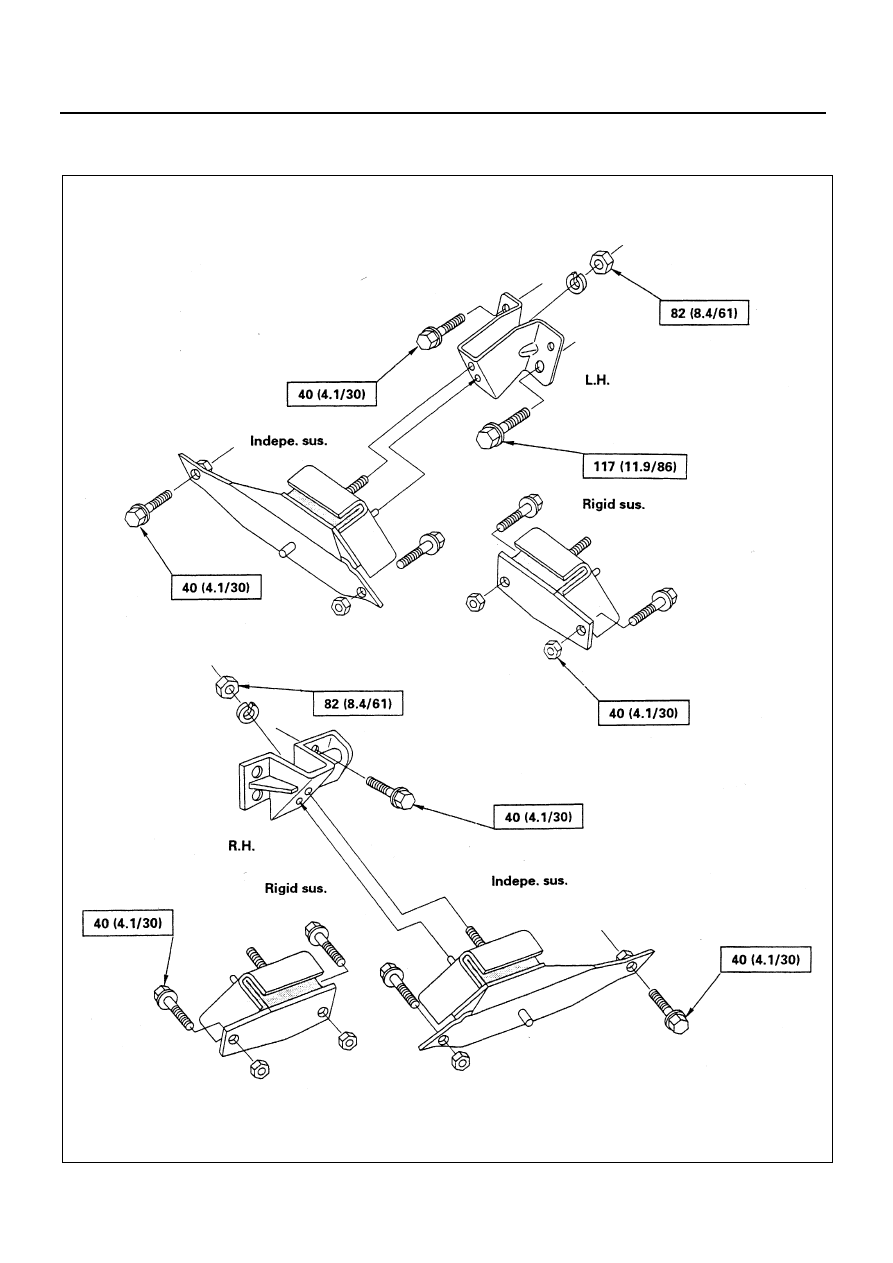

Engine Mounting Bracket

N∙m (kg∙m/lb∙ft)

0058-1.tif

00 – 60

  SERVICE INFORMATION

SPECIAL TOOLS

ILLUSTRATION

TOOL NO.

TOOL NAME

5-8840-2035-0

Crank Timing Pulley (4JG2 Belt Drive only)

5-8840-0200-0

Oil Filter Wrench (89.0 mm/3.5 in)

5-8840-0202-0

Oil Filter Wrench (106.0 mm/4.2 in)

5-8840-2209-0

Oil Filter Wrench (100.6 mm/4.0 in)

9-8523-1423-0 (J-29760)

Valve Spring Compressor

5-8840-2033-0

Oil Seal Installer

5-8840-9018-0

Piston Ring Compressor

5-8840-2093-0

Tacho Meter

9-8523-1212-0

Valve Guide Replacer

5-8840-0086-0

Camshaft Timing Pulley Remover
(4JG2 Belt Drive only)

5-8840-0199-0

Rubber Hardness Tester

SERVICE INFORMATION  00 – 61

SPECIAL TOOLS (CONT.1)

ILLUSTRATION

TOOL NO.

TOOL NAME

5-8840-2675-0

Compression gauge

5-8531-7001-0

Gauge Adapter

5-8531-7002-0

Gauge Adapter

5-8840-0145-0

Measuring Device

5-8522-0024-0

Crankshaft Timing Pulley Installer
(4JG2 Belt Drive only)

5-8840-0266-0

Angle Gauge

5-8840-9016-0

Injection Nozzle Tester

5-8840-2034-0

Nozzle Holder Remover (4JB1 only)

5-8840-2038-0

Camshaft Bearing Replacer

5-8840-2036-0

Front Oil Seal Installer
(4JB1, 4JG2, Gear Drive only)

00 – 62

  SERVICE INFORMATION

SPECIAL TOOLS (CONT.2)

LLUSTRATION

TOOL NO.

TOOL NAME

5-8840-0259-0

Nozzle Holder Wrench (4JG2 only)

5-8840-0253-0 (J-22700)

Fuel Filter Wrench

5-8840-2362-0

Front Oil Seal Remover (4JG2, Belt Drive only)

5-8840-2361-0

Front Oil Seal Installer (4JG2, Belt Drive only)

5-8840-2360-0

Rear Oil Seal Remover

5-8840-2359-0

Rear Oil Seal Installer

5-8840-2040-0

Cylinder Liner Installer (4JB1 only)

5-8840-2313-0

Cylinder Liner Installer (4JG2 only)

5-8840-2039-0

Cylinder Liner Remover (4JB1 only)

5-8840-2304-0

Cylinder Liner Remover Ankle (4JG2 only)

5-8840-2000-0

Pilot Bearing Remover

5-8840-0019-0

Sliding Hammer

5-8522-0024-0

Pilot Bearing Installer
