8J–32

EXTERIOR/INTERIOR TRIM

Power Door Mirror System

General Description

The circuit consists of the starter switch, door mirror
control switch, folding switch, defogger switch and door
mirrors on both sides.
The door mirror switch consists of the control switch,
folding switch and defogger switch.
When the control switch is operated with the starter
switch at either “ACC” or “ON” position, the motors
incorporated in the door mirrors on both sides rotates to
allow the horizontal and vertical adjustment of mirror
angles.
The folding switch can be used to fold the mirror and
return it to its original position.
When turning on the door mirror defogger switch with the
starter switch at “ON” position, built-in heater in the mirror
is activated to perform the defogger function.

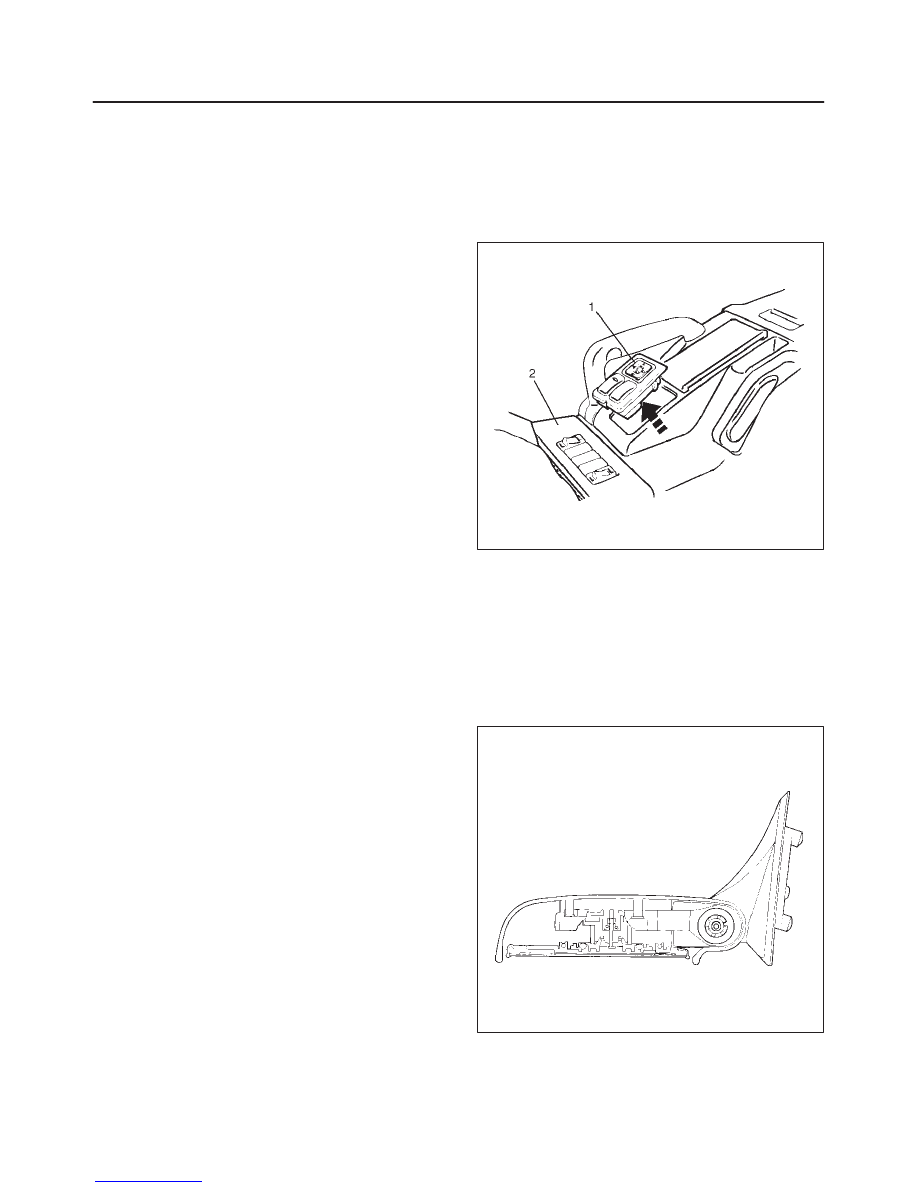

Door Mirror Switch Assembly (Con-
trol Switch, Folding Switch and De-
fogger Switch) Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly(2).

Remove four screws.

Remove the transmission shift lever knob.

Remove the transfer shift lever knob.

Disconnect the seat heater switch connectors (if so
equipped).

Disconnect the door mirror switch connectors.

Disconnect the power & winter switch connectors.
(A/T only)

3. Remove the door mirror switch assembly(1).

Push the lock from the back side of the front
console.

825RS005

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Depress the switch with your fingers until it locks

securely.

Power Door Mirror

General Description

Mirrors contain two driving motors for the horizontal and
vertical movement of the mirror and one motor for folding
the mirror.
The movement of the mirror is controlled by the direction
of current running through these motors.
The housing portion of the mirror is provided with the
auto-stop mechanism which is interlocked with the motor
for folding the mirror. When the mirror moves to the stop
position (with the mirror folded or returned to its original
position), the current to the motor is shut off.
When the mirror cannot operate due to some obstacle
and the motor stops its rotation, the resistor prevents
current overflow.

720RS004

Removal and Installation

Refer to the Door Mirror removal and installation steps in
this section.

EXTERIOR/INTERIOR TRIM

8J–33

Power Window System

General Description

The circuit consists of the starter switch, (door lock &)
power window switch for each of the front windows,
power window switch for rear windows and power window
motors.
When the starter switch is turned on, the battery voltage is
applied to each of the power window switches through the
circuit breaker and the power window relay on the circuit.
The “Down” switch of the driver’s power window switch
has a built-in function which can be operated by just
touching it.
Accordingly, the window will roll down automatically by
just setting the switch to the “AUTO” position.
When the driver’s power lock switch at the driver side is
depressed, the power source to the passenger’s power
window switches are shut off. So, even if these switches
are operated, the power window motor will not operate.

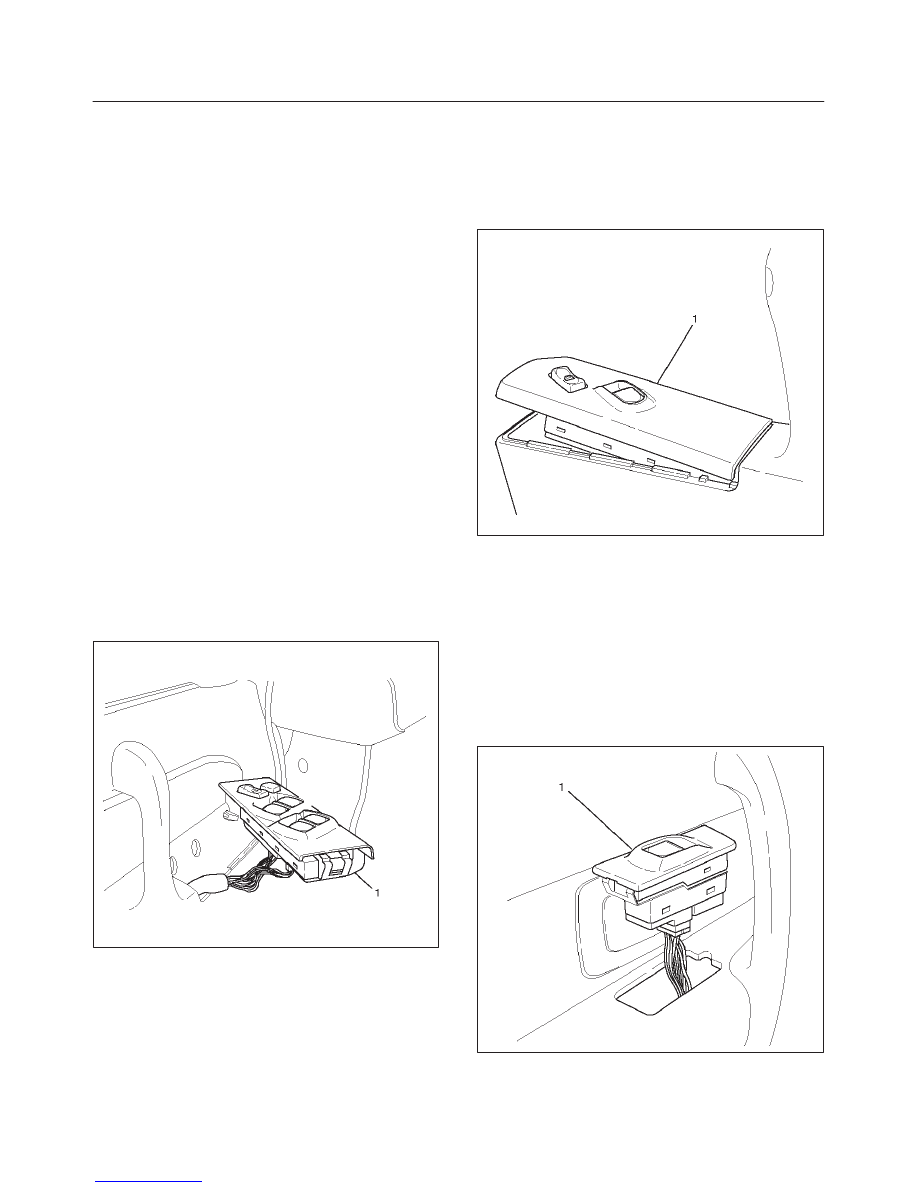

Power Window Switch Removal and
Installation

Driver Seat Side

Removal

1. Disconnect the battery ground cable.
2. Remove the switch(1).

Pull out the switch by pushing the spring with the tip
of a screwdriver.

Disconnect two connectors.

825RS052

Installation

To install, follow the removal steps in the reverse order.

Front Passenger Seat Side

Removal

1. Disconnect the battery ground cable.

2. Remove the switch(1).

Pull out the switch by pushing the spring with the tip
of a screwdriver.

Disconnect the connector.

825RW046

Installation
To install, follow the removal steps in the reverse order.

Rear-Left and Right Sides

Removal

1. Disconnect the battery ground cable.
2. Remove the switch(1).

Pull out the switch by pushing the spring with the tip
of a screwdriver.

Disconnect the connector.

825RS057

8J–34

EXTERIOR/INTERIOR TRIM

Installation
To install, follow the removal steps in the reverse order.

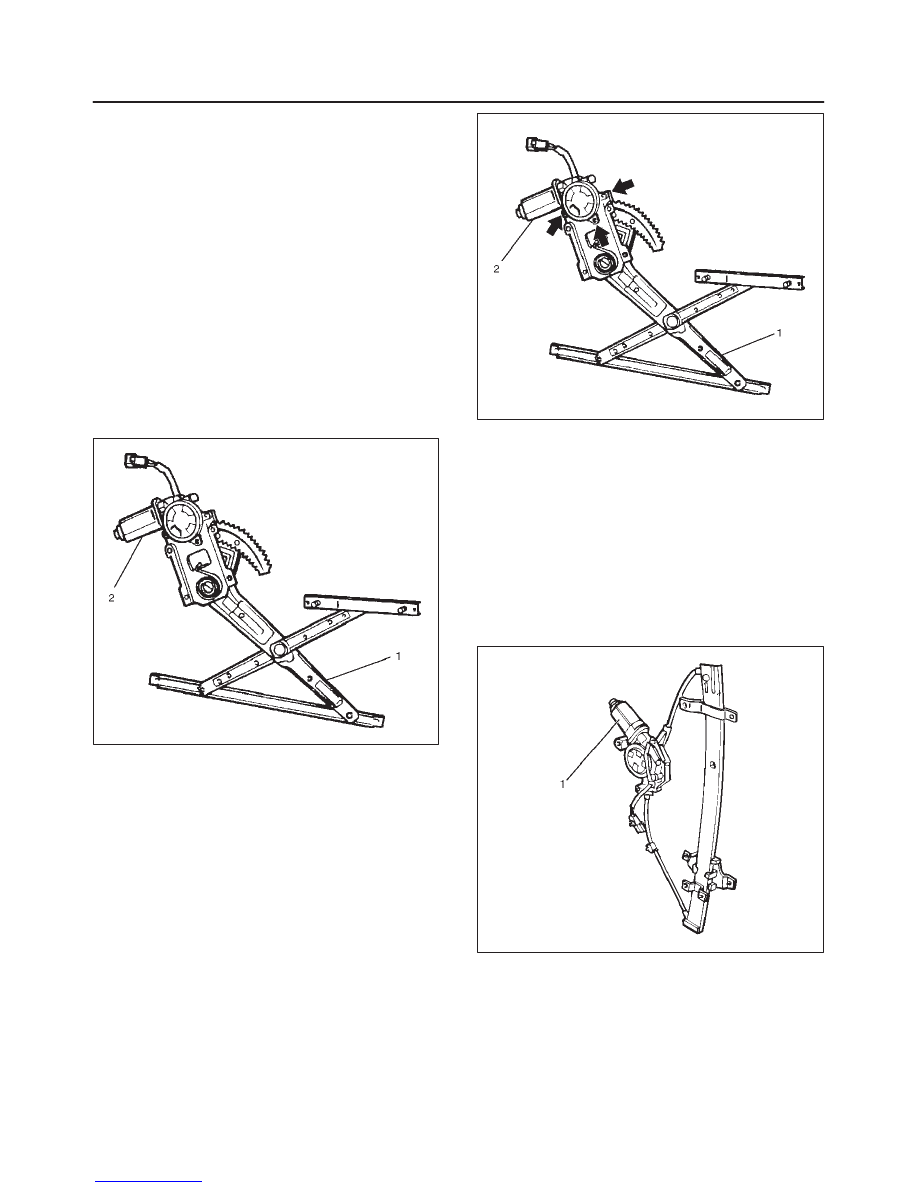

Power Window Motor Removal and
Installation

Driver Seat Side

Removal

1. Disconnect the battery ground cable.
2. Remove the window regulator assembly (1).

Refer to Front Window Regulator, Glass and Glass
Run in Body Structure section.

3. Remove the power window motor(2).

Remove three screws.

CAUTION: When removing the motor from the
regulator(1), be careful not to get injured by the
strong repellent force of the regulator spring.

631RS018

Installation
To install, follow the removal steps in the reverse order.

Front Passenger Seat Side

Removal

1. Disconnect the battery ground cable.
2. Remove the window regulator assembly (1).

Refer to Front Window Regulator, Glass and Glass
Run in Body Structure section.

3. Remove the power window motor(2).

Remove three screws.

CAUTION: When removing the motor from the
regulator(1), be careful not to get injured by the
strong repellent force of the regulator spring.

631RS015

Installation
To install, follow the removal steps in the reverse order.

Rear-Left Side

Removal

1. Disconnect the battery ground cable.
2. Remove the rear window regulator assembly.

Refer to Rear Window Regulator and Glass in Body
Structure section.

3. Remove the power window motor(1).

Remove four screws.

651RW014

Installation
To install, follow the removal steps in the reverse order.

Rear-Right Side

Removal and Installation
Refer to the Rear Power Window Motor-Left Side in this
section.

EXTERIOR/INTERIOR TRIM

8J–35

Main Data and Specifications

Torque Specifications

Application

N·m

Lb Ft

Lb In

Door Mirror Fixing Bolts

—

Seat Belt Anchor Bolts

—

Hook Fixing Bolt

—

113
