8F–67

BODY STRUCTURE

Rear Door Seal Finisher

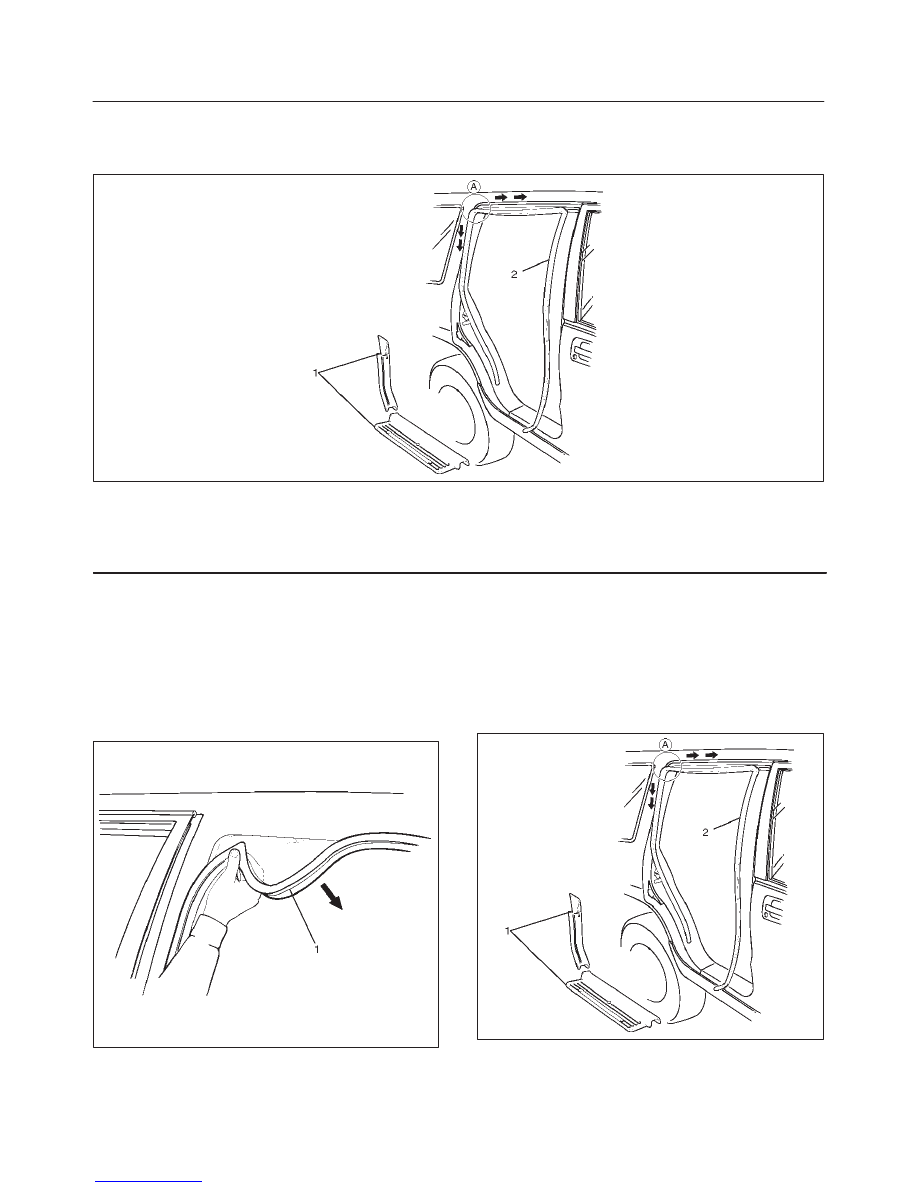

Parts Location

655RS002

Legend

(1) Rear Door Sill Plate and Luggage Side Lower

Cover

(2) Rear Door Seal Finisher

Removal

1. Disconnect the battery ground cable.
2. Remove rear door sill plate and the luggage side

lower cover.

3. Remove rear door seal finisher (1).

D

Pull the rear door seal finisher (1) out from the body
panel.

635RS003

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Insert the rear door seal finisher (2) into the A corner

and install the finisher in the arrow-marked directions.

2. Be careful not to allow the sill plate and cover (1) to

distort or twist the finisher.

655RS002

8F–68

BODY STRUCTURE

Tailgate Assembly (LH)

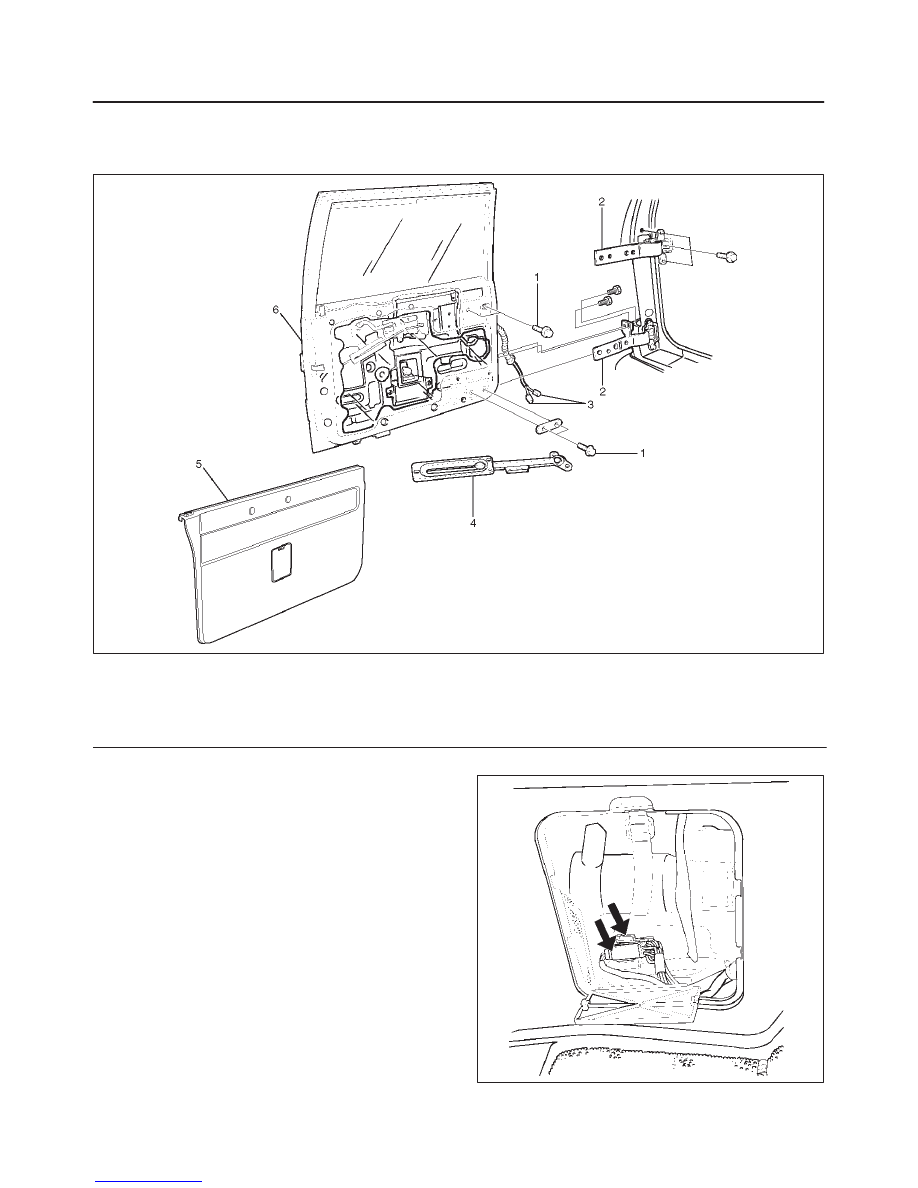

Parts Location

681RT001

Legend

(1) Tailgate Fixing Bolt
(2) Tailgate Hinge
(3) Tailgate Harness Connection

(4) Tailgate Stopper Assembly
(5) Tailgate Trim Panel (LH)
(6) Tailgate Assembly (LH)

Removal

1. Disconnect the battery ground cable.
2. Remove tailgate time panel (LH).

D

Refer to Tailgate Trim Panel (LH) in Exterior /
Interior Trim section.

3. Remove tailgate stopper assembly
4. Remove tailgate harness connection.

D

Open the luggage trim panel lid and disconnect the
tailgate harness connection.

810RS003

8F–69

BODY STRUCTURE

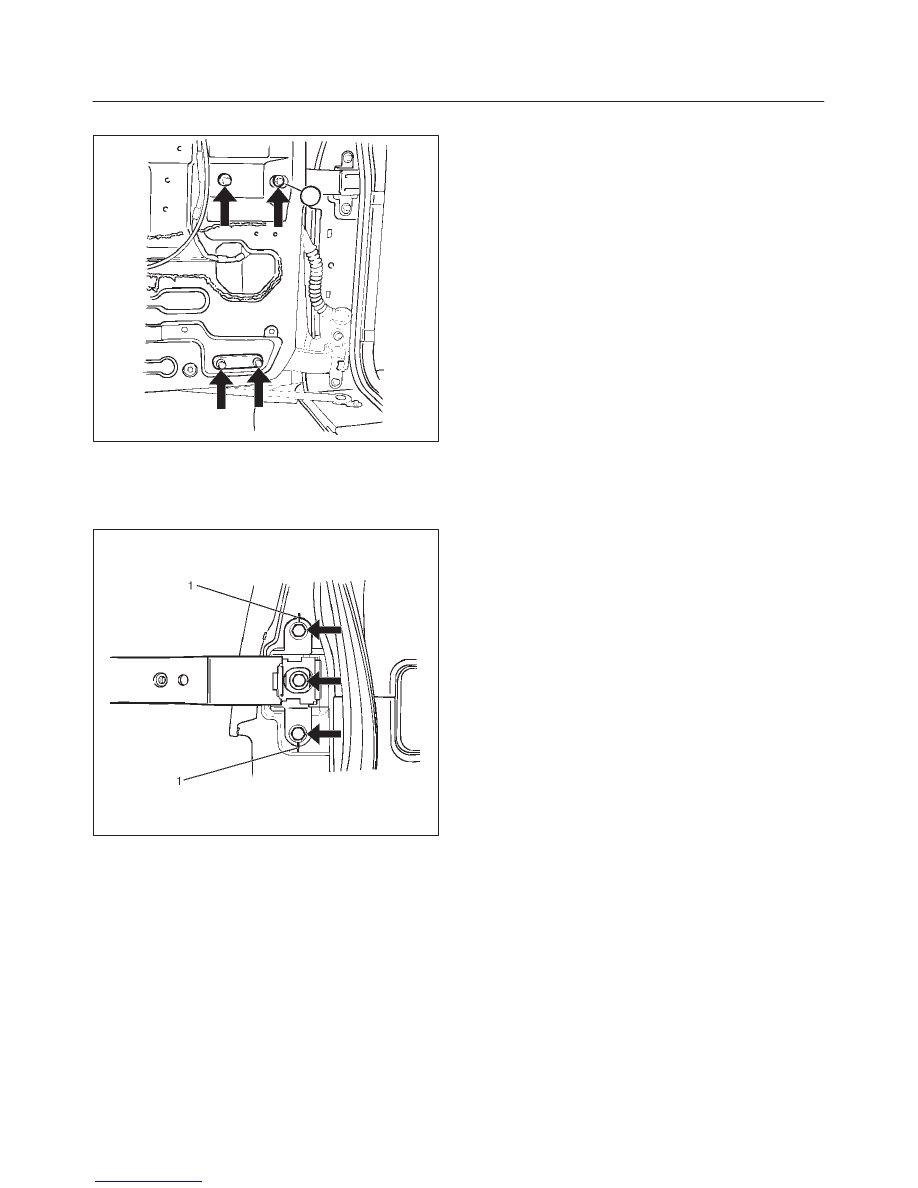

5. Remove tailgate fixing bolts.

681RS002

6. Remove tailgate assembly (LH).
7. Remove tailgate hinge.

D

Apply a setting mark (1) on the body side hinge and
remove the hinge fixing bolts.

681RW007

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Apply chassis grease to the tailgate hinge and the

tailgate stopper moving surface.

2. Align the tailgate fitting to the body by referring to

Body Dimension in this section.

3. Tighten the hinge bolts to the specified torque.

Torque : 34  N

•

m (25  lb ft)

8F–70

BODY STRUCTURE

Tailgate Assembly (RH)

Parts Location

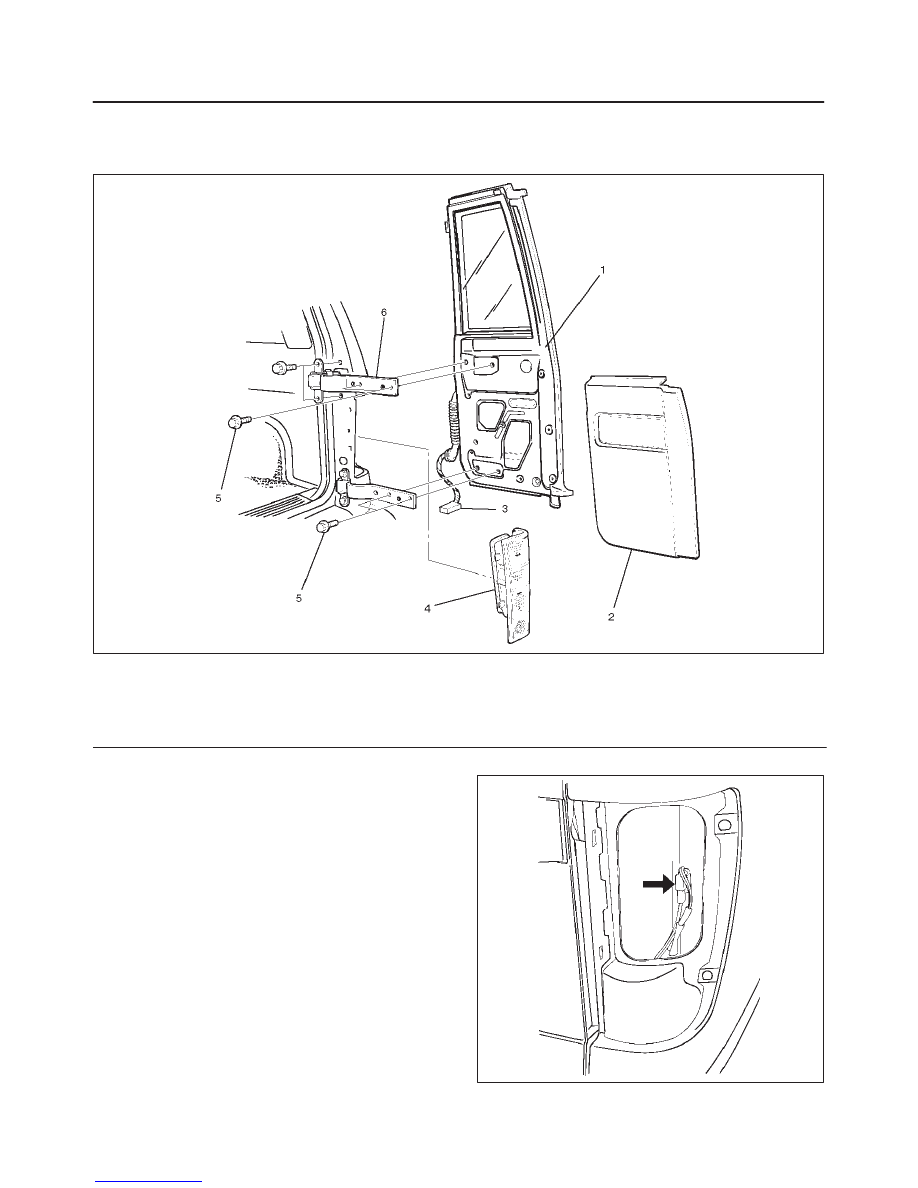

681RS004

Legend

(1) Tailgate Assembly (LH)
(2) Tailgate Trim Panel (RH)
(3) Tailgate Harness Connection

(4) Rear Combination Light (RH)
(5) Tailgate Fixing Bolt
(6) Tailgate Hinge

Removal

1. Disconnect the battery ground cable.
2. Remove rear combination light (RH).
3. Remove tailgate trim panel (RH).

D

Refer to Tailgate Trim Panel (RH) in Exterior /
Interior Trim section.

4. Remove tailgate harness connection.

D

Disconnect the tailgate harness connection.

810RS004
