8F–15

BODY STRUCTURE

3. Remove radiator grille.

D

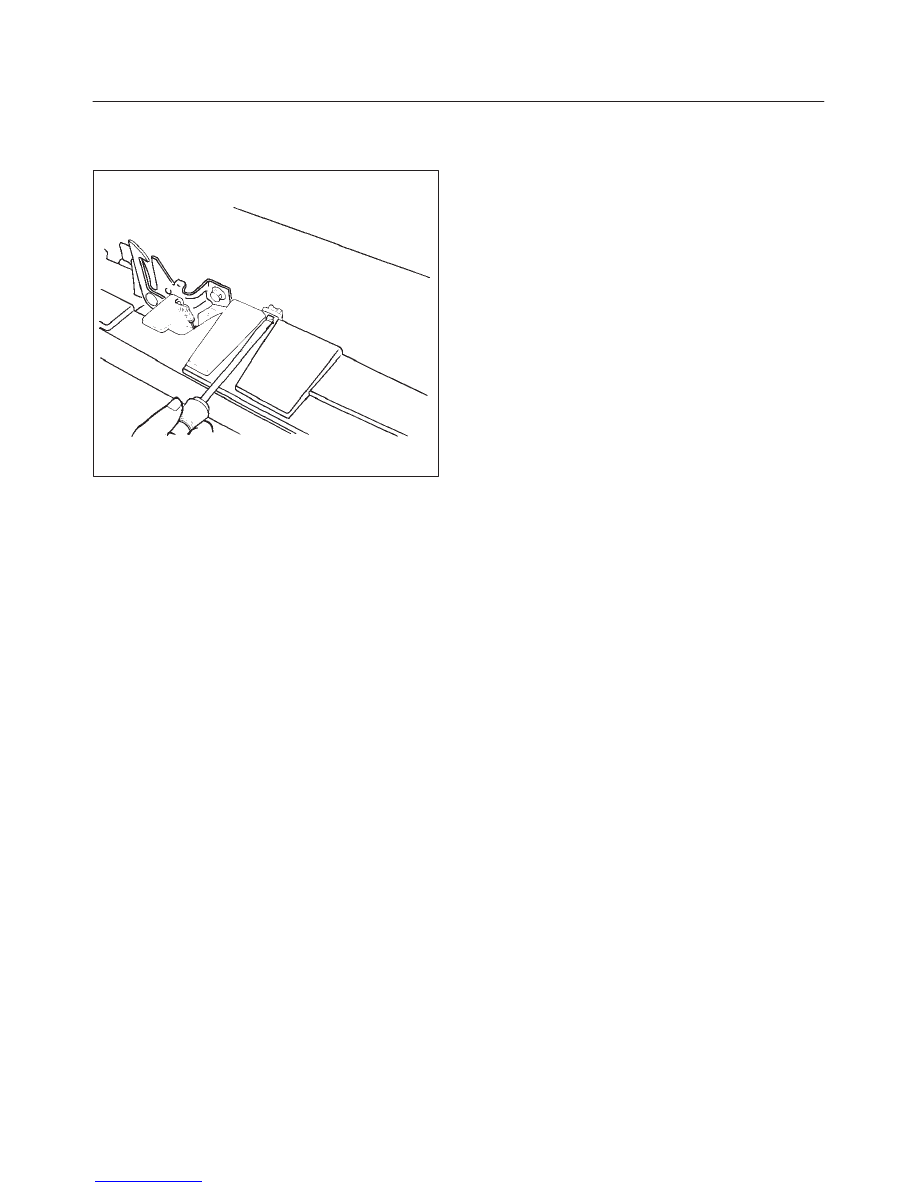

Raise the five clips on the radiator grille and remove
two screws.

603RS002

4. Remove front end lower panel.

D

Remove two fixing bolts and remove the panel from
the fender.

Installation

To install, follow the removal steps in reverse order, noting
the following point.

1. Install the radiator grille clips remaining on the body

side in the radiator grille, and then install the radiator
grille on the body.

8F–16

BODY STRUCTURE

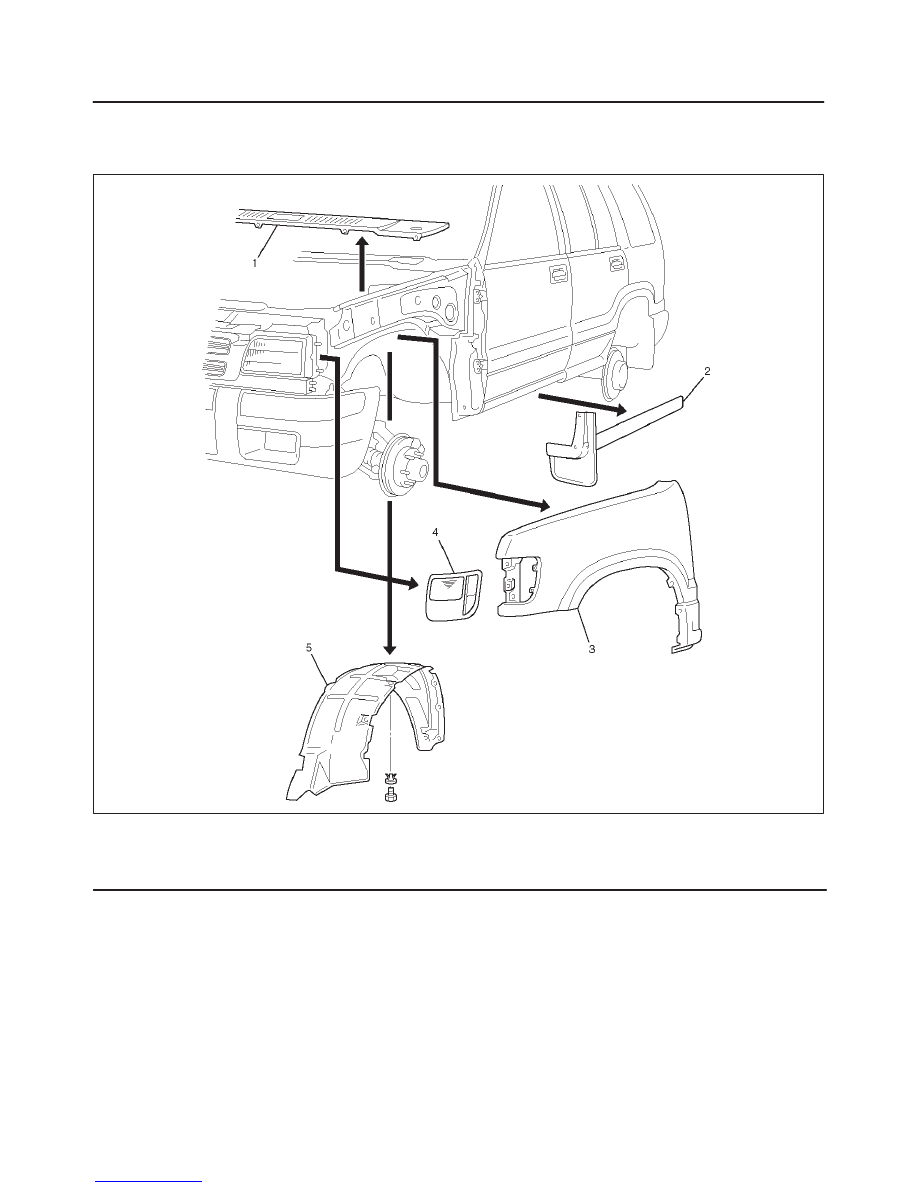

Front Fender Panel

Parts Location

605RY001

Legend

(1) Cowl Cover
(2) Front Mud Flap

(3) Front Fender Panel
(4) Front Combination Lamp Assembly
(5) Inner Liner

Removal

1. Open the hood.
2. Support the hood.
3. Remove cowl cover.

D

Refer to Cowl Cover in this section.

4. Remove front combination lamp assembly.

D

Disconnect fixing screw and connector.

5. Remove front mud flap.

D

Disconnect three fixing screws and four clips.

6. Remove inner liner.

8F–17

BODY STRUCTURE

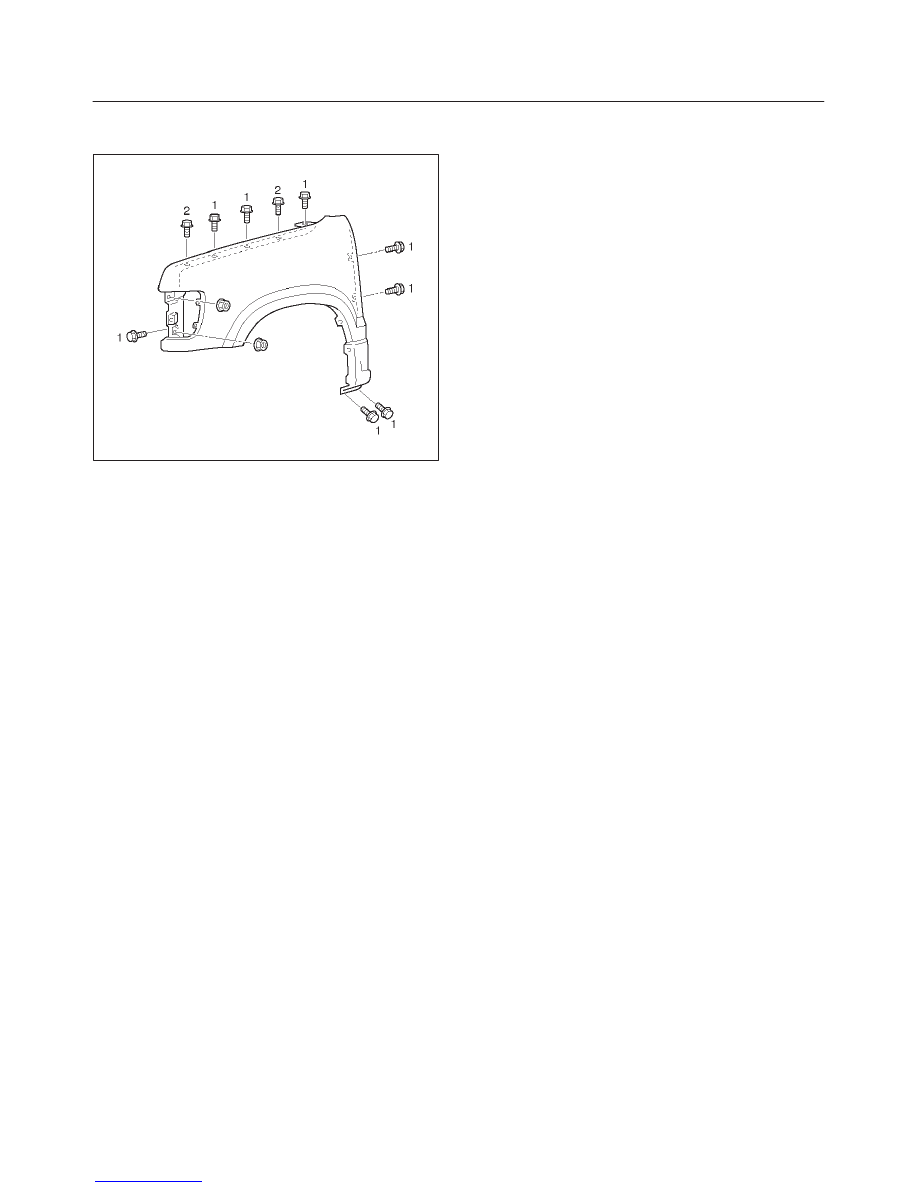

7. Remove front fender panel.

D

Disconnect ten fixing bolts and two nuts.

605RW001

Installation

To install, follow the removal steps in the reverse order
noting the following points:

1. Tighten the front fender panel fixing bolts to the

specified torque.

(1) Torque : 9 N

•

m (78 lb in)

(2) Torque : 7 N

•

m (61 lb in)

8F–18

BODY STRUCTURE

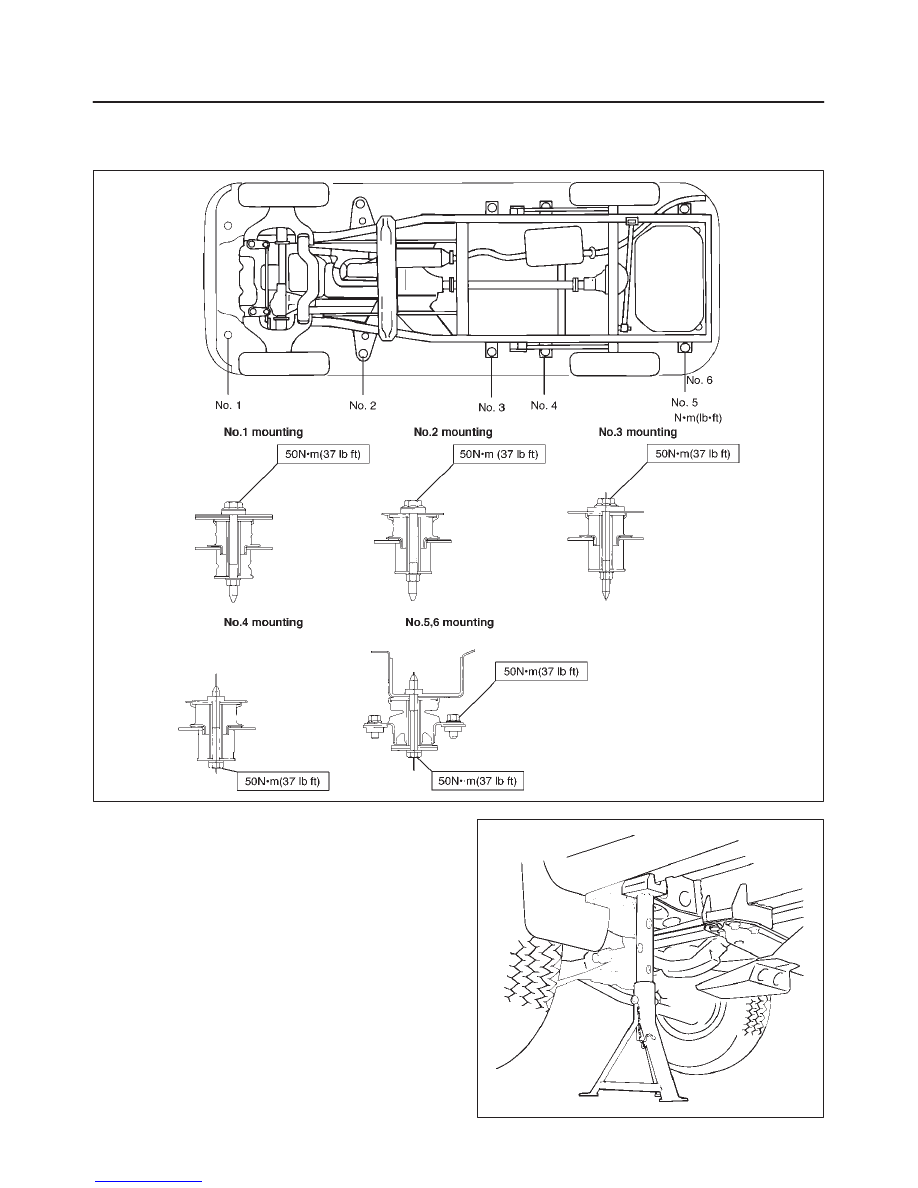

Body Mounting

Parts Location

510RX001

Removal (No.1 – No. 2)

1. Remove the front bumper.
2. Jack up the vehicle by the frame.
3. Support the front side sill and rear axle with stands.

Further, support the front jack up point with a jack.

620RS001
