7A–104

AUTOMATIC TRANSMISSION (4L30–E)

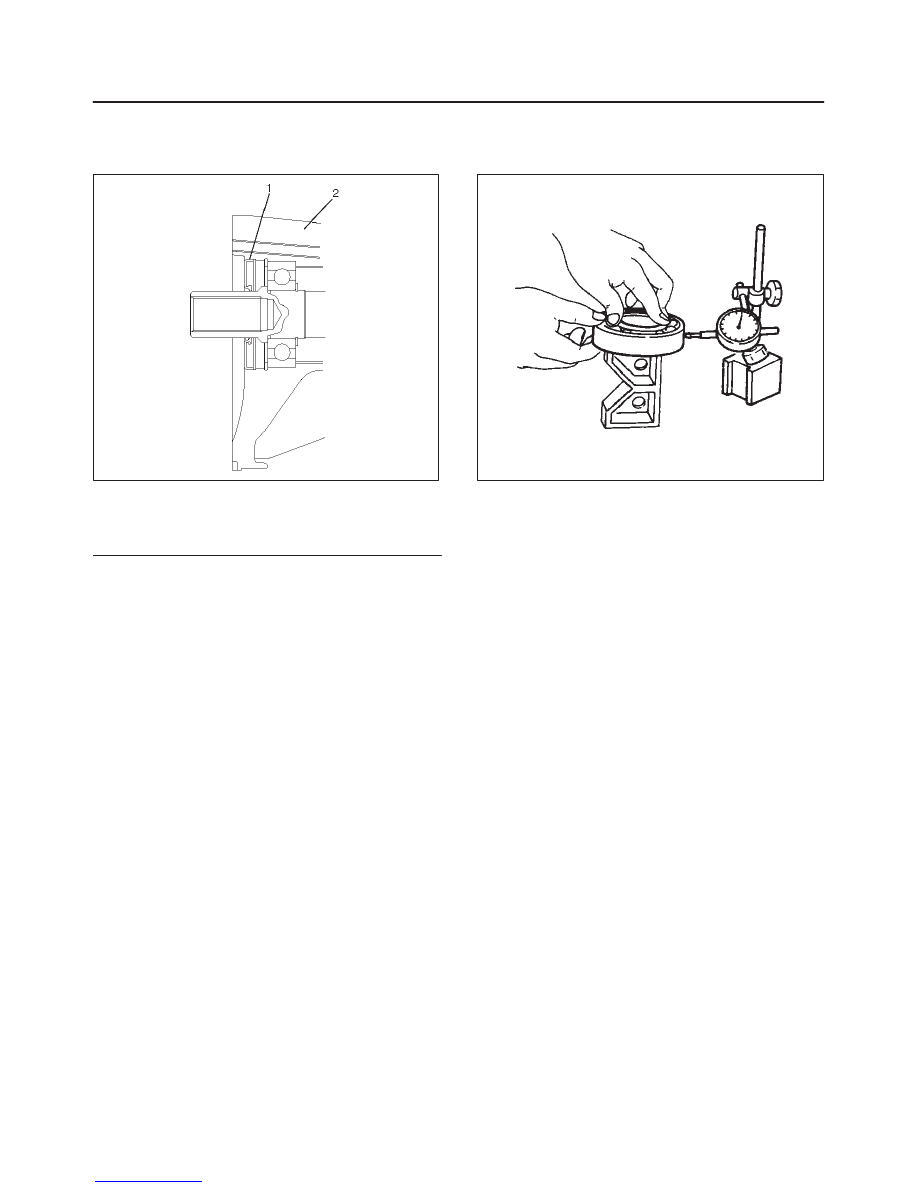

9. Install front oil seal (5).

CAUTION: Hammering the outside of the oil seal
equally, install it to the extension case entirely.

220RY00008

Legend

(1) Front Oil Seal
(2) Extension Case

Inspection and Repair

1. Make the necessary repair or parts replacement if

wear, damage or any other abnormal conditions are
found during inspection.

2. Wash all parts thoroughly in clean solvent. Be sure all

old lubricant, metallic particles, dirt, or foreign
material are removed from the surfaces of every part.
Apply compressed air to each oil feed port and
channel in each case half to remove any obstructions
or cleaning solvent residue.

Bearings

1. Inspect the condition of all bearings. Wash bearings

thoroughly in a cleaning solvent. Apply compressed
air to the bearings.

NOTE: Do not allow the bearings to spin. Turn them
slowly by hand. Spinning bearings may damage the
rollers.

2. Lubricate the bearings with a light oil and check them

for roughness by slowly turning the race by hand.

Ball Bearing Play

1. Use a dial indicator to measure the ball bearing play.

2. If the measured value exceeds the specified limit, the

ball bearing must be replaced.

Limit : 0.2 mm (0.008 in)

226RS043

7A–105

AUTOMATIC TRANSMISSION (4L30–E)

Main Data and Specifications

General Specifications

Oil capacity

0.185 lit. (0.195 U.S. quart)

Type of lubricant

ATF DEXRON



–III

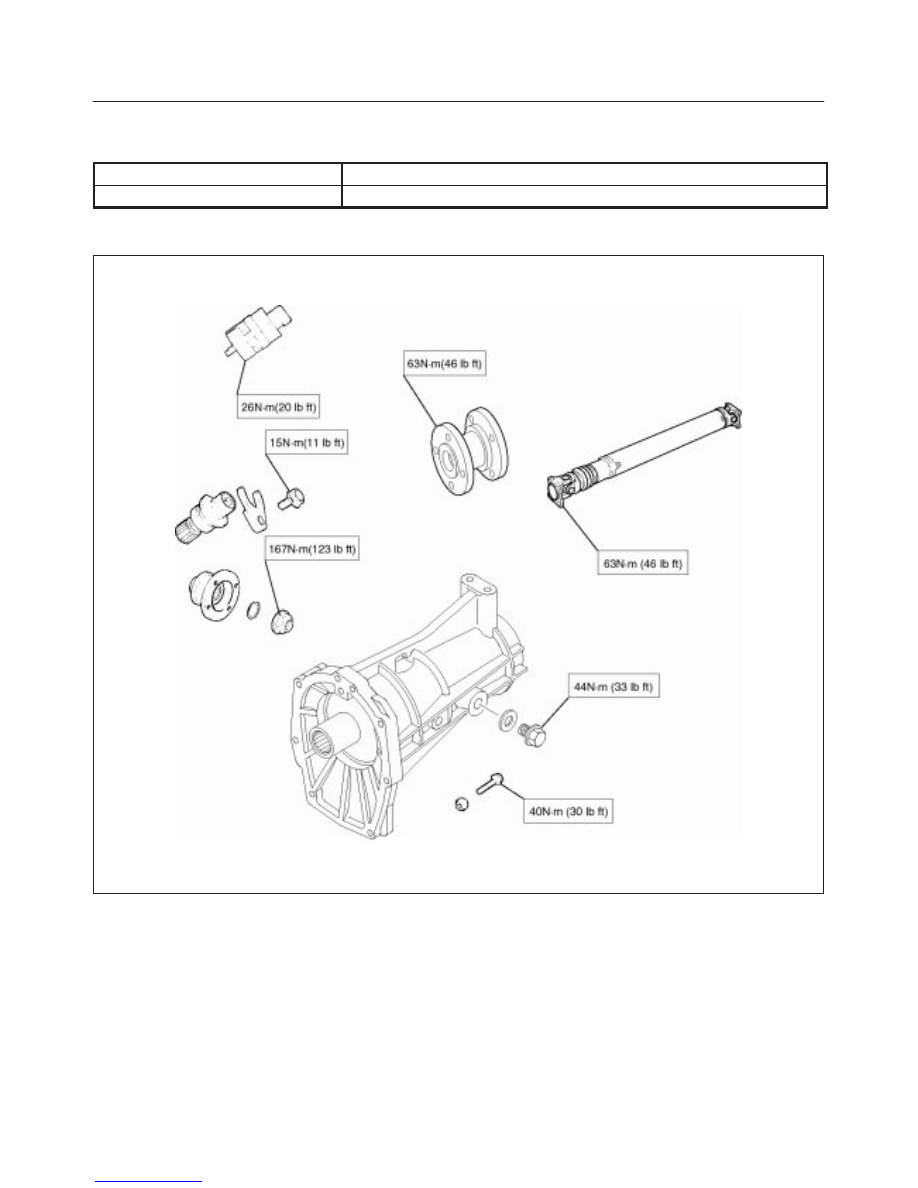

Torque Specifications

220RY00012

7A–106

AUTOMATIC TRANSMISSION (4L30–E)

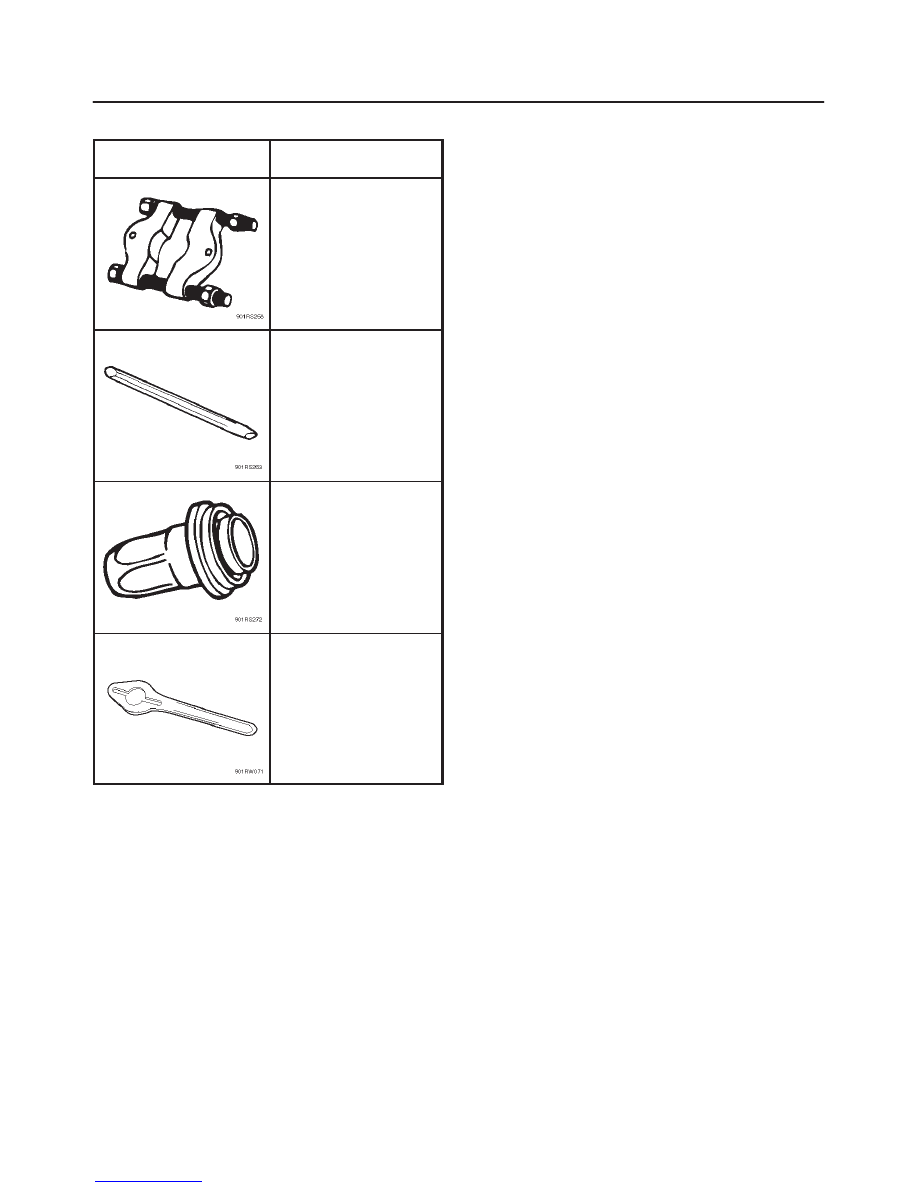

Special Tools

ILLUSTRATION

PART NO.

PART NAME

J–22912–01

Bearing

remover/installer

J–39209

Punch; end nut

J–39208

Rear oil seal installer

J–8614–11

Flange holder

TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–1

TROOPER

TRANSMISSION

TRANSMISSION CONTROL SYSTEM (4L30–E)

CONTENTS

Service Precaution

7A1–2

. . . . . . . . . . . . . . . . . . . . . .

General Description

7A1–2

. . . . . . . . . . . . . . . . . . . . .

Electronic Control Diagram

7A1–3

. . . . . . . . . . . . .

Powertrain Control Module (PCM)

7A1–4

. . . . . . .

Control System Diagram

7A1–5

. . . . . . . . . . . . . . .

Shift Control

7A1–6

. . . . . . . . . . . . . . . . . . . . . . . . . .

Band Apply Control

7A1–6

. . . . . . . . . . . . . . . . . . . .

Torque Converter Clutch Control
 (Electronically Controlled Capacity
 Clutch = ECCC)

7A1–6

. . . . . . . . . . . . . . . . . . . . . .

Line Pressure Control

7A1–6

. . . . . . . . . . . . . . . . . .

On–Board Diagnostic System

7A1–6

. . . . . . . . . . .

Fail Safe Mechanism

7A1–6

. . . . . . . . . . . . . . . . . . .

Torque Management Control

7A1–6

. . . . . . . . . . . .

ATF Warning Control

7A1–6

. . . . . . . . . . . . . . . . . . .

ABS Control

7A1–6

. . . . . . . . . . . . . . . . . . . . . . . . . .

Reverse Lock Out Control

7A1–6

. . . . . . . . . . . . . .

Downhill Control

7A1–6

. . . . . . . . . . . . . . . . . . . . . . .

Uphill Control

7A1–6

. . . . . . . . . . . . . . . . . . . . . . . . .

Shift Mode Control

7A1–7

. . . . . . . . . . . . . . . . . . . . .

Gear Shift Control

7A1–8

. . . . . . . . . . . . . . . . . . . . .

Winter Drive Mode

7A1–9

. . . . . . . . . . . . . . . . . . . . .

Backup Mode

7A1–9

. . . . . . . . . . . . . . . . . . . . . . . . .

Functions of Input / Output Components

7A1–10

. .

Diagnosis

7A1–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electronic Diagnosis

7A1–11

. . . . . . . . . . . . . . . . . . .

Check Trans Indicator

7A1–11

. . . . . . . . . . . . . . . . . .

Diagnostic Check

7A1–11

. . . . . . . . . . . . . . . . . . . . . .

“Check Trans” Check

7A1–12

. . . . . . . . . . . . . . . . . .

Tech 2 OBD II Connection

7A1–13

. . . . . . . . . . . . . .

Transmission Data

7A1–18

. . . . . . . . . . . . . . . . . . . . .

OBD II Diagnostic Management System

7A1–19

. .

16 – Terminal Data Link Connector (DLC)

7A1–20

.

Malfunction Indicator Lamp (MIL)

7A1–21

. . . . . . . .

Types Of Diagnostic Trouble Codes (DTCs)

7A1–21

Clear DTC

7A1–21

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC Check

7A1–22

. . . . . . . . . . . . . . . . . . . . . . . . . . .

PCM Precaution

7A1–22

. . . . . . . . . . . . . . . . . . . . . . .

Information On PCM

7A1–22

. . . . . . . . . . . . . . . . . . .

Intermittent Conditions

7A1–22

. . . . . . . . . . . . . . . . .

Transmission And PCM Identification

7A1–23

. . . . .

Isuzu Trooper

7A1–23

. . . . . . . . . . . . . . . . . . . . . . . . .

Diagnostic Trouble Code (DTC)
 Identification

7A1–24

. . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0218 Transmission Fluid Over
 Temperature

7A1–25

. . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0705 Transmission Range Switch
 (Mode Switch) Illegal Position

7A1–27

. . . . . . . . . . . .

DTC P0706 Transmission Range Switch
 (Mode Switch) Performance

7A1–30

. . . . . . . . . . . . . .

DTC P0711 Transmission Fluid Temperature
 (TFT) Sensor Performance

7A1–33

. . . . . . . . . . . . . .

DTC P0712 Transmission Fluid Temperature
 (TFT) Sensor Circuit Low Input

7A1–36

. . . . . . . . . . .

DTC P0713 Transmission Fluid Temperature
 (TFT) Sensor Circuit High Input

7A1–39

. . . . . . . . . . .

DTC P0719 Brake Switch Circuit Low
 (Stuck On)

7A1–42

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0722 Automatic Transmission Output
 Speed Sensor (OSS) Low Input

7A1–45

. . . . . . . . . .

DTC P0723 Automatic Transmission Output
 Speed Sensor (OSS) Intermittent

7A1–48

. . . . . . . . .

DTC P0724 Brake Switch Circuit High
 (Stuck Off)

7A1–51

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0730 Gear Error Without Input Speed

7A1–53

DTC P0742 Torque Converter Clutch (TCC)
 System Stuck On

7A1–56

. . . . . . . . . . . . . . . . . . . . . . .

DTC P0748 Pressure Control Solenoid (PCS)
 (Force Motor) Circuit Electrical

7A1–58

. . . . . . . . . . .

DTC P0751 Shift Solenoid A Performance
 (Stuck OFF)

7A1–60

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0752 Shift Solenoid A Performance
 (Stuck ON)

7A1–62

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0753 Shift Solenoid A Electrical

7A1–64

. . . . .

DTC P0756 Shift Solenoid B Performance
 (Stuck OFF)

7A1–67

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0757 Shift Solenoid B Performance
 (Stuck ON)

7A1–69

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0758 Shift Solenoid B Electrical

7A1–71

. . . . .

DTC P1850 Brake Band Apply Solenoid
 Malfunction

7A1–75

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P1860 TCC PWM Solenoid Electrical

7A1–79

.

DTC P1870 Transmission Component Slipping
 (TCC Stuck OFF)

7A1–82

. . . . . . . . . . . . . . . . . . . . . . .

Connector List

7A1–84

. . . . . . . . . . . . . . . . . . . . . . . . . .
