10A–3

CRUISE CONTROL SYSTEM

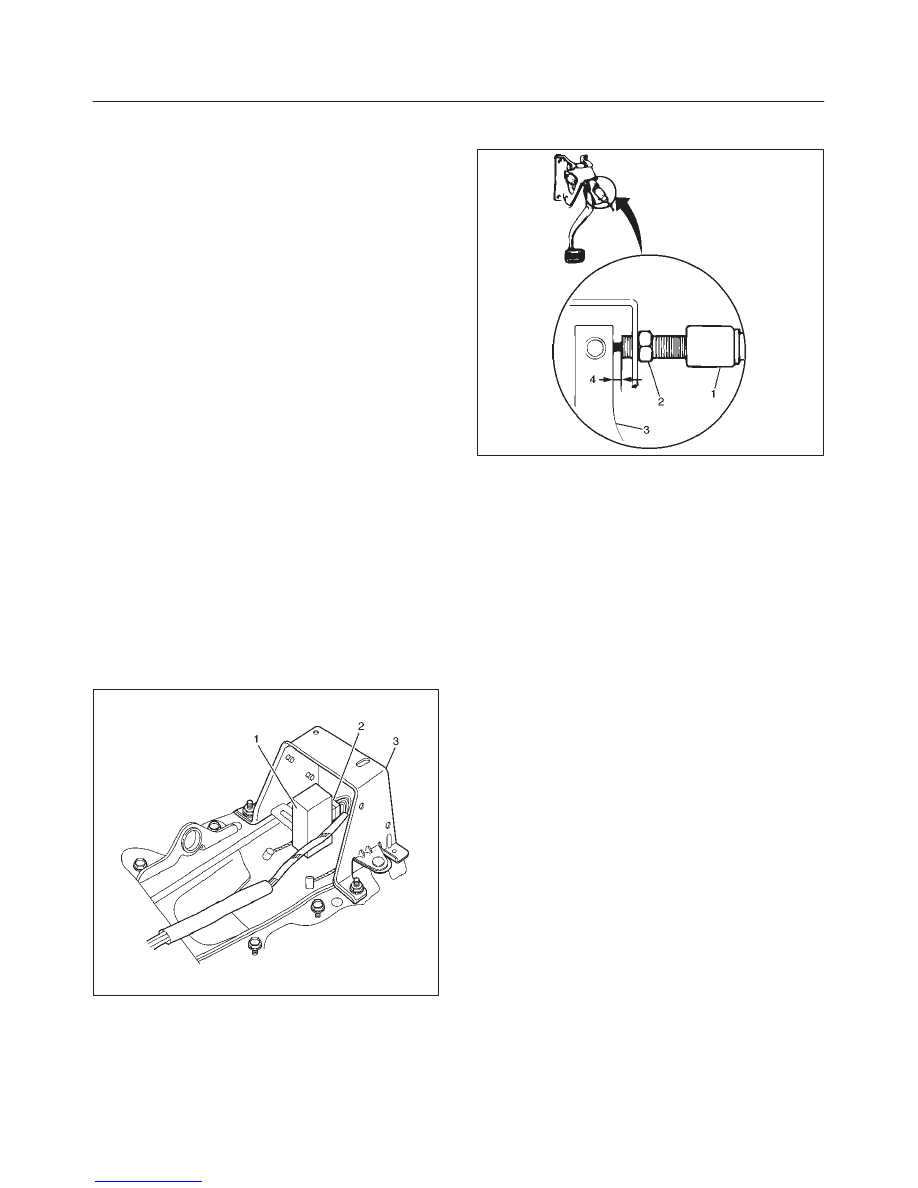

Clutch Switch

Removal and Installation

Refer to the Clutch Control removal and installation steps
in Clutch section.

Adjustment

1. Turn the clutch switch (1) until the switch plunger is

fully retracted against the clutch pedal arm.

2. Adjust clutch switch by backing it out half a turn and

measure the clearance (4) between the clutch pedal
arm (3) and the clutch switch.

3. Lock the lock nut(2).
4. Connect clutch switch connector.

Clutch Switch (bolt) and Clutch Pedal Clearance

0.5 – 1.5 mm (0.020 – 0.059 in)

203RS016–1

Cruise Control Unit

Removal

1. Disconnect the battery ground cable.
2. Remove the rear console box assembly.

f

Remove four screws.

3. Remove the cover (3).

f

Remove four nuts.

4. Remove the cruise control unit (1).

f

Disconnect the connector (2).

825RX017

Installation

To install, follow the removal steps in the reverse order.

10A–4 CRUISE CONTROL SYSTEM

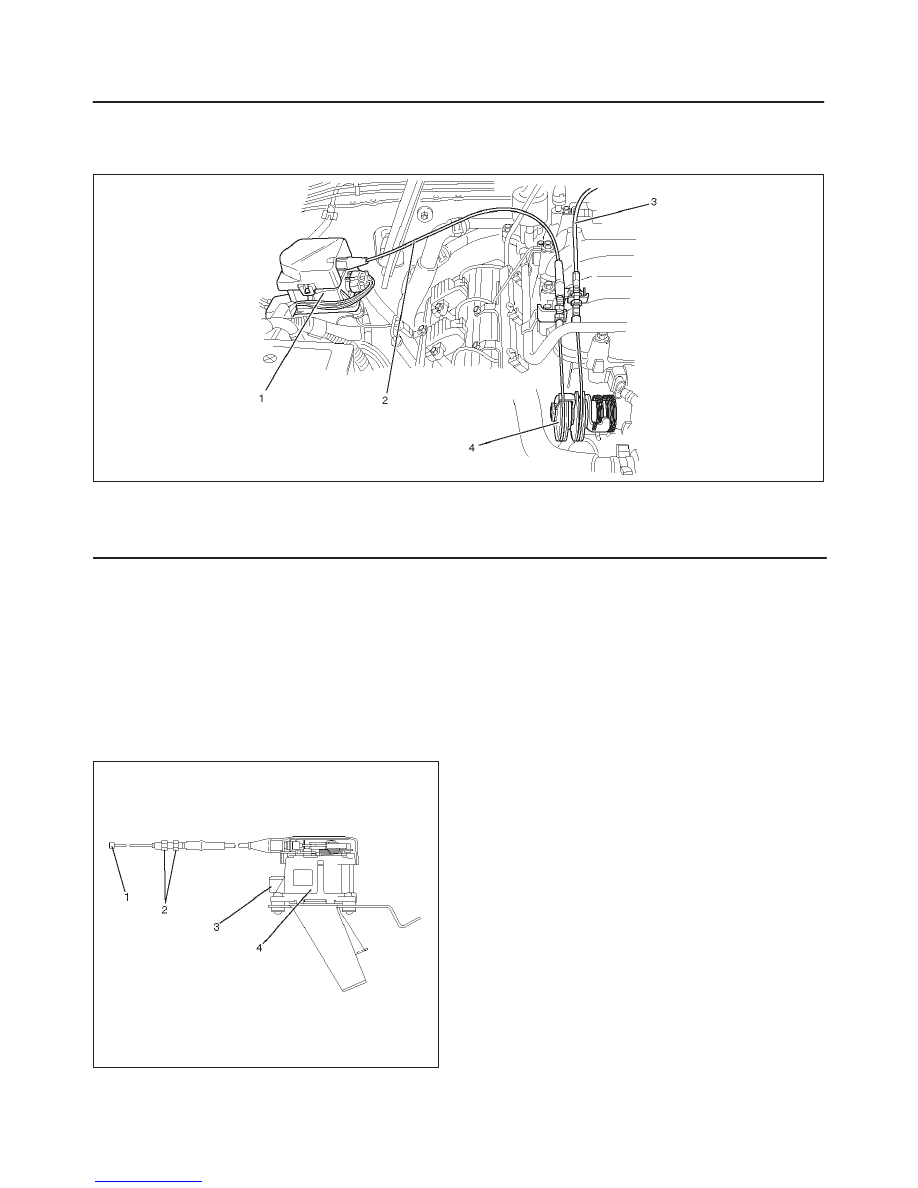

Cruise Actuator

Actuator Cable Diagram

825RW093

Legend

(1) Cruise Actuator Assembly
(2) Cruise Control Cable

(3) Accelerator Cable
(4) Throttle Link (Cruise Control Side)

Removal

1. Disconnect the battery ground cable.
2. Remove the cruise actuator assembly (4).

f

Disconnect the connector (3).

f

Remove the cable end (1) from the throttle link
(cruise control side).

f

Loosen two fixing nuts (2).

f

Remove three actuator assembly fixing screws.

825RW049

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

1. Take care not to bend the cable excessively.

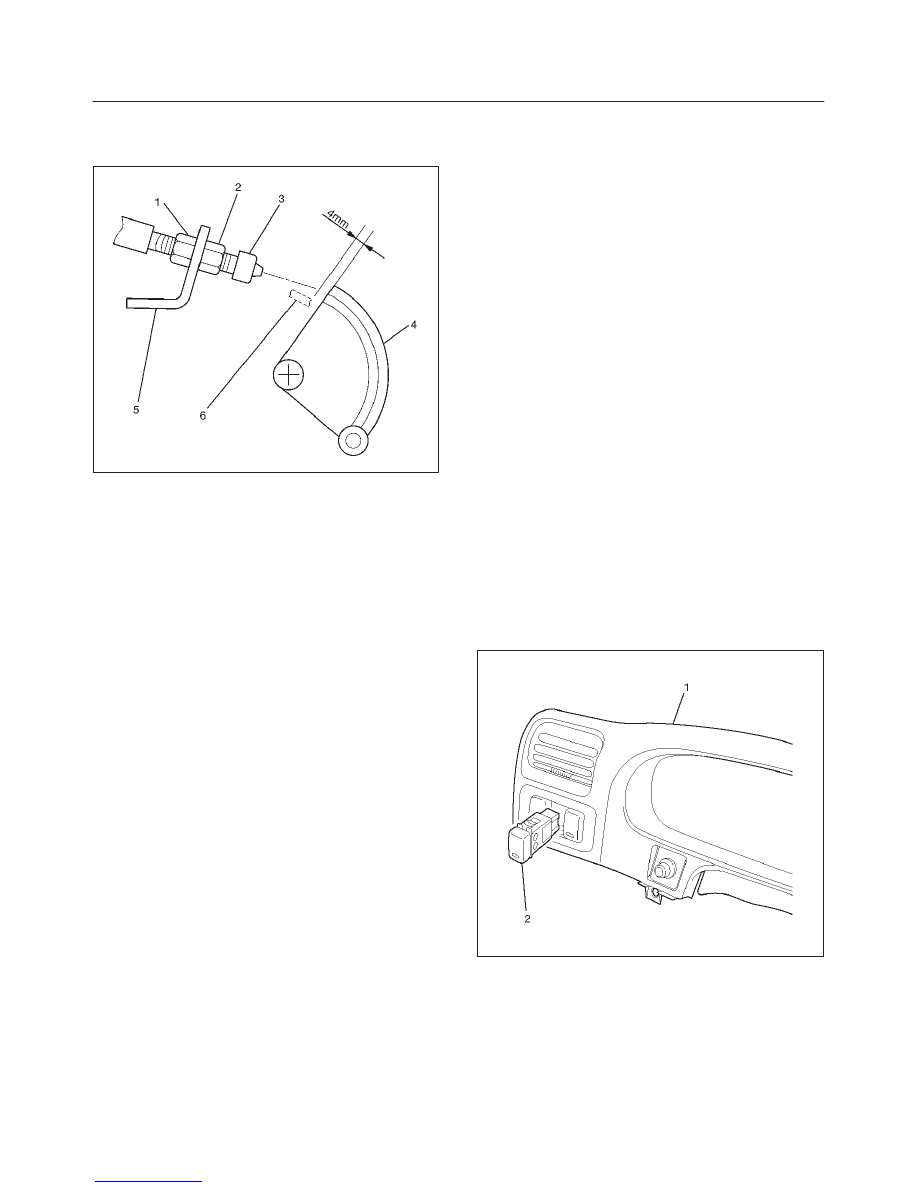

Adjustment

After installing the cruise actuator, the following steps
must be carried out for cruise control cable adjustment.

1. Install the cruise control cable end (3) to the throttle

link (4).

2. Put the screw portion of the cable in the bracket (5).
3. Put the nut (1) to the bracket and then tighten the nut

(2).

10A–5

CRUISE CONTROL SYSTEM

f

If the distance between the throttle link (4) and the
throttle link lever (6) is out of the specified range,
loosen the nut (2) to adjust it.

035RW140

Mode Switch

Removal and Installation

Refer to the Mode Switch removal and installation steps
in Automatic Transmission section.

Cruise Control Main Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the meter cluster assembly (1).

f

Refer to the Instrument Panel Assembly in Body
Structure section.

3. Remove the rear defogger switch (2).

f

Disconnect the switch connector.

f

To remove the switch, push the lock from the back
side of the instrument panel cluster assembly.

825RW089

Installation

To install, follow the removal steps in the reverse order.

10A–6 CRUISE CONTROL SYSTEM

Cruise Control Switch (Combination Switch)

Removal and Installation

Refer to the Lighting Switch (Combination Switch)
removal and installation steps in Lighting System section.
