Isuzu Rodeo UE. Service manual - part 621

8F–57

BODY STRUCTURE

601RW005

690RW006

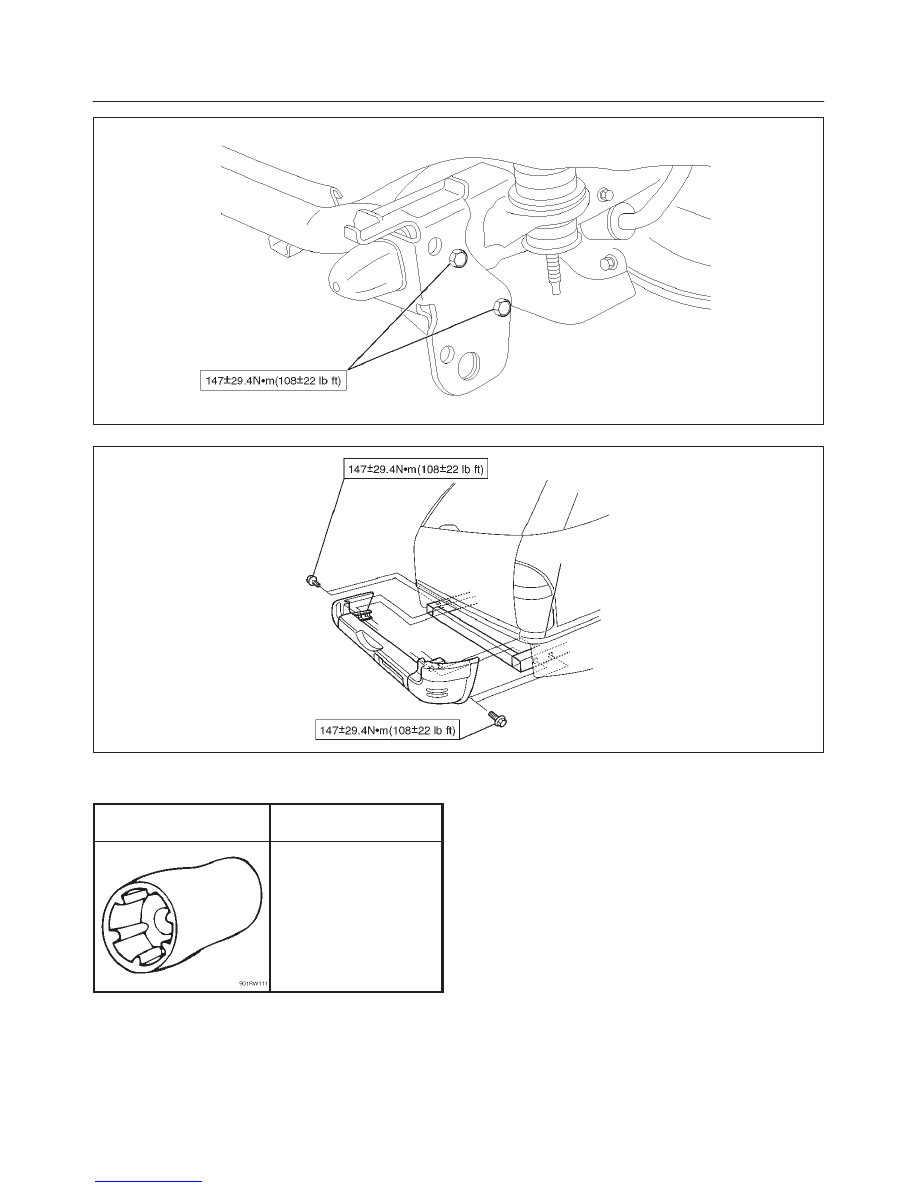

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J–34355

Spare Tire Carrier Nut

Wrench

SEATS

8G–1

RODEO

BODY AND ACCESSORIES

SEATS

CONTENTS

Service Precaution

8G–1

. . . . . . . . . . . . . . . . . . . . . .

Front Seat Assembly

8G–2

. . . . . . . . . . . . . . . . . . . .

Front Seat Assembly and Associated Parts

8G–2

Removal

8G–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8G–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Seat Assembly

8G–3

. . . . . . . . . . . . . . . . . . . . .

Rear Seat Assembly and Associated Parts

8G–3

Removal

8G–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8G–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

8G–4

. . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

8G–2

SEATS

Front Seat Assembly

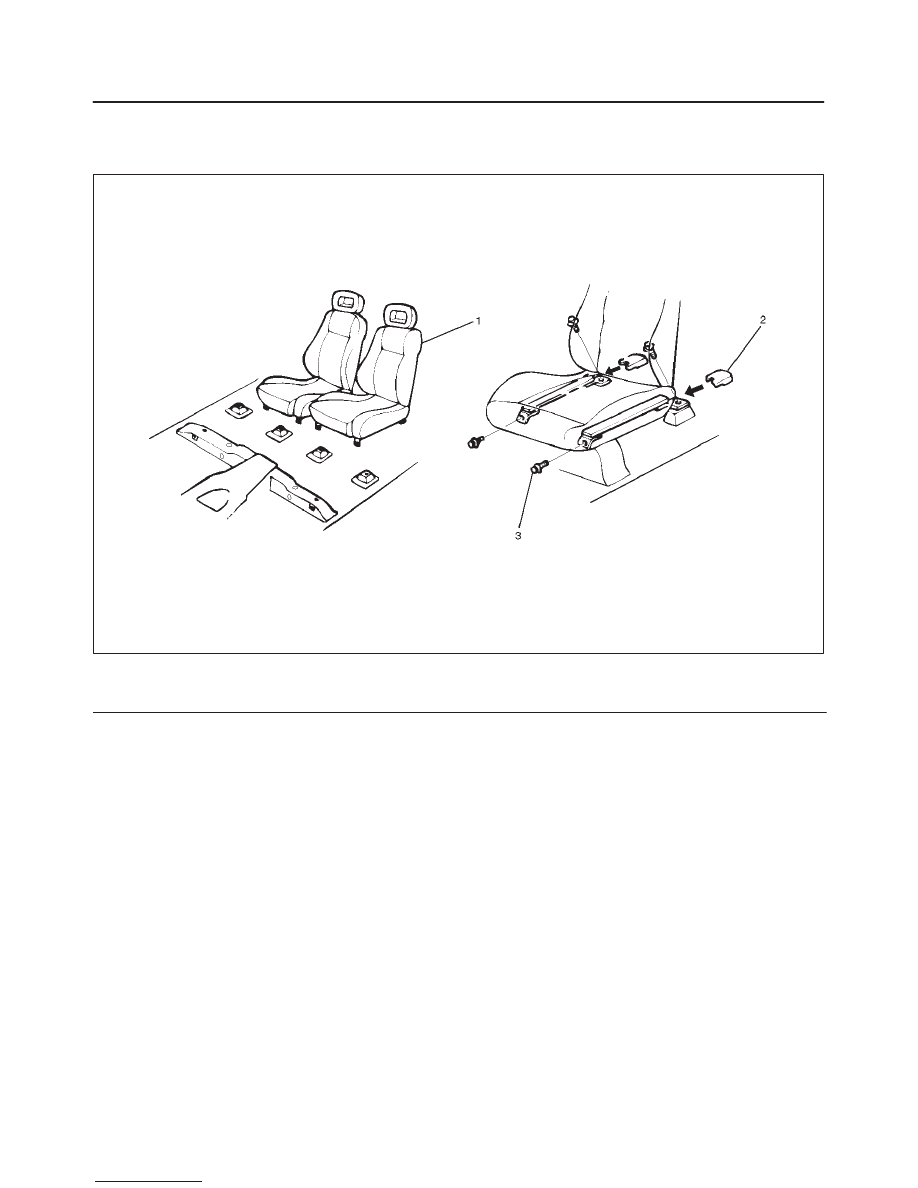

Front Seat Assembly and Associated Parts

750RW013

Legend

(1) Seat Assembly

(2) Adjuster Cover
(3) Bolt

Removal

1. Disconnect the battery ground cable.
2. Remove the adjuster cover.
3. Remove the bolt.
4. Remove the front seat assembly.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Tighten the front seat assembly fixing bolts to the

specified torque.

Torque: 39 N·m (29 lb ft)

SEATS

8G–3

Rear Seat Assembly

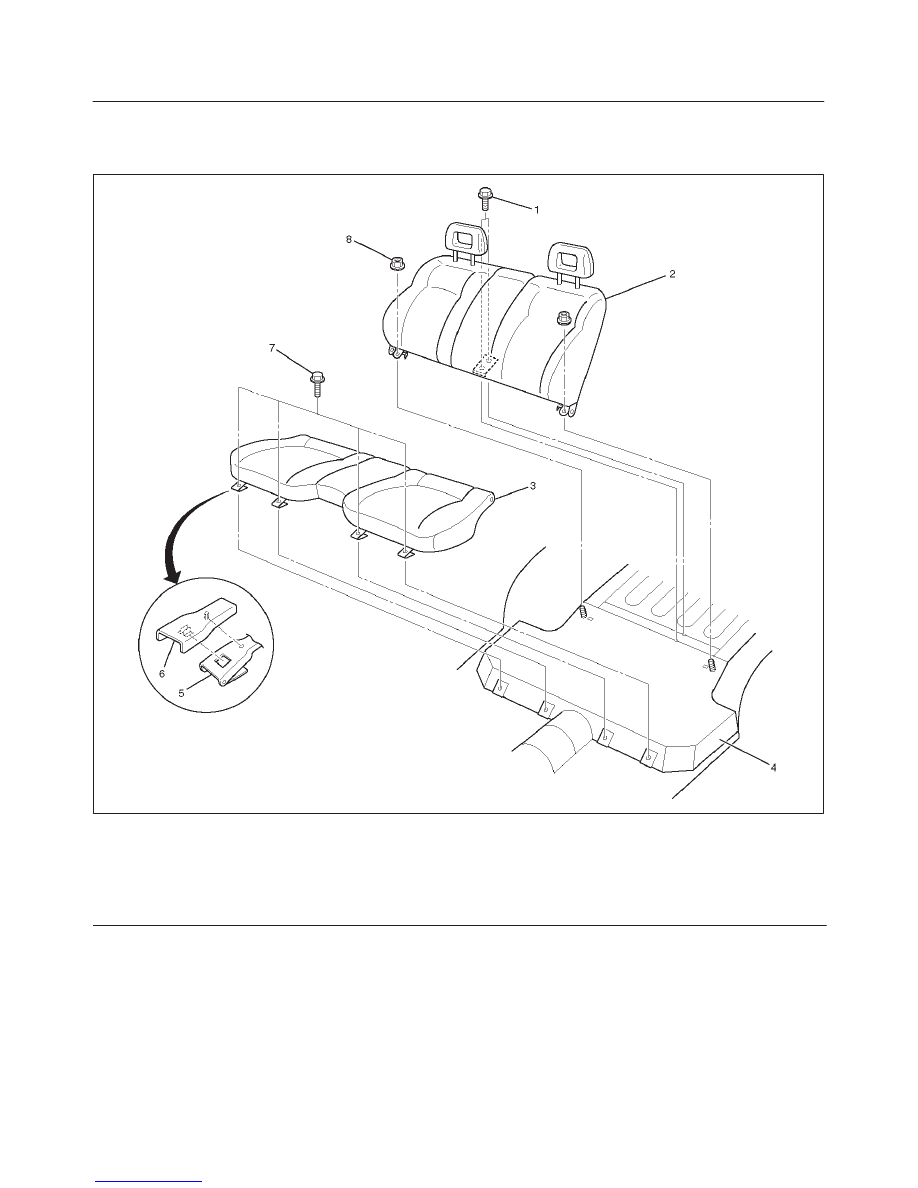

Rear Seat Assembly and Associated Parts

755RW022

Legend

(1) Bolt; Seatback
(2) Rear Seatback Assembly
(3) Rear Seat Cushion Assembly
(4) Body Floor Panel

(5) Bracket; Seat Cushion To Body
(6) Rear Seat Cushion Cover
(7) Bolt; Seat Cushion
(8) Nut; Seatback

Removal

1. Remove the rear seat cushion cover.
2. Remove the seat cushion fixing bolt.
3. Remove the rear seat cushion assembly.
4. Remove the seatback fixing nut.
5. Remove the seatback fixing bolt.
6. Remove the rear seat assembly.

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

1. Tighten the rear seat fixing bolts to the specified

torque.

Torque: 39 N·m (29 lb ft)
