8F–29
BODY STRUCTURE

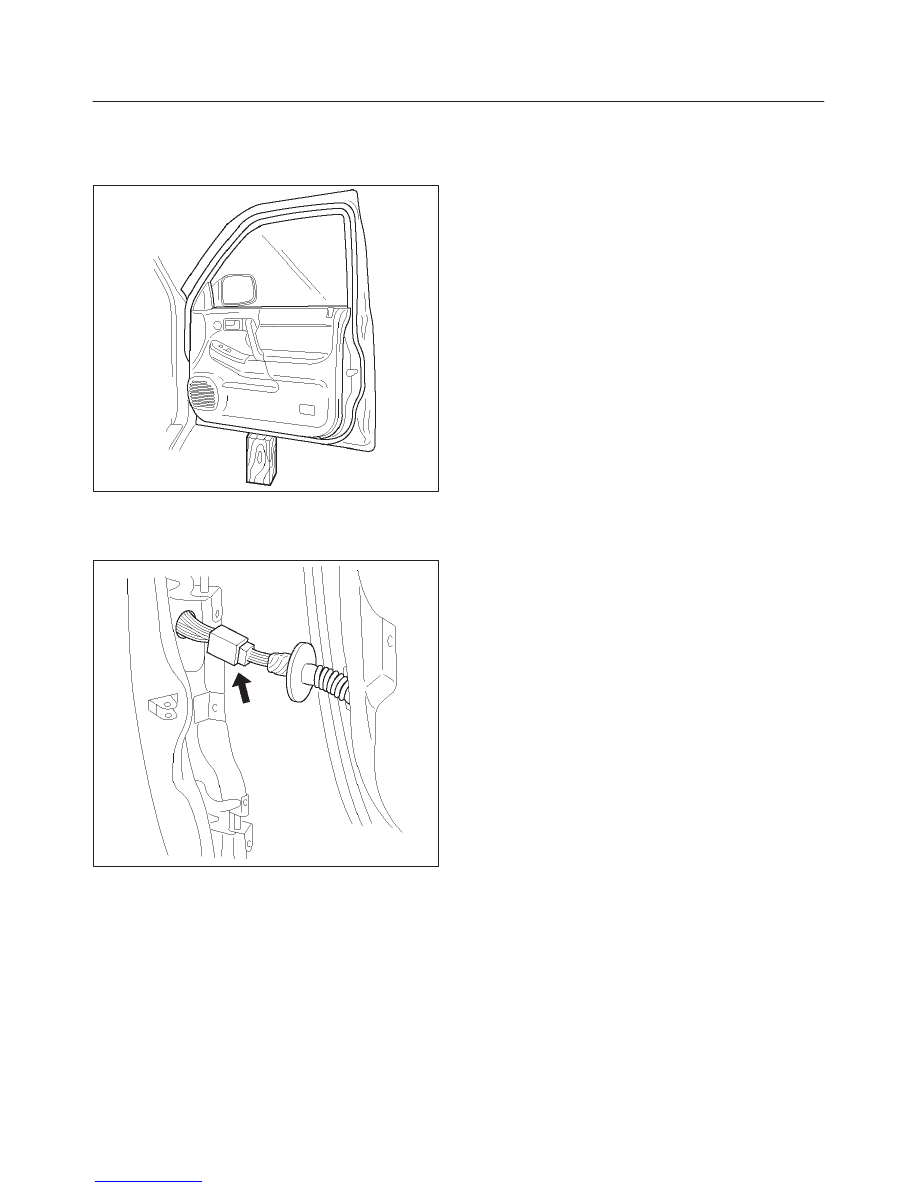

4. Remove upper and lower hinge bolts.
f
Position a wood block under the door for protection
and support the door assembly with hands during
removal or installation.
635RW003

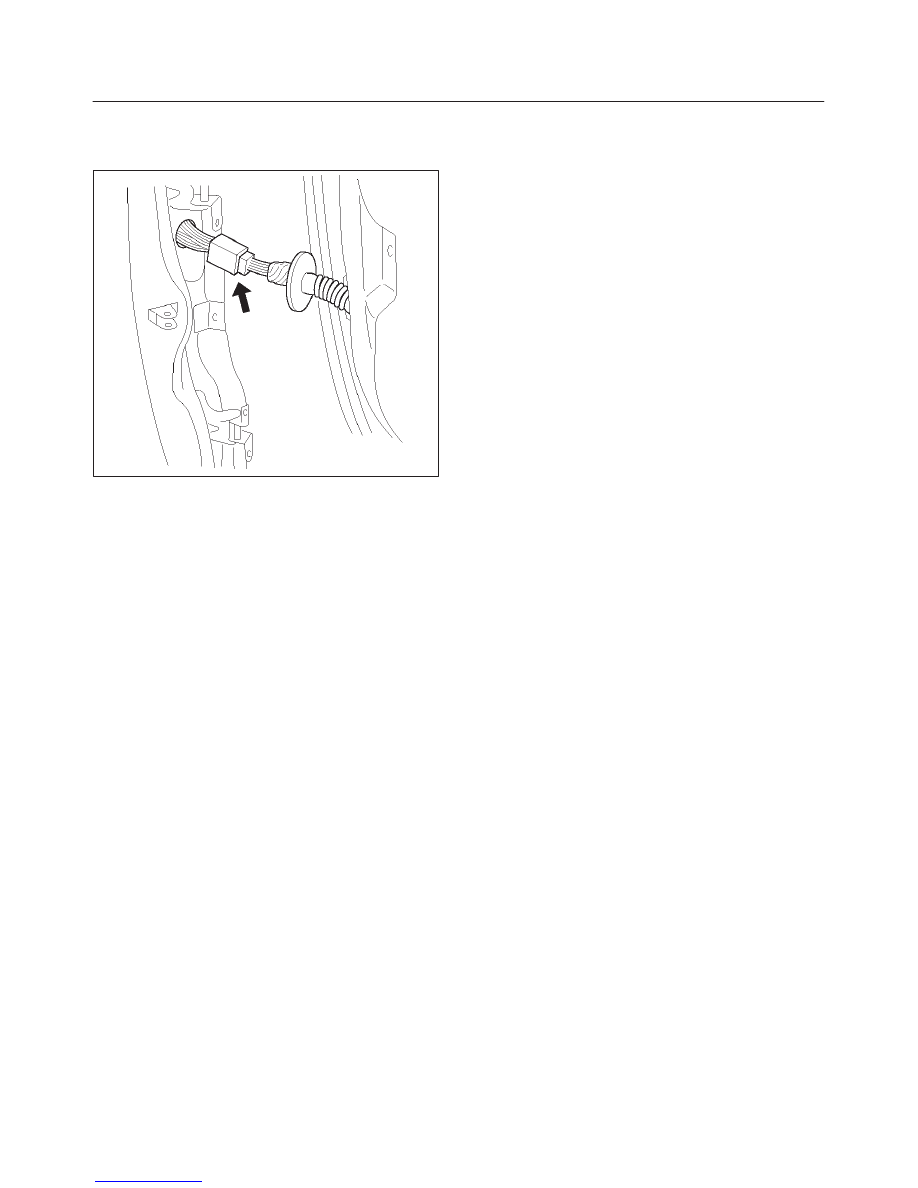

5. Remove door harness connection.
f
Pull the door harness grommet out in order to
disconnect the harness connection.
630RW004
6. Remove front door assembly.
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Align the door fitting to the body by referring to Engine
Hood and Fender.
2. Tighten the door hinge bolts to the specified torque.
Torque : 34 N·m (25 lb ft)
3. Apply chassis grease to the door check arm pin and
the door hinge moving surface.
