8F–1

BODY STRUCTURE

RODEO

BODY AND ACCESSORIES

BODY STRUCTURE

CONTENTS

Service Precaution

8F–2

. . . . . . . . . . . . . . . . . . . . . .

Frame

8F–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Description

8F–3

. . . . . . . . . . . . . . . . . . . . .

Frame Dimensions

8F–3

. . . . . . . . . . . . . . . . . . . .

General Description (Bumper)

8F–4

. . . . . . . . . . . .

Front Bumper

8F–4

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8F–4

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Bumper

8F–6

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8F–6

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Description (Sheet Metal)

8F–8

. . . . . . . . .

Engine Hood and Fender

8F–8

. . . . . . . . . . . . . . . . .

Parts Location

8F–8

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Body Dimension

8F–12

. . . . . . . . . . . . . . . . . . . . . . . .

General Description (Body)

8F–25

. . . . . . . . . . . . . . .

Instrument Panel Assembly

8F–25

. . . . . . . . . . . . . . .

Parts Location

8F–25

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–26

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–27

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Door Assembly

8F–28

. . . . . . . . . . . . . . . . . . . .

Parts Location

8F–28

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–28

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–29

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Door Assembly

8F–30

. . . . . . . . . . . . . . . . . . . . .

Parts Location

8F–30

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–30

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–31

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Window Regulator, Glass and
 Glass Run

8F–32

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8F–32

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–33

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–35

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Window Regulator, Glass and
 Glass Run

8F–36

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8F–36

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–37

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–39

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Tailgate (Lower Side)

8F–40

. . . . . . . . . . . . . . .

Parts Location

8F–40

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–41

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–41

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Hatchgate (Upper Side)

8F–42

. . . . . . . . . . . . .

Parts Location

8F–42

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–43

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–43

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Adjustment

8F–45

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Spare Tire Carrier

8F–46

. . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8F–46

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–46

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–46

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Headlining

8F–47

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8F–47

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–48

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–48

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Windshield

8F–49

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8F–49

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–50

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–50

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Quarter Glass

8F–53

. . . . . . . . . . . . . . . . . . . . . .

Parts Location

8F–53

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–54

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–54

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

8F–54

. . . . . . . . . . . . .

Special Tools

8F–57

. . . . . . . . . . . . . . . . . . . . . . . . . . .

8F–2

BODY STRUCTURE

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

8F–3

BODY STRUCTURE

Frame

General Description

Proper frame alignment is important to assure normal
vehicle life and performance of many other parts of the

vehicle. If the vehicle has been involved in a fire, collision
or has been overloaded, it is necessary to check the
frame alignment.

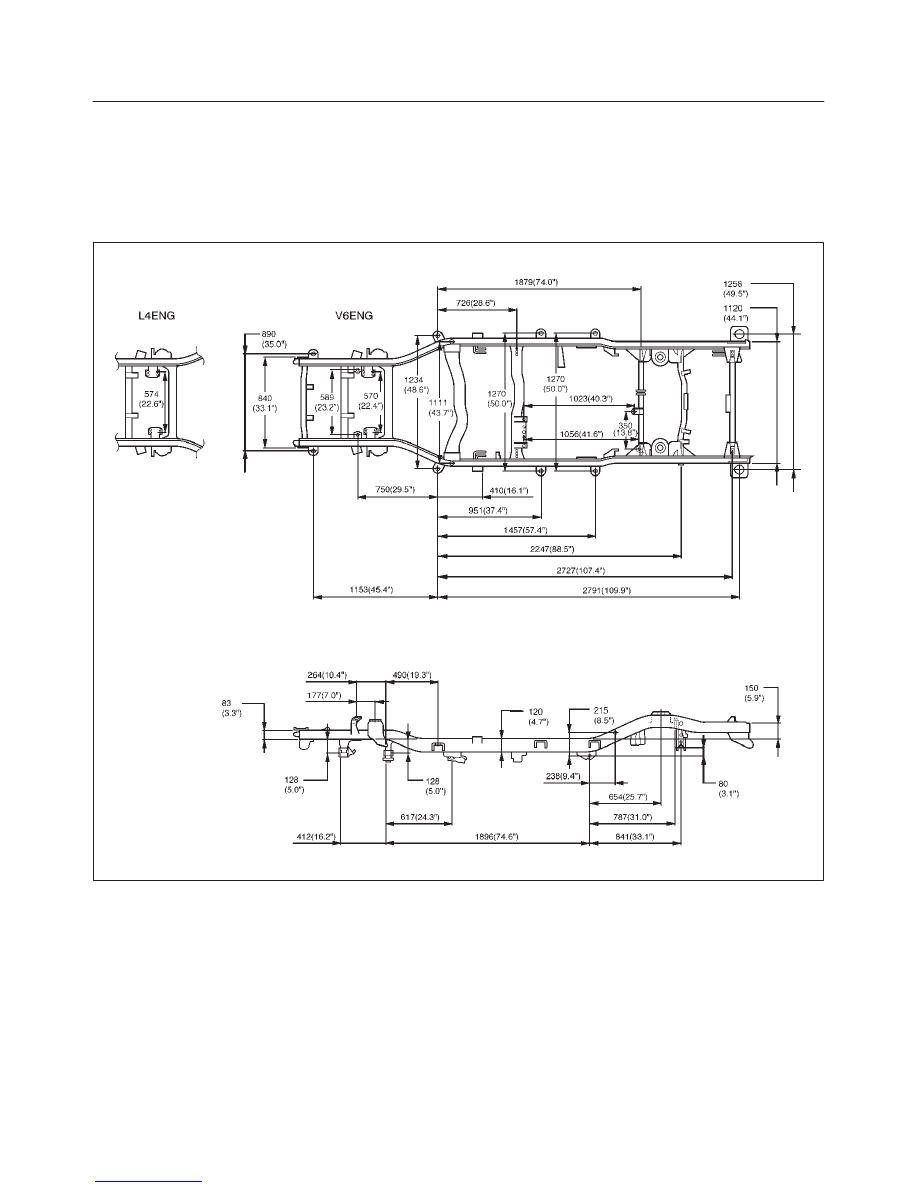

Frame Dimensions

501RX001

8F–4

BODY STRUCTURE

General Description (Bumper)

Front and rear bumpers consist of bumper fascia,
support, and reinforcement.

The absorbing capability for both front and rear bumper
systems are achieved through reinforcements in each
bumper.

Front Bumper

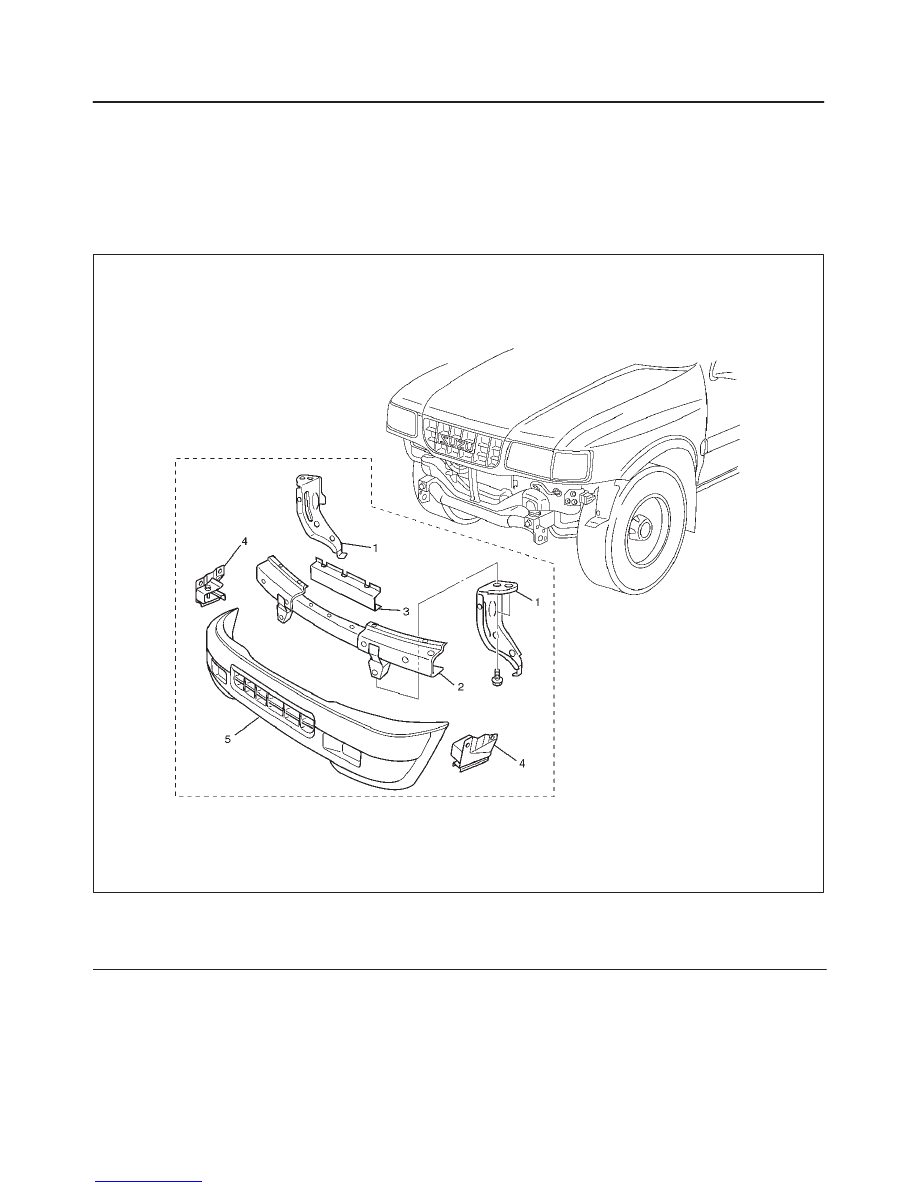

Parts Location

601RW006

Legend

(1) Backbar
(2) Front Bumper Reinforcement Assembly

(3) Support Assembly
(4) Bumper Support
(5) Front Bumper
