8D–152

WIRING SYSTEM

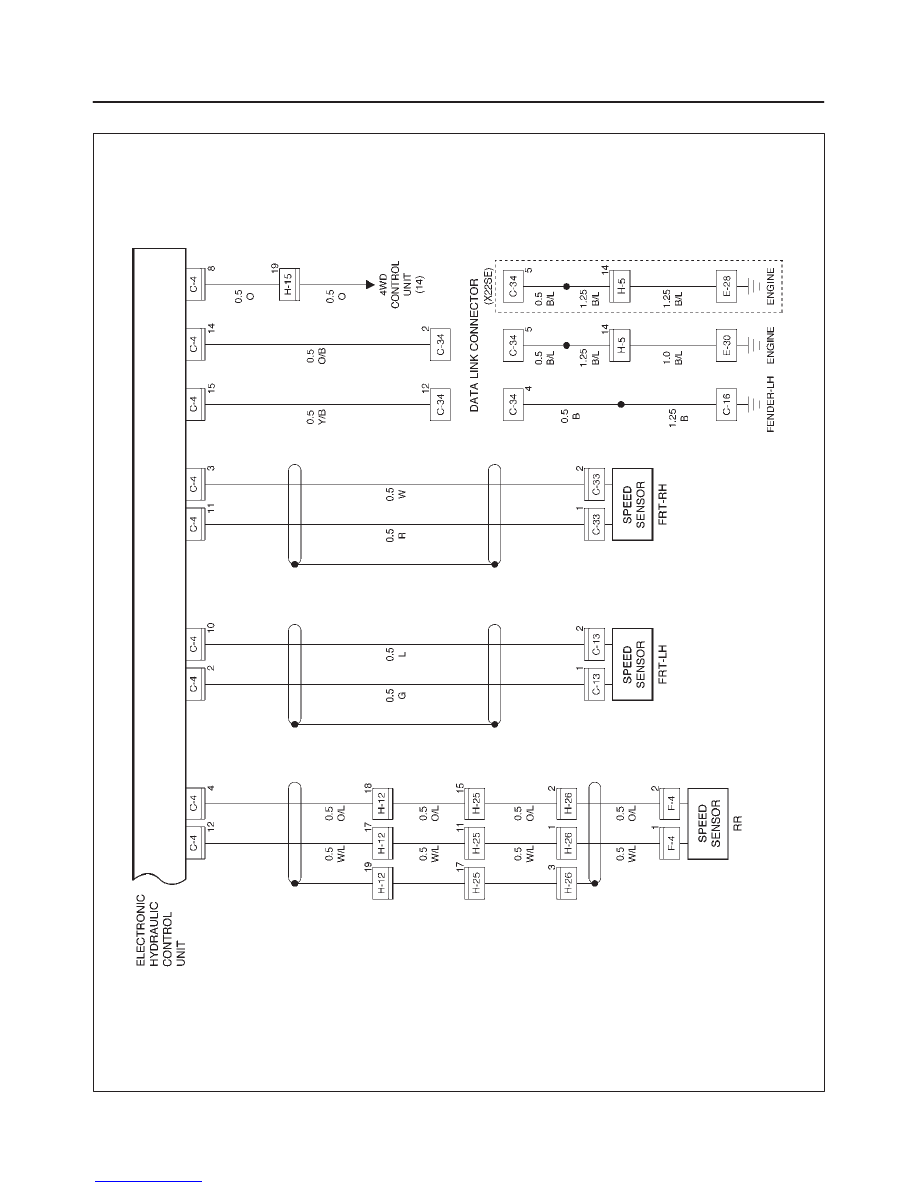

Circuit Diagram–3

D08RX109

8D–153

WIRING SYSTEM

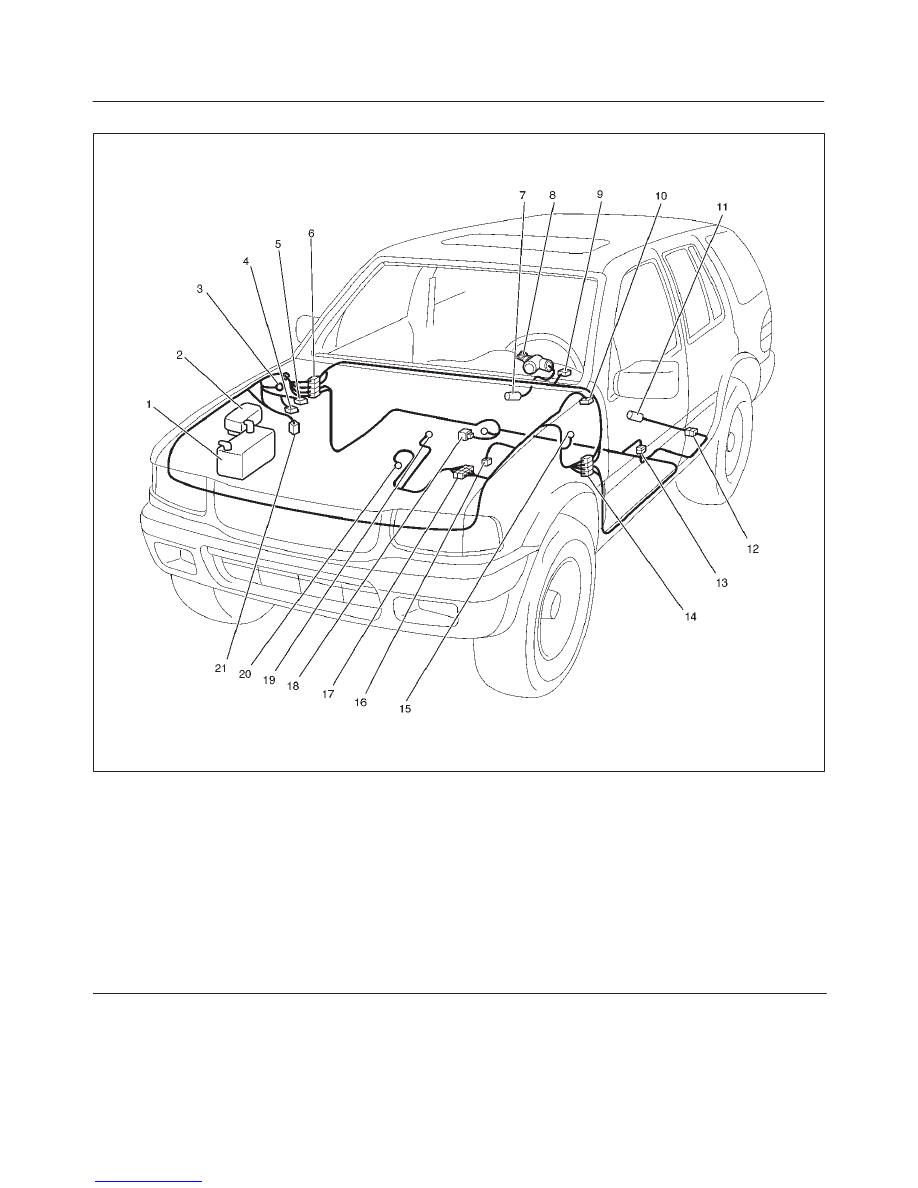

Parts Location

D08RX107

Legend

(1) Battery
(2) Relay & Fuse Box
(3) C–36
(4) C–5
(5) C–4
(6) H–12, 13, 14
(7) I–18
(8) Starter Switch
(9) I–1

(10) C–34

(11) F–4

(12) H–26
(13) H–25
(14) H–15
(15) C–16
(16) C–13
(17) H–5
(18) B–19
(19) E–30 (6VD1)
(20) E–28 (X22SE)
(21) C–33

8D–154

WIRING SYSTEM

A/T Shift Lock

General Description

With the starter switch in the “ON” position and the shift
lever in “P” position, the shift lever cannot be shifted from
“P” to another position unless the brake pedal is
depressed. This is because, unless the brake pedal is
depressed, the solenoid pin underneath the shift lever
retracts and the link lever then locks the shift lever cam.

8D–155

WIRING SYSTEM

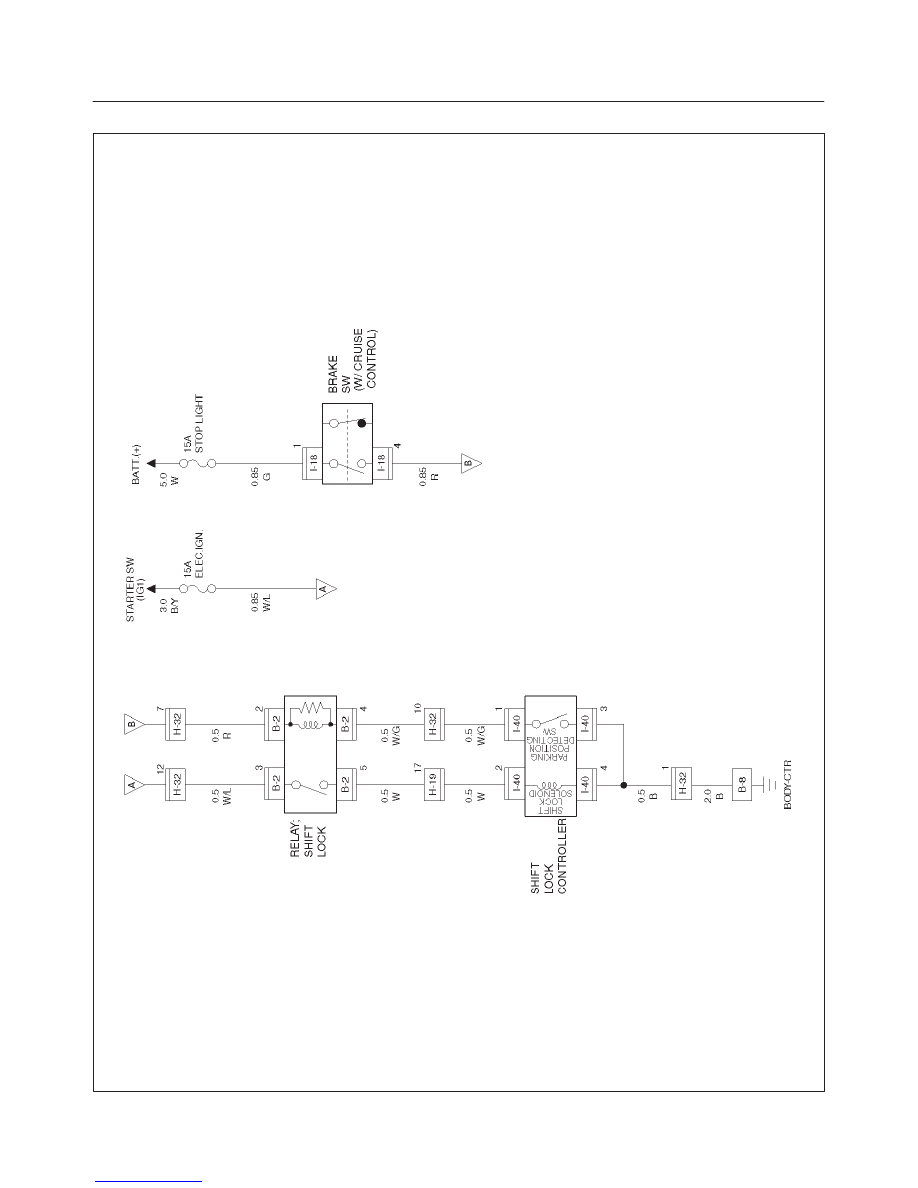

Circuit Diagram–1

D08RW241
