Isuzu Rodeo UE. Service manual - part 570

8D–128

WIRING SYSTEM

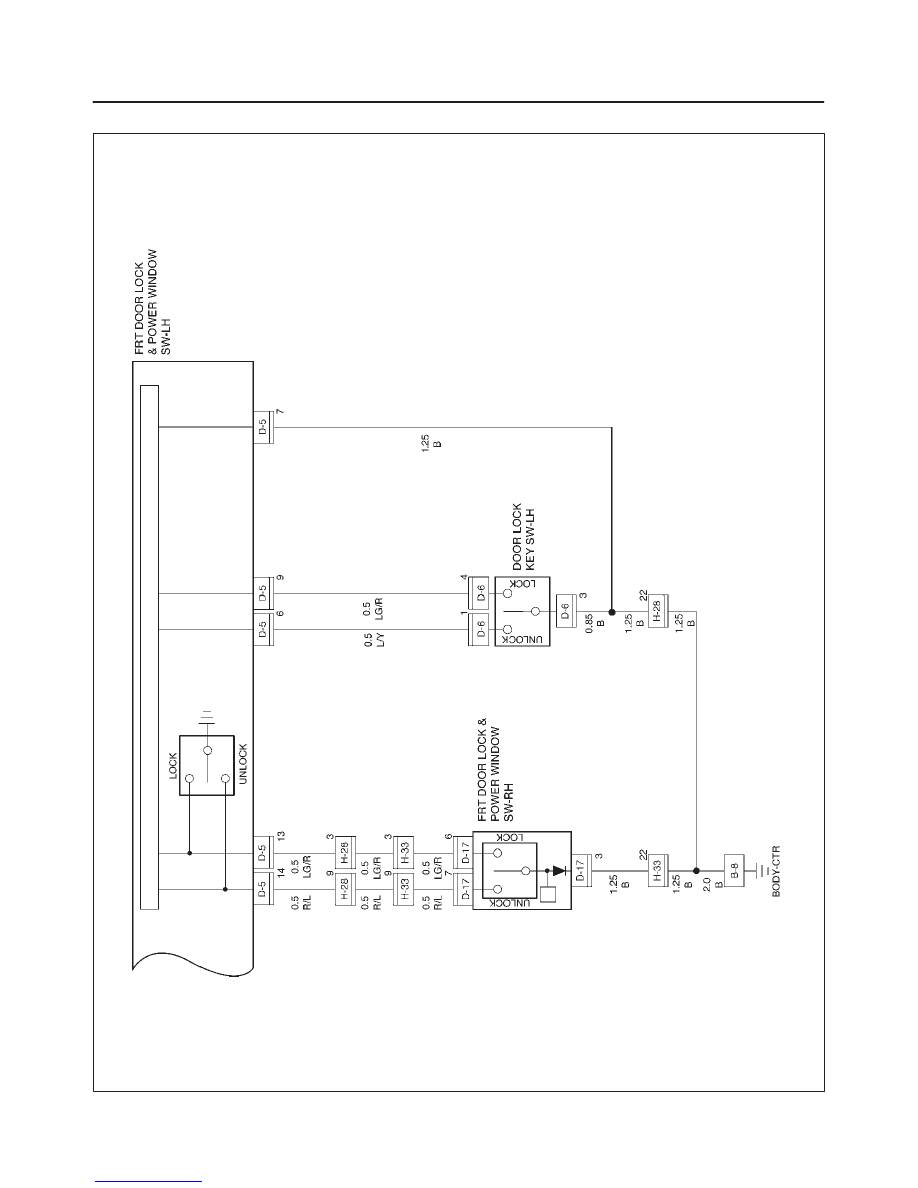

Circuit Diagram–2

D08RX065

8D–129

WIRING SYSTEM

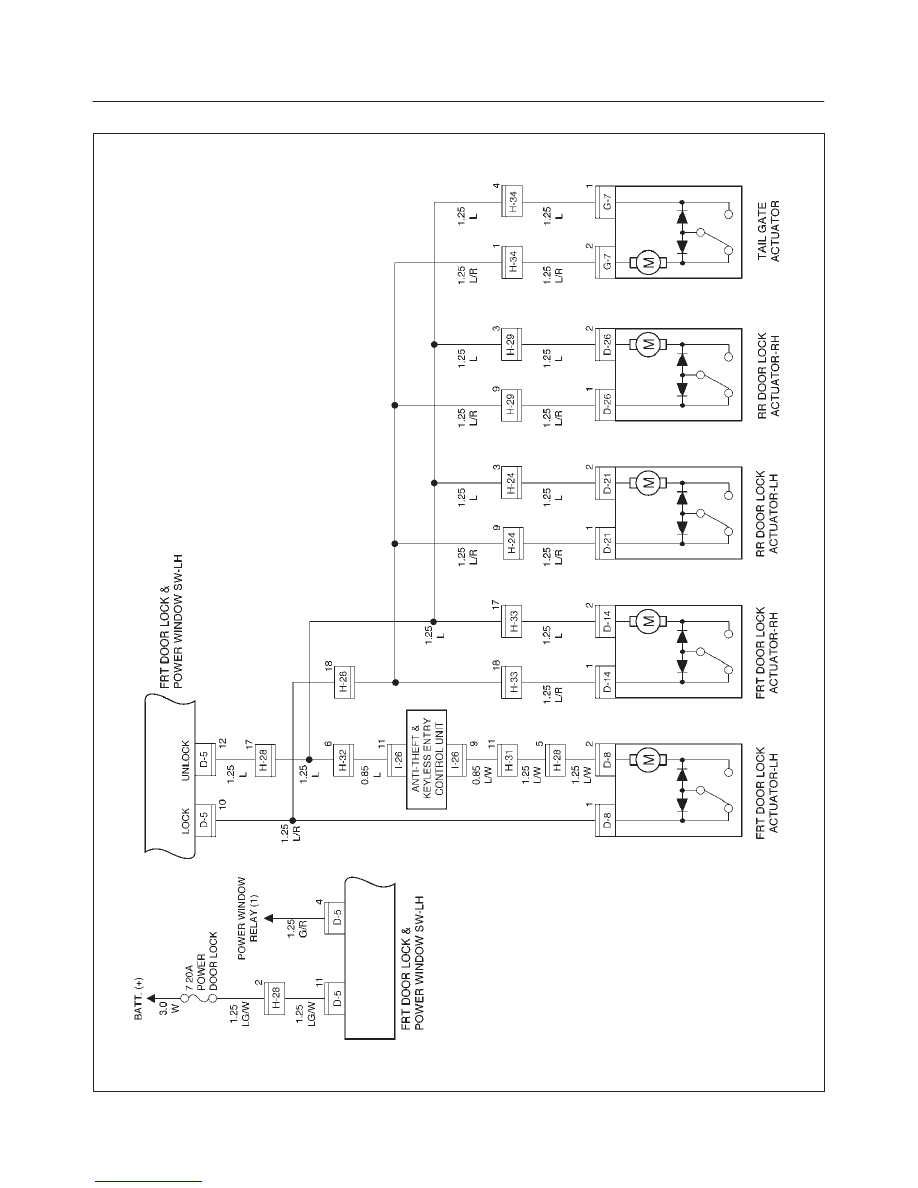

Circuit Diagram (With Anti–Theft)–1

D08RX066

8D–130

WIRING SYSTEM

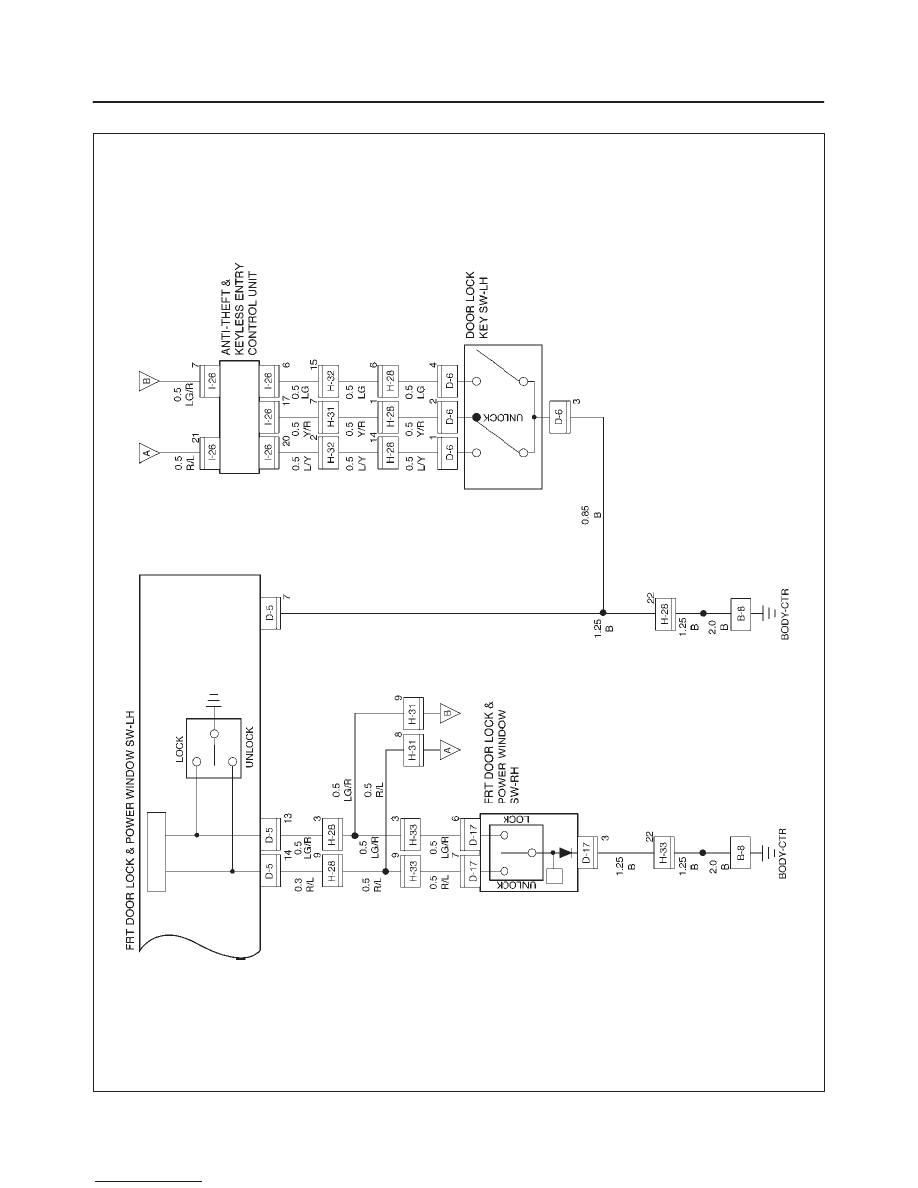

Circuit Diagram (With Anti–Theft)–2

D08RX067

8D–131

WIRING SYSTEM

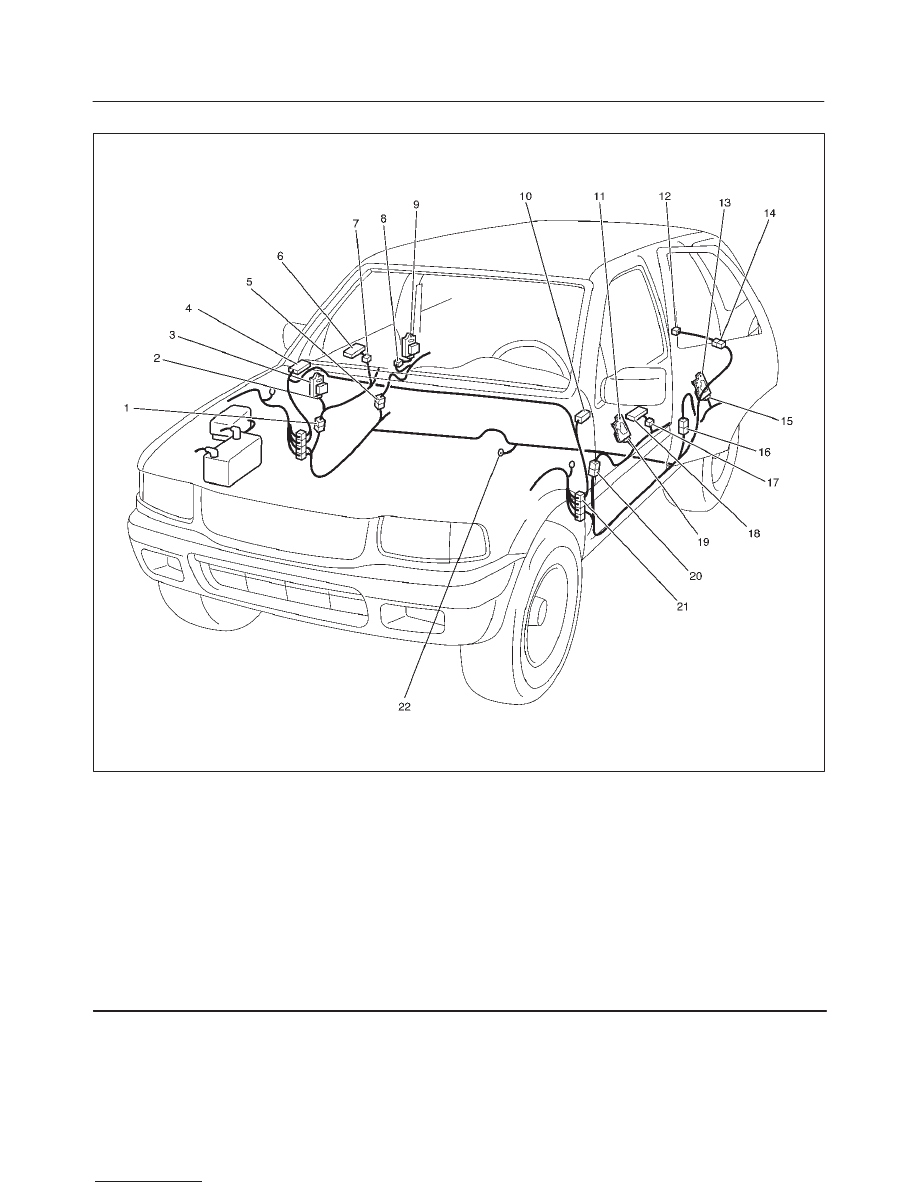

Parts Location

D08RX068

Legend

(1) H–33
(2) D–14
(3) Door Lock Actuator (FRT RH)
(4) I–26
(5) H–29
(6) Door Lock Switch (FRT RH)
(7) D–17
(8) D–28
(9) Door Lock Actuator (RR RH)

(10) I–4

(11) Door Lock Actuator (FRT LH)

(12) G–7
(13) Door Lock Actuator (RR LH)
(14) H–34
(15) D–23
(16) H–24
(17) D–5, D–6
(18) Door Lock Switch (FRT LH)
(19) D–8
(20) H–28
(21) H–31, H–32
(22) B–8
