Isuzu Rodeo UE. Service manual - part 563

8D–100

WIRING SYSTEM

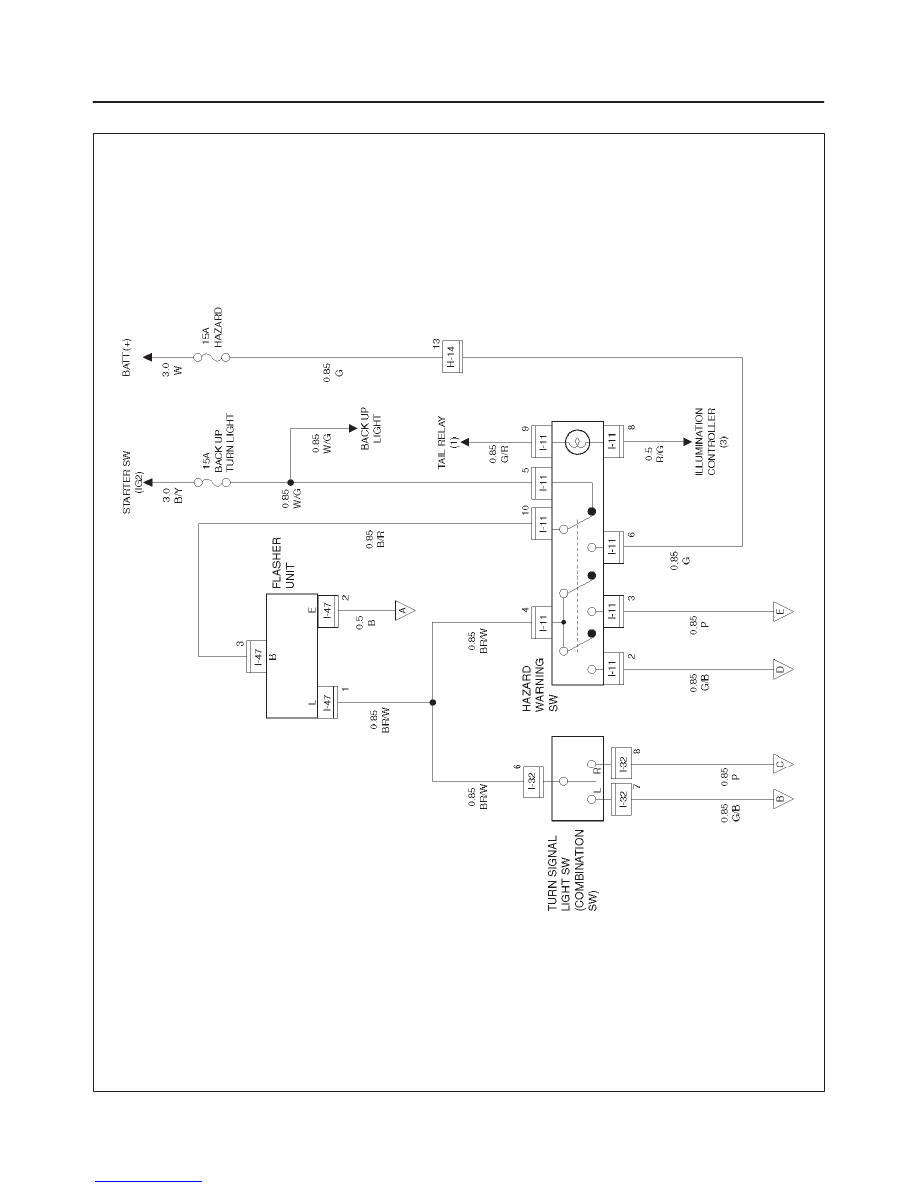

Circuit Diagram–1

D08RW043

8D–101

WIRING SYSTEM

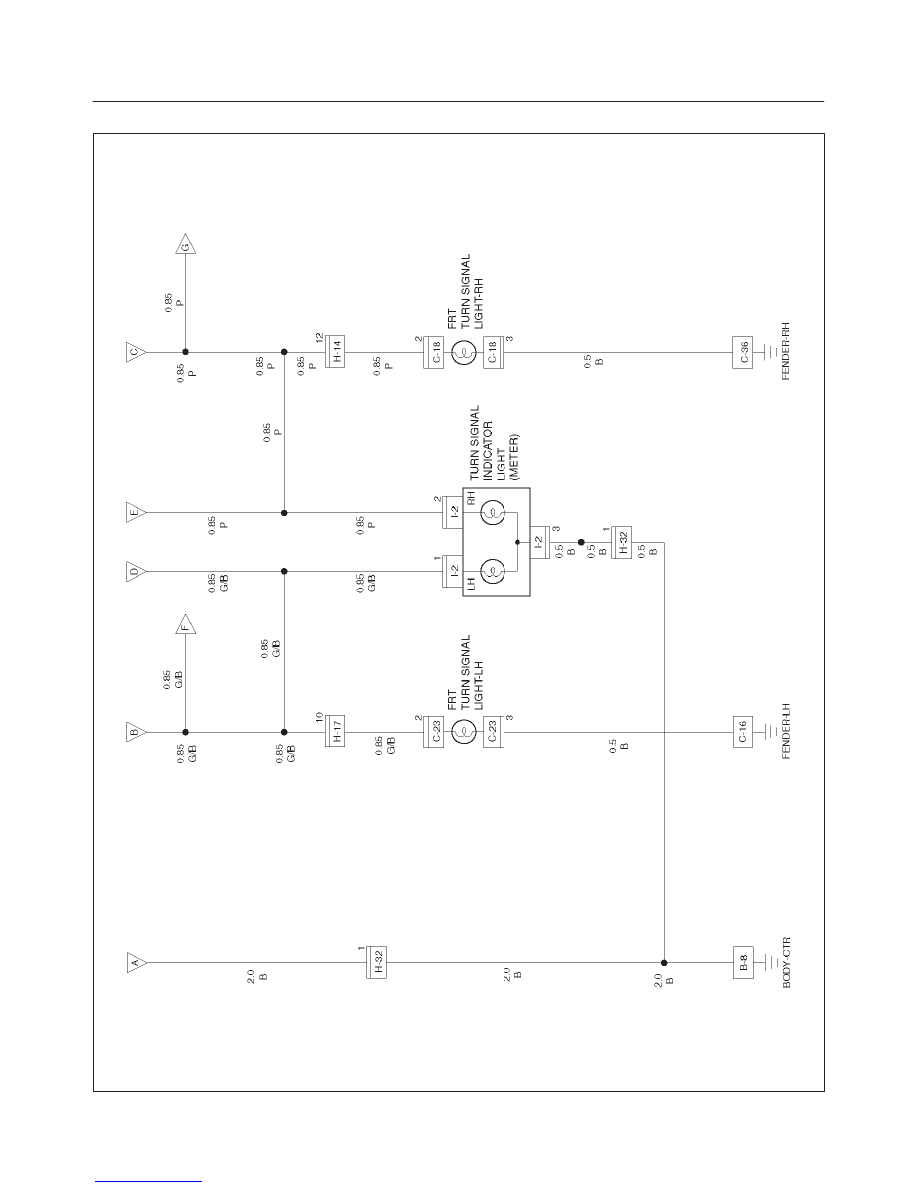

Circuit Diagram–2

D08RW044

8D–102

WIRING SYSTEM

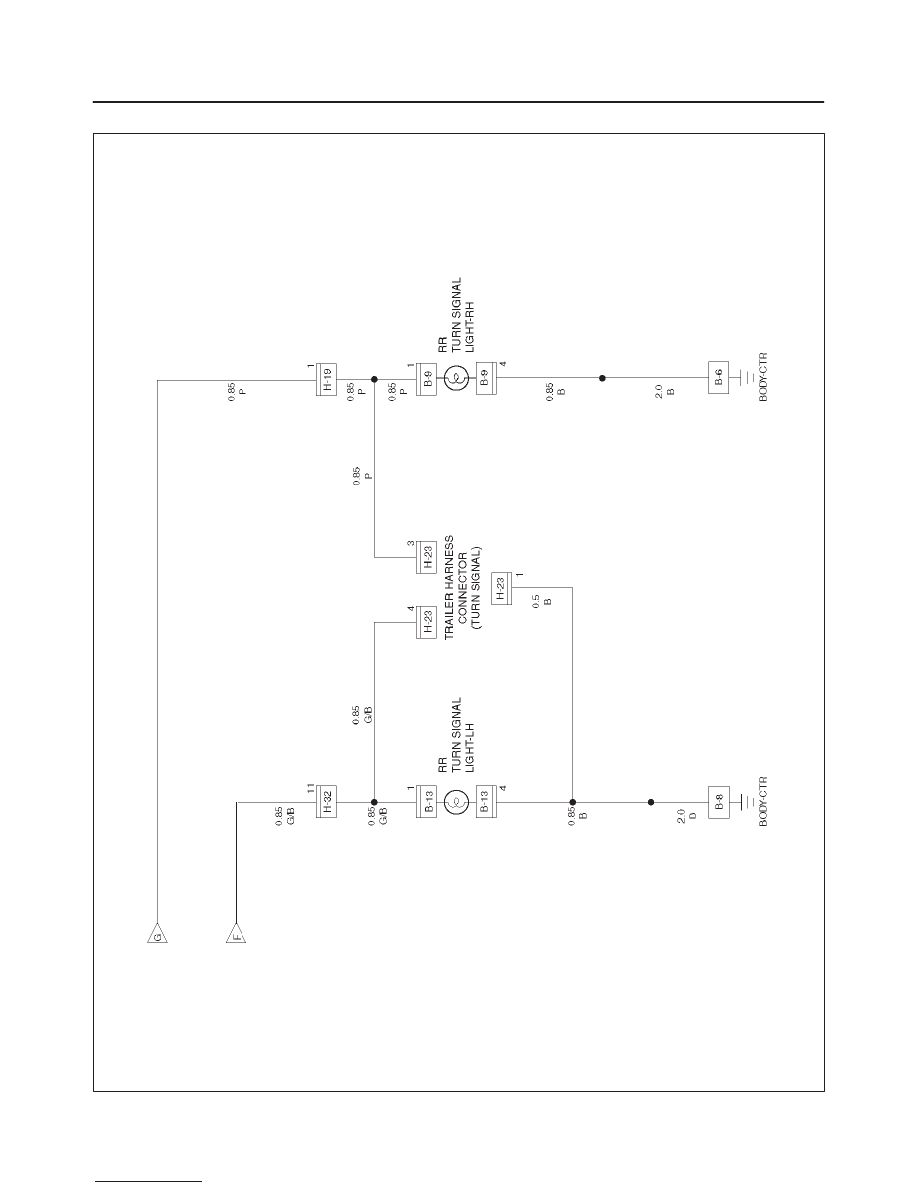

Circuit Diagram–3

D08RW045

8D–103

WIRING SYSTEM

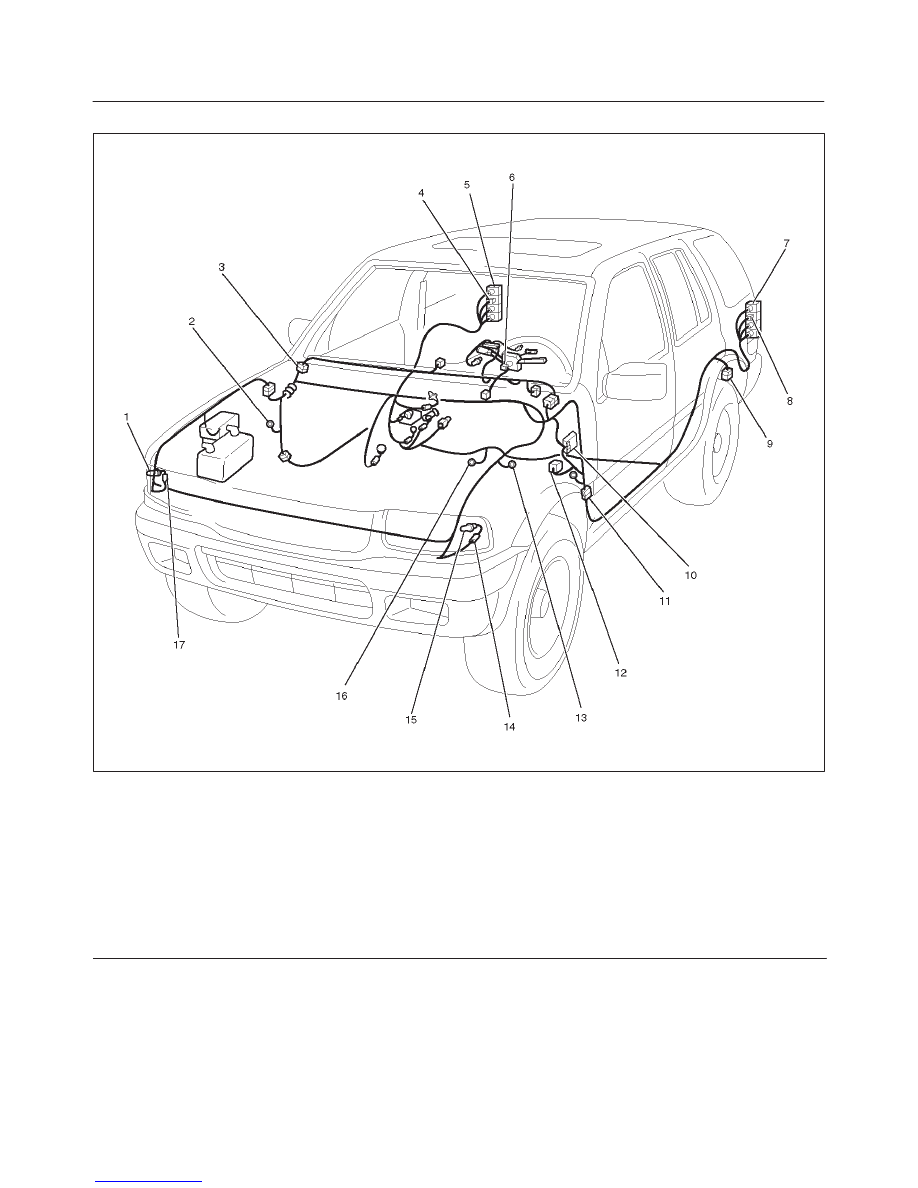

Parts Location

D08RW110

Legend

(1) FRT Turn Signal light – RH
(2) C–36
(3) H–14, H–19
(4) B–9
(5) RR Turn Signal light – RH
(6) I–2
(7) RR Turn Signal light – LH
(8) B–13

(9) H–23

(10) Relay & Fuse Box

(11) H–32

(12) I–32, I–47
(13) C–16
(14) C–23
(15) FRT Turn Signal light – LH
(16) B–8
(17) C–18
