Isuzu Rodeo UE. Service manual - part 553

8D–60

WIRING SYSTEM

Circuit Diagram–9 (6VD1·2WD)

D08RX027

8D–61

WIRING SYSTEM

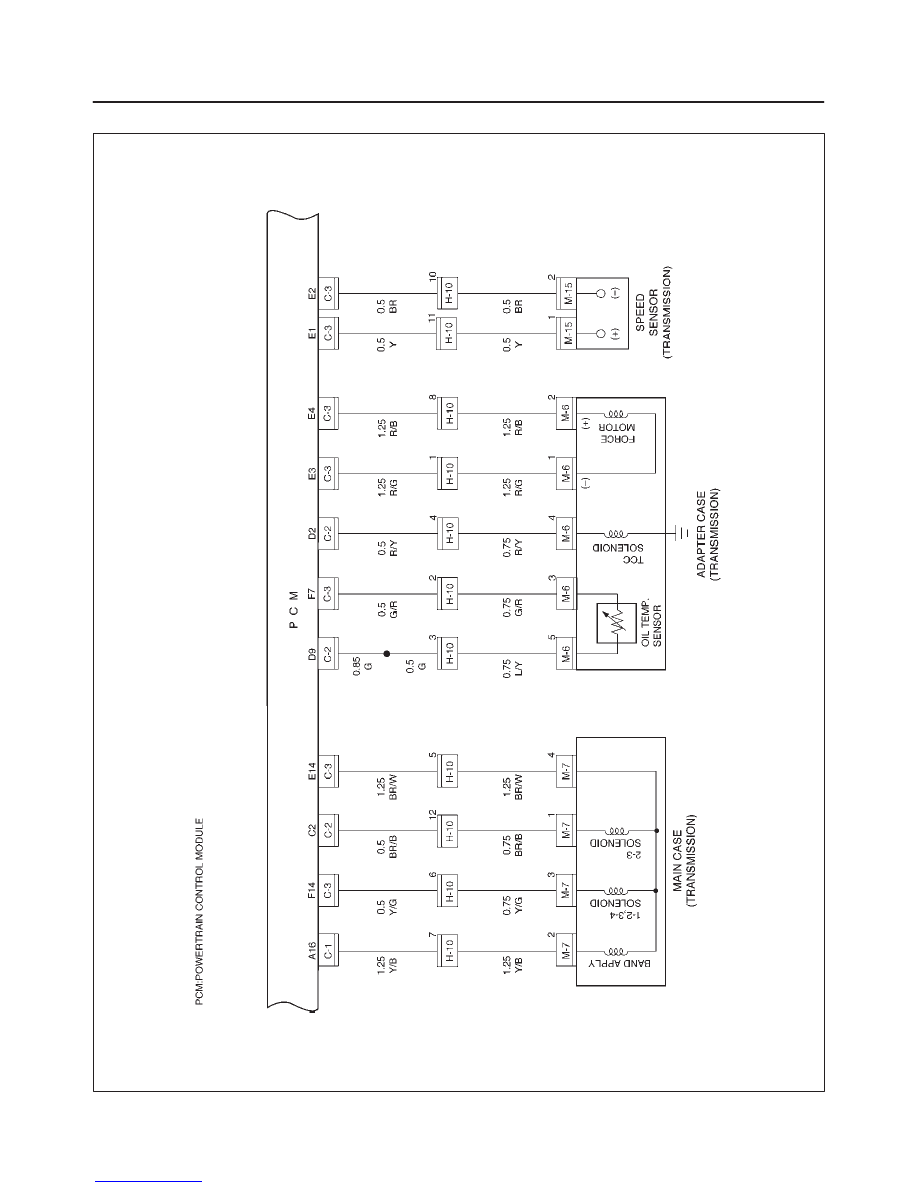

Circuit Diagram–10 (6VD1)

D08RX028

8D–62

WIRING SYSTEM

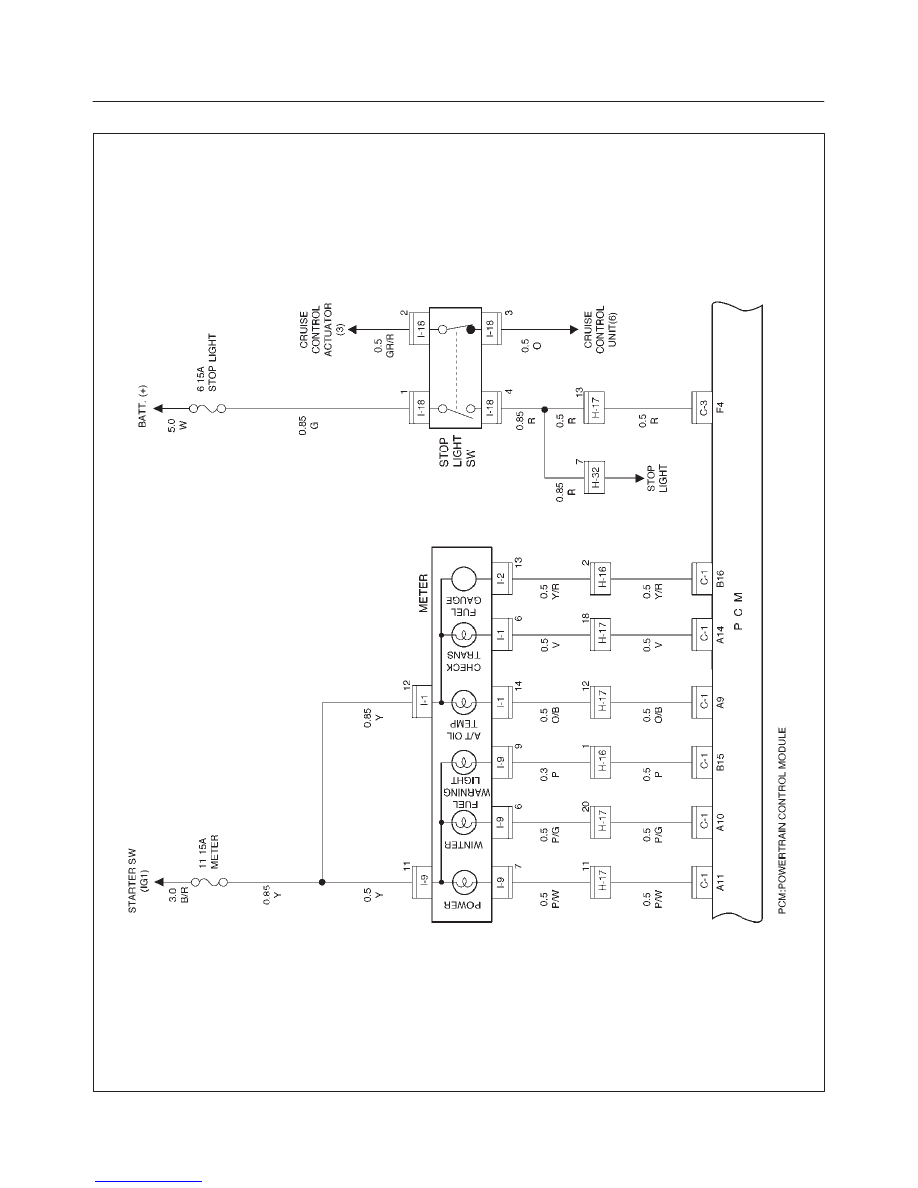

Circuit Diagram–11 (6VD1)

D08RX029

8D–63

WIRING SYSTEM

Circuit Diagram–12 (6VD1)

D08RX030
