LIGHTING SYSTEM

8A–15

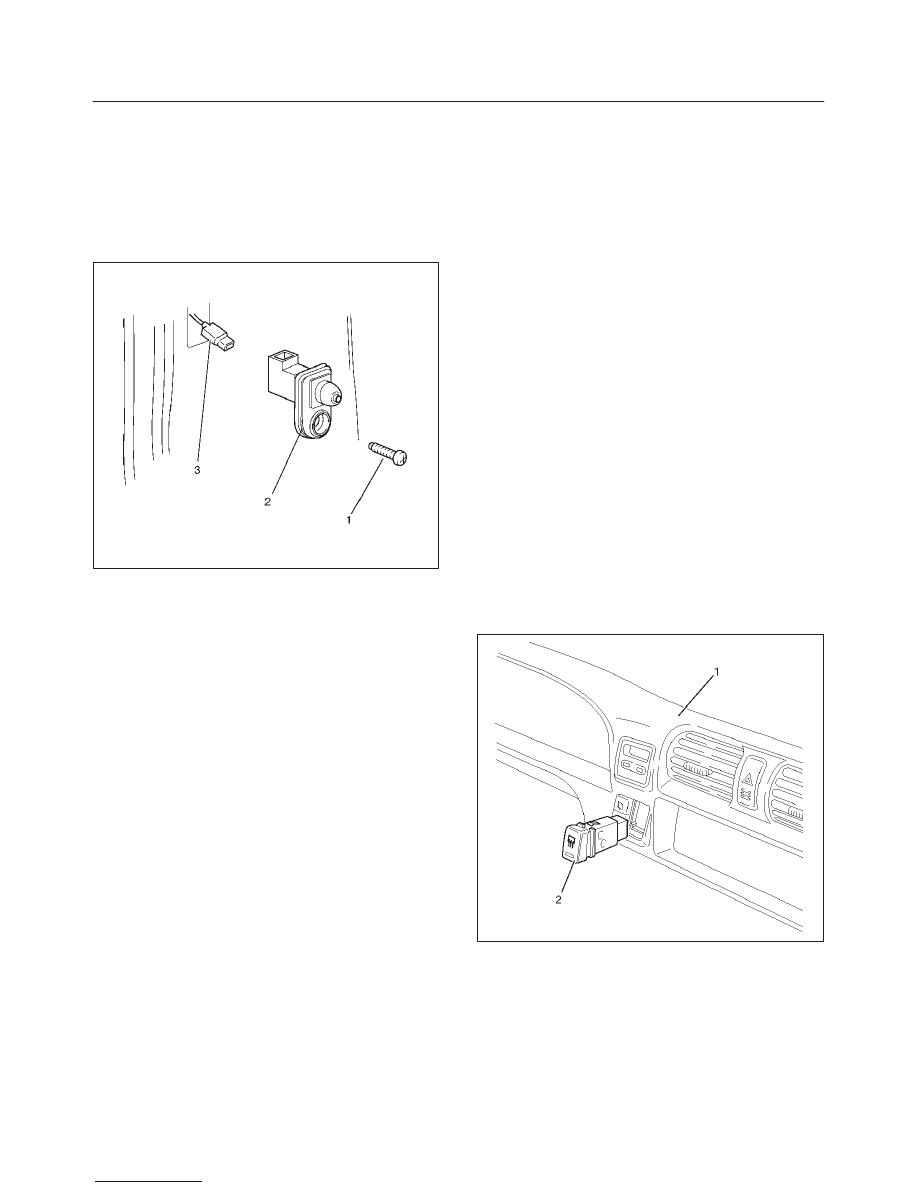

Door Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the door switch (2).

f

Remove the screw (1).

f

Disconnect the connector (3).

825RW289

Installation

To install, follow the removal steps in the reverse order.

Rear Defogger Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the meter cluster assembly (1).

f

Refer to Instrument Panel Assembly in Body
Structure section.

3. Remove the rear defogger switch (2).

f

Disconnect the switch connector.

f

To remove the switch, push the lock from the back
side of the meter cluster assembly.

825RW085

Installation

To install, follow the removal steps in the reverse order.

8A–16

LIGHTING SYSTEM

Key Remind Switch (Starter Switch)

Removal and Installation

Refer to Lock Cylinder in Steering section.

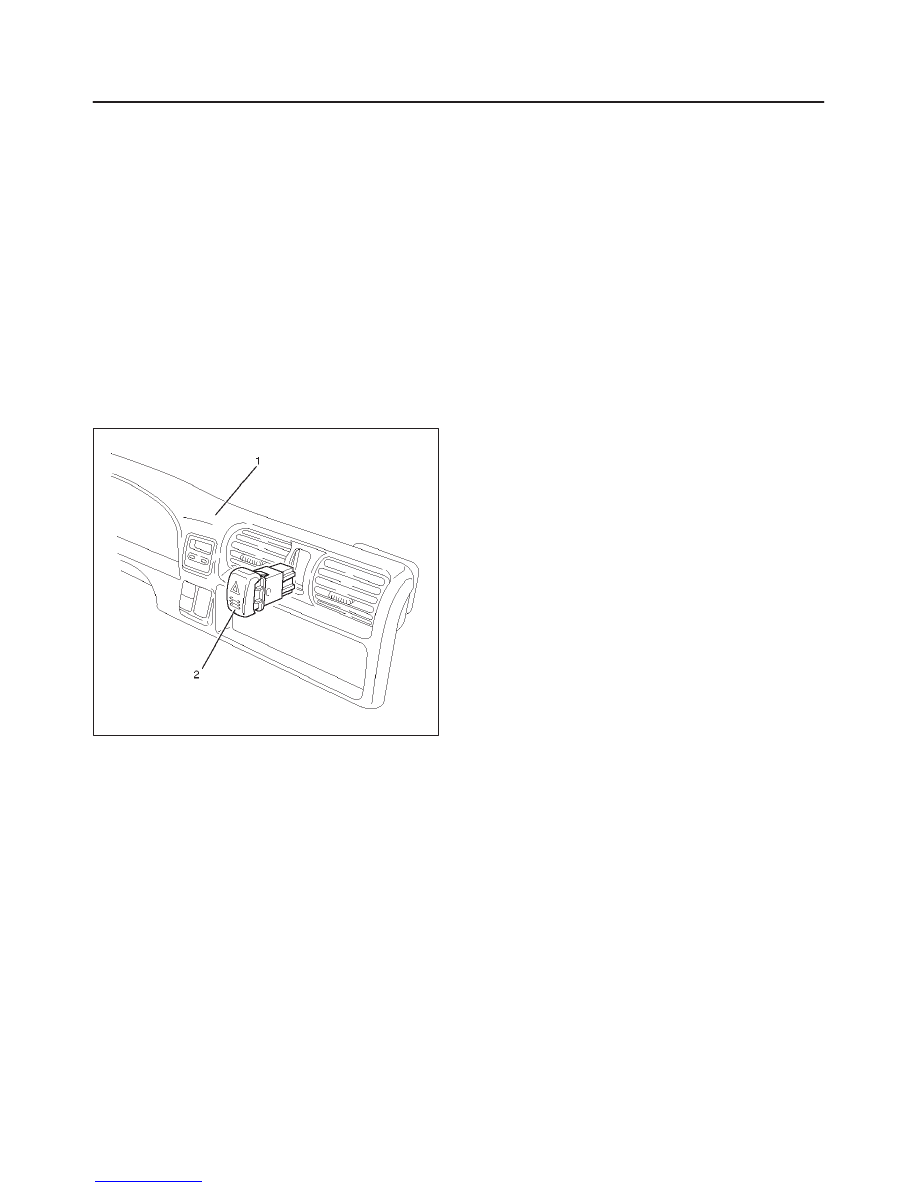

Hazard Warning Light Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the meter cluster assembly (1).

f

Refer to Instrument Panel Assembly in Body
Structure section.

3. Remove the hazard warning switch (2).

f

Disconnect the switch connector.

f

To remove the switch, push the lock from the back
side of the meter cluster assembly.

825RW084

Installation

To install, follow the removal steps in the reverse order.

Stoplight Switch

Removal and Installation

Refer to Stoplight Switch in Brake section.

LIGHTING SYSTEM

8A–17

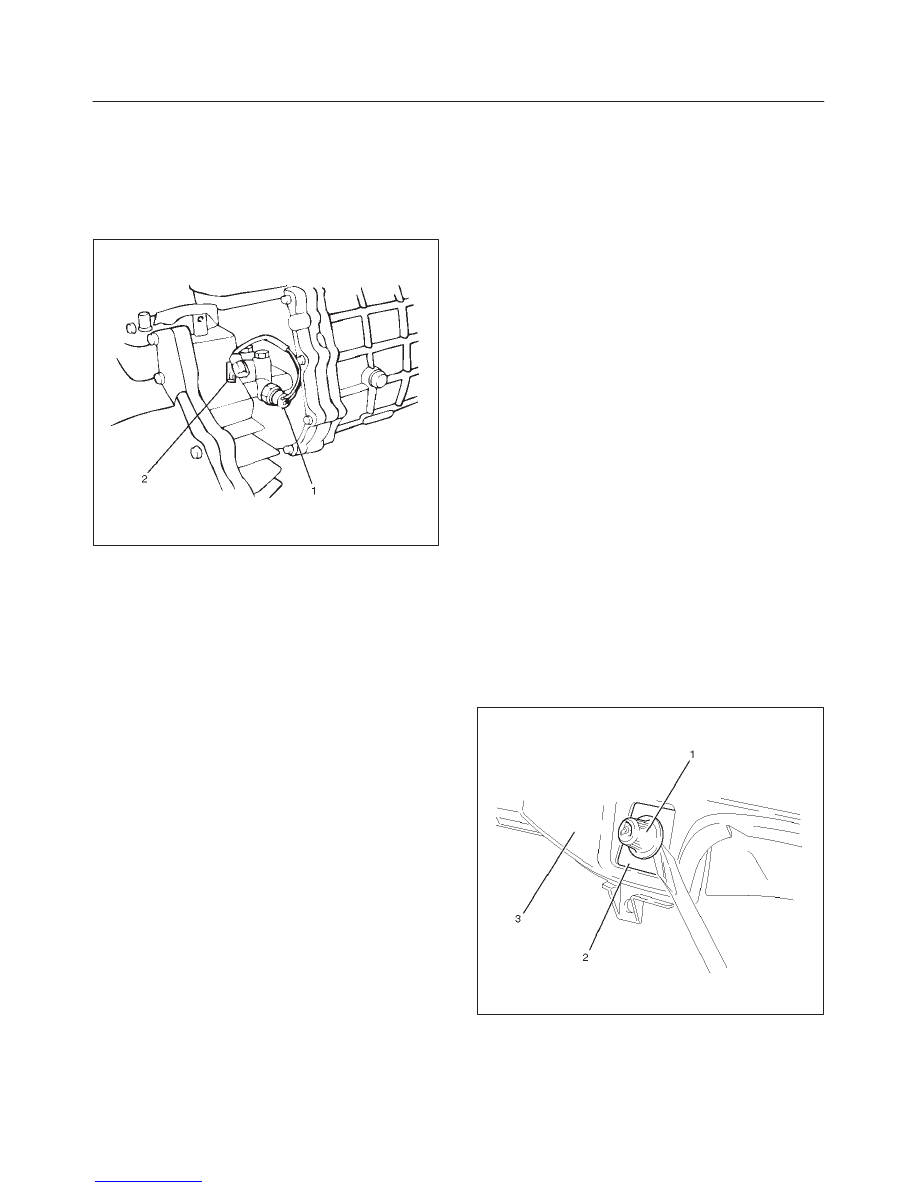

Backup Light Switch (M/T)

Removal

1. Disconnect the battery ground cable.
2. Remove the backup light switch (1).

f

Disconnect the connector (2).

230RW010

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Apply liquid gasket to the screw portion of the switch

to prevent oil leak.

Turn Signal Light Switch (Combination Switch)

Removal and Installation

Refer to Combination Switch in Steering section.

Illumination Controller

Removal

1. Disconnect the battery ground cable.
2. Remove the instrument panel driver lower cover

assembly (3).

f

Refer to Instrument Panel Assembly in Body
Structure section.

3. Remove the illumination controller (2).

f

Disconnect the controller connector.

f

Remove the controller knob (1).

f

Remove the nut.

f

Remove the controller from the back side of the
instrument panel driver lower cover assembly.

826RW005

Installation

To install, follow the removal steps in the reverse order.

8A–18

LIGHTING SYSTEM

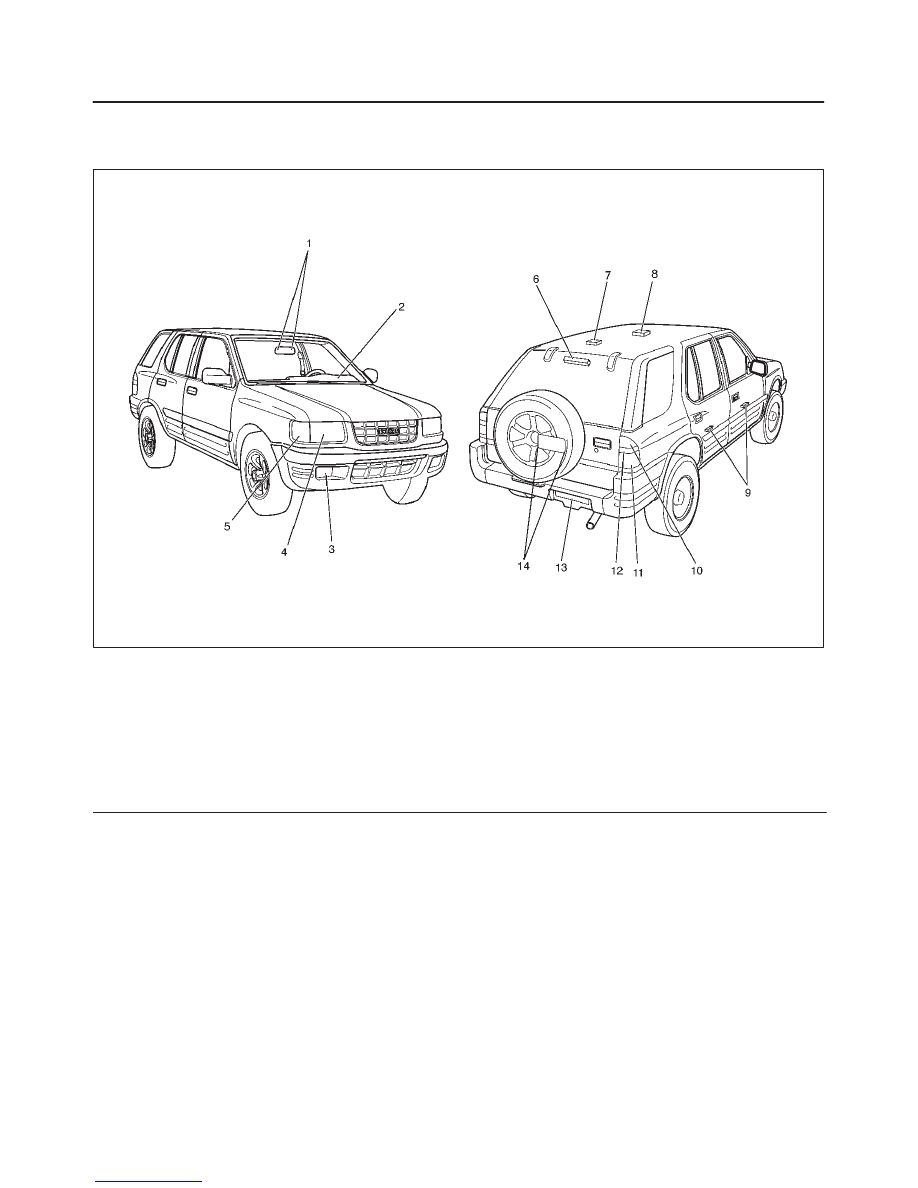

Light and Bulb Specifications

Light and Bulb Specifications

801RX001

Legend

(1) Map Light
(2) Meter
(3) Fog Light
(4) Headlight
(5) Front Turn Signal Light/Front Side Marker

Light/Parking Light

(6) High Mounted Stoplight

(7) Luggage Room Light
(8) Dome Light
(9) Courtesy Light

(10) Rear Turn Signal Light

(11) Taillight/Stoplight

(12) Backup Light
(13) License Plate Light (Bumper Type)
(14) License Plate Light (Tailgate Type)
