7B–104 MANUAL TRANSMISSION

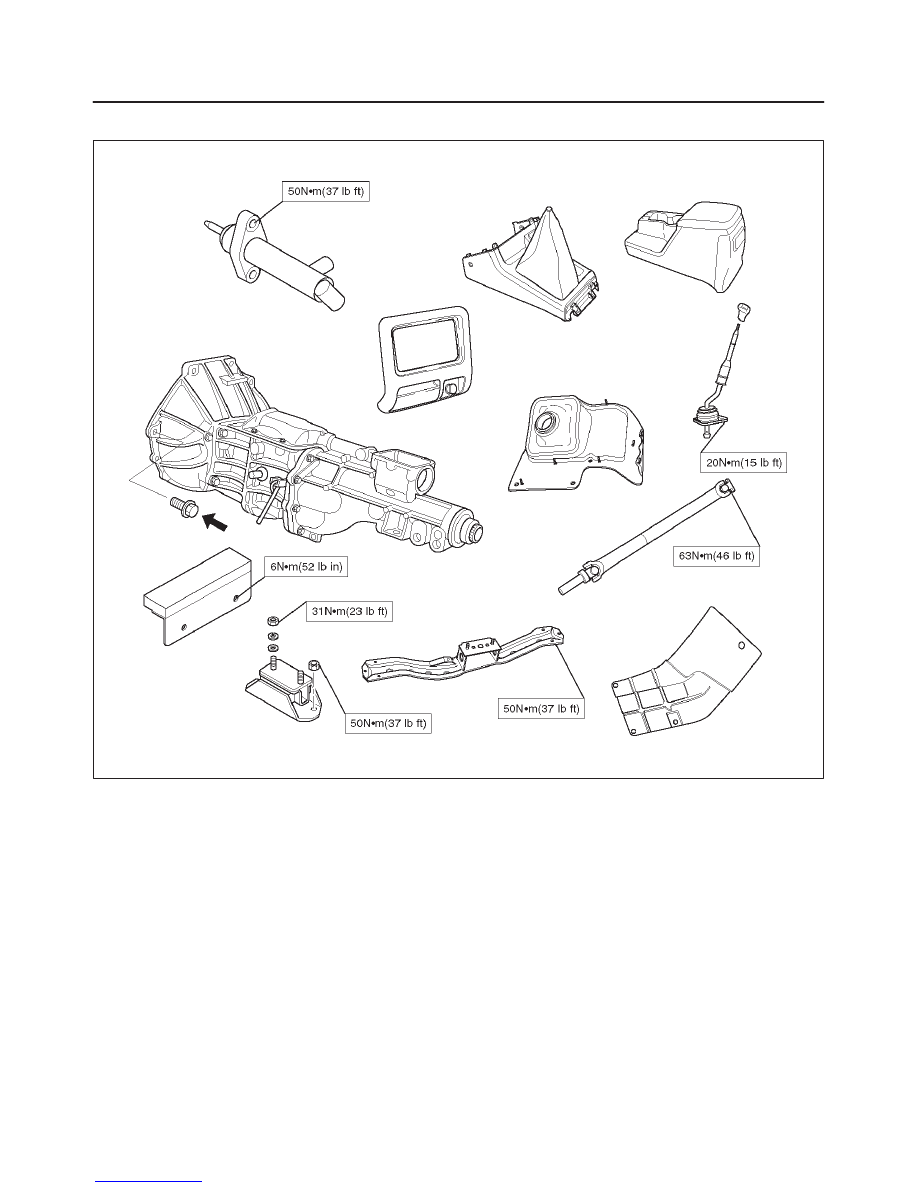

Torque Specifications

E07RW016

About arrow mark, refer to Transmission Installation in this section.

MANUAL TRANSMISSION 7B–105

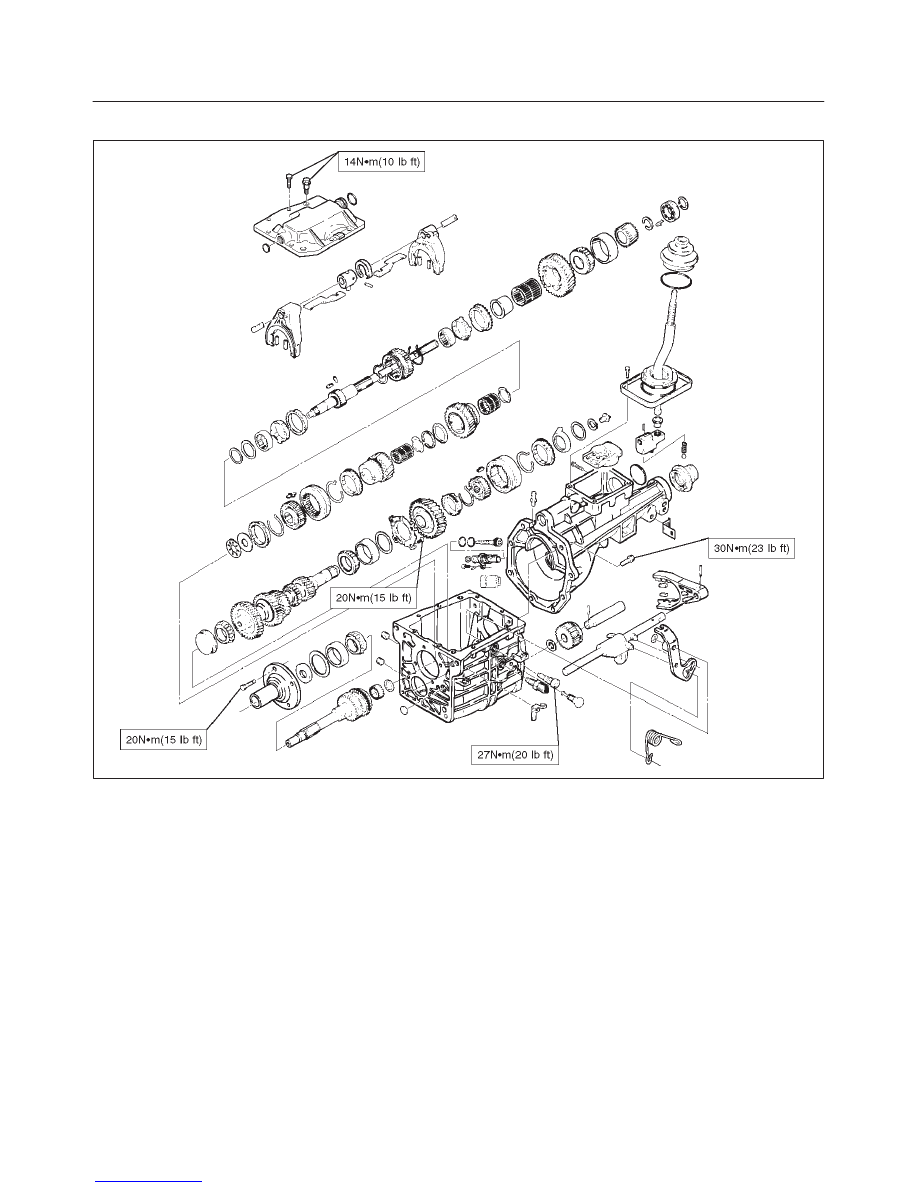

Torque Specifications (Cont’d)

E07RW018

7B–106 MANUAL TRANSMISSION

Special Tools (MUA)

ILLUSTRATION

TOOL NO.

TOOL NAME

J–37222

Mainshaft collar remover

J–37487

Puller

J–37224

Holding fixture

J–3289–20

Holding fixture base

J–37219

Wrench

J–37225

Tork bit wrench

(T–45)

ILLUSTRATION

TOOL NO.

TOOL NAME

J–37223

Mainshaft end bearing

installer

J–22912–01

Bearing

remover/installer

J–29769

Rear cover oil seal

installer

J–26540

Front cover oil seal

installer

J–6133–01

Mainshaft collar installer

J–39207

Remover; Clutch release

bearing

MANUAL TRANSMISSION 7B–107

ILLUSTRATION

TOOL NO.

TOOL NAME

J–8614–11

Flange holder

J–39209

Punch; end nut

J–35283

Counter shaft bearing

installer

J–37217

Bearing remover
