7A–84

AUTOMATIC TRANSMISSION (4L30–E)

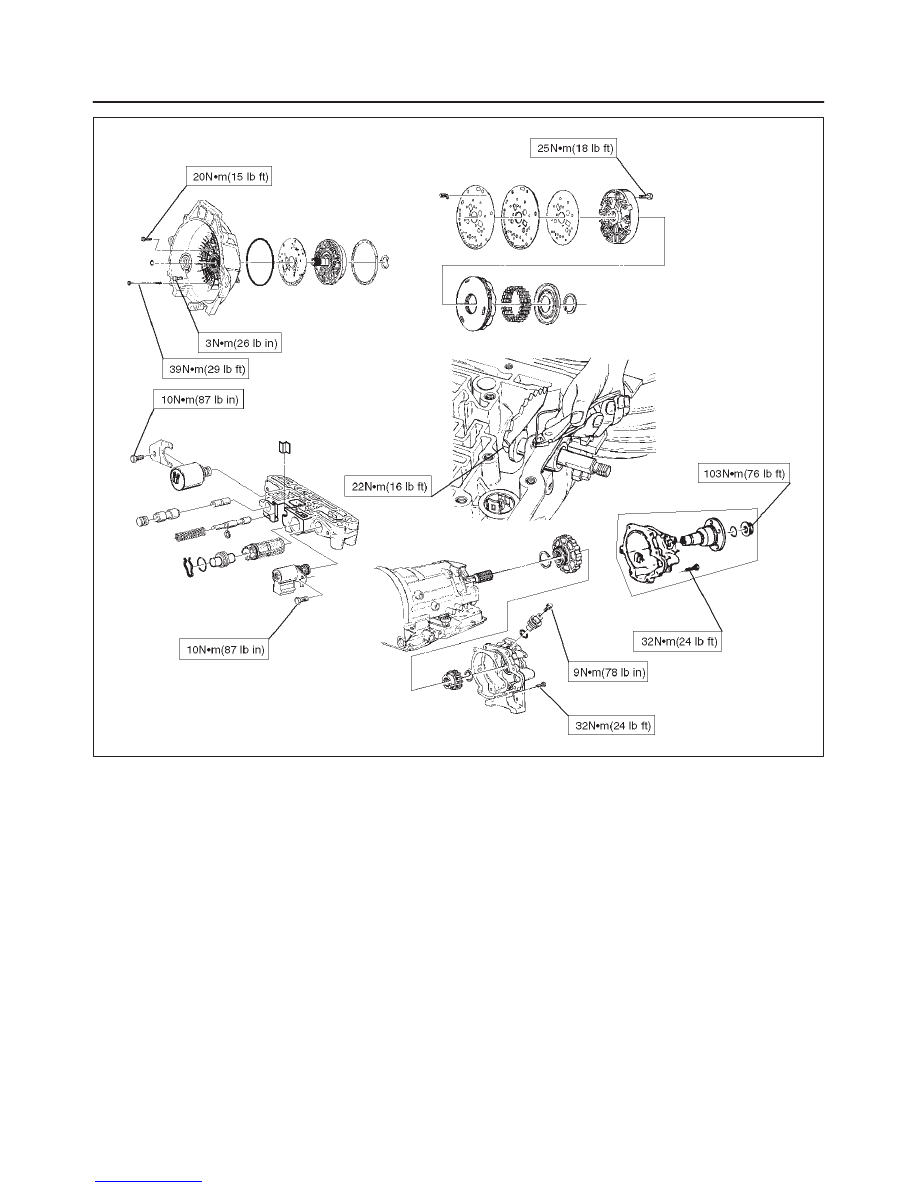

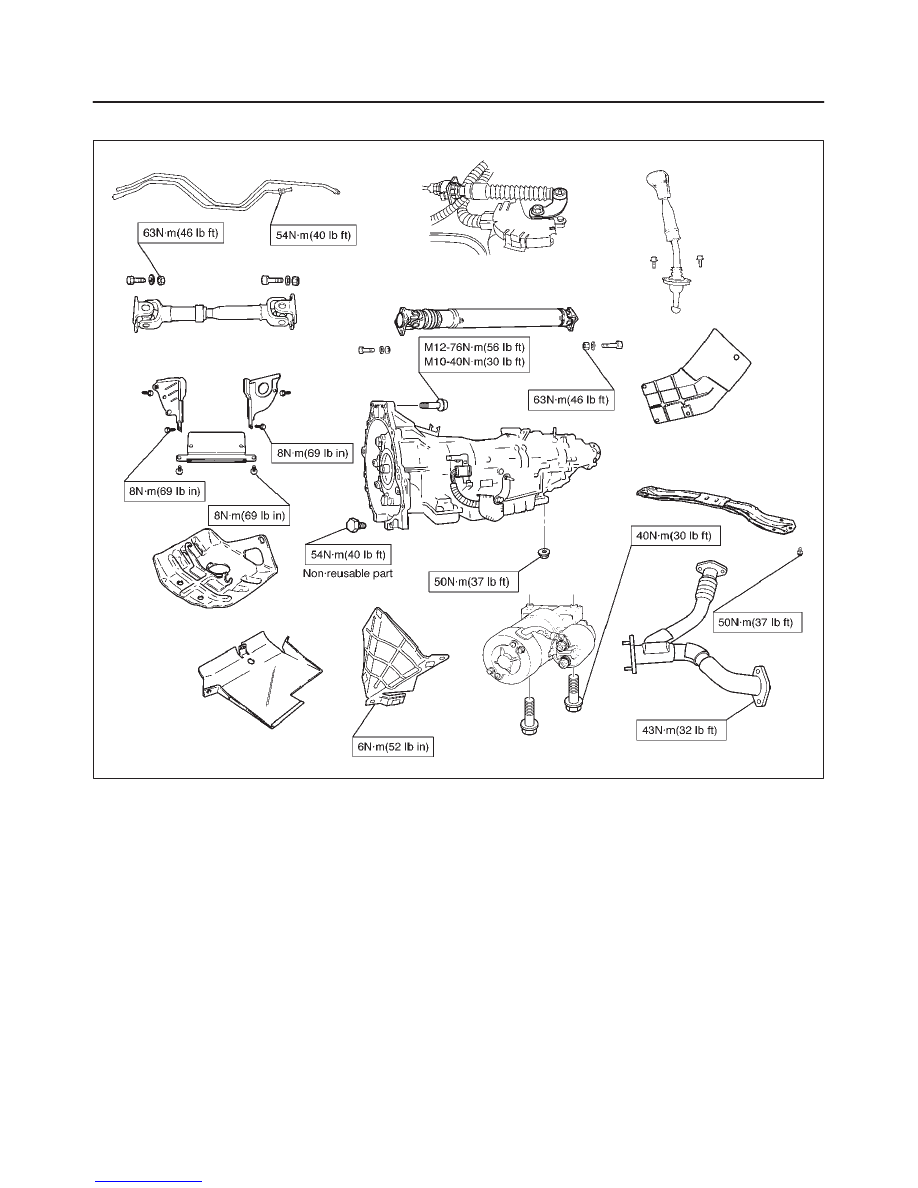

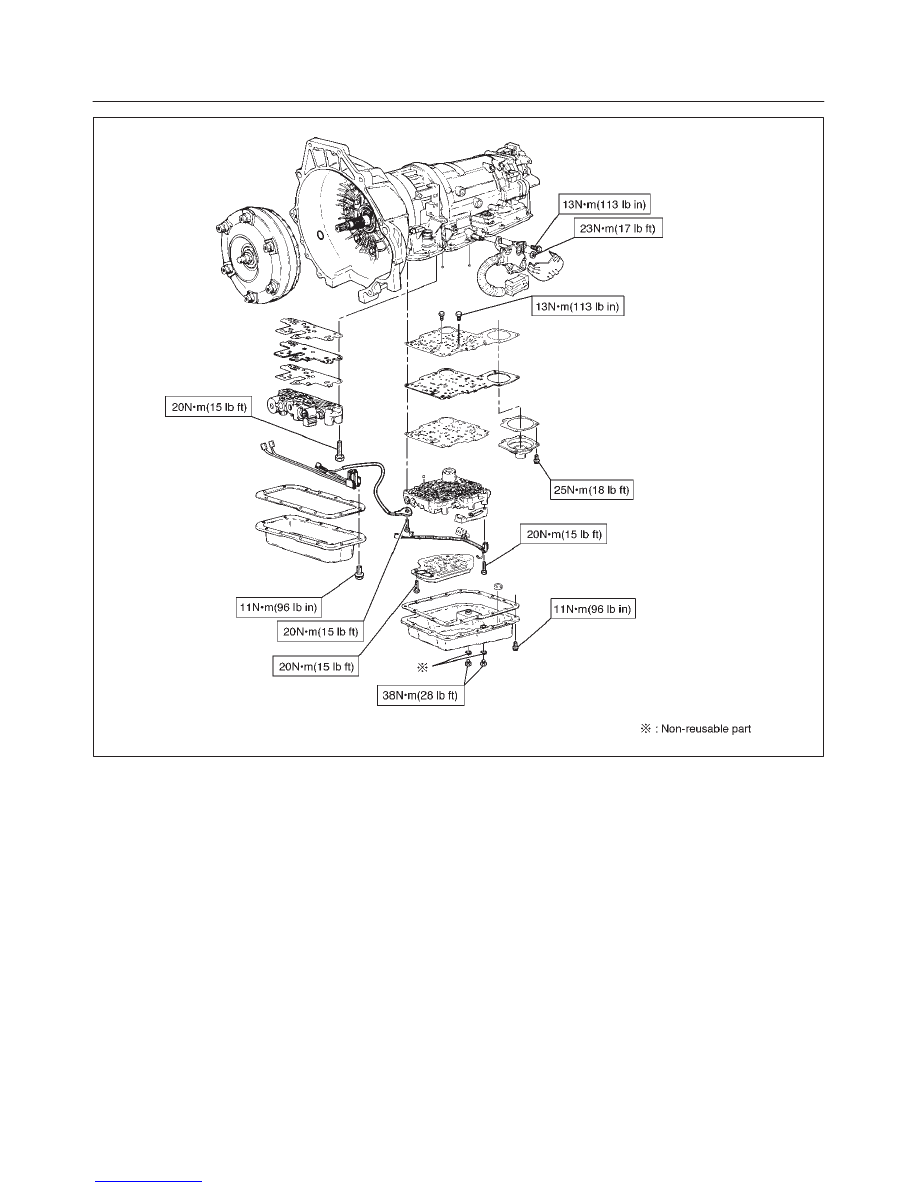

Torque Specifications

E07RX004

7A–85

AUTOMATIC TRANSMISSION (4L30–E)

E07RX008

7A–86

AUTOMATIC TRANSMISSION (4L30–E)

E07RW014

7A–87

AUTOMATIC TRANSMISSION (4L30–E)

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J–23075

Spring compressor (For

servo piston)

J–38450–A

Third clutch snap ring

compressor

J–23075–12

Third clutch spring

compressor adapter

(Use with J–23075)

J–23084

Third clutch piston

installer

J–23327

Third clutch spring

compressor

J–23080–A

Second clutch piston

installer

ILLUSTRATION

TOOL NO.

TOOL NAME

J–23085–A

Selective washer gaging

tool

J–23327–90

Fourth clutch spring

compressor (Use with

J–23327)

J–38553

3/4 Accumulator piston

fitter

J–41096

Cover remover (Use

with J–38584)

J–38584

Slide hammer adapter

(Use with J–23907)

J–38554

Fourth clutch piston fitter
