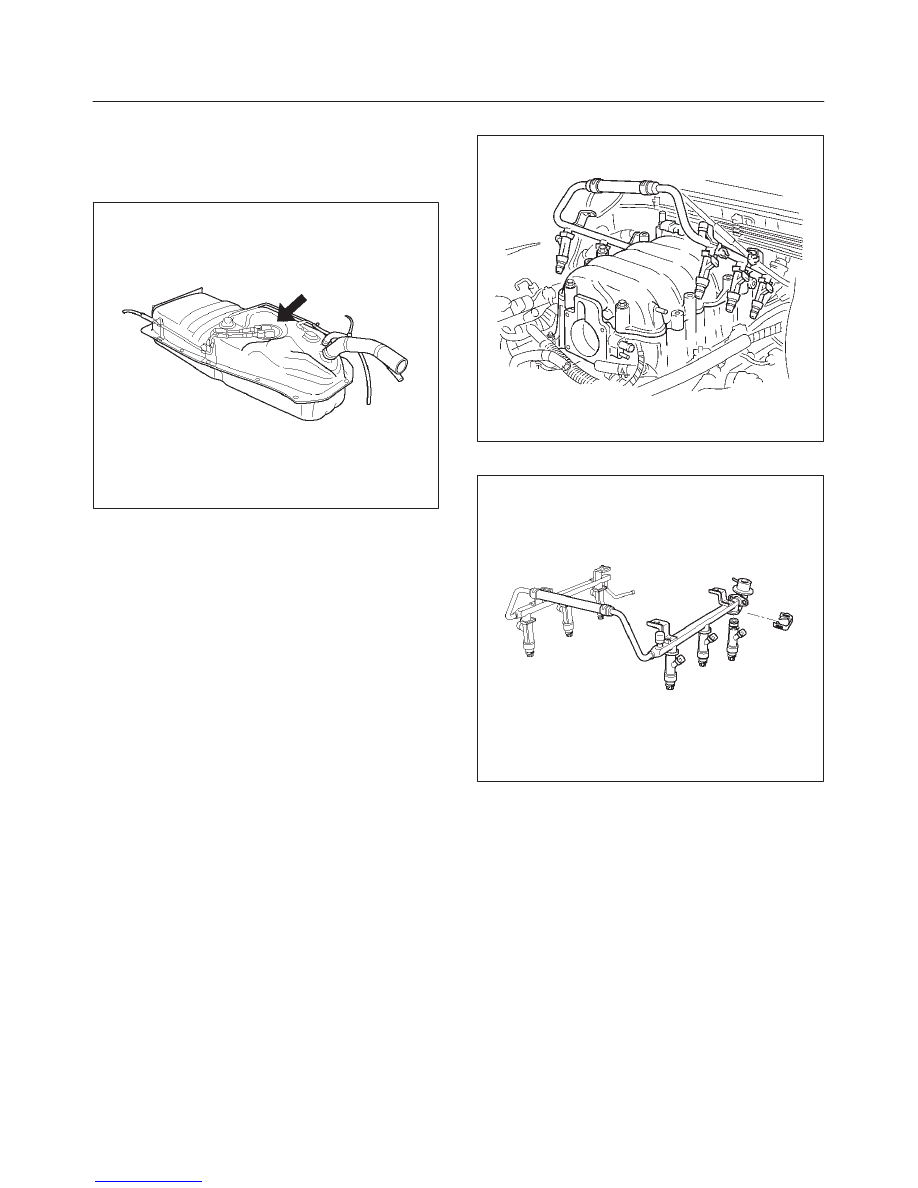

6E2–471

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

Fuel Gauge Unit

Removal Procedure

Refer to

Fuel Gauge Unit In Engine Fuel.

014RW133

Fuel Injectors

Removal Procedure

NOTE: If the fuel injectors are leaking, the engine oil may
be contaminated with fuel.  Check the oil for signs of
contamination and change the oil and the filter if
necessary.

NOTE: Use care in removing the fuel injectors in order to
prevent damage to the fuel injector electrical connector
pins or the fuel injector nozzles.  The fuel injector is an
electrical component and should not be immersed in any
type of cleaner as this may damage the fuel injector.

IMPORTANT:

Fuel injectors are serviced as a complete

assembly only.

1. Disconnect the negative battery cable.
2. Remove the upper intake manifold.  Refer to

Common Chamber in Engine Mechanical..

3. Remove the fuel rail.  Refer to

Fuel Rail.

014RW106

4. Remove the injector retainer clip.

F06RW017

5. Remove the fuel injector assembly.
6. Remove the O-ring from the fuel injector.
7. Remove the O-ring backup from the fuel injector .

Inspection Procedure

1. Inspect the O-rings for cracks or leaks.
2. Replace worn or damaged O-rings.
3. Lubricate the new O-rings with engine oil before

installation.

Installation Procedure

1. Install the O-ring backup on the fuel injector.
2. Install the new O-ring on the fuel injector.

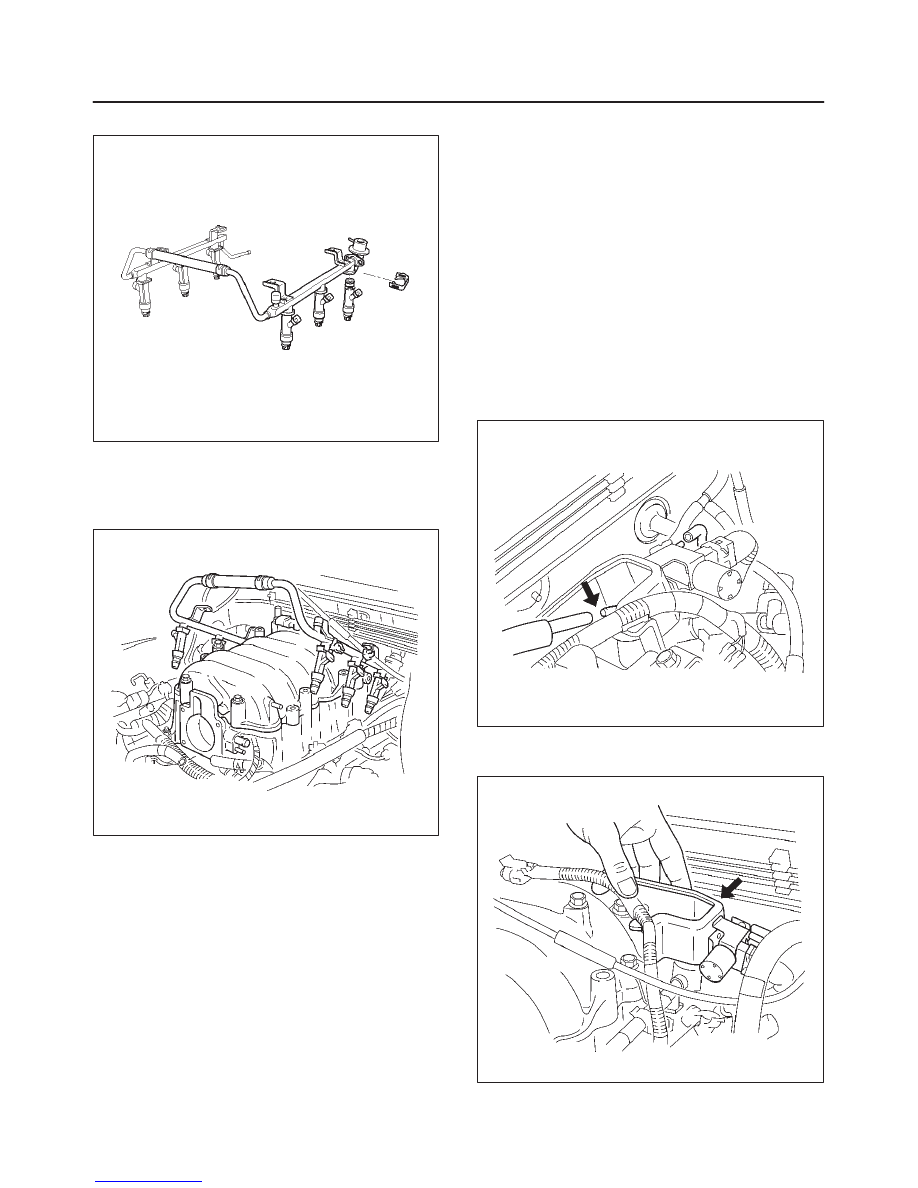

6E2–472

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

3. Install the fuel injector on the fuel rail.

F06RW017

4. Use new fuel injector retainer clips to retain the fuel

injector to the fuel rail.

5. Coat the end of the fuel injector with engine oil.
6. Install the fuel rail.  Refer to

Fuel Rail.

014RW106

7. Install the upper intake manifold.  Refer to

Common

Chamber in Engine Mechanical.

8. Install the engine cover.
9. Connect the negative battery cable.

Fuel Pressure Regulator

Removal Procedure

CAUTION: To reduce the risk of fire and personal
injury, it is necessary to relieve the fuel system
pressure before servicing the fuel system
components.

CAUTION: After relieving the system pressure, a
small amount of fuel may be released when servicing
fuel lines or connections.  Reduce the chance of

personal injury by covering the fuel line fittings with
a shop towel before disconnecting the fittings.  The
towels will absorb any fuel that may leak out.  When
the disconnect is completed, place the towel in an
approved container.

NOTE: Compressed air must never be used to test or
clean a fuel pressure regulator, as damage to the fuel
pressure regulator may result.

NOTE: To prevent damage to the fuel pressure regulator,
do not immerse the pressure regulator in solvent.

1. Depressurize the fuel system.  Refer to

Fuel Pressure

Relief Procedure.

2. Disconnect the negative battery cable.
3. Remove the fuel pump relay.  Refer to

Fuel Pump

Relay.

4. Remove the pressure regulator hose from the fuel

pressure regulator.

014RW110

5. Remove the two bolts from the protector that secures

the common chamber.

014RW109

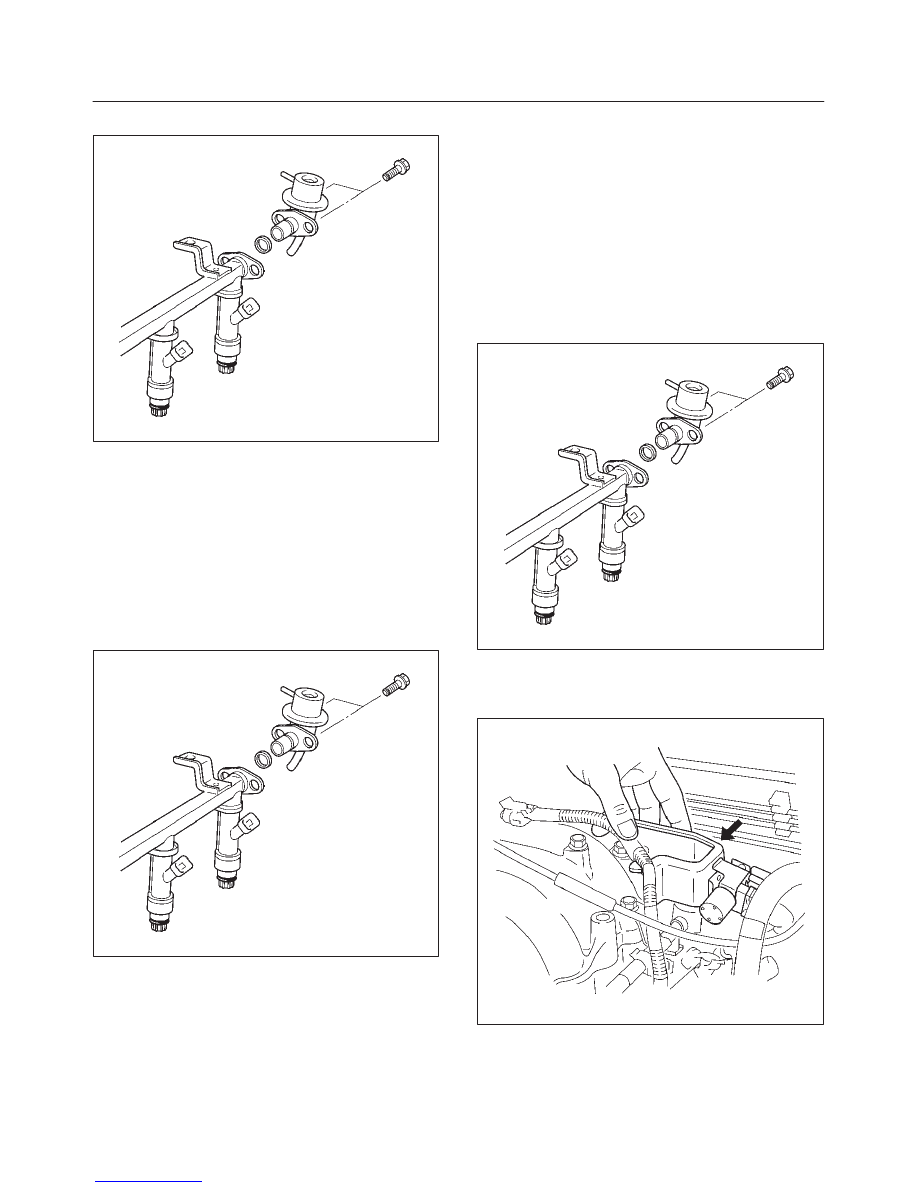

6E2–473

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

6. Remove the fuel pressure regulator attaching screw.

F06RW016

7. Remove the fuel pressure regulator from the fuel rail.

Disassembly Procedure

1. Remove the O-ring from the fuel pressure regulator.
2. Loosen the swivel nut.
3. Remove the fuel return line from the fuel pressure

regulator.

4. Remove the O-ring from the fuel return line.

f

The O-ring may be left inside the fuel pressure
regulator instead of on the fuel return line.

F06RW016

Assembly Procedure

1. Install a new O-ring on the fuel return line.
2. Install the fuel return line on the fuel pressure

regulator.

NOTE: Do not over-tighten the swivel nut on the fuel
pressure regulator.  The fuel pressure regulator can be
damaged and fuel may leak if the swivel nut is
over-tightened.

3. Tighten the swivel nut.
4. Install a new O-ring on the fuel pressure regulator.

Installation Procedure

1. Install the fuel pressure regulator attaching screw.

Tighten

f

Tighten the fuel pressure regulator attaching
screw to 3 N·m (26 lb in.).

F06RW016

2. Install the fuel pressure regulator on the fuel rail.
3. Install the two bolts to the protector that secures the

common chamber.

014RW109

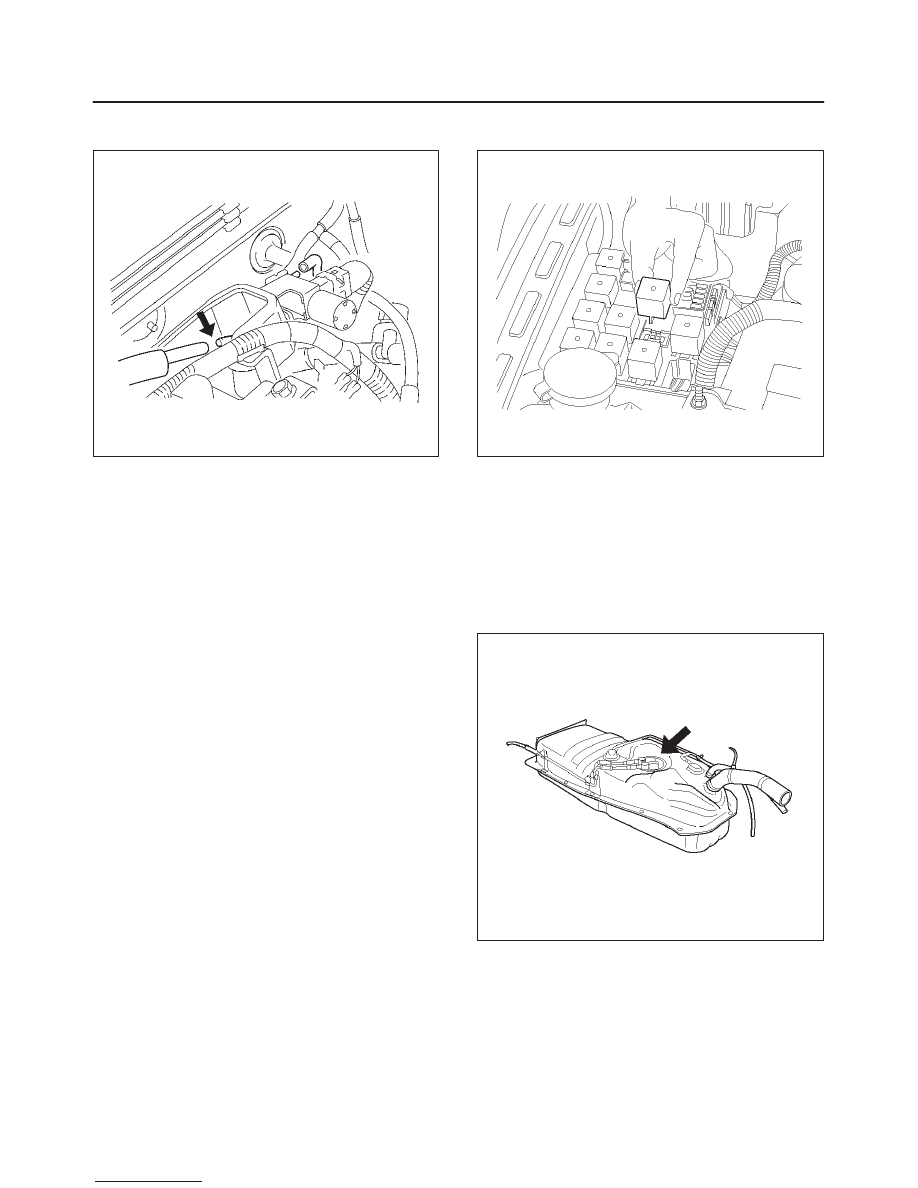

6E2–474

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

4. Install the pressure regulator hose to the fuel

pressure regulator.

014RW110

5. Install the fuel pump relay.  Refer to

Fuel Pump Relay.

6. Connect the negative battery cable.
7. Crank the engine until it starts.  Cranking the engine

may take longer than usual due to trapped air in the
fuel lines.

Fuel Metering System

Fuel Pressure Relief Procedure

CAUTION: To reduce the risk of fire and personal
injury, it is necessary to relieve the fuel system
pressure before servicing the fuel system
components.

CAUTION: After relieving the system pressure, a
small amount of fuel may be released when servicing
fuel lines or connections.  Reduce the chance of
personal injury by covering the fuel line fittings with
a shop towel before you disconnect the fittings.  The
towels will absorb any fuel that may leak out.  When
the disconnect is completed, place the towel in an
approved container.

1. Remove the fuel cap.

2. Remove the fuel pump relay from the underhood

relay box.  Refer to

Fuel Pump Relay.

014RW089

3. Start the engine and allow it to stall.
4. Crank the engine for 30 seconds.
5. Disconnect the negative battery cable.

Fuel Pump Assembly

Removal Procedure

Refer to

Fuel Tank In Fuel Pump Relay.

014RW133
