6E2–7

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

Diagrams and Schematics

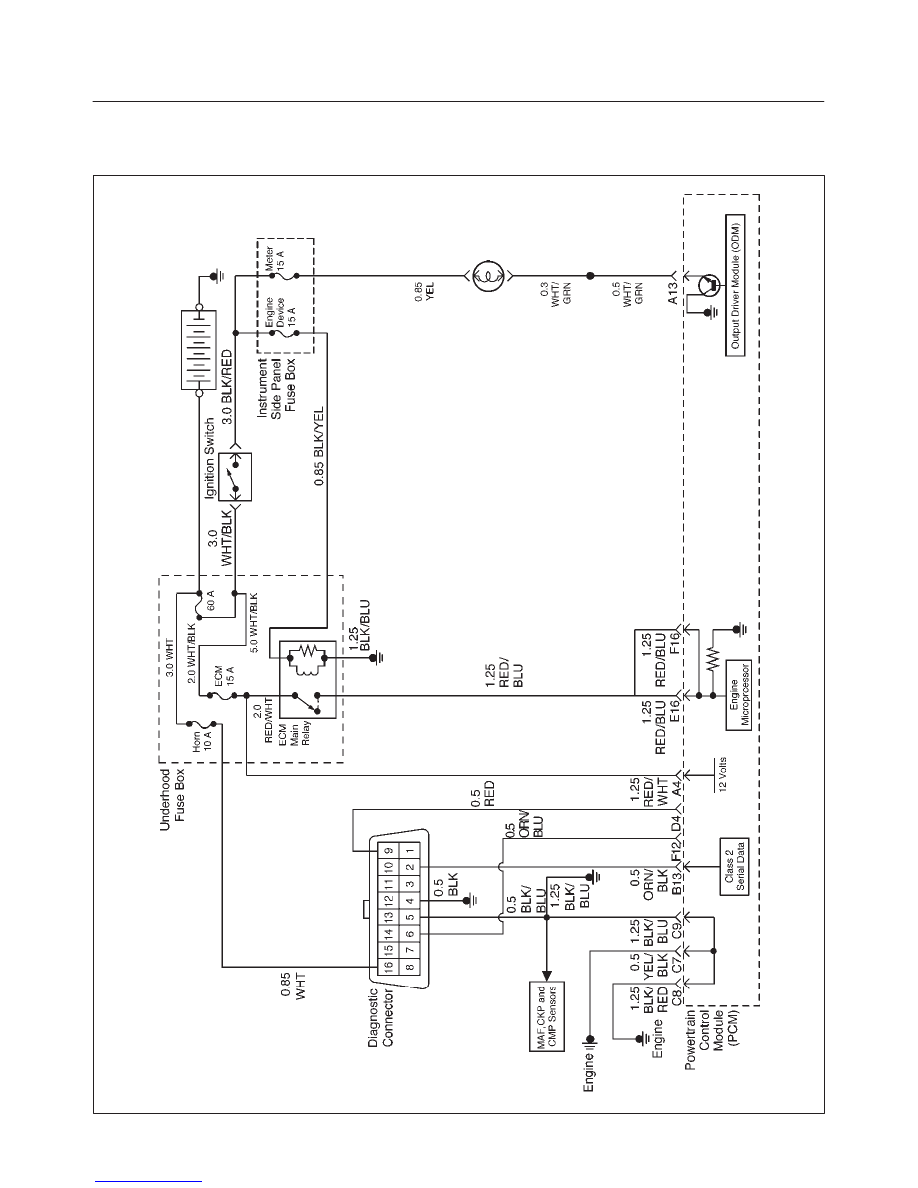

PCM Wiring Diagram (1 of 8)

D06RX002

6E2–8

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

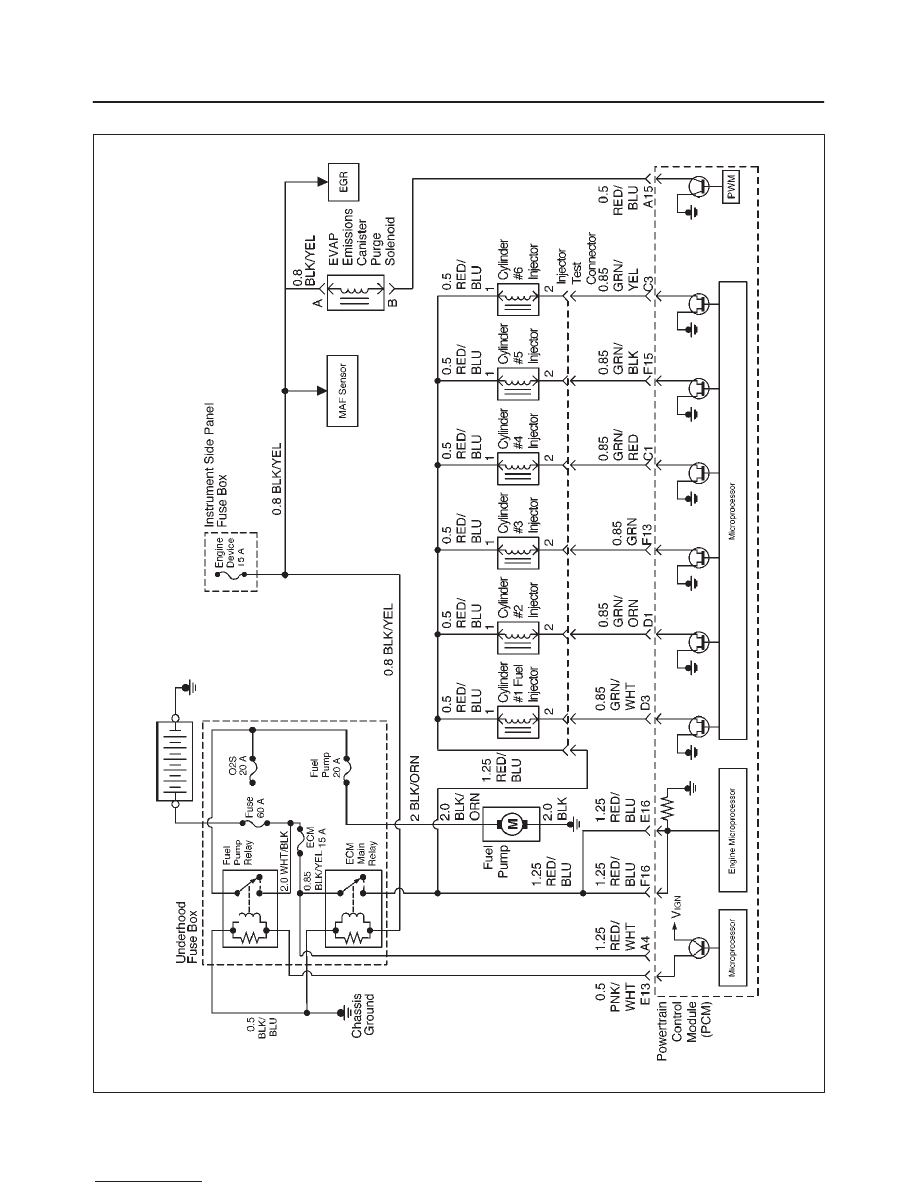

PCM Wiring Diagram (2 of 8)

D06RX003

6E2–9

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

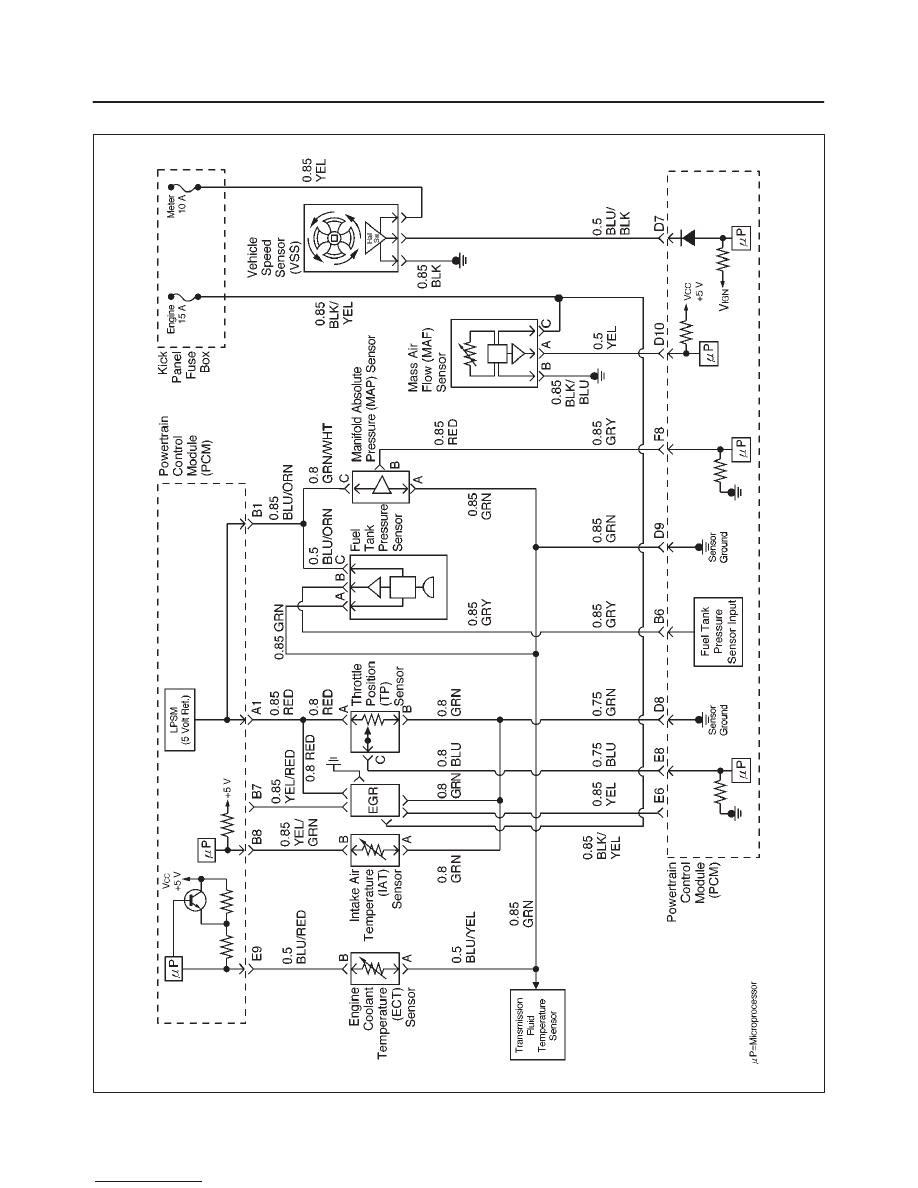

PCM Wiring Diagram (3 of 8)

D06RX004

6E2–10

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

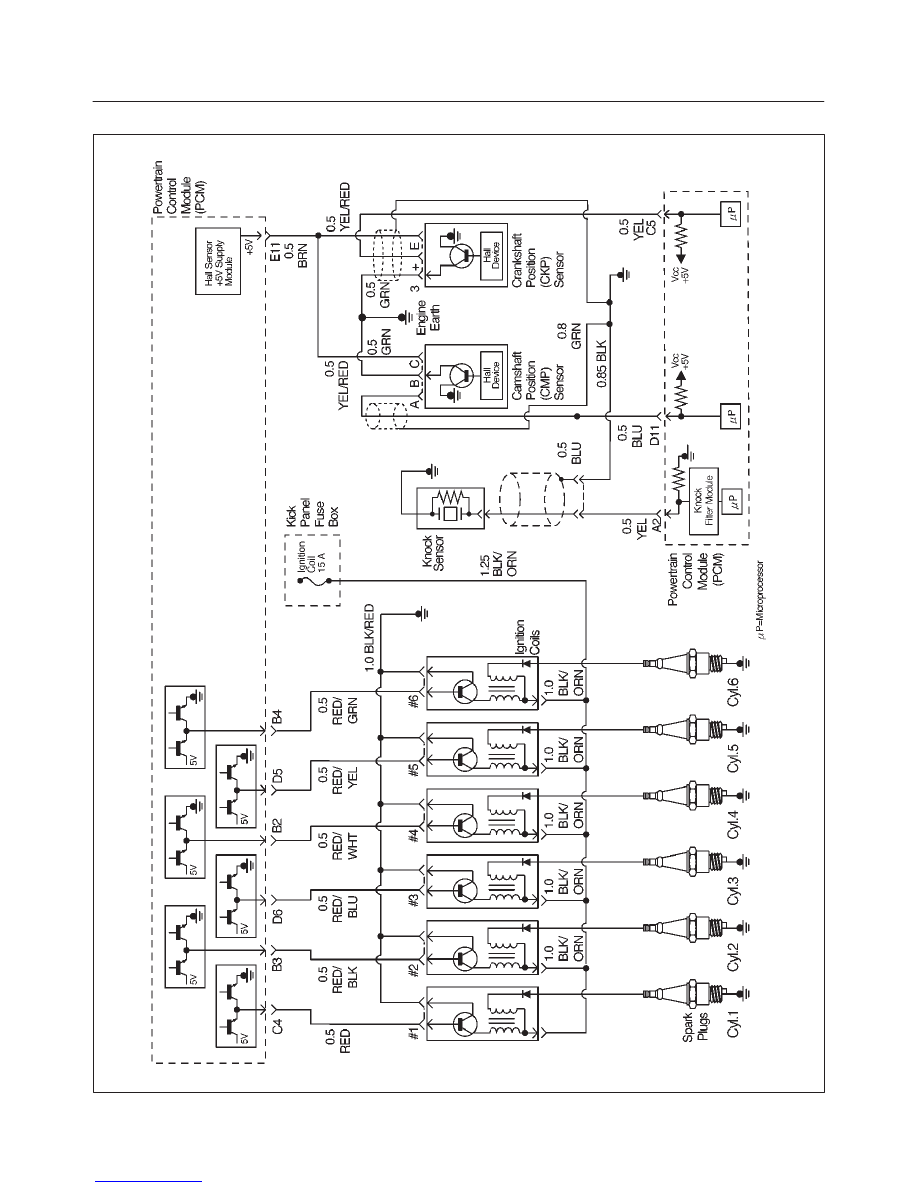

PCM Wiring Diagram (4 of 8)

D06RX005
