Isuzu Rodeo UE. Service manual - part 295

6A–93

ENGINE MECHANICAL (6VD1 3.2L)

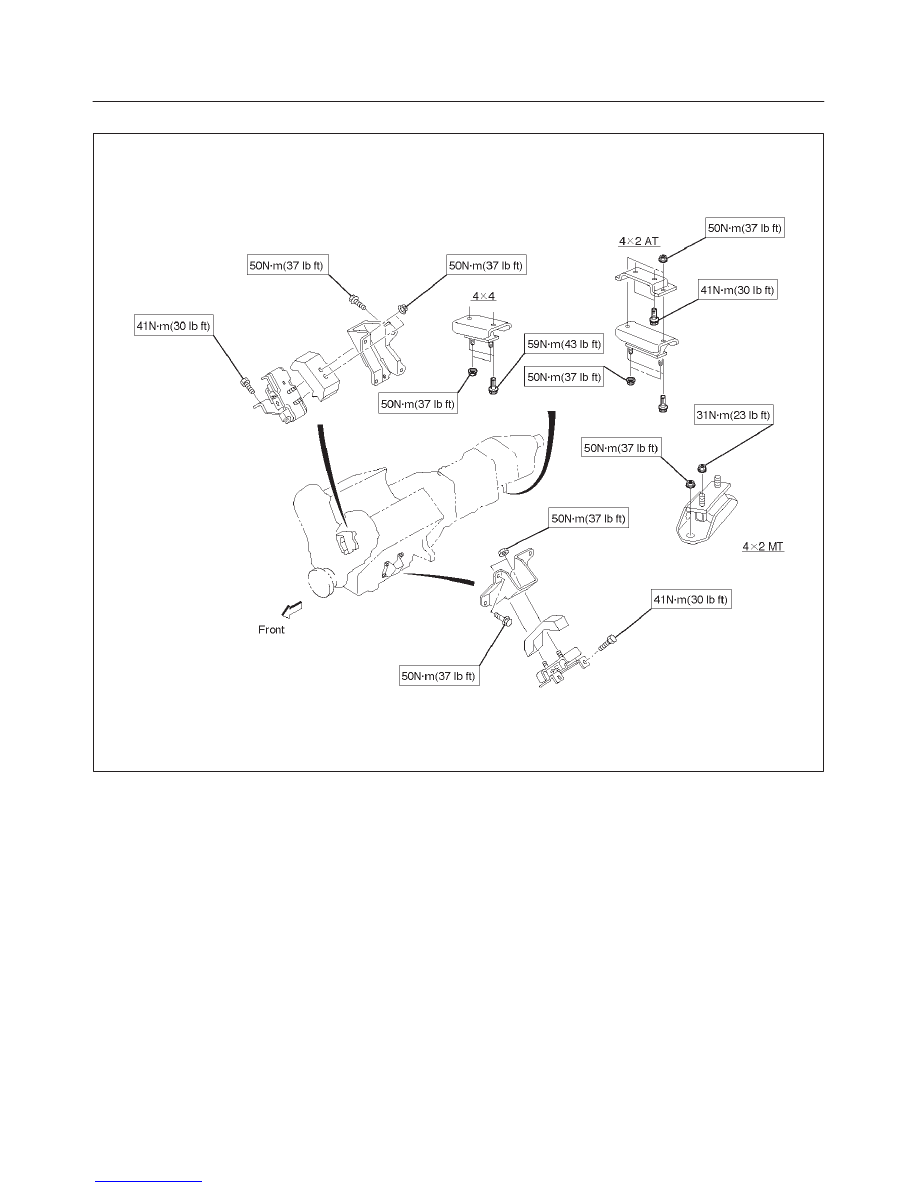

Engine mount

E06RW028

6A–94

ENGINE MECHANICAL (6VD1 3.2L)

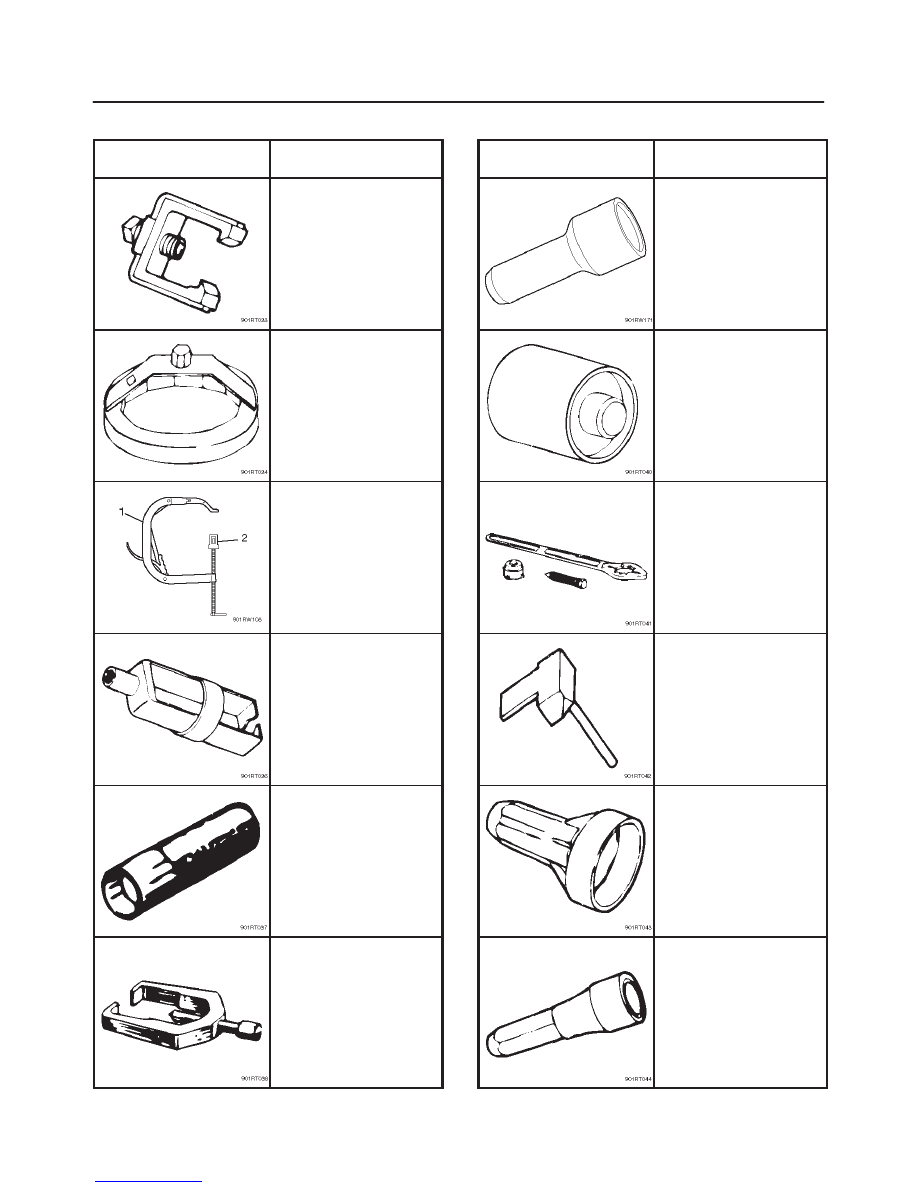

Special Tool

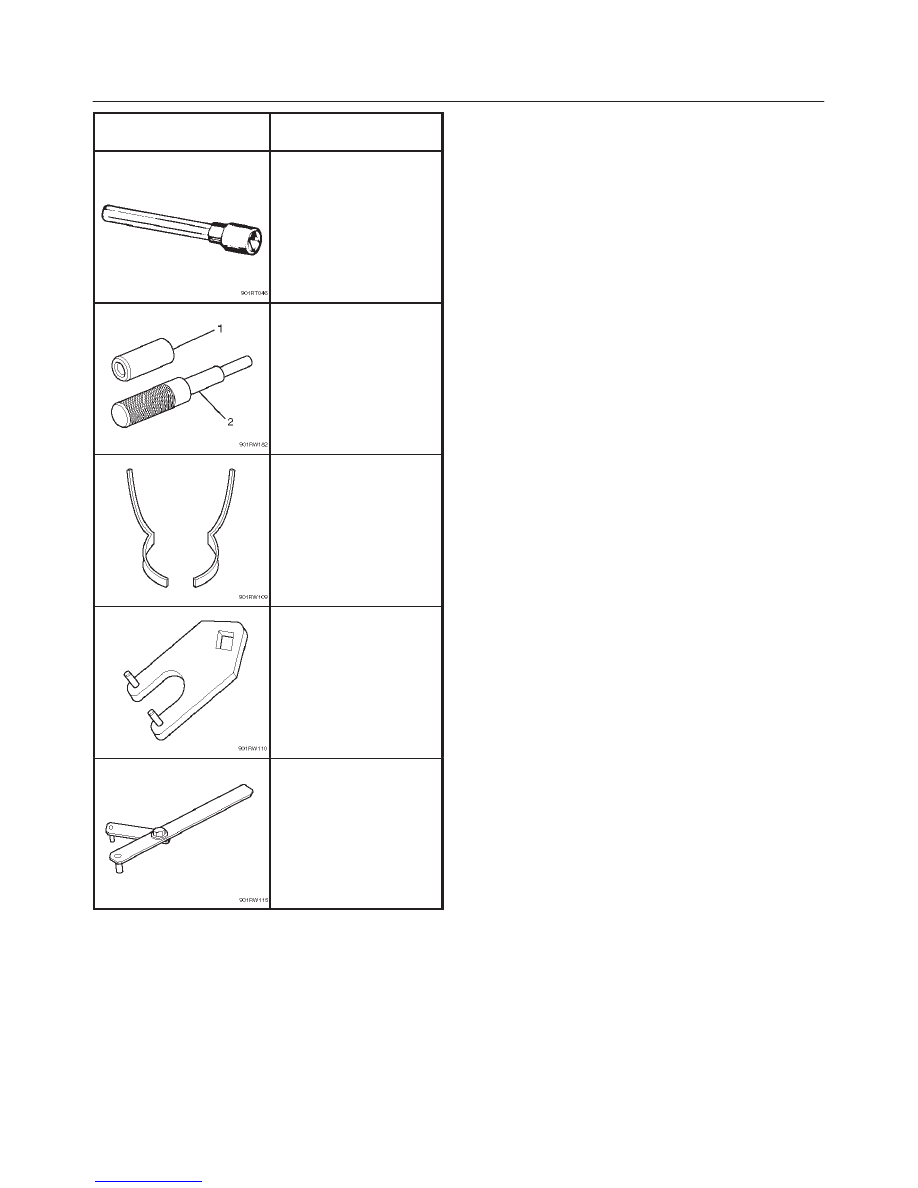

ILLUSTRATION

TOOL NO.

TOOL NAME

J–21687–02

Remover; tie rod end

J–36390

Wrench; Oil filter

J–8062

Compressor; Valve

spring (1)

J–42898

Adapter; Compressor,

Valve spring (2)

J–37281

Remover; Oil controller

J–38537

Installer; Oil controller

J–29107

Universal pitman arm

puller

ILLUSTRATION

TOOL NO.

TOOL NAME

J–42985

Installer; Camshaft oil

seal

J–39206

Installer; Pilot bearing

J–8614–01

Holder; Crankshaft

J–37228

Seal cutter

J–39201

Installer; Real oil seal

J–39202

Installer; Oil pump oil

seal

6A–95

ENGINE MECHANICAL (6VD1 3.2L)

ILLUSTRATION

TOOL NO.

TOOL NAME

J–24239–1

Cylinder head bolt

wrench

J–42899

Replacer; Valve guide

(1,2)

J–42687

Installer; Valve guide (1)

J–37985–1

Remover; Valve guide

(2)

J–42689

Adjusting Tool; Valve

clearance

J–42686

Lever; Gear spring

J–43041

Holder; Universal

ENGINE COOLING (6VD1 3.2L)

6B–1

RODEO

ENGINE

ENGINE COOLING (6VD1 3.2L)

CONTENTS

Service Precaution

6B–1

. . . . . . . . . . . . . . . . . . . . . .

General Description

6B–2

. . . . . . . . . . . . . . . . . . . . .

Diagnosis

6B–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Draining and Refilling Cooling System

6B–5

. . . . .

Water Pump

6B–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Water Pump and Associated Parts

6B–6

. . . . . . .

Removal

6B–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

6B–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6B–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Thermostat

6B–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Thermostat and Associated Parts

6B–7

. . . . . . . .

Removal

6B–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

6B–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6B–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Radiator

6B–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Radiator and Associated Parts

6B–8

. . . . . . . . . .

Removal

6B–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

6B–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6B–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Drive Belt and Cooling Fan

6B–11

. . . . . . . . . . . . . . .

Drive Belt and Associated Parts

6B–11

. . . . . . . . .

Inspection

6B–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6B–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

6B–12

. . . . . . . . . . . . .

Special Tool

6B–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . .
