REAR SUSPENSION

3D–11

f

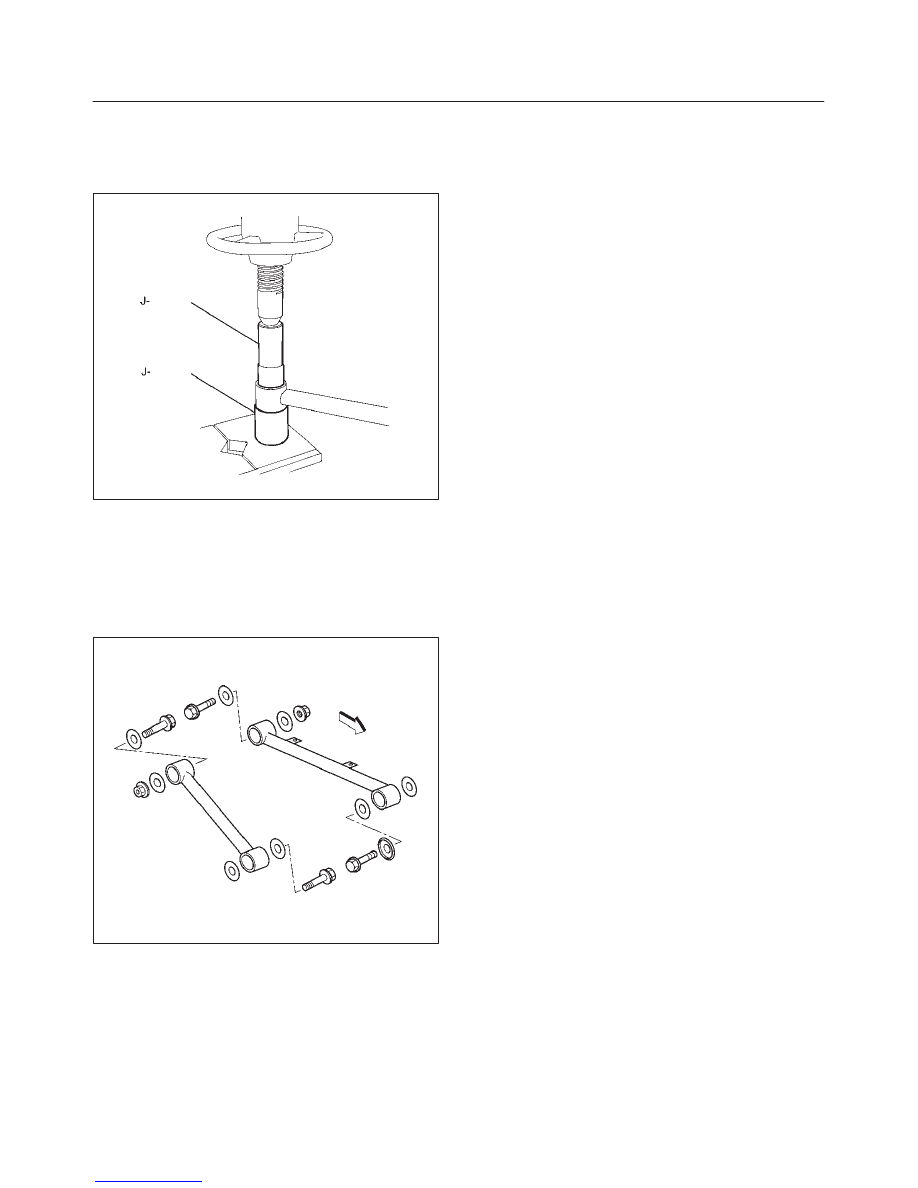

Install the rubber bushing by using to installer
J–xxxxx.

NOTE: When mounting rubber bushings, be sure not to
use grease on bushings or any other nearby part.

901RW157

Installation

1. Install upper link.  Make sure that the upper link is in its

correct position.

NOTE: When mounting upper link, be sure not to use
grease bushings or any other nearby part.

460RW012

2. Install bolt, nut, rubber plate and protector.  Tighten

the bolts and nuts lightly, then retighten them to the
specified torque after the vehicle is at curb height.

Torque: 137 N·m (101 lb ft)

3. Install speed sensor cable.
4. Install fuel tank.

3D–12

REAR SUSPENSION

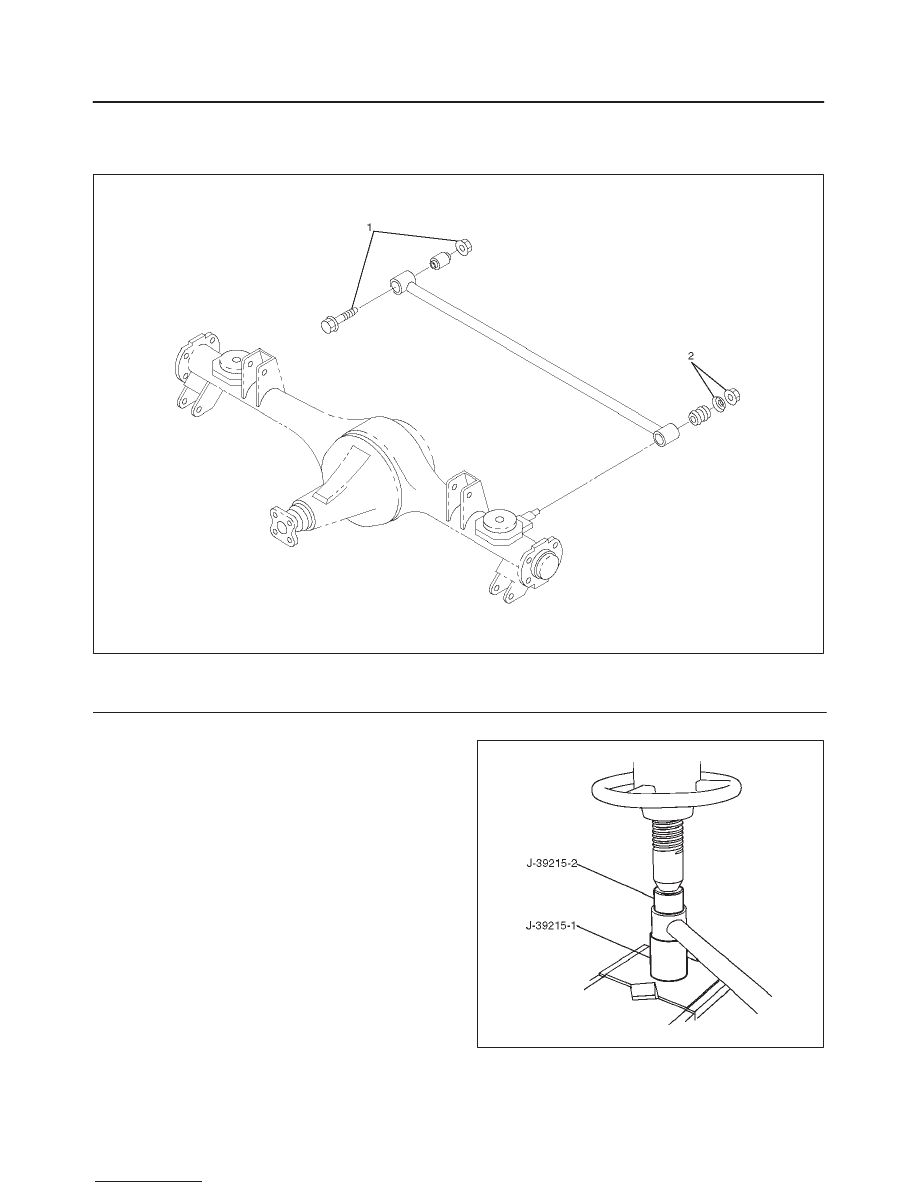

Lateral Rod

Lateral Rod and Associated Parts

460RW007

Legend

(1) Bolt and Nut (Frame side)

(2) Lateral Rod
(3) Nut and Washer (Axle side)

Removal

1. Remove nut and washer.
2. Remove bolt and nut.
3. Remove lateral rod.

Inspection and Repair

Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition are
found through inspection.

1. Lateral rod
2. Rubber bushing (Frame side)

f

Remove the rubber bushing (Frame side) by using
remover J–39214.

901RW060

REAR SUSPENSION

3D–13

f

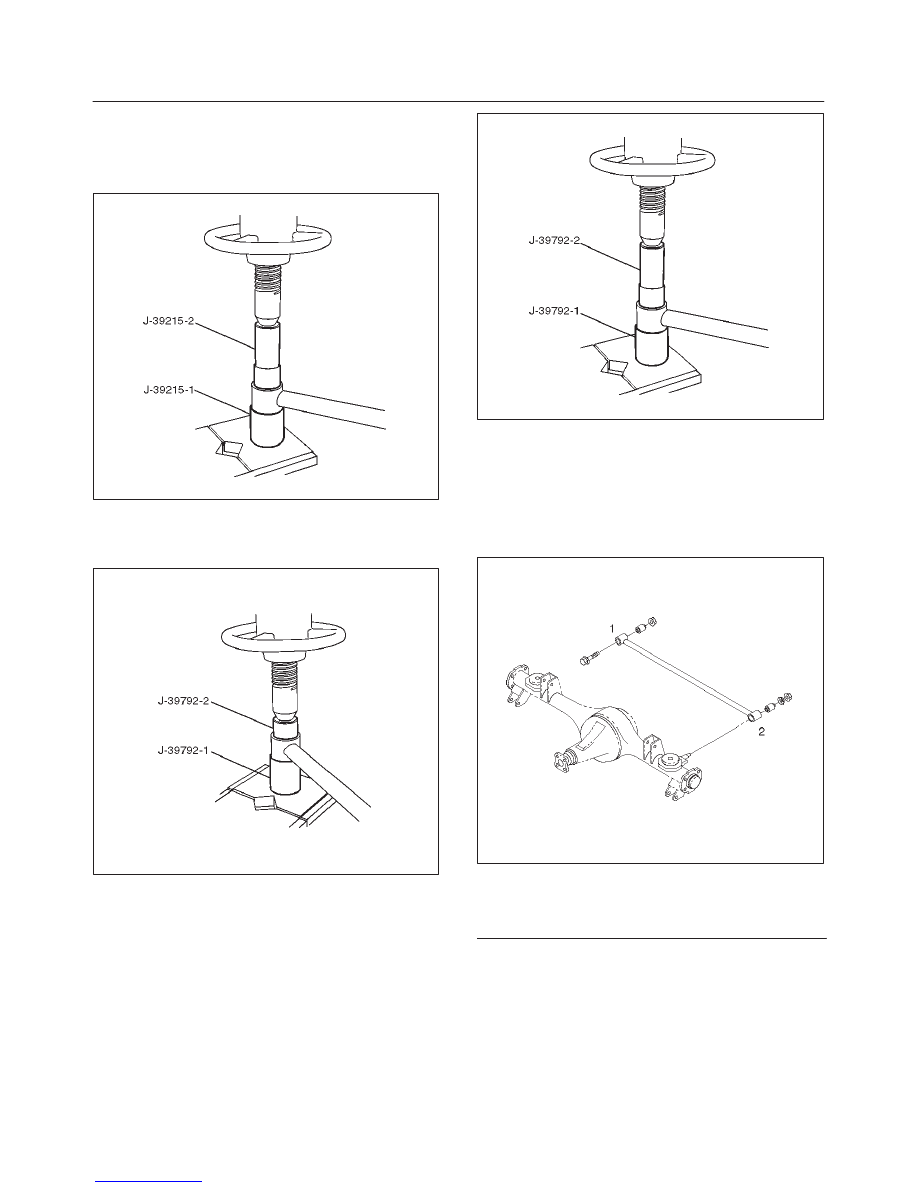

Install the rubber bushing (Frame side) by using
Installer J–39215.

NOTE: When mounting rubber bushings, do not use
grease on bushings or any other nearby parts.

901RW061

3. Rubber bushing (Axle side)

f

Remove the rubber bushing (Axle side) by using
remover J–39792.

901RW062

f

Install the rubber bushing (Axle side) by using
installer J–39792.

901RW063

Installation

1. Install lateral rod and make sure that the lateral rod is

in its correct position.

NOTE: When mounting lateral rod, be sure not to use
grease on bushings or any other nearby part.

460RW008

Legend

(1) Frame Side
(2) Axle Side

2. Install bolt and nut. Tighten the bolt and nut lightly,

then retighten them to the specified torque after the
vehicle is at curb height.

Torque: 137 N·m (101 lb ft)

3. Install nut and washer. Tighten the nut lightly, then

retighten the nut to the specified torque after the
vehicle is at curb height.

Torque: 78 N·m (58 lb ft)

3D–14

REAR SUSPENSION

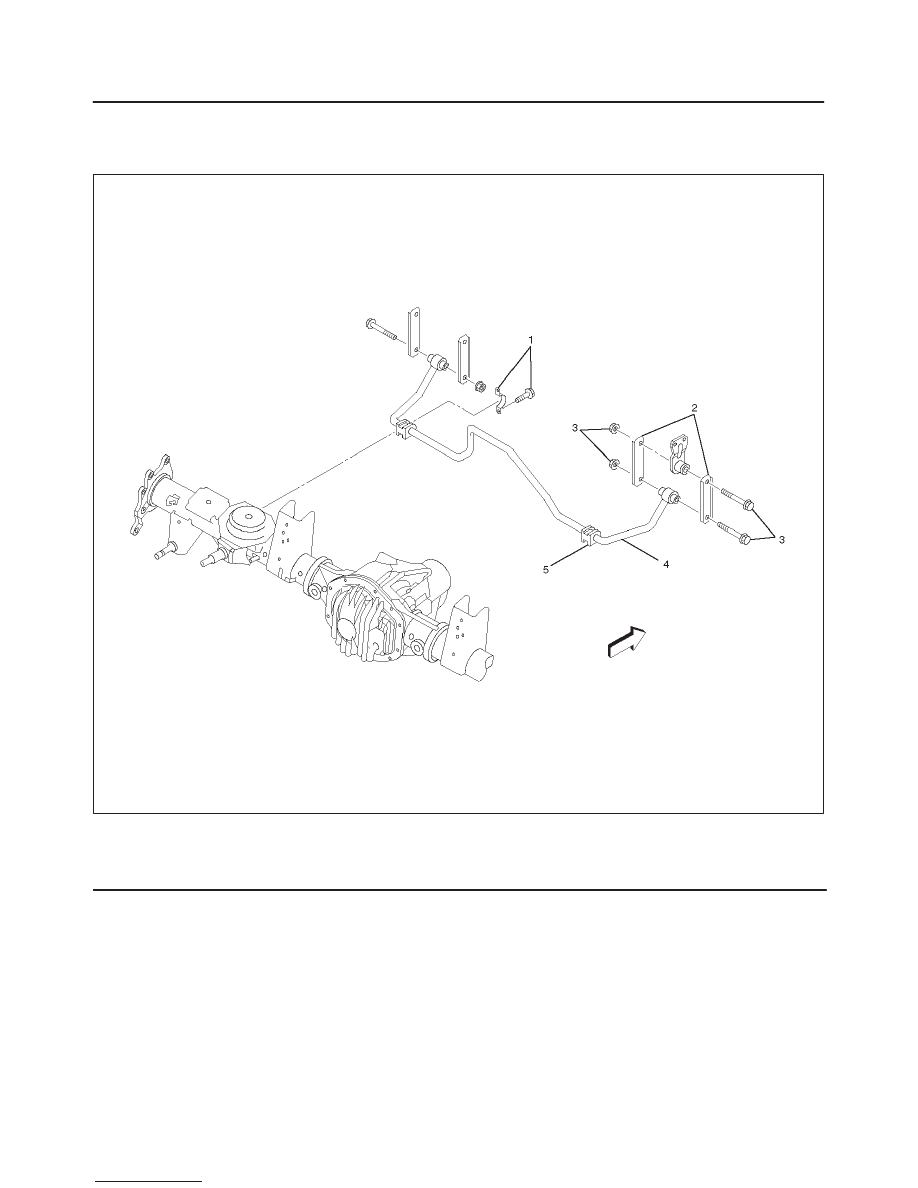

Stabilizer Bar

Stabilizer Bar and Associated Parts

460RW009

Legend

(1) Bracket
(2) Link

(3) Bolt and Nut
(4) Stabilizer Bar
(5) Rubber Bushing

Removal

1. Raise the vehicle and support the frame with suitable

safety stands.

2. Remove wheel and tire assembly. Refer to Wheel in

this section.

3. Remove bolt and nut.
4. Remove link.

CAUTION: Be careful not to damage the ball joint
boot.

5. Remove bracket.

6. Remove rubber bushing.

Inspection and Repair

Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition are
found through inspection.
Check the following parts:

f

Stabilizer bar

f

Rubber bushing

f

Link
