Isuzu KB P190. Service manual - part 551

6E–34

ENGINE DRIVEABILITY AND EMISSIONS

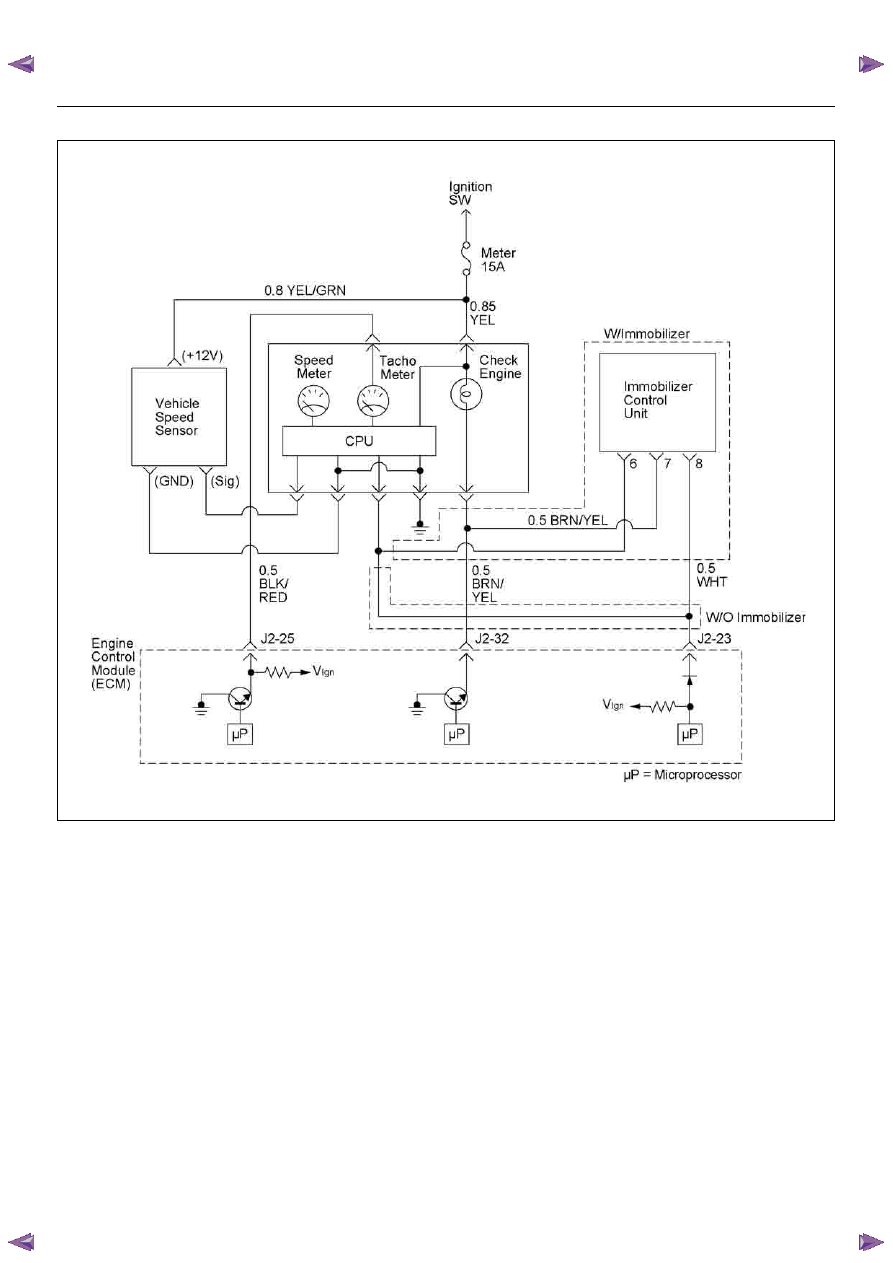

ECM WIRING DIAGRAM (2/9)

ENGINE DRIVEABILITY AND EMISSIONS

6E–35

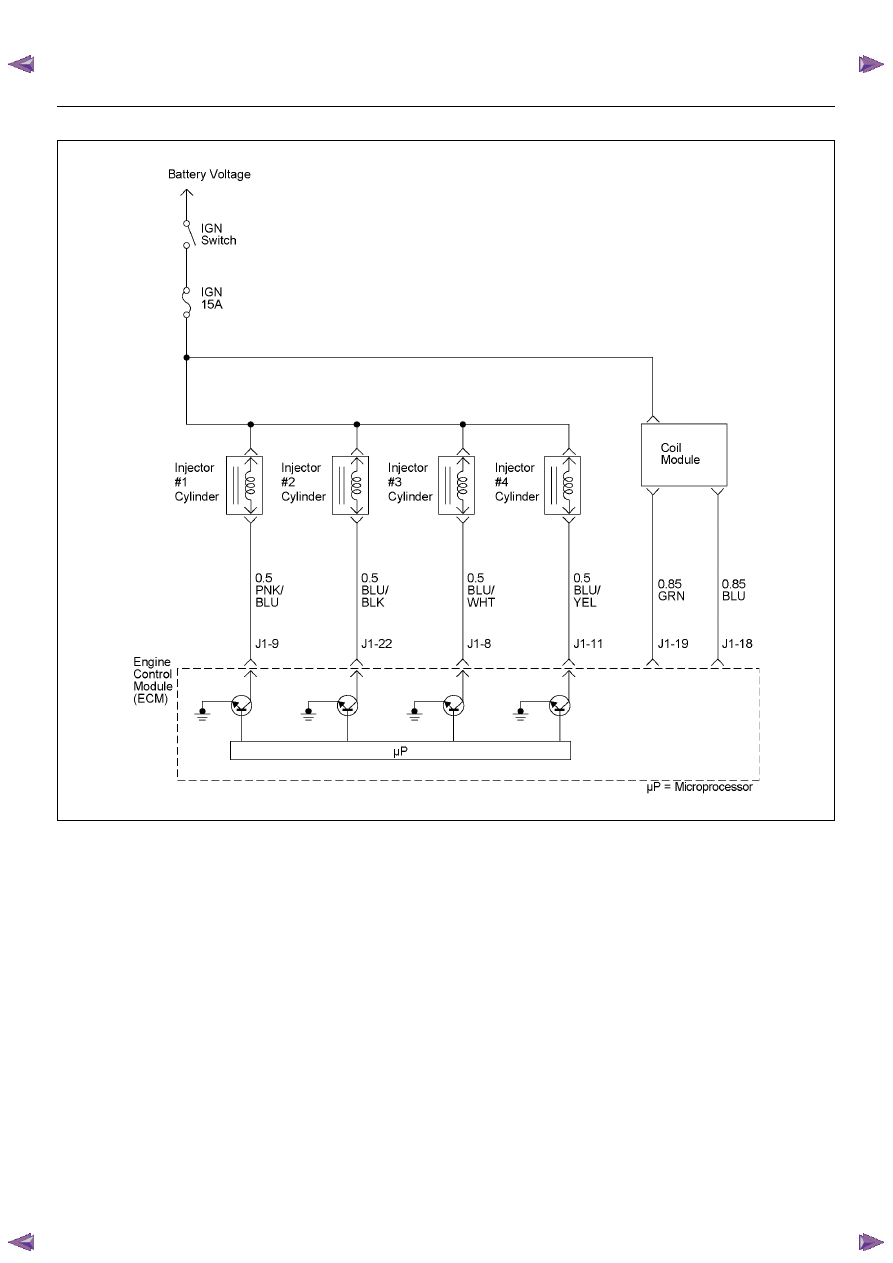

ECM WIRING DIAGRAM (3/9)

6E–36

ENGINE DRIVEABILITY AND EMISSIONS

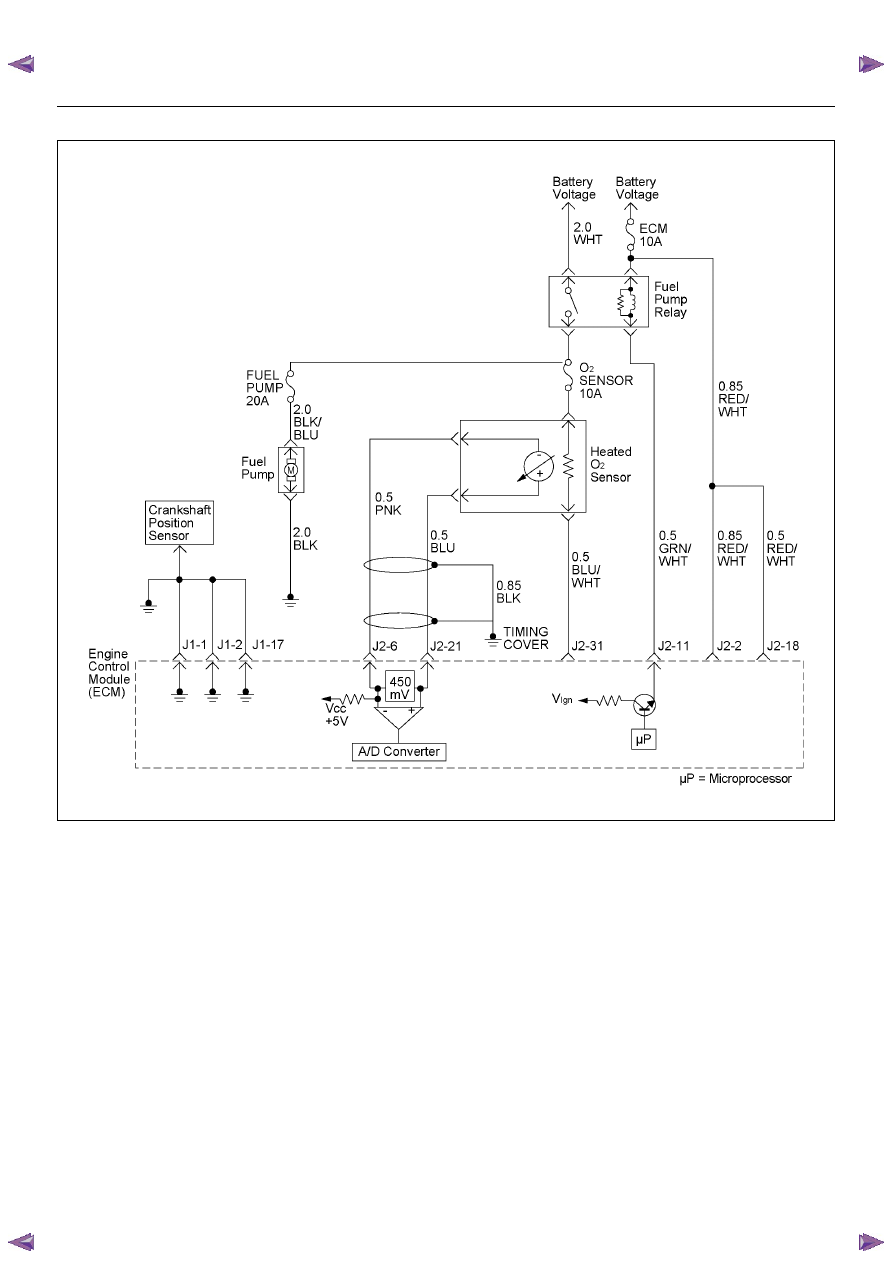

ECM WIRING DIAGRAM (4/9)

ENGINE DRIVEABILITY AND EMISSIONS

6E–37

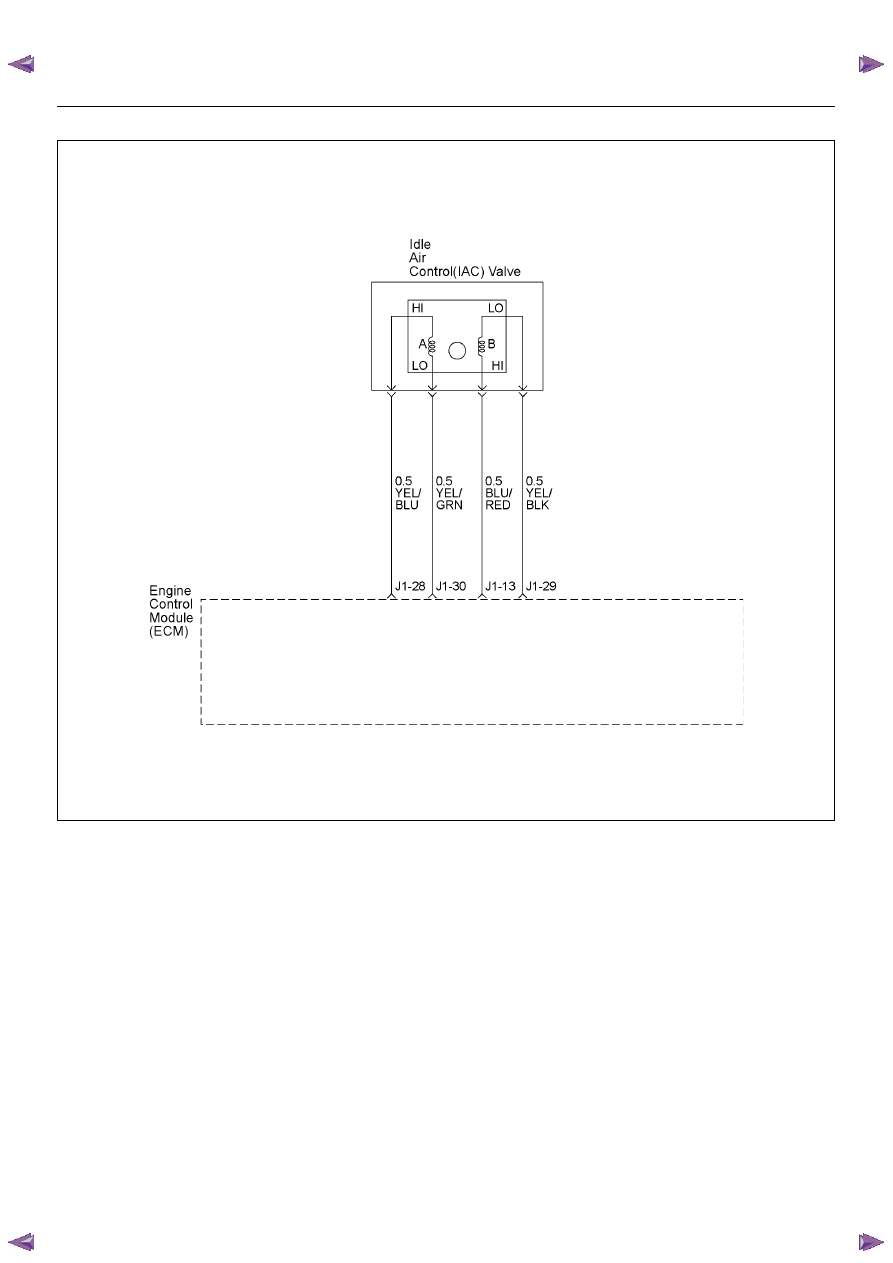

ECM WIRING DIAGRAM (5/9)
