Isuzu KB P190. Service manual - part 1332

8A-390  ELECTRICAL-BODY AND CHASSIS

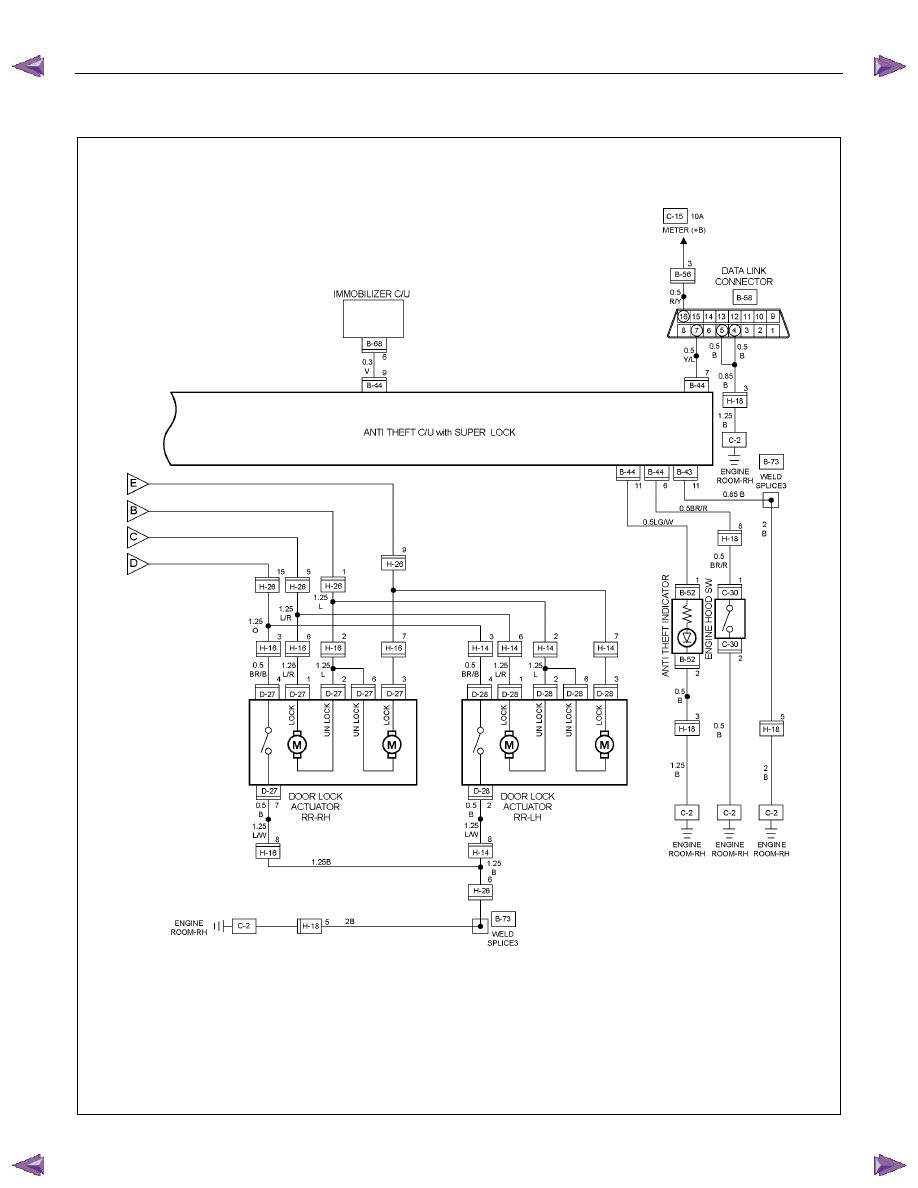

CIRCUIT DIAGRAM C24SE (RHD ONLY) WITH SUPER LOCK

Sheet 2/3









RTW680XF015501

ELECTRICAL-BODY AND CHASSIS  8A-391



CIRCUIT DIAGRAM C24SE (RHD ONLY) WITH SUPER LOCK

Sheet 3/3














RTW680XF015601

8A-392  ELECTRICAL-BODY AND CHASSIS

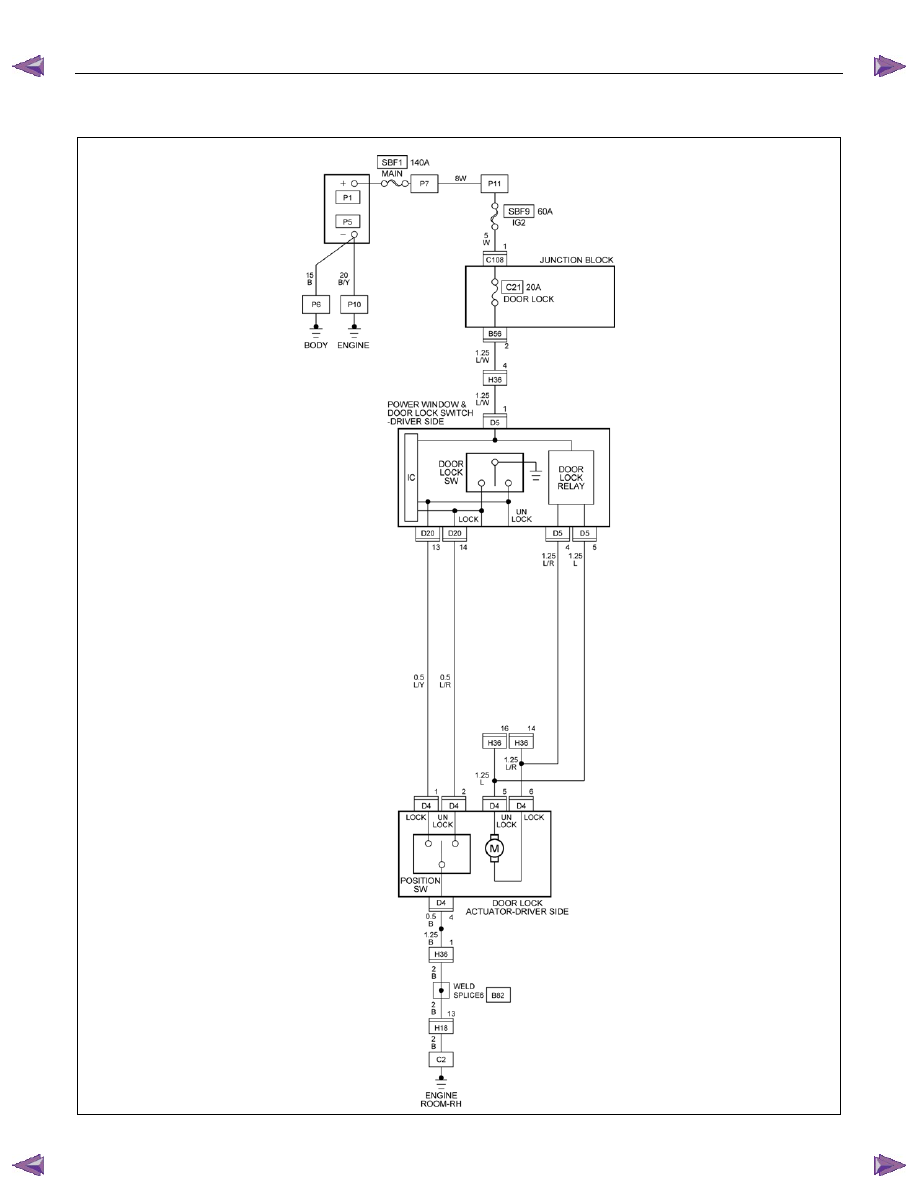

CIRCUIT DIAGRAM HFV6 (RHD) STD TYPE







RTW78AXF003701

ELECTRICAL-BODY AND CHASSIS  8A-393

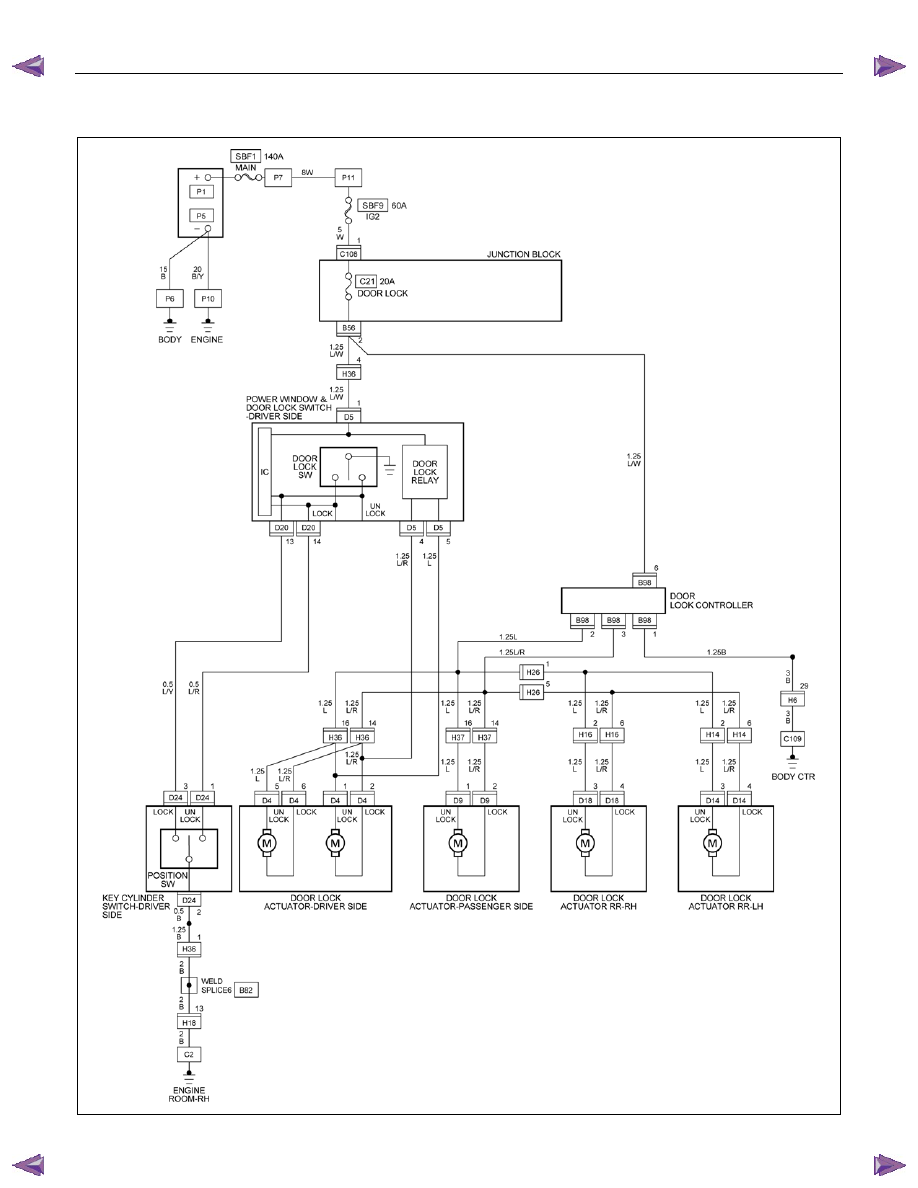

CIRCUIT DIAGRAM HFV6 (RHD) G.EXP TYPE









RTW78AXF023601
