8A-174  ELECTRICAL-BODY AND CHASSIS

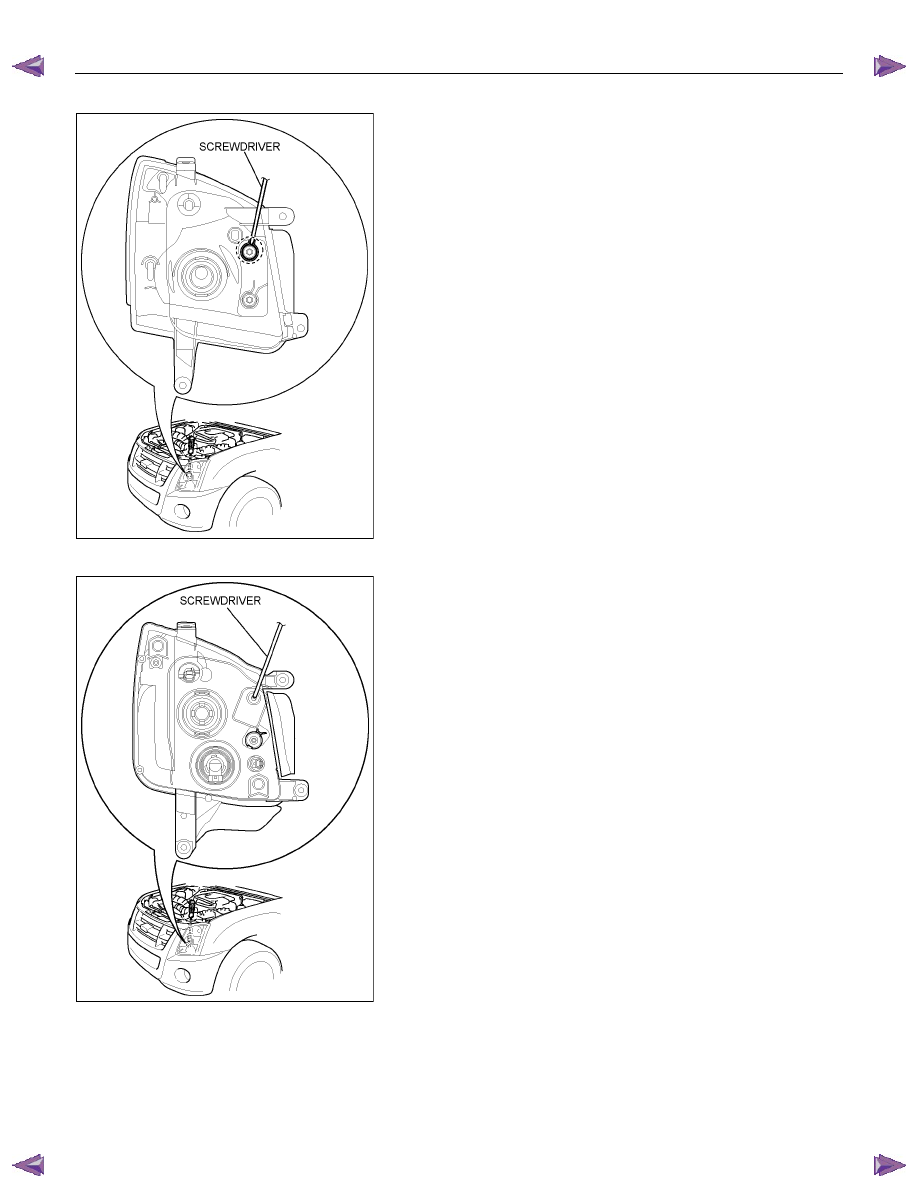

Without Head light Leveling






RTW780MH000101

With Head light Leveling






RTW78AMH000101






VERTICAL ADJUSTMENT (A type)

Use a Phillips-head screwdriver with a long shaft. Hold the
screwdriver straight up-and-down as shown in the illustration.


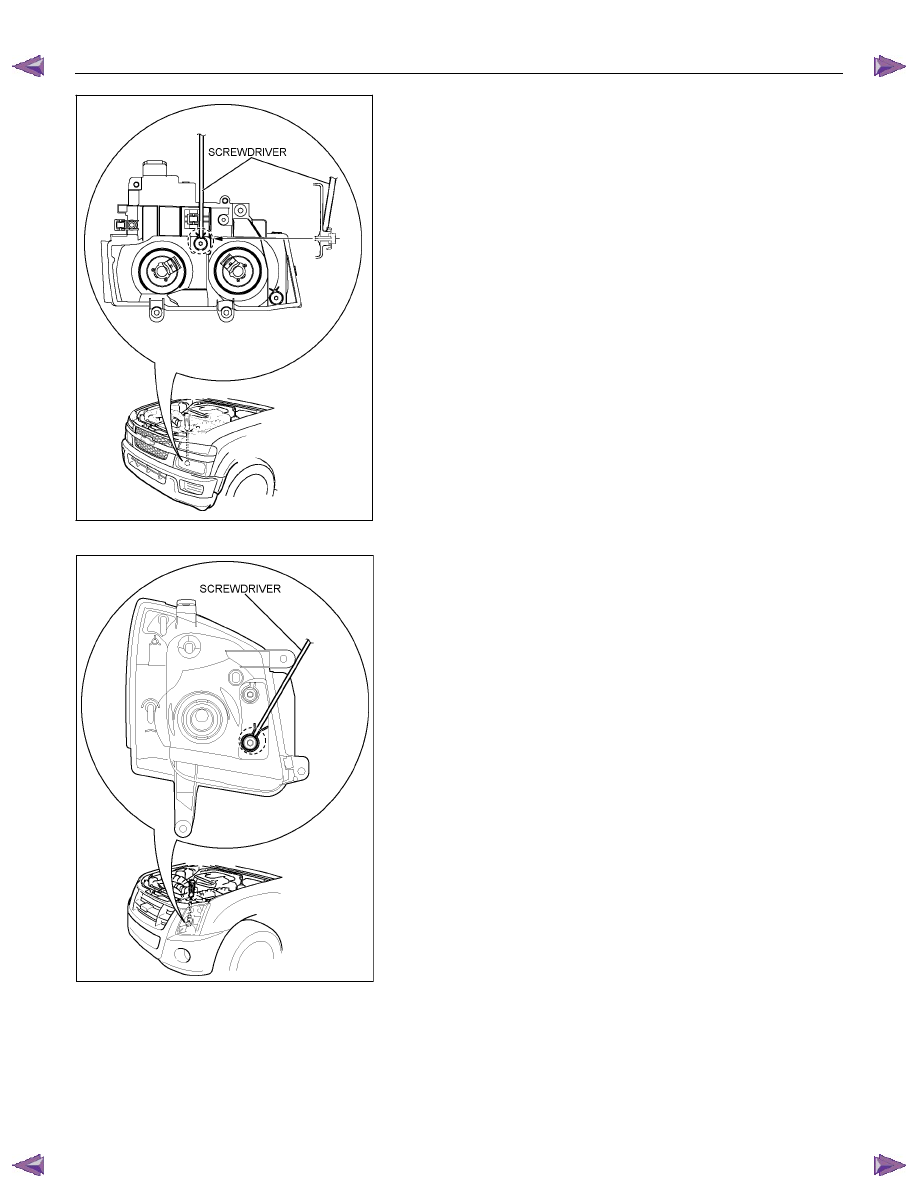

ELECTRICAL-BODY AND CHASSIS  8A-175



RTW580MH000101




VERTICAL ADJUSTMENT (B type)

Use a screwdriver with a long shaft.  Hold the screwdriver
straight up-and-down as shown in the illustration.


Without Head light Leveling






RTW780MH000201




HORIZONTAL ADJUSTMENT (A type)

Use a Phillips-head screwdriver with a long shaft. Hold the
screwdriver at an angle as shown by the arrow in the
illustration.


8A-176  ELECTRICAL-BODY AND CHASSIS

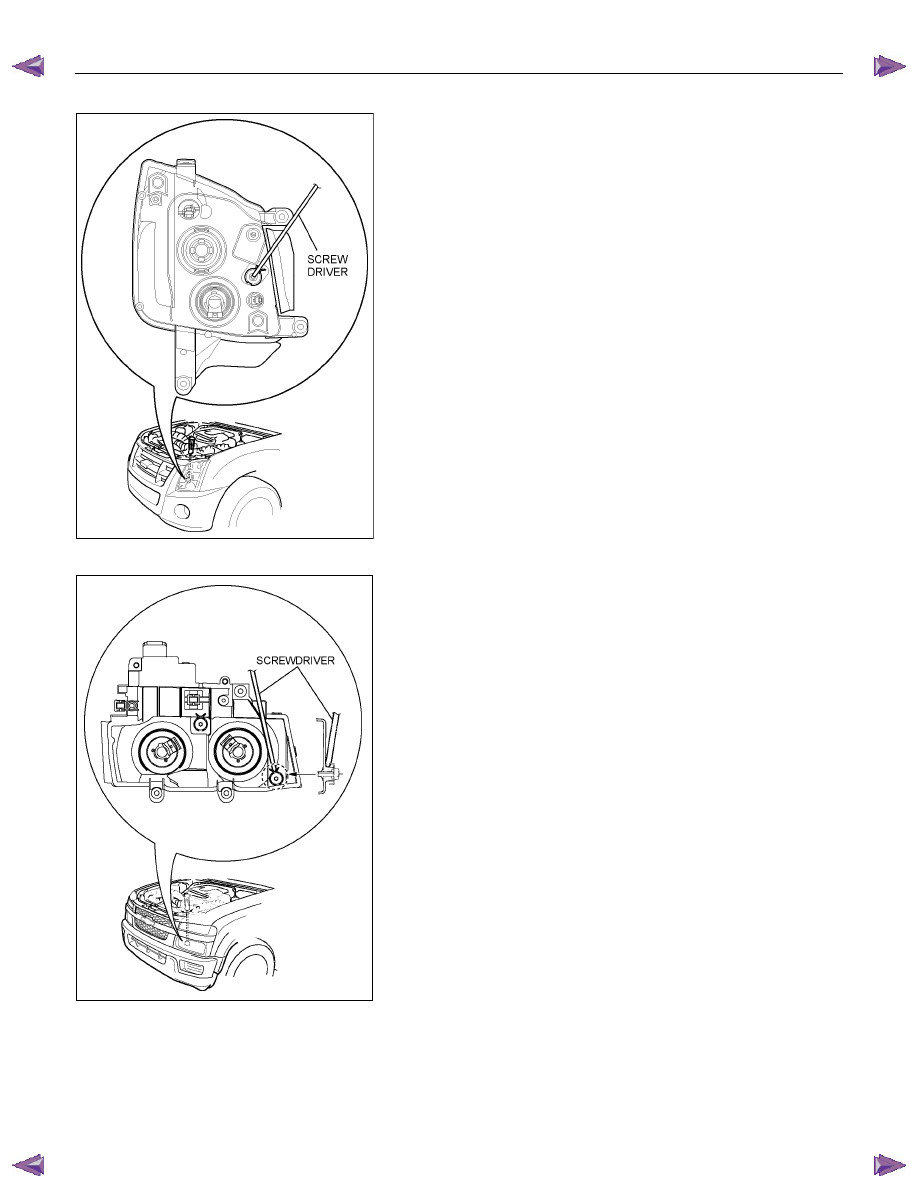

With Head light Leveling






RTW78AMH000201







RTW580MH000201




HORIZONTAL ADJUSTMENT (B type)

Use a screwdriver with a long shaft.   Hold the screwdriver at
an angle as shown by the arrow in the illustration.






Installation

To install, follow the removal steps in the reverse order.
Noting the following point:
1.  After installing the headlight, be sure to adjust the headlight

aim.



ELECTRICAL-BODY AND CHASSIS  8A-177

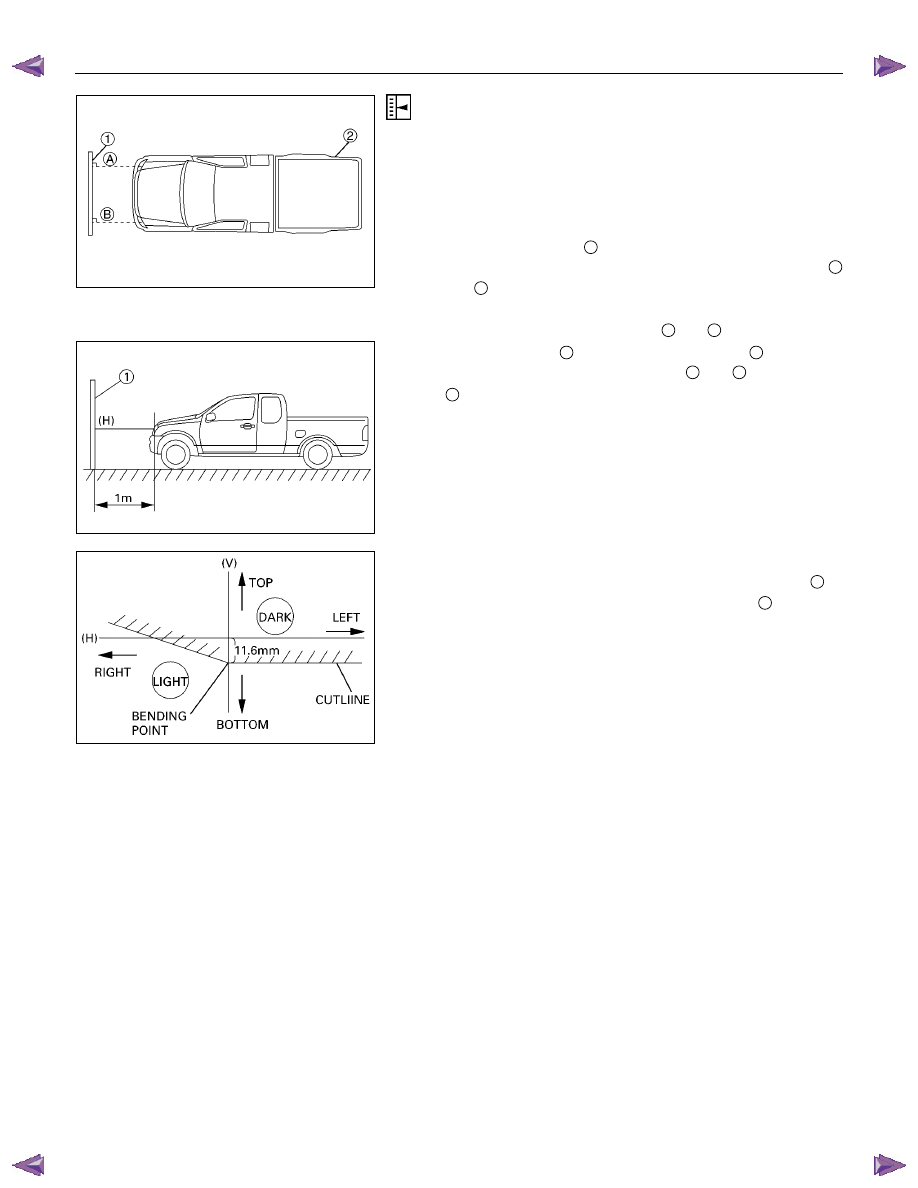

HEADLIGHT ADJUSTMENT

Preparation

Place the vehicle with 1 person in driver seat on a level surface
and check to see if the inflation pressure of the tires is correct,
the lenses are clean, the battery is sufficiently charged, and
adjust to place vehicle by using the screen.
1.  Set a vertical screen on a level surface.

2. Toward the screen

1

from the bulb center mark of the

headlight, extend parallel lines to the floor. Mark point

A

and

B

 on the screen at the intersection of parallel line and

the screen.

3.  Draw vertical lines through point

A

 and

B

 on the screen.





4.  Keep the vehicle

2

 1m apart from the screen

1

.

5.  Draw a horizontal line through point

A

 and

B

on the screen

1

.







6.  Turn the headlight low beam on.

7.  Adjust the CUTLINE 11.6 mm below the horizontal line

H

.

8.  Adjust the BENDING POINT to the vertical line

V

.

NOTE:

Always adjust vertical adjustment first.
