Isuzu KB P190. Service manual - part 1251

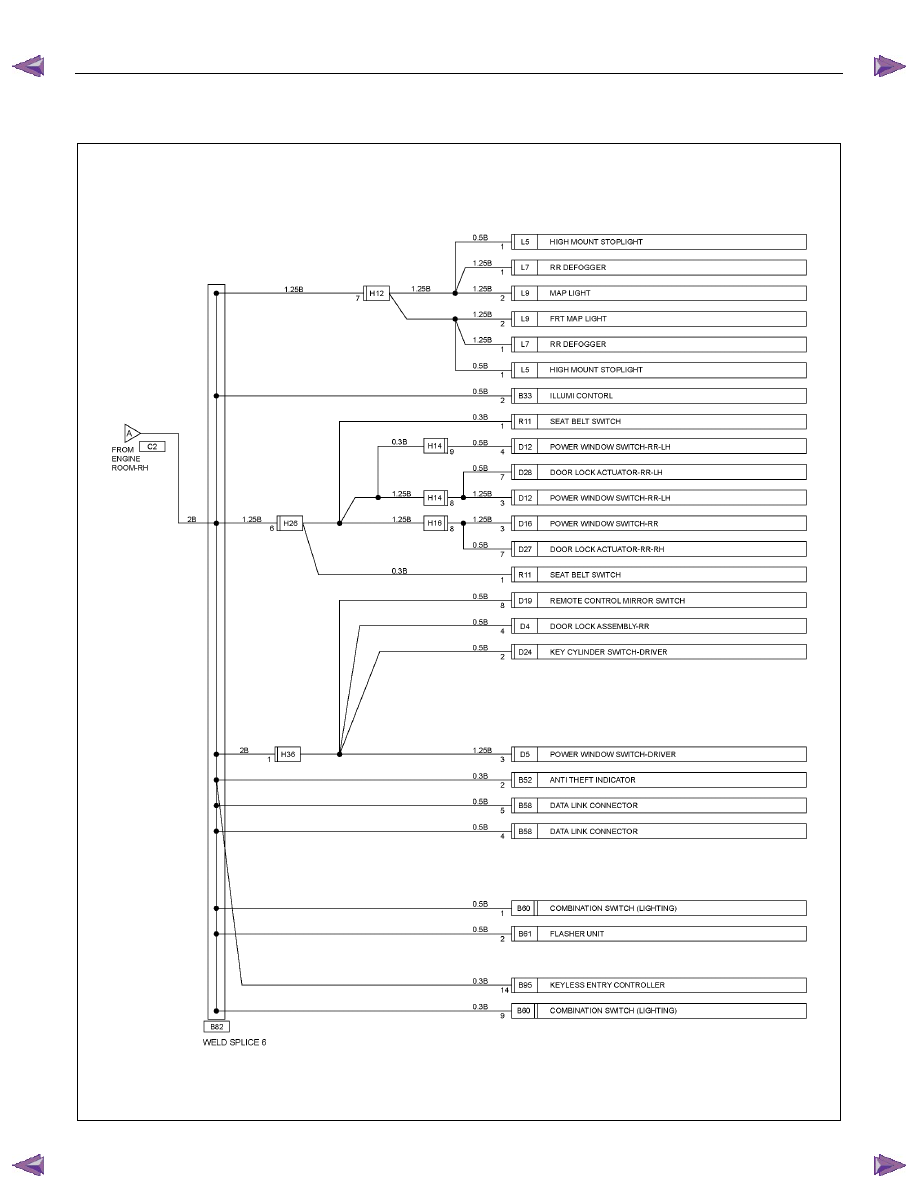

8A-66  ELECTRICAL-BODY AND CHASSIS



GROUND POINT 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA

 Sheet

2/4













RTW78AXF019801

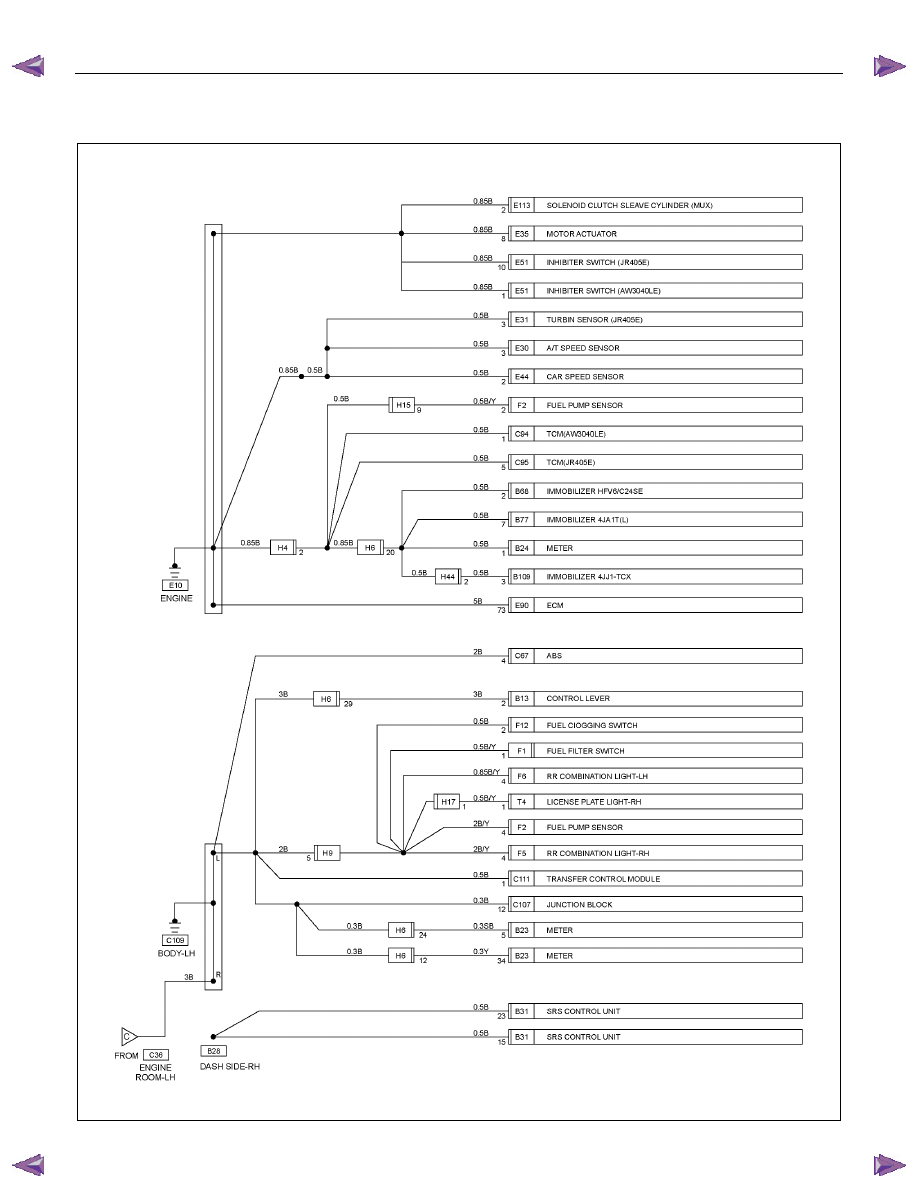

ELECTRICAL-BODY AND CHASSIS  8A-67



GROUND POINT 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA

 Sheet

3/4
















RTW78AXF019901

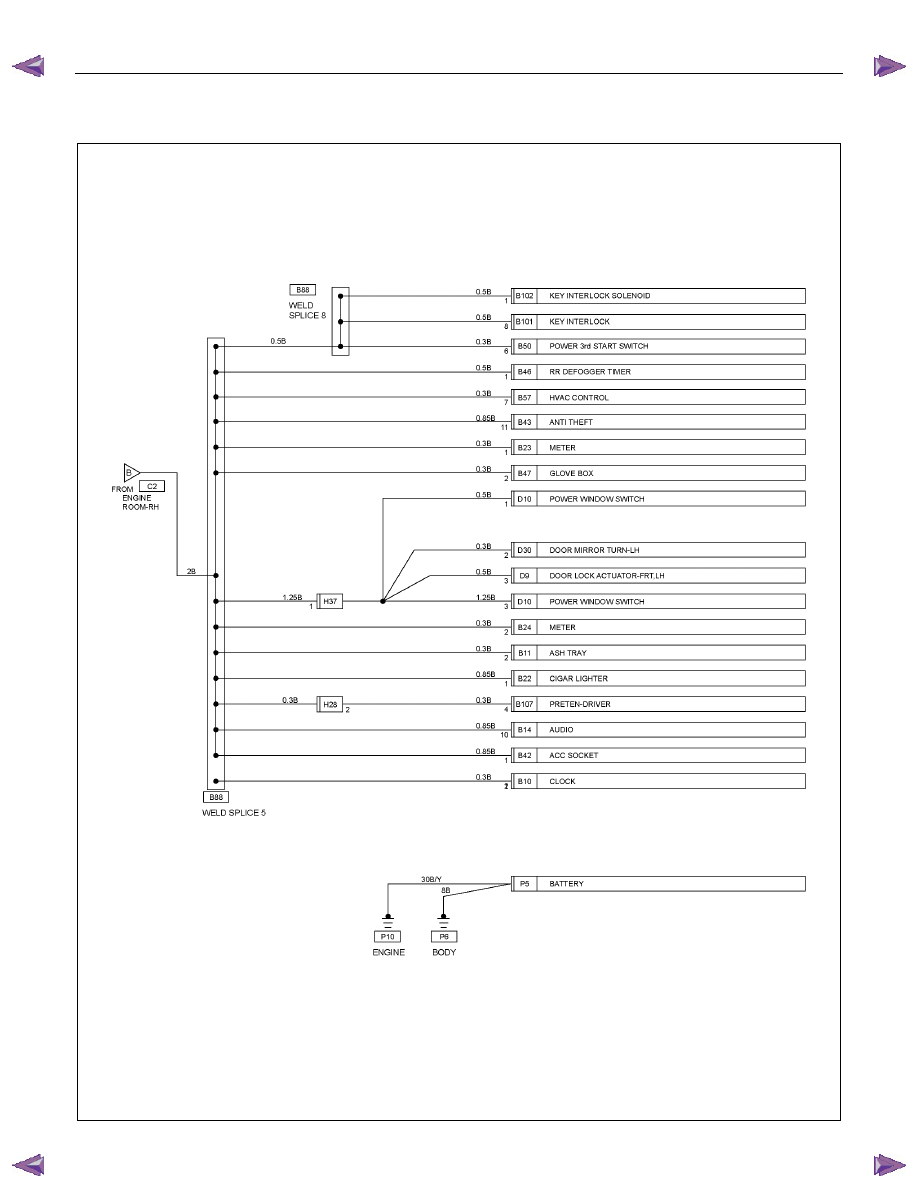

8A-68  ELECTRICAL-BODY AND CHASSIS



GROUND POINT 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA

 Sheet

4/4












RTW78AXF020001

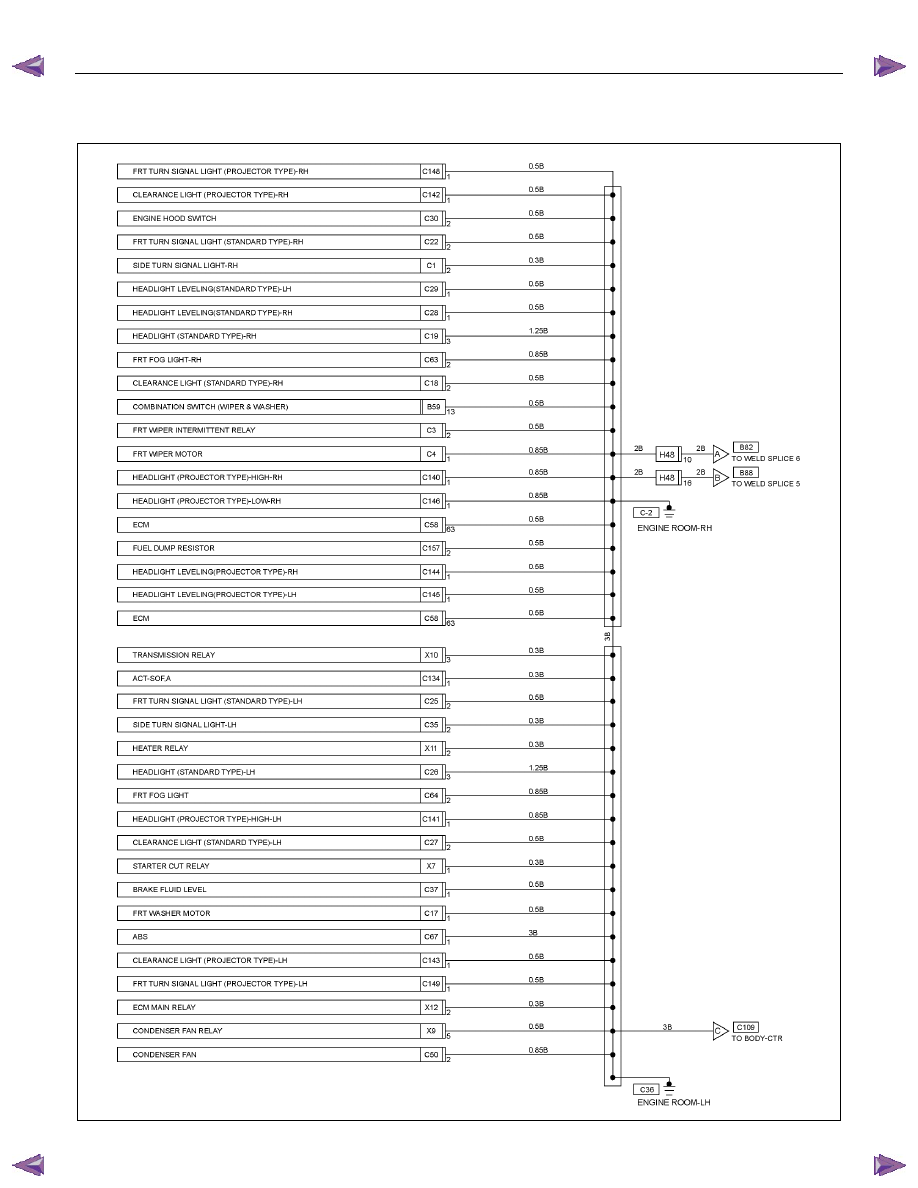

ELECTRICAL-BODY AND CHASSIS  8A-69



GROUND POINT 4JJ1-TC/4JK1-TC (LHD) G.EXP

 Sheet

1/4










RTW78AXF029301
