SHEET METAL 2B-23

REAR BODY

REMOVAL AND INSTALLATION

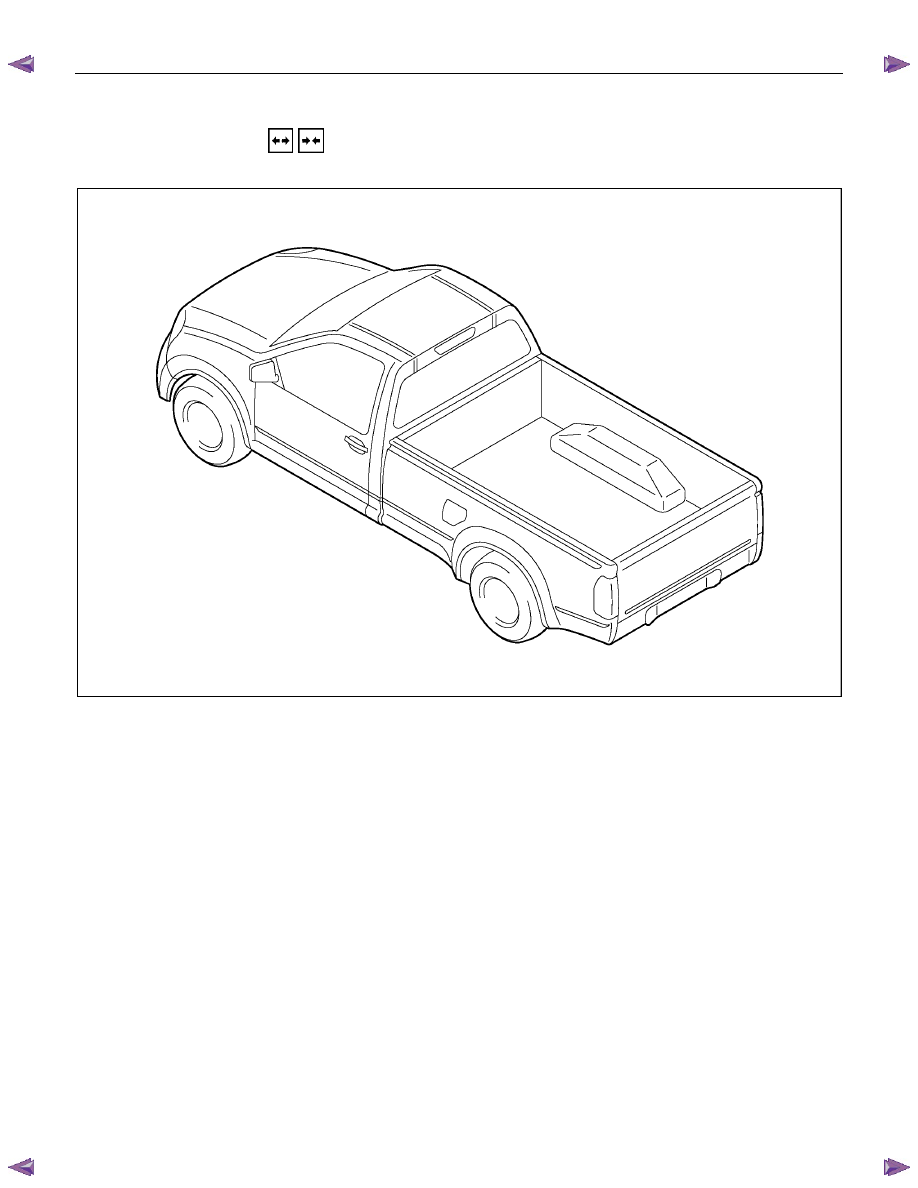

A type

RTW32MF000301

2B-24 SHEET METAL

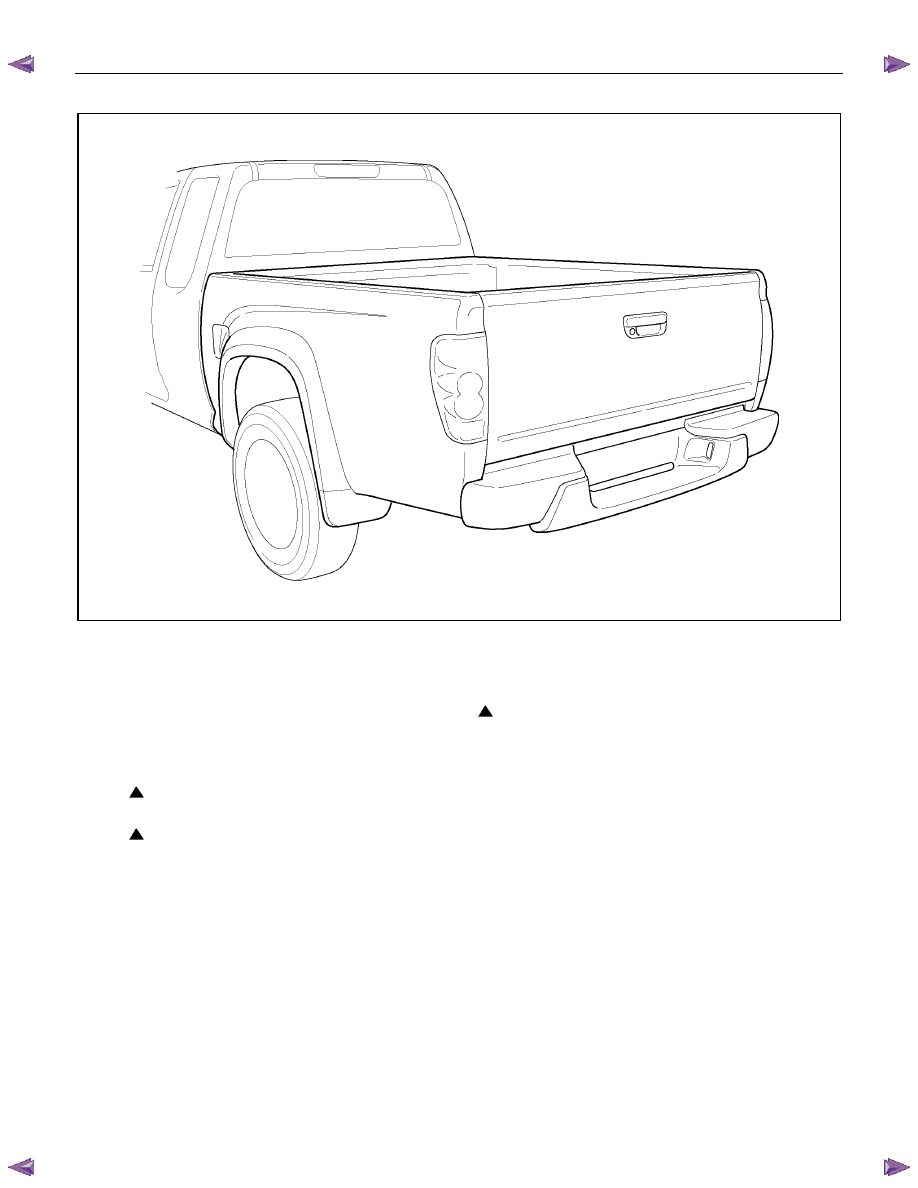

B type

RTW52BMF000301

Removal Steps

Installation Steps

1. Battery ground cable

2. Rear combination lamp & license lamp

harness connector

3. Rear wheel housing extension panel

4. Fuel filler door release cable assembly

5. Fuel filler pipe and evaporator hose

6. Bolt; frame to rear body

7. Rear body assembly

6. Bolt; frame to rear body

5. Fuel filler pipe and evaporator hose

4. Fuel filler door release cable assembly

3. Rear wheel housing extension panel

2. Rear combination lamp & license lamp

connector

1. Battery ground cable

NOTE:

The rear body must be empty before removal.

SHEET METAL 2B-25

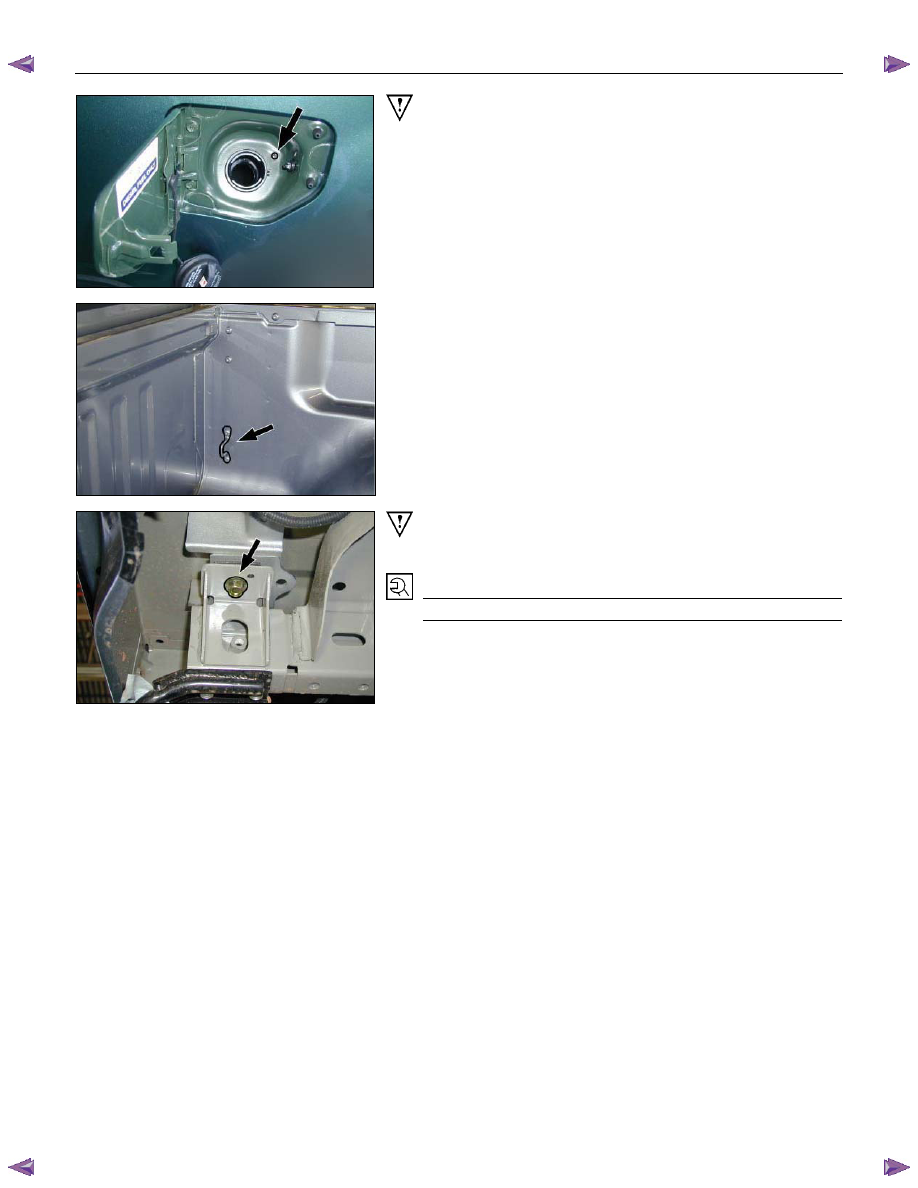

Important Operations - Removal

5. Fuel Filler Pipe and Evaporator Hose

7. Rear Body Assembly
Attach lifting wires to the rear body hooks and raise the rear
body.

Note:

In lifting up rear body, take care not to strike it against cab
body.

Important Operation – Installation

6. Bolt; Frame to Body

Torque N

⋅m(kgf⋅m/lb⋅ft)

54 (5.5 / 40)

2B-26 SHEET METAL

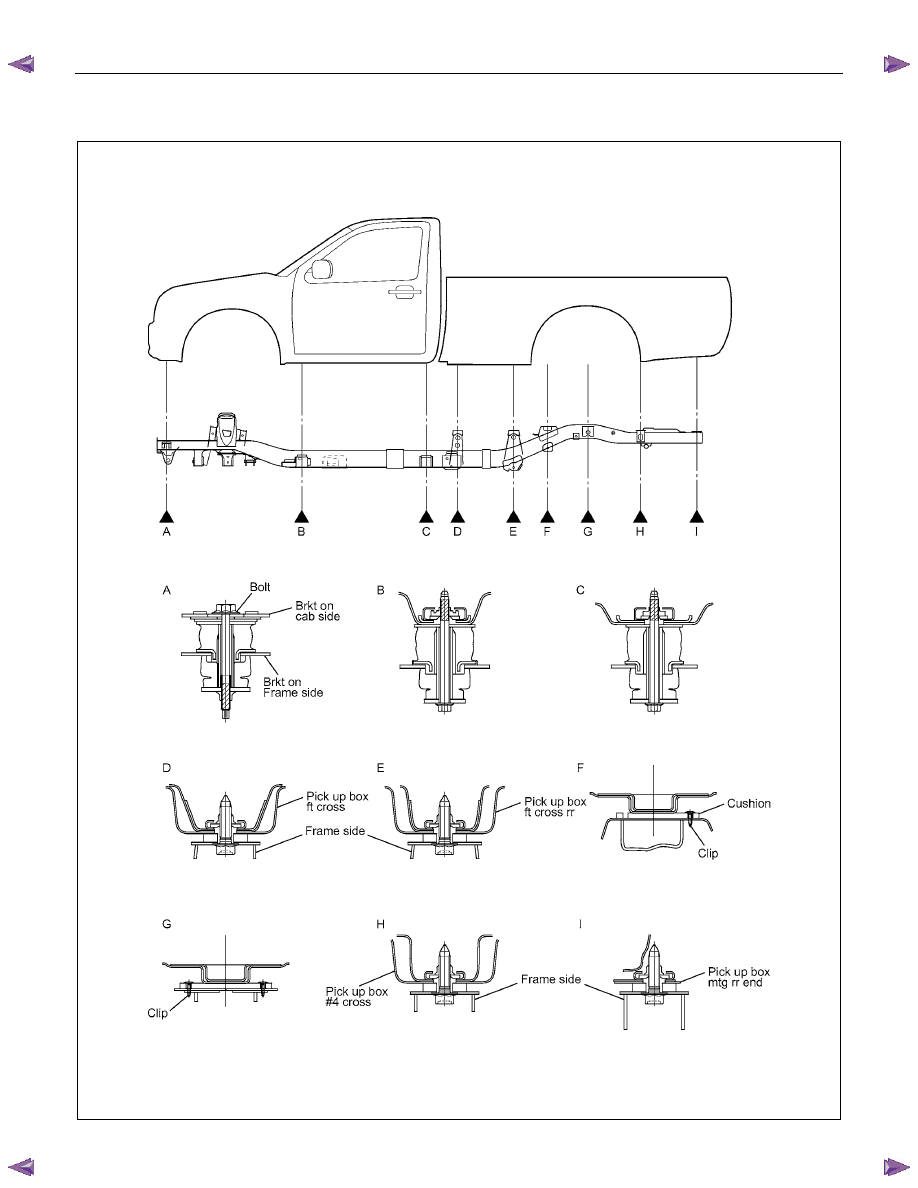

BODY MOUNTING

REGULAR CAB Model

RTW72BXF000101
