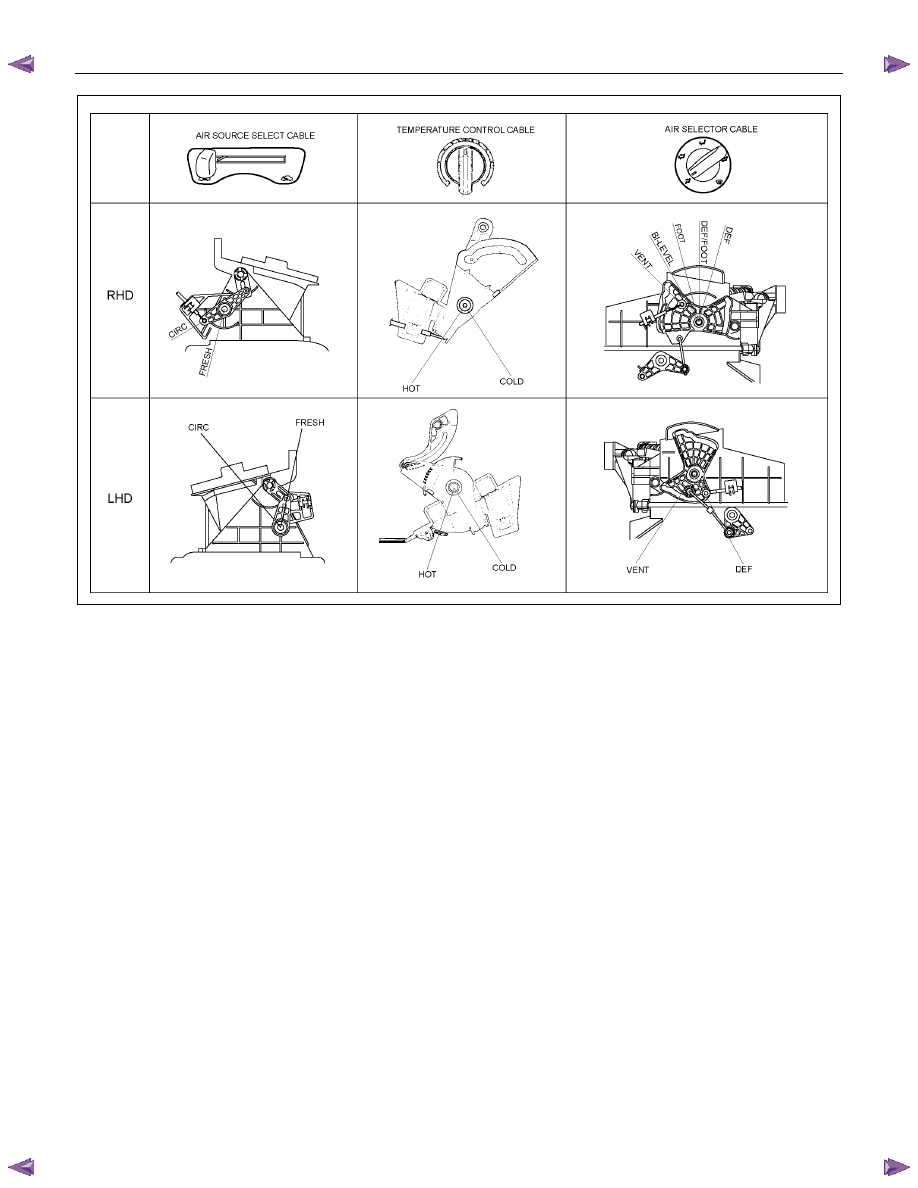

1-78  HEATER AND AIR CONDITIONING





RTW410MF000201



HEATER AND AIR CONDITIONING  1-79

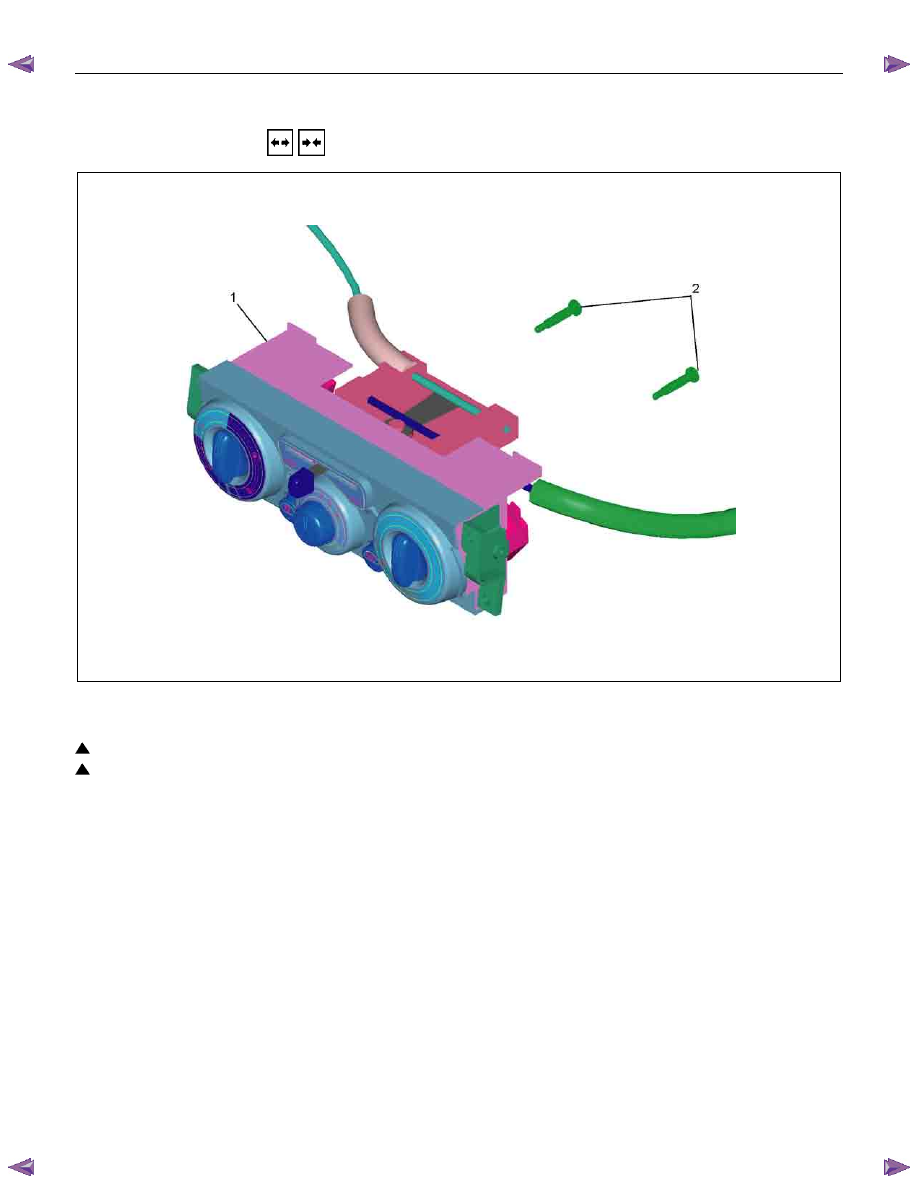

CONTROL PANEL ILLUMINATION BULB



  REMOVAL AND INSTALLATION












This illustration is based on RHD model



RTW710MF000401



Removal Steps

  1. Control lever assembly

  2. Illumination bulb





Installation Steps



2. Illumination bulb



1. Control lever assembly



1-80  HEATER AND AIR CONDITIONING







RTW710MH000101



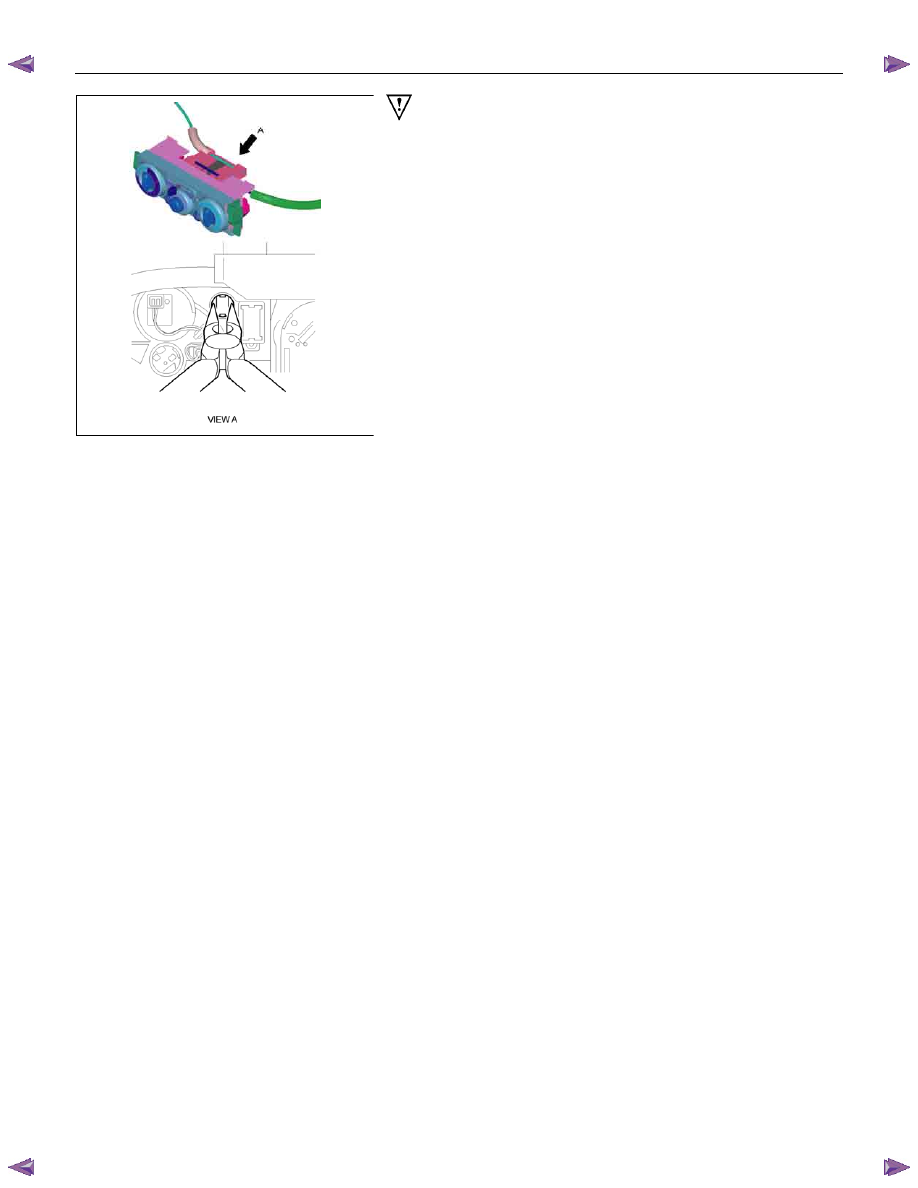

Important Operations - Removal

1.  Control lever assembly
Refer to “CONTROL LEVER ASSEMBLY” in this section.

2. Illumination Bulb
To remove the illumination bulb, insert a pliers (long nose) into
the cap at the back of the bulb. Turn the bulb counterclockwise
and pull it free.




HEATER AND AIR CONDITIONING  1-81

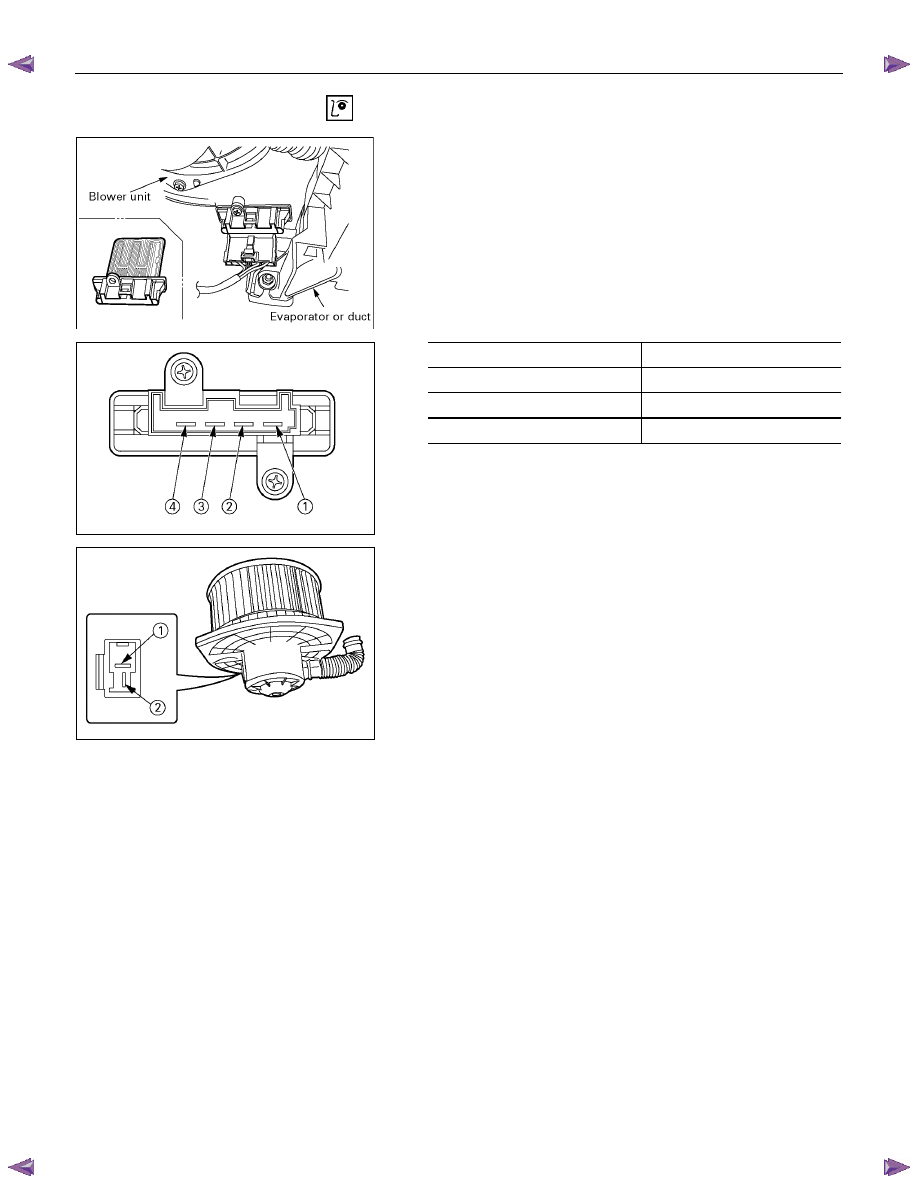

 INSPECTION AND REPAIR





840R300005-X




Resistor

As for air-conditioning model, fixed on left (RHD) / right (LHD)

side of the evaporator unit.

As for heater only model, fixed on left (RHD) / right (LHD) side

of the duct placed between blower unit and heater unit.

Replace the resistor with a new on if the coil is found to be

open or if the resistance value deviates from the specified

range.









Terminal Resistance

3 – 2

2.04

Ω

3 – 4

0.88

Ω

3 – 1

0.31

Ω








Blower motor

Check blower motor for smooth rotation.
Connect the battery positive terminal to the No.1 terminal of the

blower motor and negative to the No.2.

Be sure to check to see if the blower motor operates correctly.
