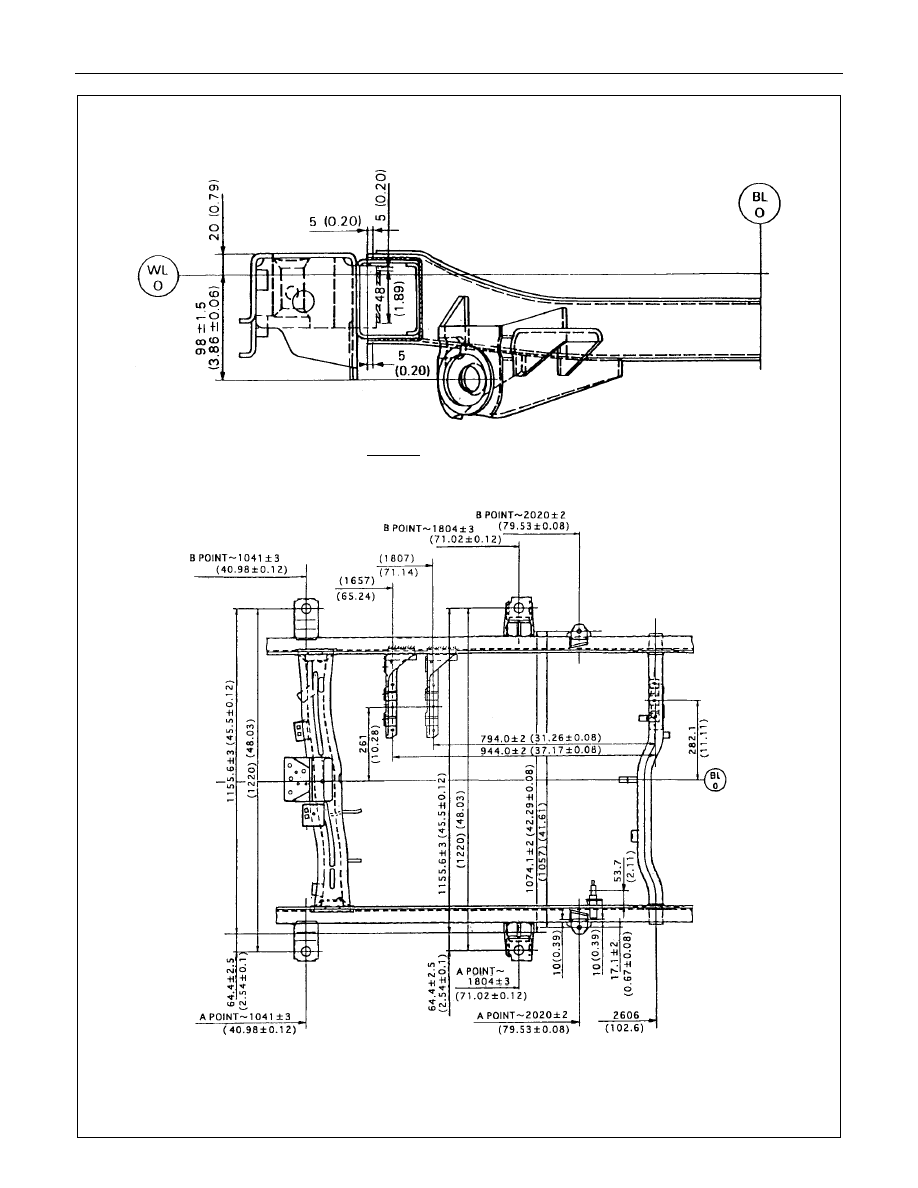

2A-32  FRAME AND BUMPER

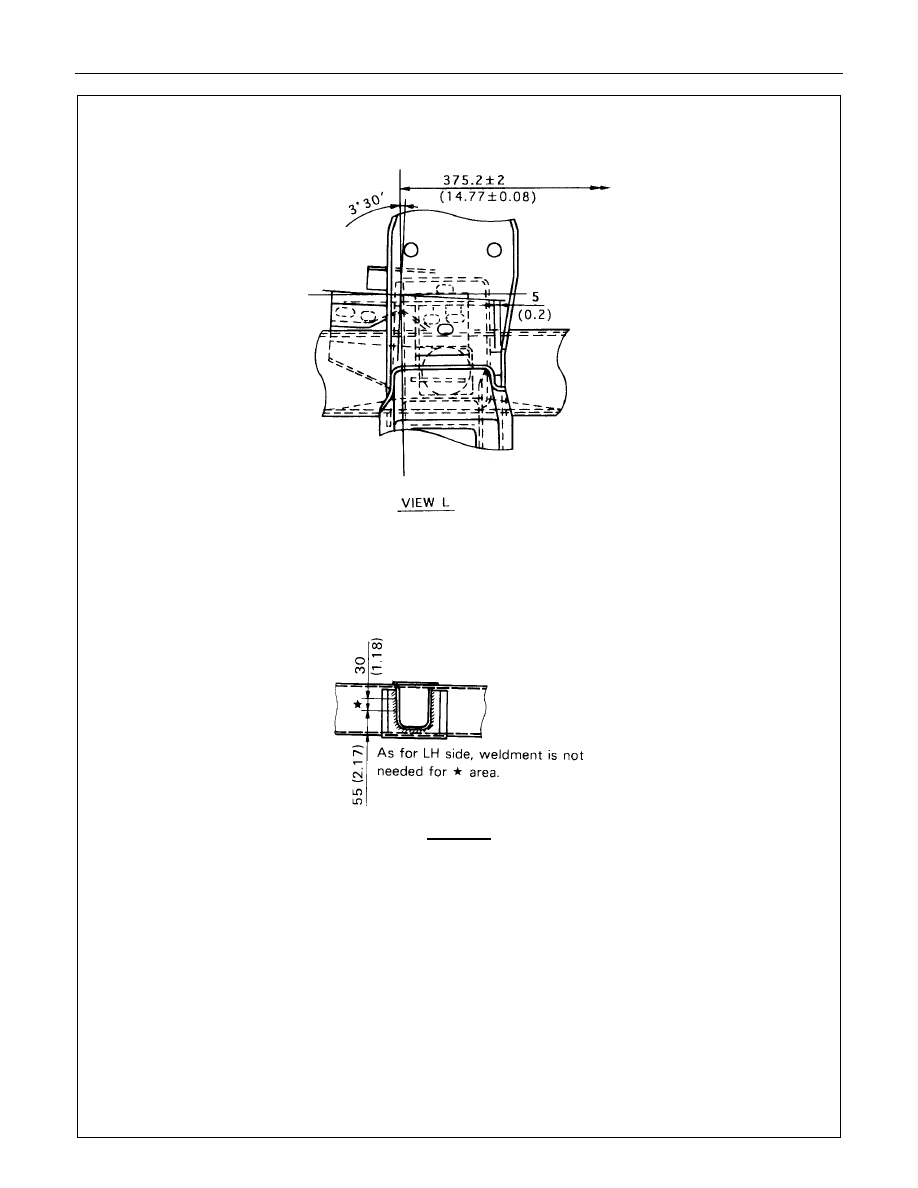

SECT K-K

FRAME AND BUMPER  2A-33

VIEW A (Except Australia)

For Crew Cab

SHEET METAL  2B-1

SECTION 2B

SHEET METAL

TABLE OF CONTENTS

PAGE

Removal and installation .................................................................................................. 2B- 1

Adjustment .................................................................................................................... 2B- 4



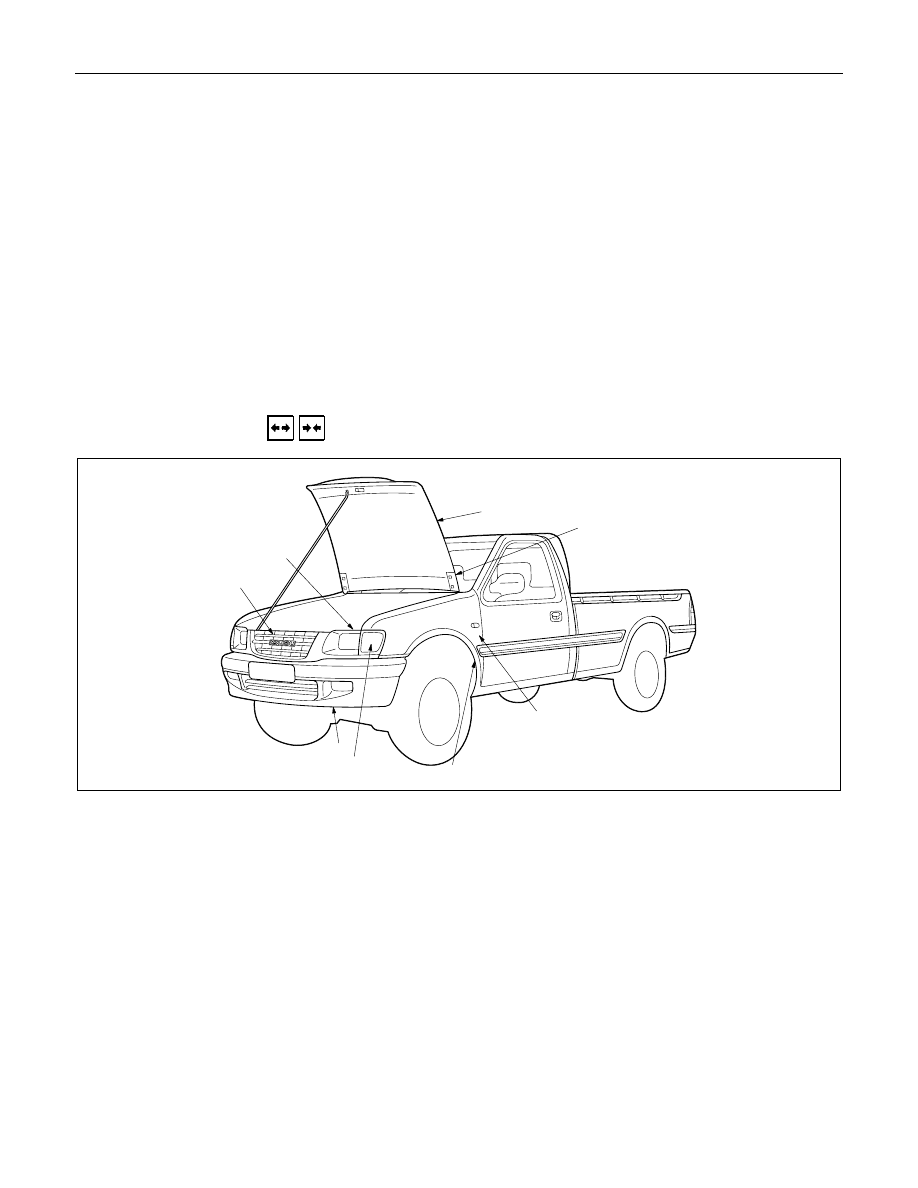

  REMOVAL AND INSTALLATION

1

2

3

4

5

6

7

8

Removal Steps

Installation Steps

Engine Hood

Fender

V

1. Bolt

11. Fender

2. Engine hood assembly

10. ECM box (Driver side)

Fender

9. Antenna cable (Passenger side)

3. Combination lamp connector

8. Steering lower cover or speaker grille

V

4. Radiator grille

7. Inner liner

5. Bumper assembly

6. Combination lamp

V

6. Combination lamp

5. Bumper assembly

V

7. Inner liner

4. Radiator grille

8. Steering lower cover or speaker grille

3. Combination lamp connector

9. Antenna cable (Passenger side)

Engine Hood

10. ECM box (Driver side)

2. Engine hood assembly

V

11. Fender

1. Bolt

2B-2  SHEET METAL

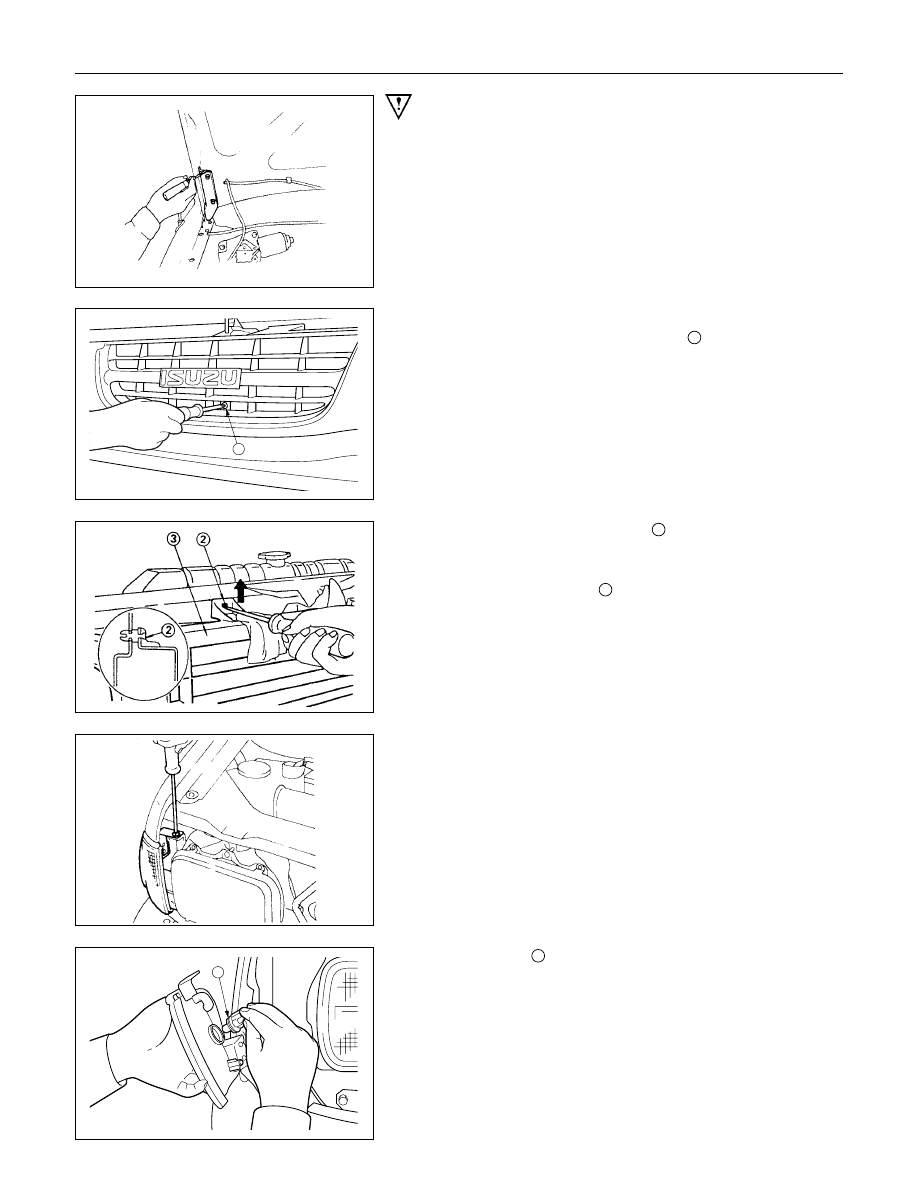

Important Operations - Removal

1. Bolt

Before removing the hinges from the engine hood, scribe a
mark showing location of the hinges to facilitate installation in
the original position.

1

4. Radiator Grille

Remove the radiator grille center screw

1

.

(ONE POINT)

Use a screwdriver to raise the clip

2

 and release the lock.

Place a clean rag beneath the screwdriver tip to protect the
body painted surfaces. (EIGHT POINTS)

Remove the radiator grille

3

.

6. Combination Lamp

Remove the combination lamp fixing screws.

1

Turn the socket

1

 counterclockwise to disconnect it from the

marker light housing.

Pull the bulb from the socket.
