6E–20

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

ENGINE CONTROL MODULE (ECM)

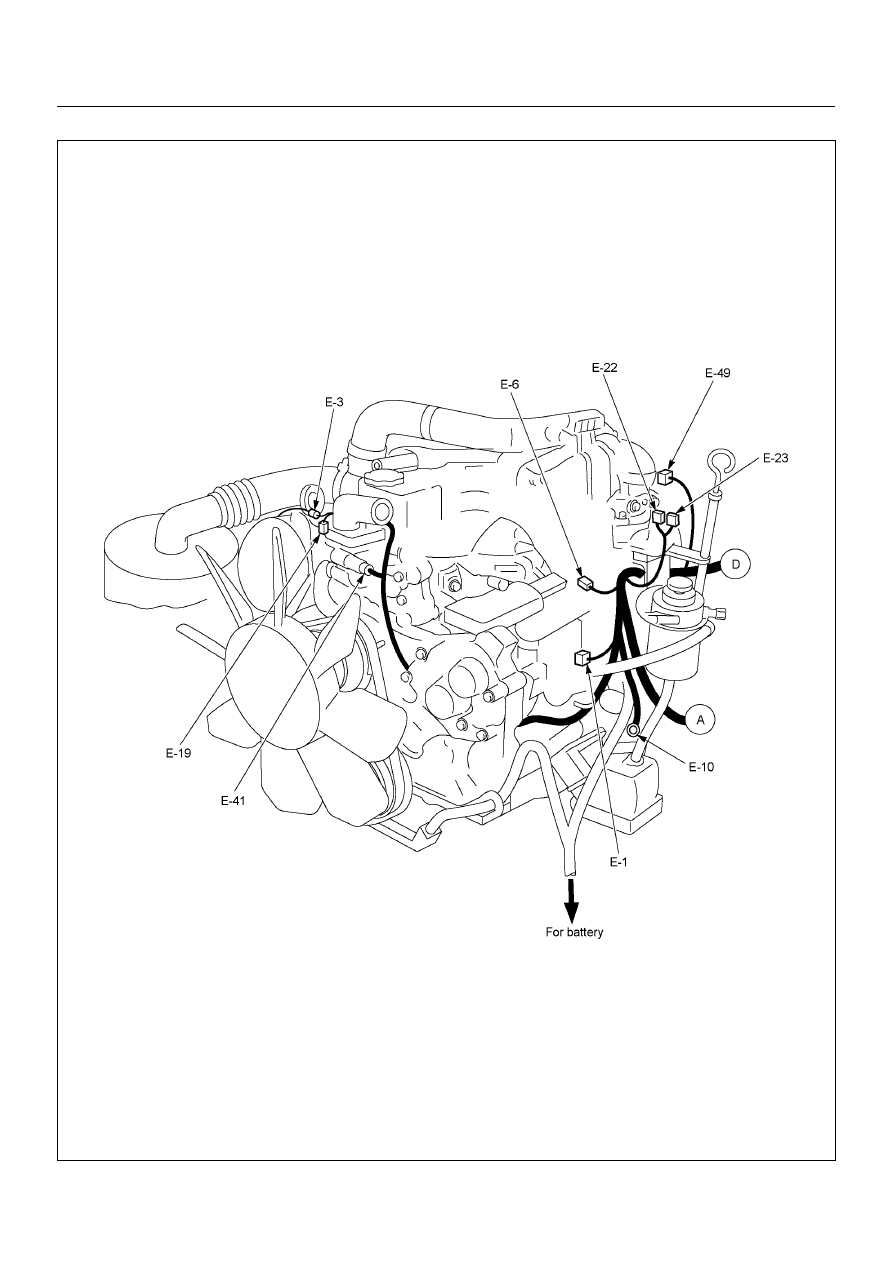

PARTS LOCATION

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

6E–21

6E–22

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

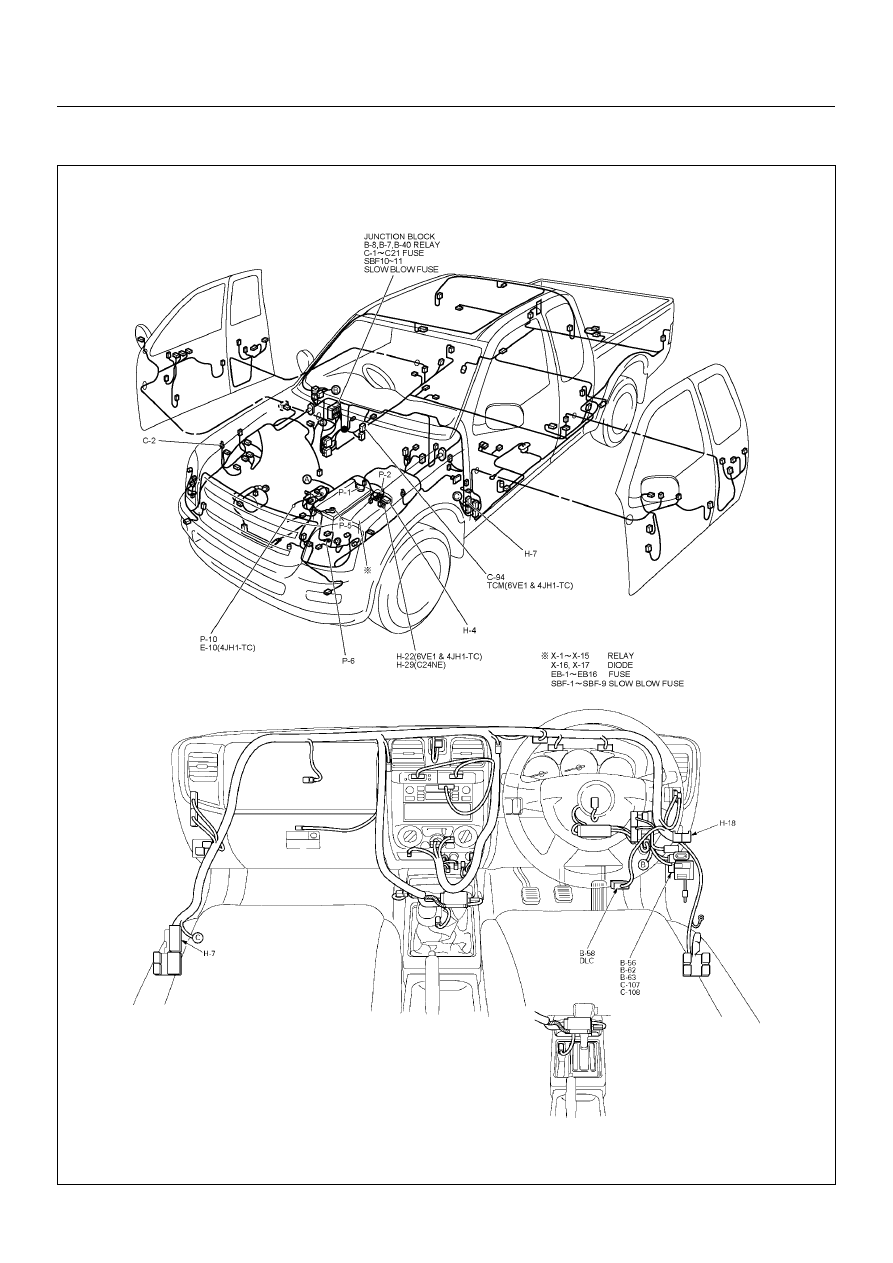

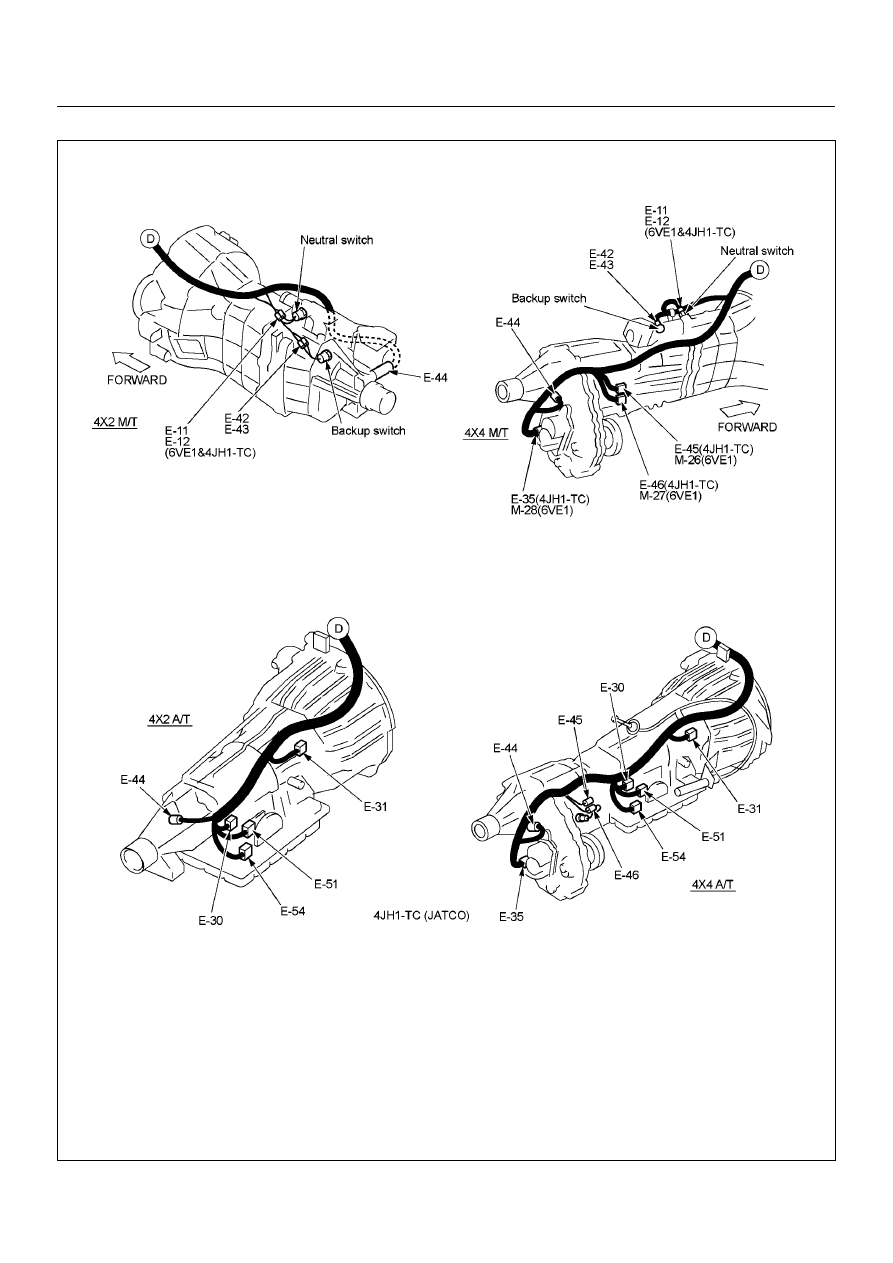

PARTS LOCATION

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

6E–23

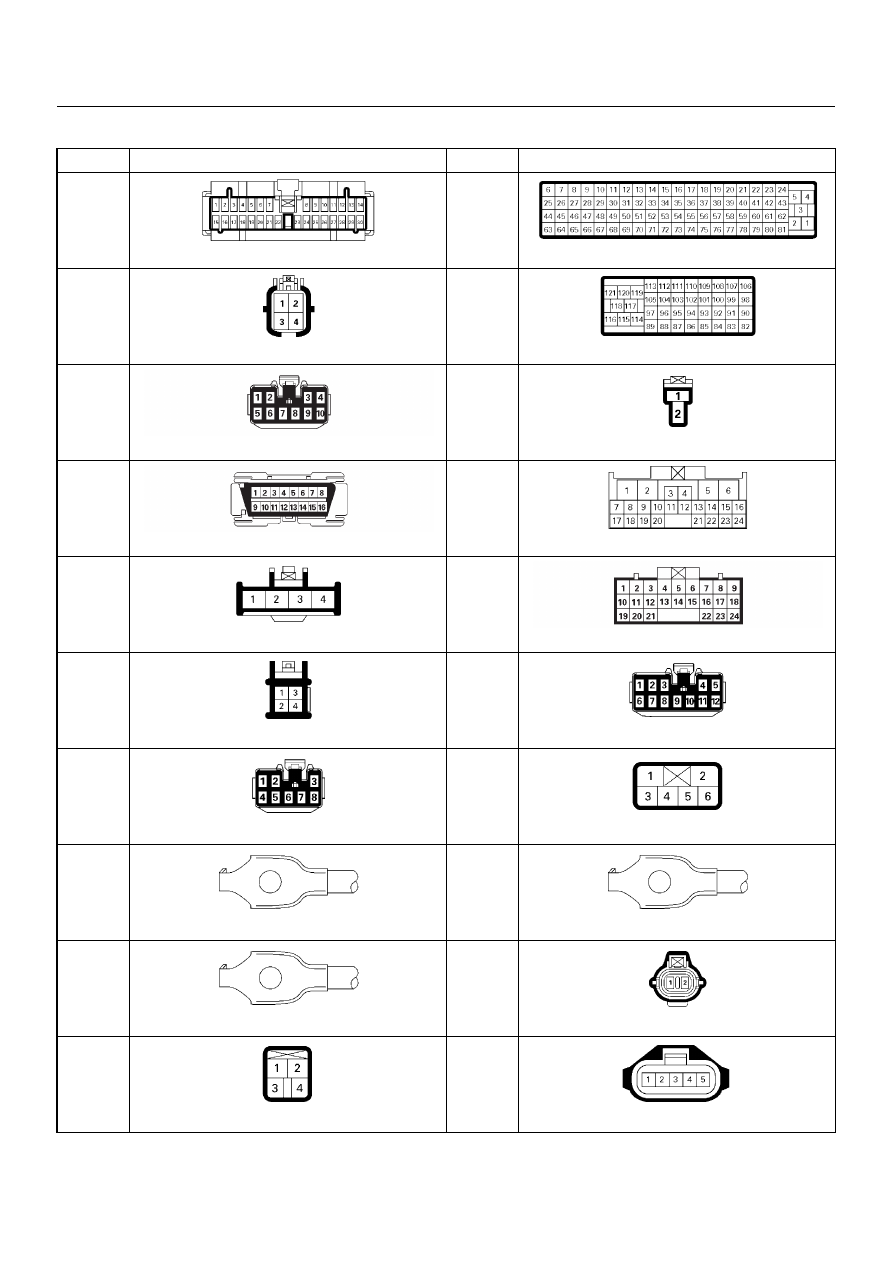

CONNECTOR LIST

No.

Connector face

No.

Connector face

B-24

Green

Meter-B

C-56

ECM-A

B-54

White

J/B I2

C-57

ECM-B

B-56

White

J/B I4

C-77

Clutch switch

B-58

Black

Check connector

C-94

White

TCM

B-62

White

Ignition switch (IGSUB : G1)

C-95

White

TCM

B-63

White

Ignition switch (IGSUB : G2)

C-107

White

J/B E2

B-68

Immobiliser

C-108

White

J/B E1

C-2

Silver

Engine room-RH ground

C-109

Silver

Body-LH ; ground

C-36

Silver

Engine room-LH ; Ground

C-115

Brown

EVRV

C-44

White

Stop lamp switch

C-116
