10-12  CAB

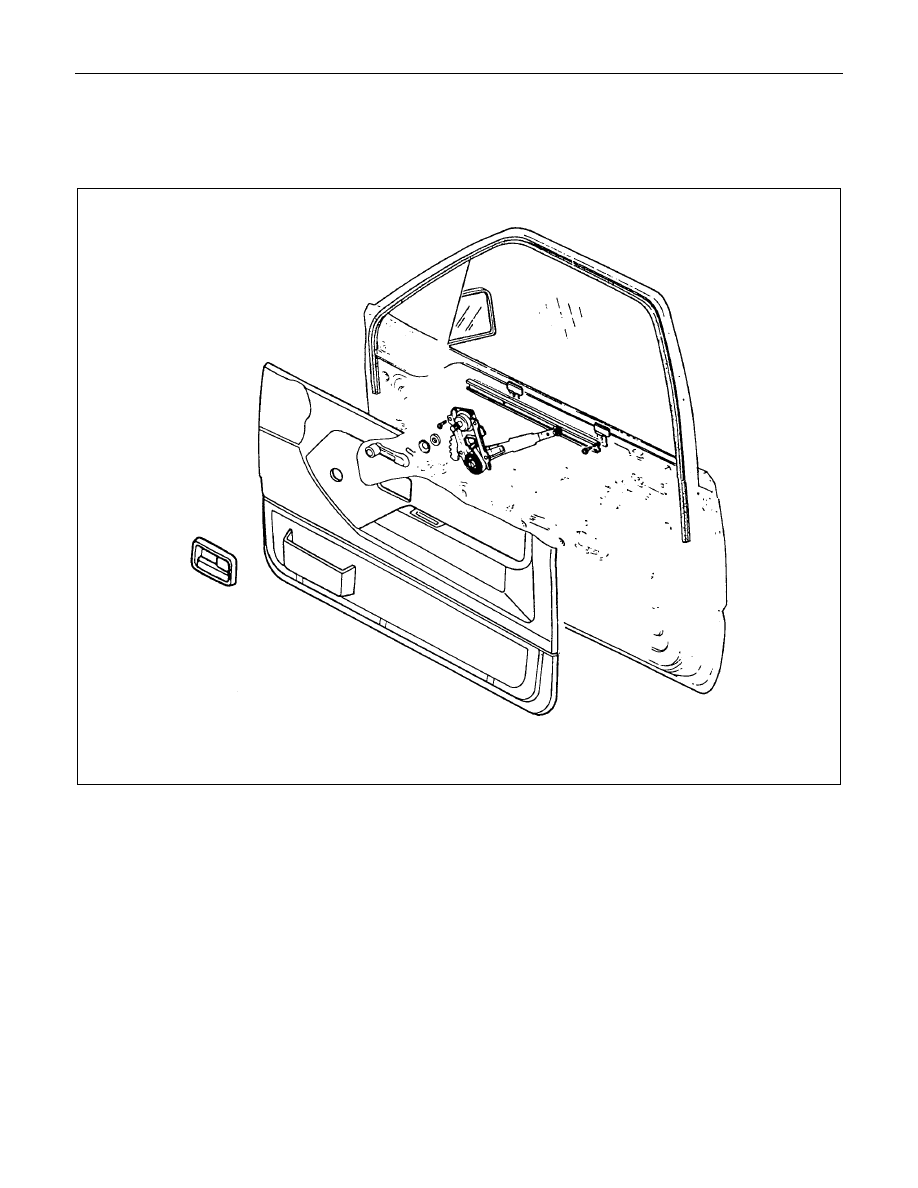

DOORS

GENERAL DESCRIPTION

CAB  10-13



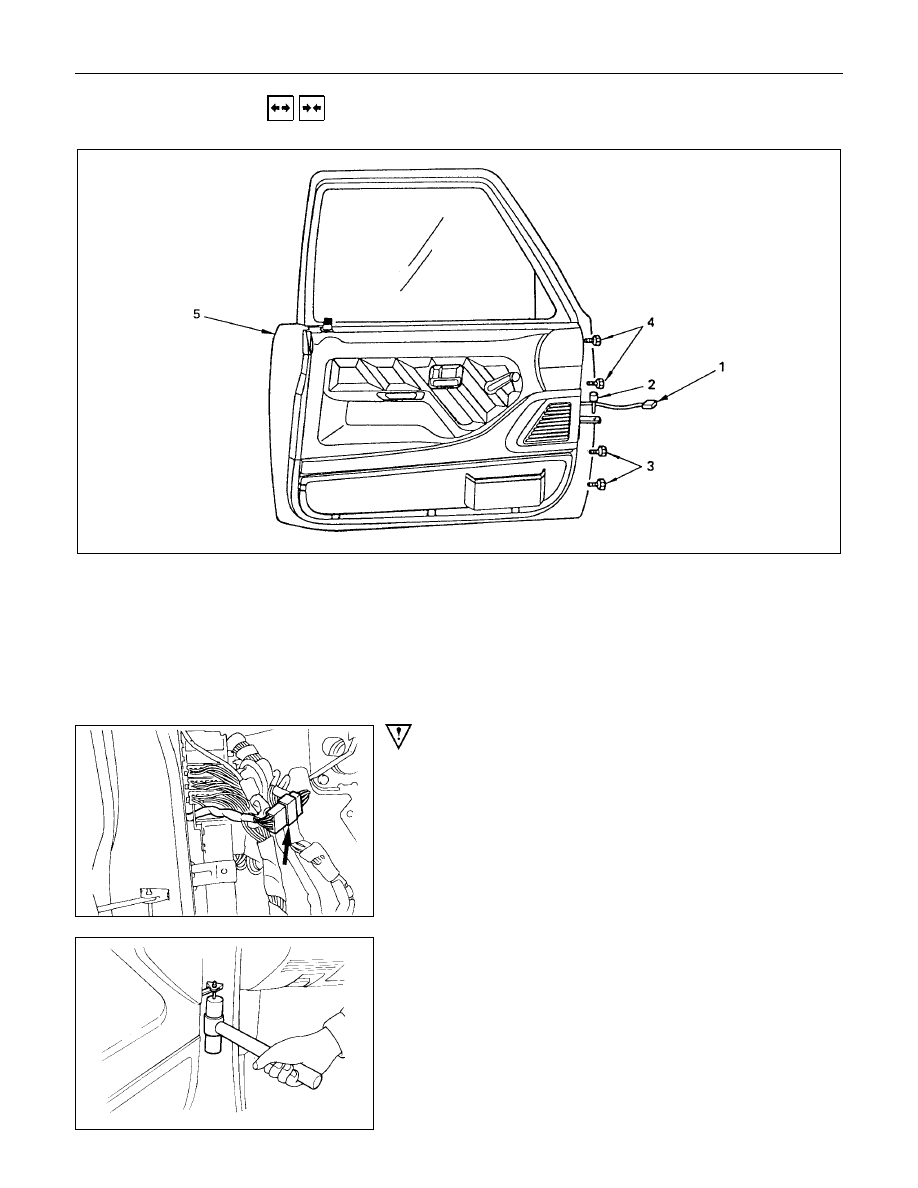

  REMOVAL AND INSTALLATION

Removal Steps

V

1. Door harness

V

2. Checker pin

V

3. Lower hinge
4. Upper hinge
5. Door assembly

Installation Steps

5. Door assembly
4. Upper hinge
3. Lower hinge
2. Checker pin
1. Door harness

Important Operation - Removal

1. Door Harness

Disconnect the door harness.

2. Checker Pin

10-14  CAB

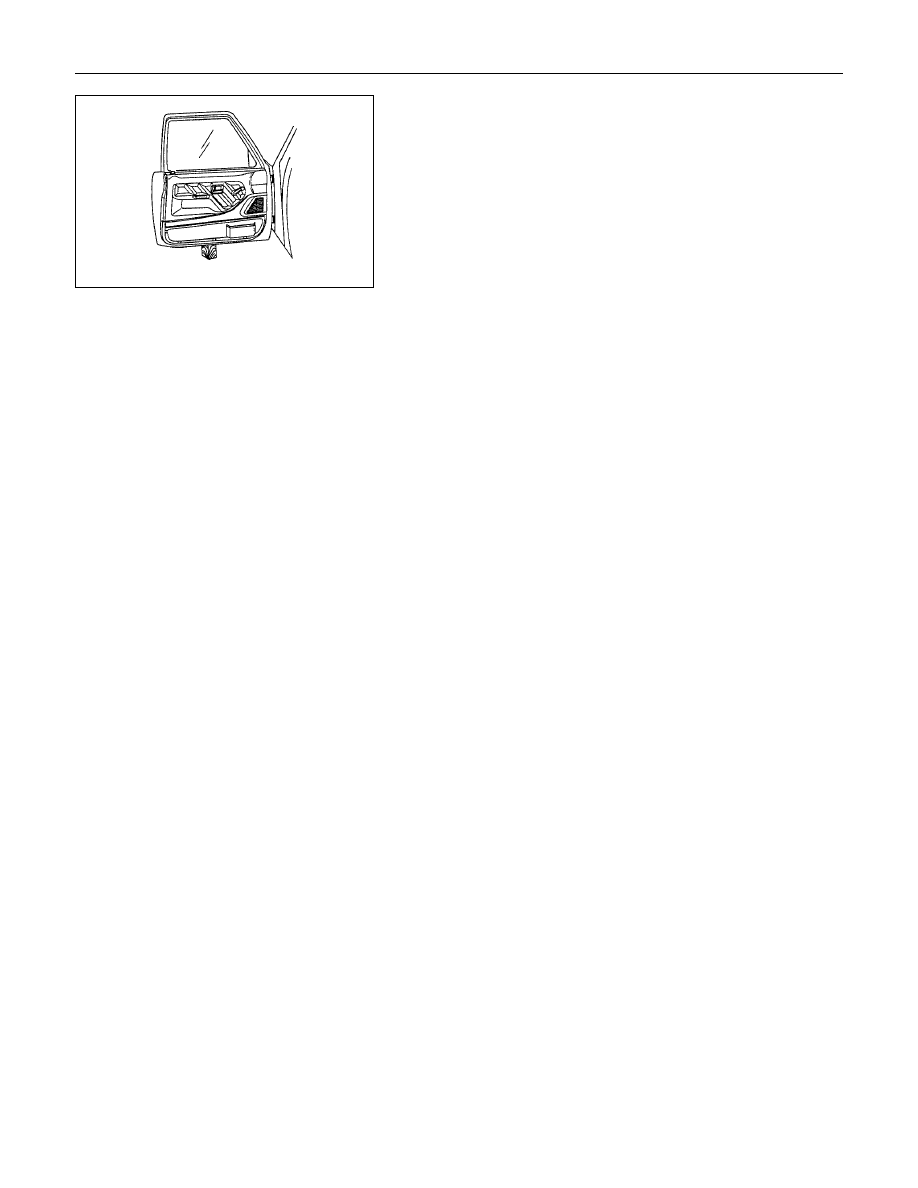

3. Lower Hinge
Position a wood block under the door for protection and
support the door assembly with hands at removal or
installation.

CAB  10-15

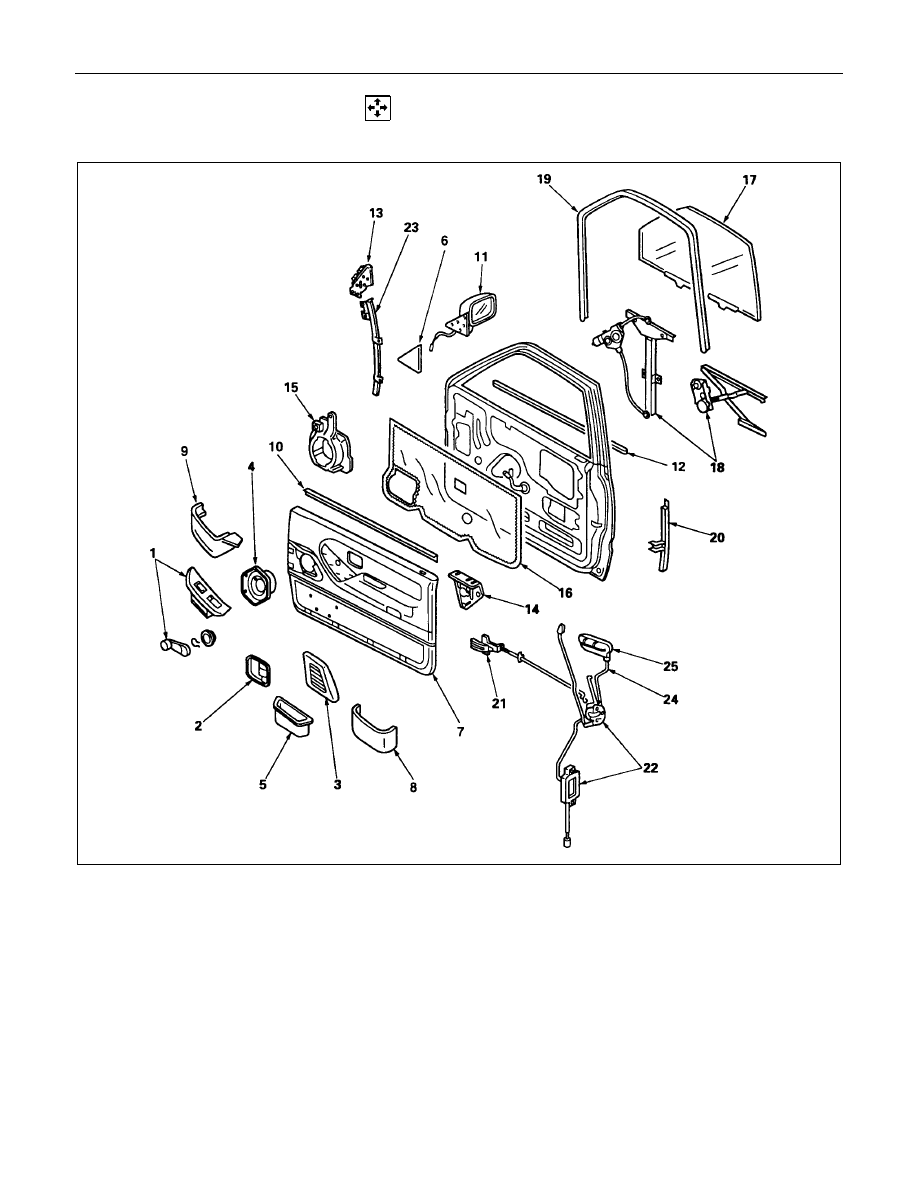

  DISASSEMBLY

(Front Door)

Disassembly Steps

V

1. Power window switch/Windows regulator

handle

V

2. Bezel

V

3. Speaker grill

V

4. Speaker assembly

V

5. Door pull case

V

6. Door mirror cover

V

7. Door trim pad

V

8. Door pocket

V

9. Power window box

V

10. Inner waste seal

V

11. Door mirror assembly

V

12. Outer waste seal

V

13. Door mirror bracket

V

14. Bracket

V

15. Speaker box

V

16. Water-proof sheet

V

17. Window glass

V

18. Window regulator/Power window motor

V

19. Glass run

V

20. Glass run rear channel

V

21. Inside lever

V

22. Door lock assembly/Door lock actuator

V

23. Glass run front channel

V

24. Door lock cylinder

V

25. Outside handle
