448

uu

When Driving

u

Cruise Control

*

Driving

Take your foot off the pedal and press the −/SET button when you reach the desired
speed.

The moment you release the −/SET button, the set speed is fixed, and cruise control
begins. The CRUISE CONTROL indicator comes on.

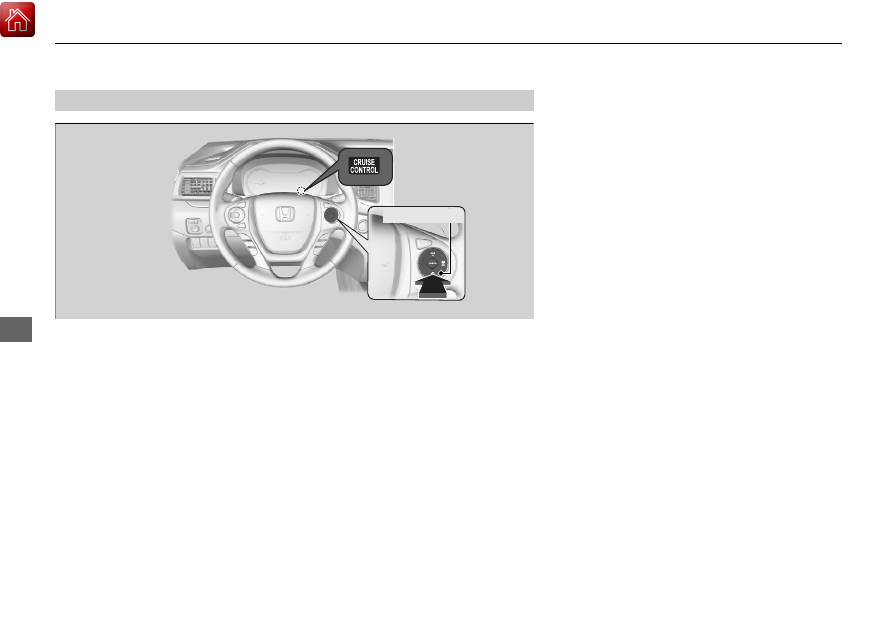

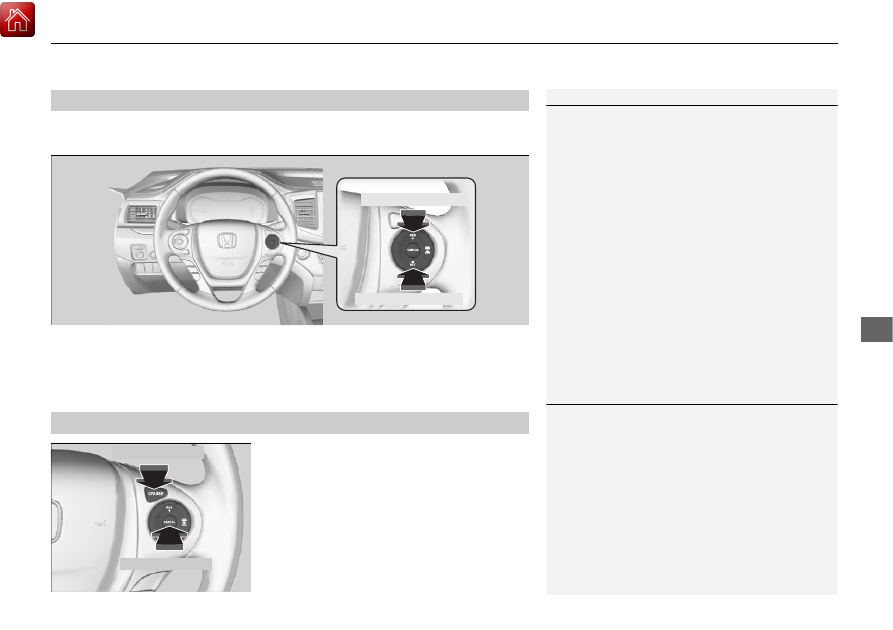

To Set the Vehicle Speed

−/SET Button

On when cruise control begins

Press and release

449

uu

When Driving

u

Cruise Control

*

Driving

Increase or decrease the vehicle speed using the RES/+ or −/SET buttons on the
steering wheel.

• Each time you press the button, the vehicle speed is increased or decreased by

about 1 mph (1.6 km/h).

• If you keep the button pressed, the vehicle speed increases or decreases until you

release it. This speed is then set.

To cancel cruise control, do any of the
following:
• Press the CRUISE button.
• Press the CANCEL button.
• Depress the brake pedal.
The CRUISE CONTROL indicator goes off.

To Adjust the Vehicle Speed

1

To Adjust the Vehicle Speed

You can set the vehicle speed using the RES/+ or −/
SET
 button on the steering wheel when adjusting the
speed with the accelerator and brake pedals.

To Cancel

To decrease speed

To increase speed

1

To Cancel

Resuming the prior set speed:
After cruise control has been canceled, you can still
resume the prior set speed by pressing the RES/+
button while driving at a speed of at least 25 mph (40
km/h) or more.

You cannot set or resume in the following situations:

When vehicle speed is less than 25 mph (40 km/h)

When the CRUISE button is turned off

At vehicle speeds of 22 mph (35 km/h) or less, cruise
control is canceled automatically.

CRUISE Button

CANCEL Button

450

uu

When Driving

u

Front Sensor Camera

*

Driving

Front Sensor Camera

*

The camera, used in systems such as LKAS, RDM, ACC, and CMBS

TM

, is designed to

detect an object that triggers any of the systems to operate its functions.

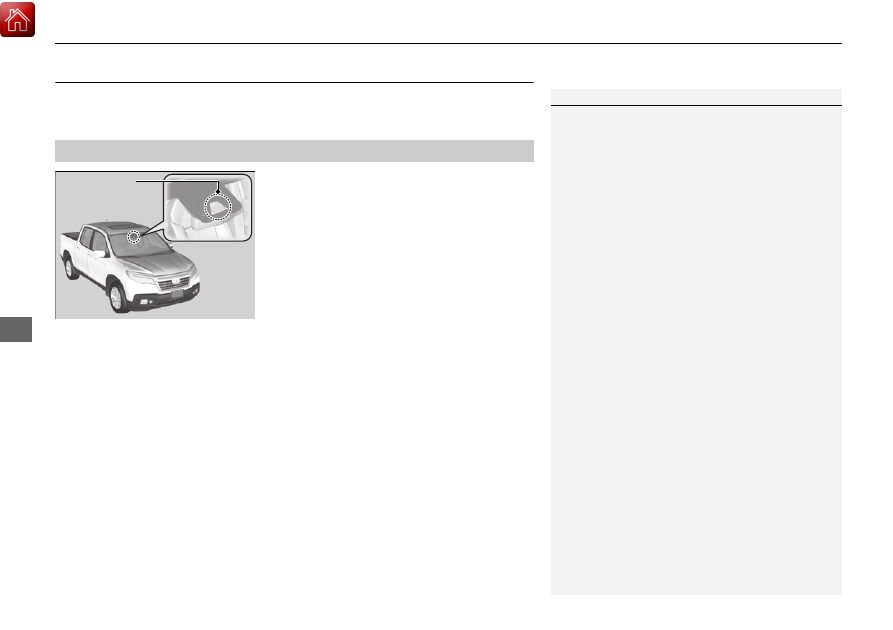

This camera is located behind the rearview
mirror.

To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
system to shut off, when parking, find a shady
area or face the front of the vehicle away from
the sun. If you use a reflective sun shade, do
not allow it to cover the camera housing.
Covering the camera can concentrate heat on
it.

Camera Location and Handling Tips

1

Front Sensor Camera

*

Never apply a film or attach any objects to
windshield, the hood, or the front grill that could
obstruct the camera’s field of vision and cause the
system to operate abnormally.
Scratches, nicks, and other damage to the windshield
within the camera’s field of vision can cause the
system to operate abnormally. If this occurs, we
recommend that you replace the windshield with a
genuine Honda replacement windshield. Making
even minor repairs within the camera’s field of vision
or installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing the windshield, have a dealer
recalibrate the camera. Proper calibration of the
camera is necessary for the system to operate
properly.

Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.

Front Sensor
Camera

* Not available on all models

451

uu

When Driving

u

Front Sensor Camera

*

Driving

1

Front Sensor Camera

*

If the Some Driver Assist Systems Cannot
Operate:


 message appears:

Use the heating and cooling system

*

/climate

control system

*

 to cool down the interior and, if

necessary, also use defroster mode with the air
flow directed towards the camera.

Start driving the vehicle to lower the windshield
temperature, which cools down the area around
the camera.

If the Some Driver Assist Systems Cannot
Operate:


 message appears:

Park your vehicle in a safe place, and clean the
windshield. If the message does not disappear after
you have cleaned the windshield and driven for a
while, have your vehicle checked by a dealer.

* Not available on all models

452

uu

When Driving

u

Road Departure Mitigation (RDM) System

*

Driving

Road Departure Mitigation (RDM) System

*

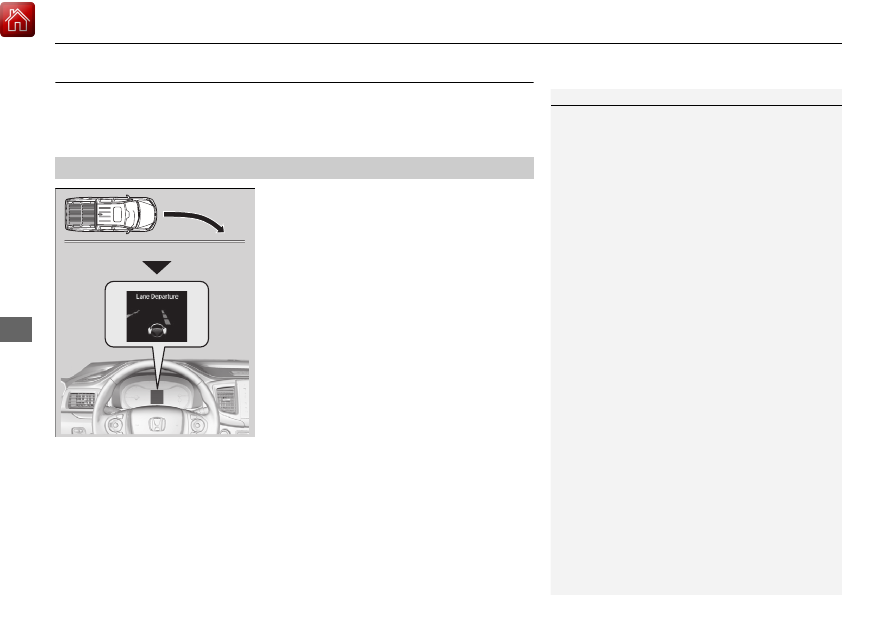

Alerts and helps to assist you when the system detects a possibility of your vehicle
unintentionally crossing over detected lane markings and/or leaving the roadway
altogether.

The front camera behind the rearview mirror
monitors left and right lane markings (in white
or yellow). If your vehicle is getting too close to
detected lane markings without a turn signal
activated, the system, in addition to a visual
alert, applies steering torque and alerts you
with rapid vibrations on the steering wheel, to
help you remain within the detected lane.

As a visual alert, the Lane Departure
message appears on the multi-information
display.

If the system determines that its steering input
is insufficient to keep your vehicle on the
roadway, it may apply braking.

u

Braking is applied only when the lane
markings are solid continuous lines.

The system cancels assisting operations when you turn the steering wheel to avoid
crossing over detected lane markings.

If the system operates several times without detecting driver response, the system
beeps to alert you.

How the System Works

1

Road Departure Mitigation (RDM) System

*

Important Safety Reminder
Like all assistance systems, the RDM system has
limitations.
Over-reliance on the RDM system may result in a
collision. It is always your responsibility to keep the
vehicle within your driving lane.

The RDM system only alerts you when lane drift is
detected without a turn signal in use. The RDM
system may not detect all lane markings or lane or
roadway departures; accuracy will vary based on
weather, speed and lane marker condition. It is
always your responsibility to safely operate the
vehicle and avoid collisions.

You can read about handling information for the
camera equipped with this system.

Front Sensor Camera

*

 P. 450

The RDM system may not work properly or may work
improperly under the certain conditions:

RDM Conditions and Limitations P. 455

There are times when you may not notice RDM
functions due to your operation of the vehicle, or
road surface conditions.

* Not available on all models

Continued

453

uu

When Driving

u

Road Departure Mitigation (RDM) System

*

Driving

The system becomes ready to start searching for lane markings when all the
following conditions are met:
• The vehicle is traveling between about 45 and 90 mph (72 and 145 km/h).
• The vehicle is on a straight or slightly curved road.
• The turn signals are off.
• The brake pedal is not depressed.
• The wipers are not in continuous operation.
• The system makes a determination that the driver is not actively accelerating,

braking or steering.

How the System Activates

1

How the System Activates

The RDM system may automatically shut off and the

 indicator comes and stays on.

Indicators P. 84

The RDM system function can be impacted when the
vehicle is:

Not driven within a traffic lane.

Driven on the inside edge of a curve, or outside of
a lane.

Driven in a narrow lane.

uu

When Driving

u

Road Departure Mitigation (RDM) System

*

454

Driving

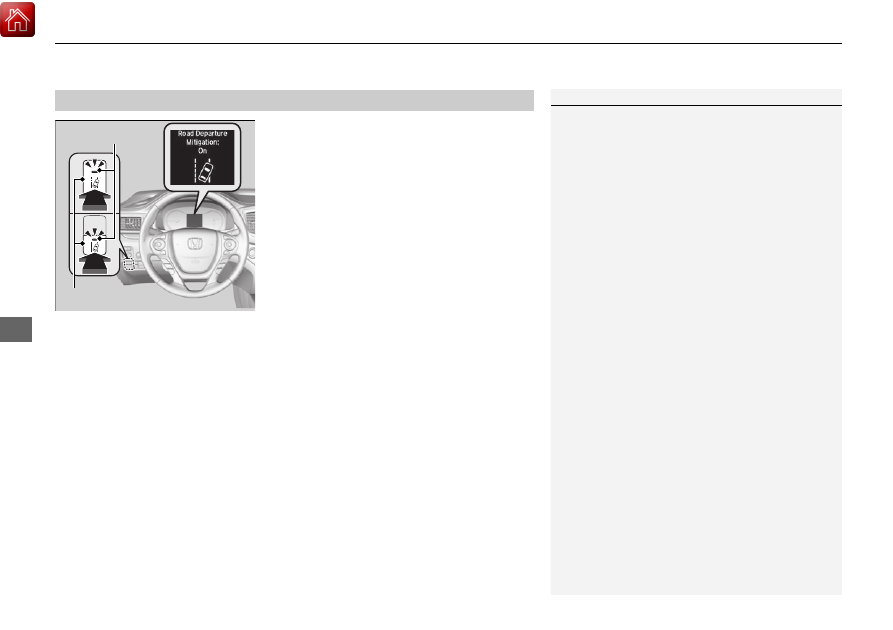

Press the RDM button to turn the system on
and off.

u

The indicator in the button comes on and
the message appears on the multi-
information display when the system is
on.

RDM On and Off

1

RDM On and Off

When you have selected Warning Only from the
customized options using the audio/information
screen, the system does not operate the steering
wheel and braking.

RDM Button

Indicator

455

uu

When Driving

u

Road Departure Mitigation (RDM) System

*

Continued

Driving

The system may not properly detect lane markings and the position of your vehicle
under certain conditions. Some examples of these conditions are listed below.

Environmental conditions

• Driving in bad weather (rain, fog, snow, etc.).
• Sudden changes between light and dark, such as an entrance or exit of a tunnel.
• There is little contrast between lane lines and the roadway surface.
• Driving into low sunlight (e.g., at dawn or dusk).
• Strong light is reflected onto the roadway.
• Driving in the shadows of trees, buildings, etc.
• Shadows of adjacent objects are parallel to lane markings.
• Roadway objects or structures are misinterpreted as lane markers.
• Reflections on the interior of the front windshield.

RDM Conditions and Limitations

456

uu

When Driving

u

Road Departure Mitigation (RDM) System

*

Driving

Roadway conditions

• Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,

reflected lights, road spray, high contrast).

• Driving on a road with temporary lane markings.
• Faint, multiple, or varied lane markings are visible on the roadway due to road

repairs or old lane markings.

• The roadway has merging, split, or crossing lines (e.g., such as at an intersection

or crosswalk).

• The lane markings are extremely narrow, wide, or changing.
• The vehicle in front of you is driving near the lane lines.
• The road is hilly or the vehicle is approaching the crest of a hill.
• Driving on rough or unpaved roads, or over bumpy surfaces.
• When objects on the road (curb, guard rail, pylons, etc.) are recognized as white

lines (or yellow lines).

• When driving on roads with double lines.

Vehicle conditions

• Headlight lenses are dirty or the headlights are not properly adjusted.
• The outside of the windshield is streaked or blocked by dirt, mud, leaves, wet

snow, etc.

• The inside of the windshield is fogged.
• The camera temperature gets too hot.
• An abnormal tire or wheel condition (wrong sized, varied size or construction,

improperly inflated, compact spare tire, etc.).

• The vehicle is tilted due to a heavy load or suspension modifications.
• When tire chains are installed.

457

uu

When Driving

u

Adaptive Cruise Control (ACC)

*

Continued

Driving

Adaptive Cruise Control (ACC)

*

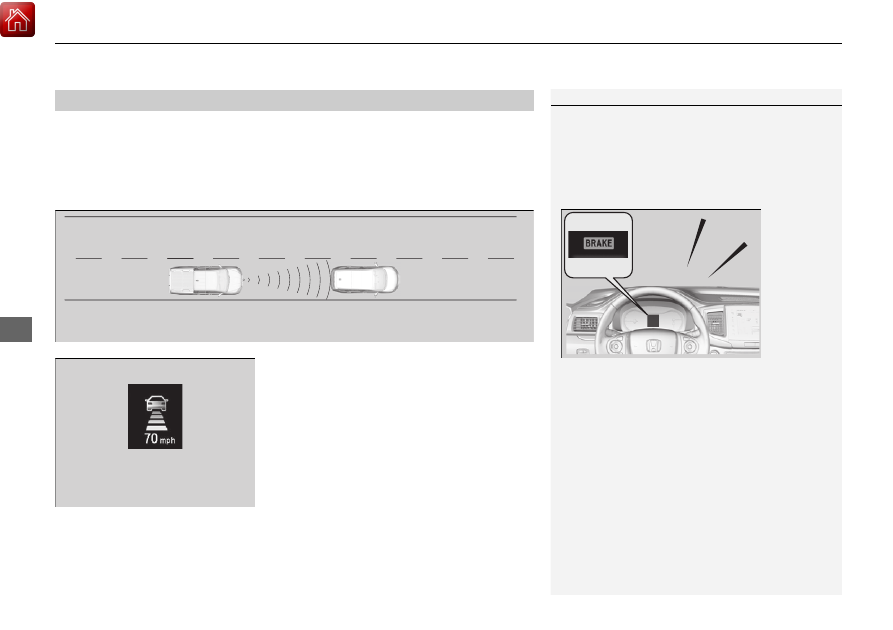

Helps maintain a constant vehicle speed and a set following interval behind a vehicle
detected ahead of yours, without you having to keep your foot on the brake or the
accelerator.

1

Adaptive Cruise Control (ACC)

*

Important Reminder
As with any system, there are limits to ACC. Use the
brake pedal whenever necessary, and always keep a
safe interval between your vehicle and other vehicles.

Be careful not to have the radar sensor cover strongly
impacted.

3

WARNING

Improper use of ACC can lead to a crash.

Use ACC only when traveling on open
highways in good weather.

3

WARNING

ACC has limited braking capability.

When your vehicle speed drops below 22
mph, ACC will automatically cancel and no
longer will apply your vehicle’s brakes.

Always be prepared to apply the brake
pedal when conditions require.

When to use

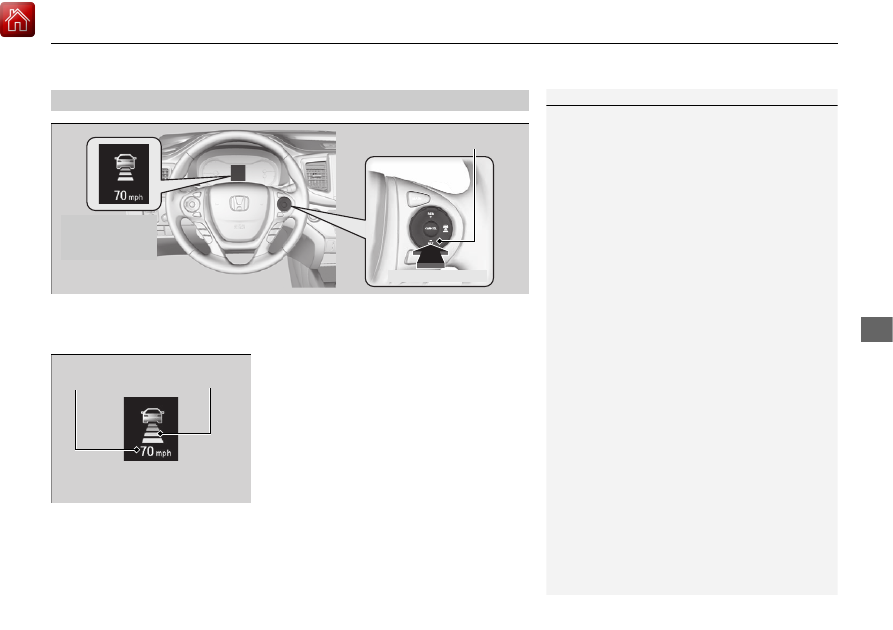

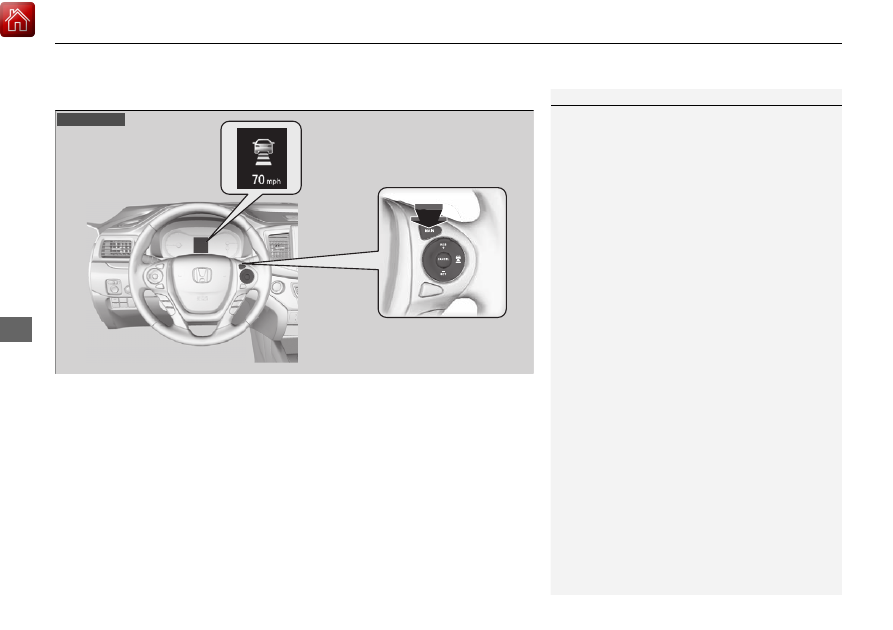

Vehicle speed for adaptive cruise control: Desired speed in a
range above roughly 25 mph (40 km/h) ~

Shift positions for adaptive cruise control: In

(

D

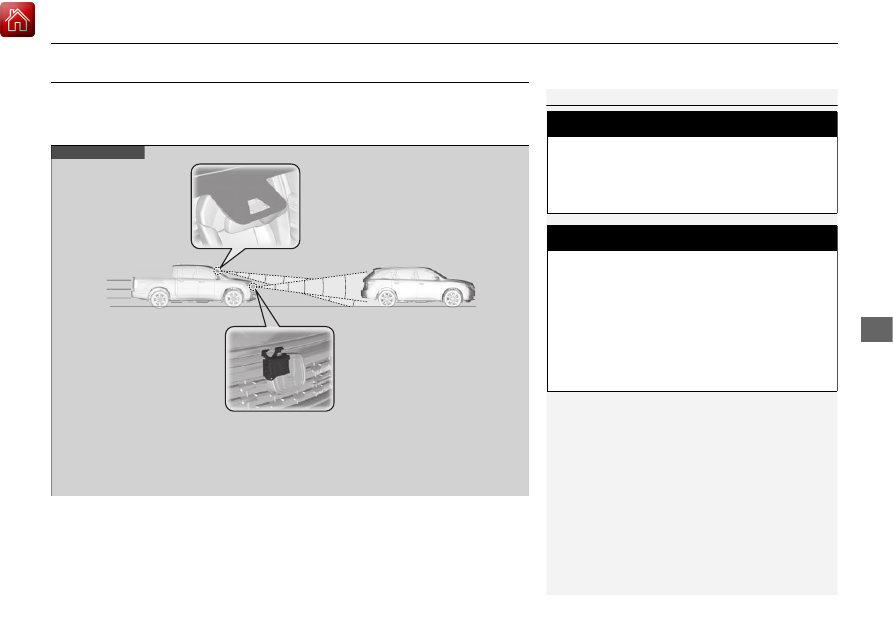

The radar sensor is in the
front grille.

The camera is located
behind the rearview
mirror.

* Not available on all models

uu

When Driving

u

Adaptive Cruise Control (ACC)

*

458

Driving

How to activate the system

1

Adaptive Cruise Control (ACC)

*

When the MAIN button is pressed, both ACC and
the Lane Keeping Assist System (LKAS) are either
turned on or off.

ACC may not work properly under certain conditions.

ACC Conditions and Limitations P. 462

When not using ACC: Turn off adaptive cruise by
pressing the MAIN button. This also will turn off the
Lane Keeping Assist System (LKAS).

Do not use ACC under the following conditions:

On roads with heavy traffic or while driving in
continuous stop and go traffic.

On roads with sharp turns.

On roads with steep downhill sections, as the set
vehicle speed can be exceeded by coasting. In such
cases, ACC will not apply the brakes to maintain
the set speed.

On roads with toll collection facilities or other
objects between lanes of traffic, or in parking
areas, or facilities with drive through access.

Press the MAIN button on
the steering wheel.

ACC (green) is on in the
multi-information display.
Adaptive cruise control is
ready to use.

How to use

* Not available on all models

Continued

459

uu

When Driving

u

Adaptive Cruise Control (ACC)

*

Driving

Take your foot off the pedal and press down the –/SET button when you reach the
desired speed. The moment you release the button, the set speed is fixed, and ACC
begins.

When ACC starts operating, the vehicle icon,
interval bars and set speed appear on the
multi-information display.

To Set the Vehicle Speed

1

To Set the Vehicle Speed

You can switch the displayed set speed
measurements on the audio/information screen
between mph and km/h.

Customized Features P. 318

On when
adaptive cruise
control begins

Press and release

–/SET Button

Set Vehicle
Interval

Set Vehicle
Speed

uu

When Driving

u

Adaptive Cruise Control (ACC)

*

460

Driving

There is a vehicle ahead

ACC monitors if a vehicle ahead of you enters the ACC range. If a vehicle is detected
doing so, the ACC system maintains or decelerates your vehicle’s set speed in order
to keep the vehicle’s set following interval from the vehicle ahead.

To Set or Change Following Interval P. 465

When a vehicle whose speed is slower than
your set speed is detected in front of you, your
vehicle starts to slow down.

When in Operation

1

When in Operation

If the vehicle ahead of you slows down abruptly, or if
another vehicle cuts in front of you, the beeper
sounds, a message appears on the multi-information
display.
Depress the brake pedal, and keep an appropriate
interval from the vehicle ahead.

Even if the interval between your vehicle and the
vehicle ahead is short, ACC may start accelerating
your vehicle under the following circumstances:

The vehicle ahead of you is going at almost the
same speed as, or faster than, your vehicle.

A vehicle that cuts in front of you is going faster
than your vehicle, gradually increasing the interval
between the vehicles.

You can also set the system to beep when a vehicle in
front of you comes in and goes out of the ACC
detecting range. Change the ACC Forward Vehicle
Detect Beep
 setting.

Customized Features P. 318

Beep

ACC Range: 394 ft. (120 m)

A vehicle icon appears on the
multi-information display

Continued

461

uu

When Driving

u

Adaptive Cruise Control (ACC)

*

Driving

There is no vehicle ahead

Your vehicle maintains the set speed without
having to keep your foot on the brake or
accelerator pedal.
If there previously was a vehicle detected
ahead that kept your vehicle from traveling at
the set speed, ACC accelerates your vehicle to
the set speed, and then maintains it.

When you depress the accelerator pedal

You can temporarily increase the vehicle speed.
ACC stays on unless you cancel it. Once you release the accelerator pedal, the
system resumes the set speed or a sufficient speed to keep the following interval.

1

When you depress the accelerator pedal

While the accelerator pedal is depressed, the system
does not apply the brakes to keep the following
interval, as well as the BRAKE message on the multi-
information display does not appear.

When in Operation P. 460

A vehicle icon with dotted-line
contour appears on the multi-
information display.

uu

When Driving

u

Adaptive Cruise Control (ACC)

*

462

Driving

The system may automatically shut off and the ACC indicator will come on under
certain conditions. Some examples of these conditions are listed below. Other
conditions may reduce some of the ACC functions.

Front Sensor Camera

*

 P. 450

Environmental conditions

Driving in bad weather (rain, fog, snow, etc.).

Roadway conditions

Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks, reflected
lights, road spray, high contrast).

Vehicle conditions

• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• An abnormal tire or wheel condition (wrong sized, varied size or construction,

improperly inflated, compact spare tire, etc.).

• The camera temperature gets too high.
• The parking brake is applied.
• When the radar sensor cover is dirty.
• The vehicle is tilted due to a heavy load or suspension modifications.
• When tire chains are installed.

ACC Conditions and Limitations

1

ACC Conditions and Limitations

The radar sensor for ACC is shared with the collision
mitigation braking system

TM

 (CMBS

TM

).

Collision Mitigation Braking System

TM



(CMBS

TM

)

*

 P. 494

Do not put a sticker on the radar sensor cover or
replace the radar sensor cover.

Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).

If the front of the vehicle is impacted in any of the
following situations, the radar sensor may not work
properly. Have your vehicle checked by a dealer:

The vehicle mounted onto a bump, curb, chock,
embankment, etc.

You drive the vehicle where the water is deep.

Your vehicle has a frontal collision.

You can read about handling information for the
camera equipped with this system.

Front Sensor Camera

*

 P. 450

* Not available on all models

463

uu

When Driving

u

Adaptive Cruise Control (ACC)

*

Continued

Driving

Detection limitations

• A vehicle or pedestrian suddenly crosses in front of you.
• The interval between your vehicle and the vehicle or pedestrian ahead of you is

too short.

• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle or pedestrian ahead of you

at high speed.

• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter, or other small

vehicle.

• When there are animals in front of your vehicle.
• When you drive on a curved or winding or undulating road that makes it difficult

for the sensor to properly detect a vehicle or a pedestrian in front of you.

• The speed difference between your vehicle and a vehicle or pedestrian in front of

you is significantly large.

• An oncoming vehicle suddenly comes in front of you.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
• When driving through a narrow iron bridge.
• When the vehicle ahead of you brakes suddenly.
• When the vehicle ahead of you has a unique shape.
• When your vehicle or the vehicle ahead of you is driving on one edge of the lane.















Content   ..  27  28  29  30   ..
